Scotsman TouchFree MDT5N40 User manual

MDT5N40 – TouchFree® Ice Machine / Dispenser

Scotsman Ice Systems

775 Corporate Woods Parkway

Vernon Hills, IL 60061

1-800-SCOTSMAN

Fax: 847-913-9844

E-mail: customer[email protected]

www.scotsman-ice.com

Features

Nugget Ice Machine / Dispenser

Warranty

• 2 years parts and labor on all components.

• 5 years parts on compressor.

Warranty valid in North, South & Central America.

Contact factory for warranty in other regions.

24 Hour Volume Production

Nugget Ice

Makes and dispenses soft, chewable nugget ice.

Sleek, european design with attractive rounded corners and informative instruction

labels.

Up to 25% less fan noise allows installation of the unit in the quietest hallways.

Improved dispensing with easier access and room for most containers.

TouchFree® actuation provides convenient one-hand operations and eliminates the

risk of cross contamination.

Flexible utility location.

The Original Chewable Ice™!

Easy to chew, cools drinks rapidly.

70˚F/21˚C Air 90˚F/32˚C

50˚F/10˚C Water 70˚F/21˚C

lb/kg lb/kg

523/237 409/186

Air Cooled

Sanitary One Hand Operation

Easily fills various sizes and

types of containers.

70˚F/21˚C Air 90˚F/32˚C

50˚F/10˚C Water 70˚F/21˚C

lb/kg lb/kg

525/239 455/207

Water Cooled

MDT5N40 – TouchFree® Ice Machine / Dispenser

Scotsman Ice Systems

775 Corporate Woods Parkway

Vernon Hills, IL 60061

1-800-SCOTSMAN

Fax: 847-913-9844

E-mail: customer[email protected]

www.scotsman-ice.com

Specifications

All Models

208-230/60/1 2 2.6 15

Operating Requirements

MaximumMinimum

Air Temperatures

Water Temperatures

Remote Cond. Temps

Water Pressures

Electrical Voltage

50°F (10°C)

40°F (4.4°C)

-20°F (-29°C)

20 PSIG (1.4 bar)

-5%

100°F (38°C)

120°F (49°C)

120 PSIG (5.5 bar)

+10%

Dimensions (W x D x H):

Unit:

26” x 22.5” x 48”

(66 x 57.2 x 123 cm)

Shipping Carton:

30” x 24” x 53”

(76.2 x 61 x 134.6 cm)

Shipping Weight:

280 lb / 127 kg

Accessories

Model Number Description

* Scotsman recommends all ice machines have water filtration. See Scotsman Sanitation Matrix for details.

Installation Note: Allow 6” space at left, back and right side for ventilation and utility connections.

Specifications and design are subject to change without notice.

All units are stainless steel. Not designed for outdoor installations.

Refrigerant: R-4044a

DMS21S-B

KWB3

KSP5

KPC-MDT

KTPS-MDT

Machine Stand for MDT5N25, MDT5N40

Wall Mounting Kit for MDT5N25, MDT5N40

Splash Panel Kit for MDT5N25, MDT5N40

Portion Control Kit for MDT3, MDT4, MDT5 & MDT6

Tamper Proof Screw Kit (including tool) to convert 1 MDT Dispenser

Model Number

Condenser

Unit

Storage

Capacity

lb/kg

Basic Electrical

Volts/Hz/

Phase

Max. Fuse Size

or HACR Circuit

Breaker (amps)

Circuit

Wires

Min. Circuit

Ampacity

Energy Consumption

kWh/100 lb (45.4 kg)

90˚F(32˚C)/70˚F(21˚C)

Potable

90˚F(32˚C)/

70˚F(21˚C)

Condenser

90˚F(32˚C)/

70˚F(21˚C)

MDT5N40AS-1 Air 40/18 115/60/1 25 2 19.3 5.4 12/45.5 -

MDT5N40WS-1 Water 40/18 115/60/1 20 2 17.8 4.0 12/45.5 97.0/367.8

Water Usage

Gallons/100 lb (liters/45.4 kg)

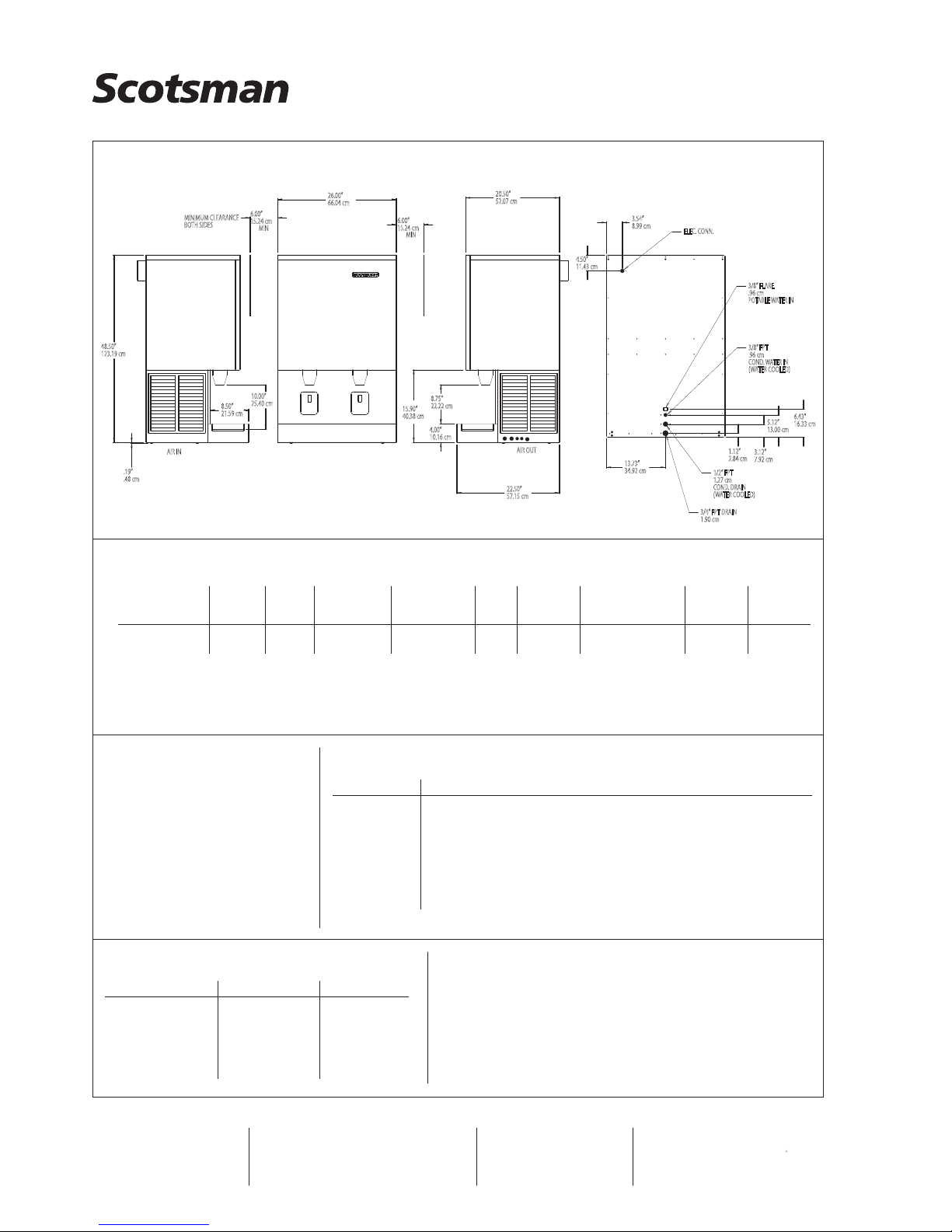

AIR OUT

AIR IN

MINIMUM CLEARANCE

BOTH SIDES

MIN

.19”

.48 cm

8.50”

21.59 cm

10.00”

25.40 cm

6.43”

16.33 cm

5.12”

13.00 cm

3.12”

7.92 cm

1.12”

2.84 cm

ELEC. CONN.

4.50”

11.43 cm

3.54”

8.99 cm

3/8” FLARE

.96 cm

POTABLE WATER IN

3/8” FPT

.96 cm

COND. WATER IN

(WATER COOLED)

1/2” FPT

1.27 cm

COND. DRAIN

(WATER COOLED)

3/4” FPT DRAIN

1.90 cm

13.73”

34.92 cm

48.50”

123.19 cm

20.50”

52.07 cm

22.50”

57.15 cm

8.75”

22.22 cm

15.90”

40.38 cm

4.00”

10.16 cm

6.00”

15.24 cm 6.00”

15.24 cm

26.00”

66.04 cm

MADE IN U.S.A.
