Scotsman ID150 User manual

INTRODUCTION

This service manual is intended as a reference for

the installer, user, and service agent of this

Scotsman ice dispenser. It includes the necessary

information to install, start up, operate, clean and

maintain this unit.

This manual contains important information, read it before beginning installation or operation.

Keep it for future reference.

ID150, ID200, ID250

May 2002

Page 1

Table of Contents

INTRODUCTION · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 1

SPECIFICATIONS · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 2

FOR THE INSTALLER · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 3

INSTALLATION · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 4

WATER GLASS FILLER KIT · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 5

WATER GLASS KIT - CONTINUED · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 6

ICE DIVERTER KIT · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 7

INITIAL START UP · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 8

GATE RESTRICTOR PLATE · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 9

CLEANING AND SANITIZING · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 10

CLEANING AND SANITIZING · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 11

TROUBLESHOOTING · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 12

SPECIFICATIONS

The ID ice dispenser is a machine that stores

manually filled ice in an insulated, sanitary

container; upon demand it dispenses that ice into a

cup or glass.

NOTE: This ice stand is designed to dispense

cubed ice only. Flaked ice will not work.

Scotsman reserves the right to make design

changes and/or improvements at any time.

Specifications and designs are subject to change

without notice.

ID150, ID200, ID250

May 2002

Page 2

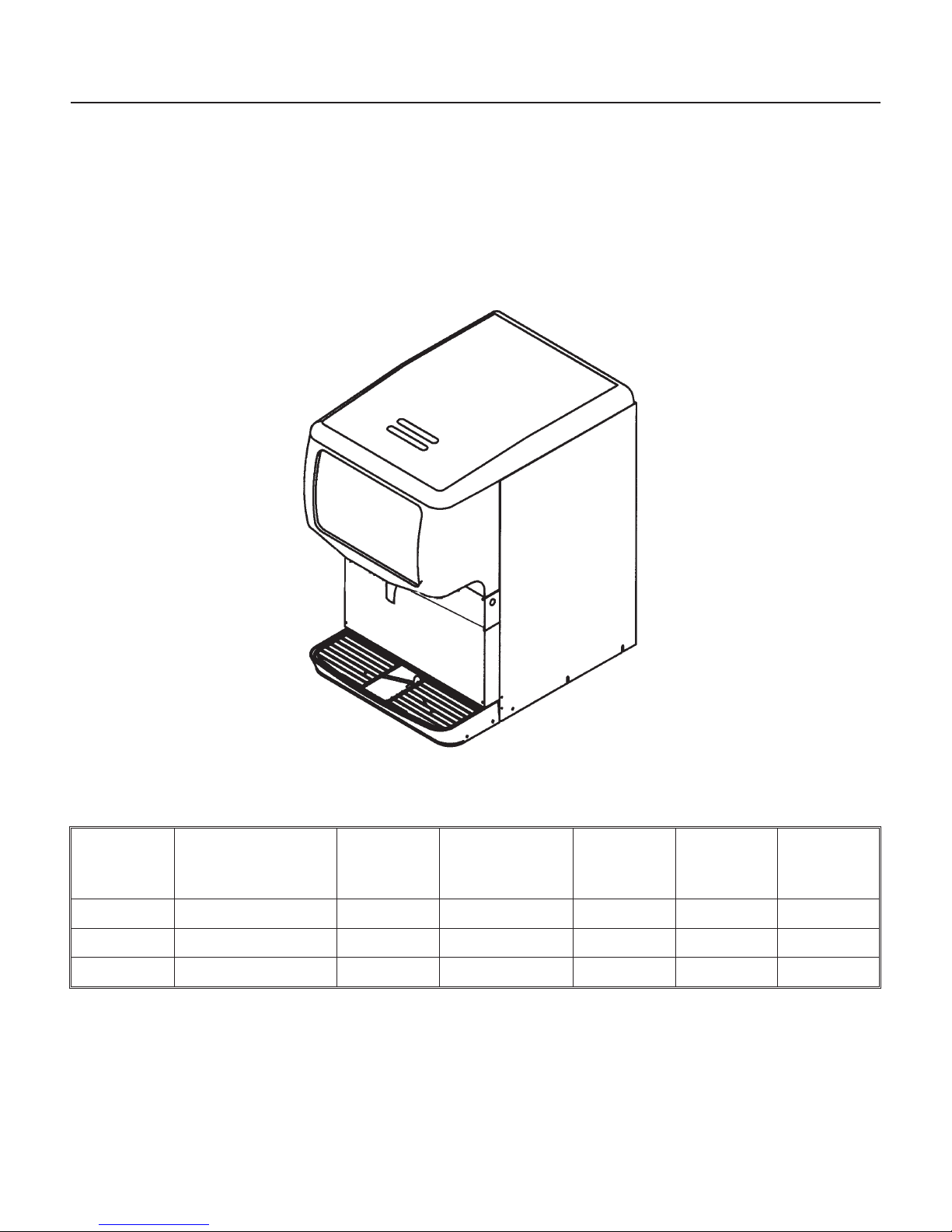

Model Dimensions

w” x d” x h”

Basic

Electrical

Hopper

Capacity

Amps Cup

Clearance

Dispense

Actuation

Method

ID150B-1A 22 x 30 x 35 5/8 115/60/1 150 lb 3.0 10” Lever

ID200B-1A 30 x 30 x 35 5/8 115/60/1 200 lb 3.5 10” Lever

ID250B-1A 30 x 30 x 39 5/8 115/60/1 250 lb 3.5 10” Lever

Note: Dispenser height includes cover (1 5/8”).

Options: Water glass filler kit (KWGFID). Diverter kit for Scotsman Nugget Ice (KNUGDIV)

Adapters: Adapters are required for placing an ice machine onto the top of this dispenser. See sales

literature for adapter information.

FOR THE INSTALLER

This ice dispenser has been specifically designed

to provide protection against personal injury and

eliminates contamination of ice. To ensure

continued protection and sanitation, observe the

following:

·ALWAYS: disconnect power to the dispenser

before servicing or cleaning.

·NEVER: place hands inside of hopper or gate

area without disconnecting power to the

dispenser.

·Agitator rotation occurs automatically when

dispenser is energized!

·ALWAYS: be sure the removable lid is properly

installed to prevent unauthorized access to the

hopper interior and possible contamination of

the ice.

·ALWAYS: be sure the upper and lower front

panels are securely fastened.

·ALWAYS: keep area around the dispenser

clean of ice cubes.

·CAUTION: Dispenser cannot be used with

crushed or flaked ice.

Use of bagged ice, which has frozen into large

chunks, can void warranty.

The dispenser agitator is not designed to be an ice

crusher. Use of large chunks of ice which “jam up”

inside the hopper will cause failure of the agitator

motor and damage to the hopper. If bagged ice is

used, it must be carefully and completely broken

into small, cube-sized pieces before filling into the

dispenser hopper.

DESCRIPTION

Designed to be manually filled with ice from any

remote ice-making source, these dispensers will

dispense cubes (up to 1-1/4” in size), cubelets and

hard-chipped or cracked ice.

IMPORTANT: For dispensing compressed or

extruded style ice, an Ice Diverter Kit must be

installed on the dispensers (see ICE DIVERTER

KIT (KNUGDIV) in INSTALLATION

INSTRUCTIONS section of this manual. The Ice

Diverter Kit is part of the KBT46 adapter.

ID150, ID200, ID250

May 2002

Page 3

INSTALLATION

1. Locate the ice dispenser on the counter. Allow

vertical clearance above unit for the removal of the

cover, and for pouring ice into the hopper.

2. Plan the unit drain. A 1” I.D. drain tube is

required for draining. Routing is either thru the

back or base. Sufficient fittings are included with

the unit to install in most cases.

3. In order to comply with National Sanitation

Foundation (NSF) requirements, this unit must be

either elevated above the counter top sufficiently to

provide space for cleaning under the unit or sealed

to the counter top.

Elevating the unit may be accomplished by using

the legs. They will screw into threaded holes in the

base of the unit.

Note: Before installing legs the plastic plugs

must be removed.

IMPORTANT:

It is the responsibility of the Installer to ensure that

the water supply to the dispensing equipment is

provided with protection against backflow by an air

gap as defined in ANSI/ASME A112.1.2-1979; or

an approved vacuum breaker or other such

method as proved effective by test.

Water pipe connections and fixtures directly

connected to a potable water supply shall be sized,

installed, and maintained according to Federal,

State, and Local Codes.

Drip Tray Assembly

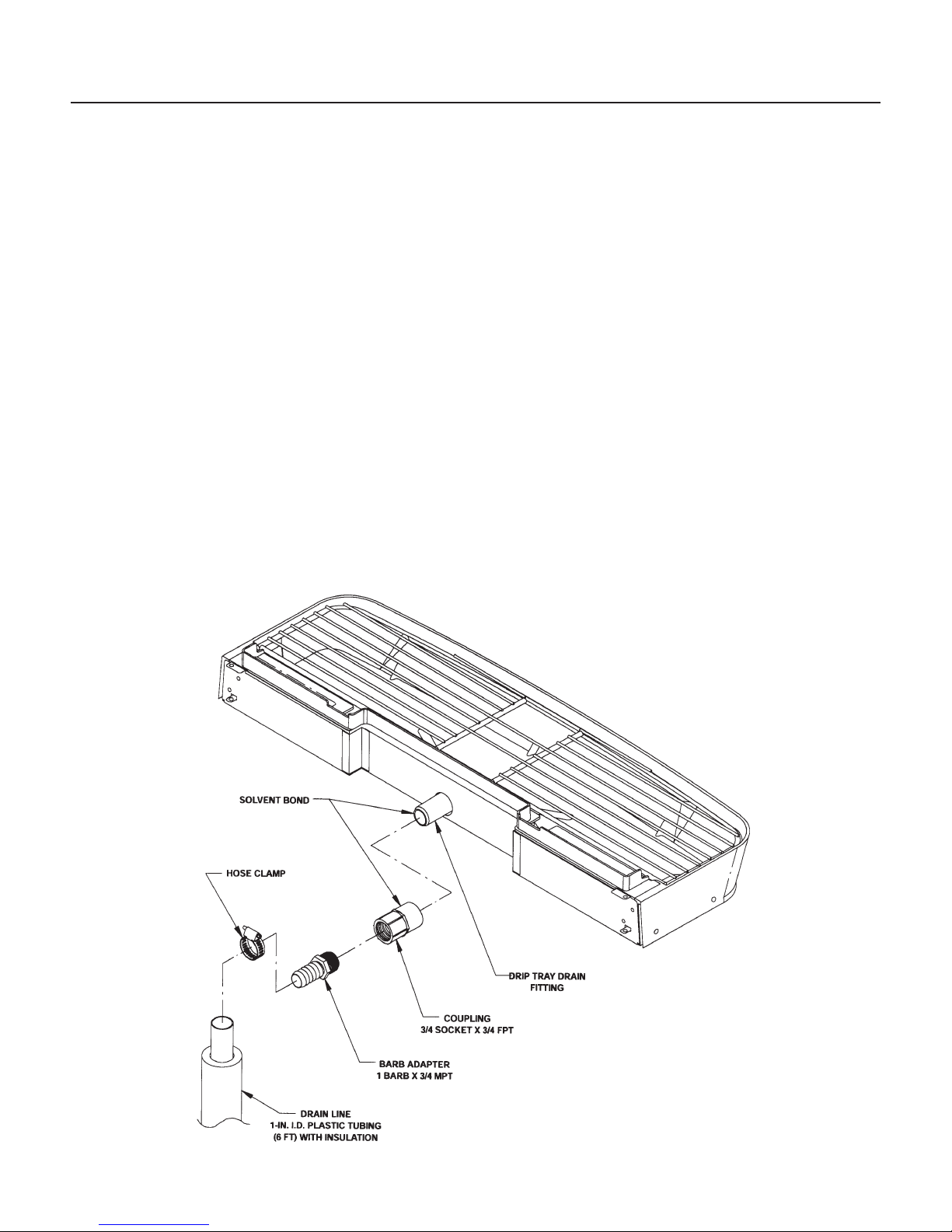

DRIP TRAY DRAIN ASSEMBLY (see illustration

below): Route the drain tube to an open drain with

the end of the tube above the “flood” level of the

drain. Use the tubing, fittings, clamps, and

insulation provided with the Dispenser to assemble

the drain. The completed drain line must pitch

continuously downward and contain no “traps” or

improper drainage will result.

NOTE: This equipment must be installed with

adequate backflow protection to comply with

federal, state, and local codes.

ID150, ID200, ID250

May 2002

Page 4

WATER GLASS FILLER KIT

Installation Instructions

WARNING: Disconnect power to unit before

proceeding with installation

1. Prepare unit as follows:

·Remove lower front panel.

·Locate new holes in front panel.

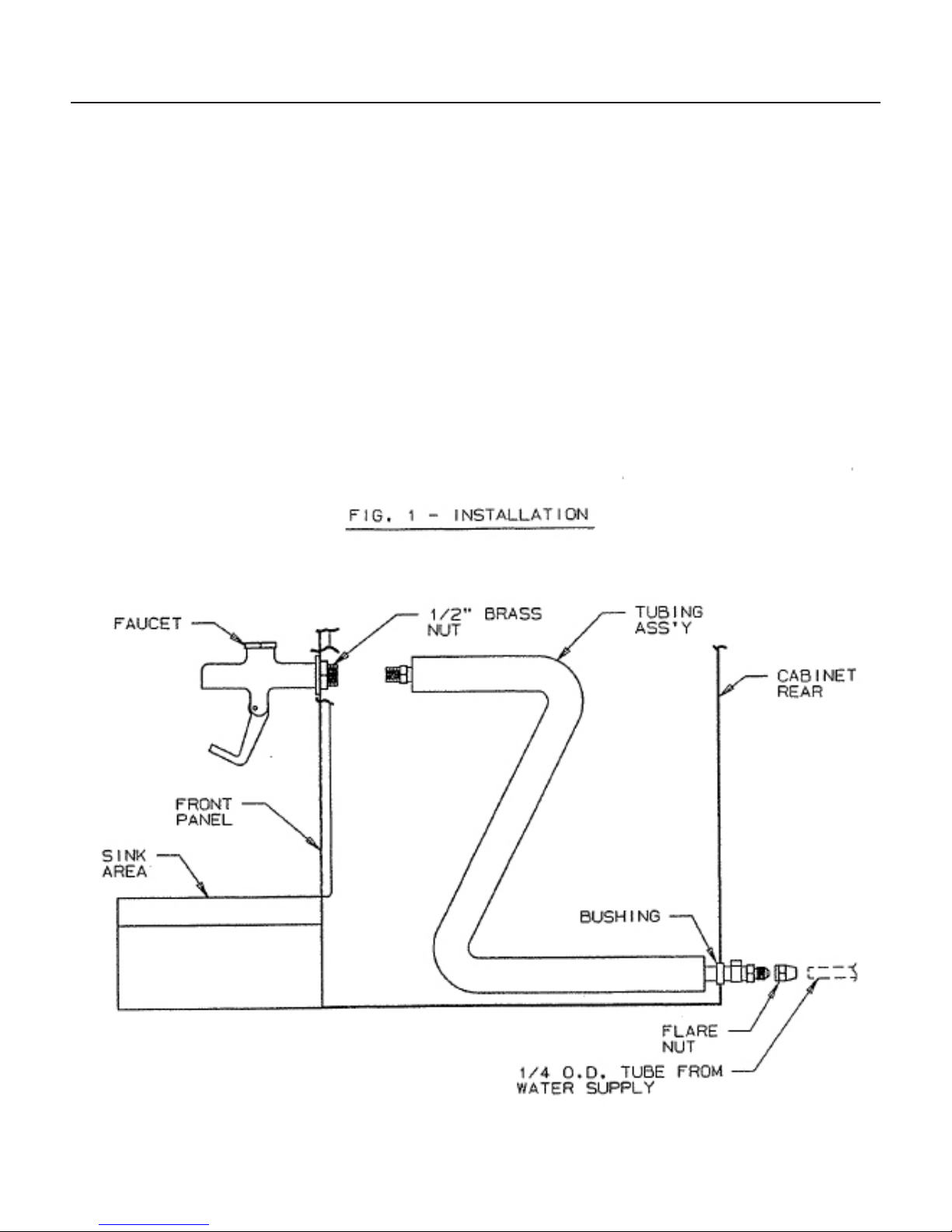

2. Install faucet and tubing assembly as shown

below.

3. Connect field water supply to ¼ male flare fitting

on tubing assembly. Apply water pressure and

check all connections for leaks. Check faucet for

proper operation. Check that tubing assembly does

not interfere with wiring or electrical components.

4. Carefully reinstall panels on unit.

ID150, ID200, ID250

May 2002

Page 5

WATER GLASS KIT - CONTINUED

ID150, ID200, ID250

May 2002

Page 6

ID150

A4”

B 2.5”

ID200, ID250

A 6 1/8”

B 3 1/8”

Water inlet can be routed either from

the back or from underneath the

dispenser.

If from the back, remove the back and

bottom access panels.

If from below, only remove the bottom

access panel.

A hole is not needed at the

intersection of C and D, unless the

back access panel is retained.

ICE DIVERTER KIT

NOTE: For dispensing Scotsman Nugget Ice:

1. Disconnect power to dispenser.

2. Remove Merchandiser from dispenser.

3. Remove ice chute and discard gate restrictor.

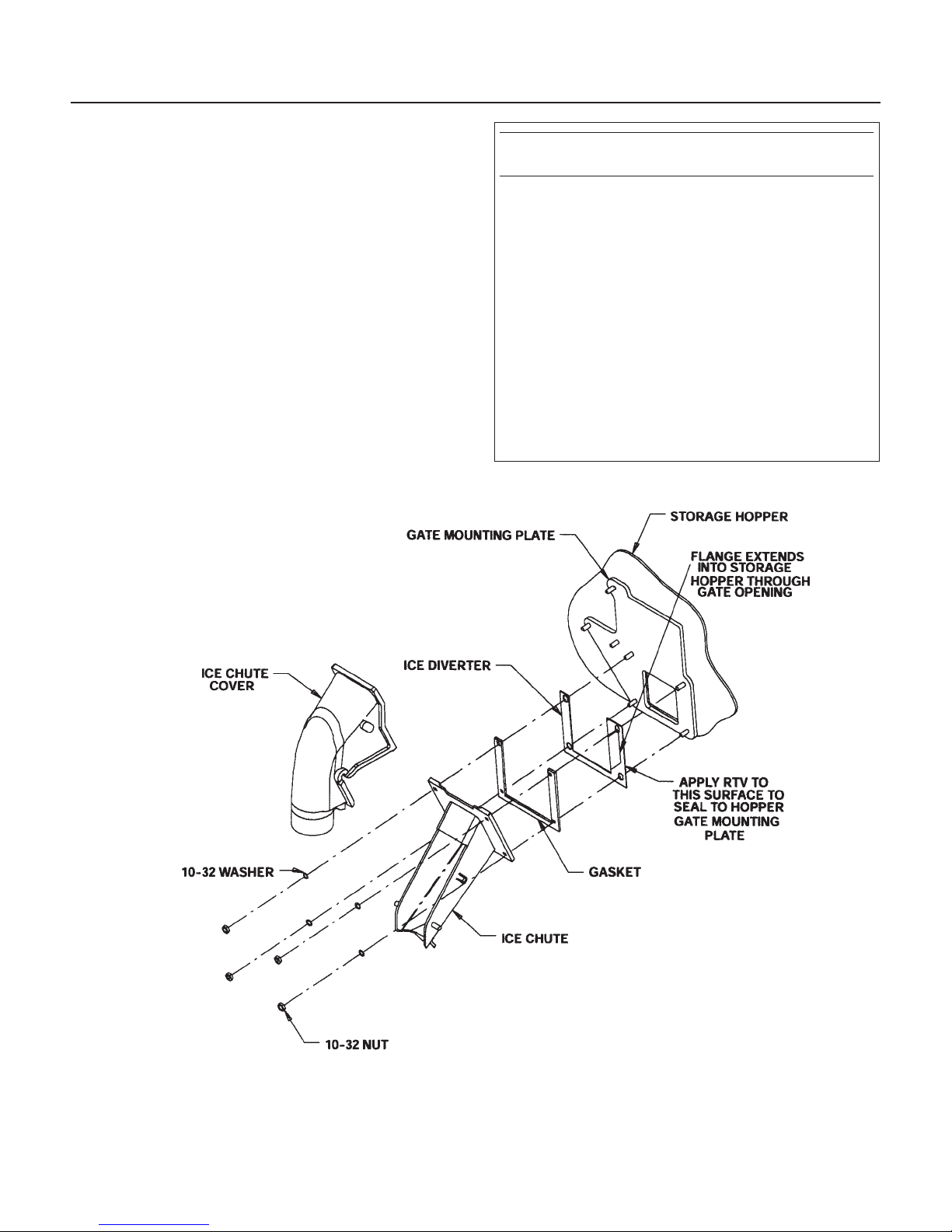

4. Install ice diverter on gate mounting plate as

shown below.

5. Apply RTV to back surface of ice diverter, to seal

to gate mounting plate.

6. Reinstall gasket and ice chute.

7. Reinstall merchandiser and energize unit.

ID150, ID200, ID250

May 2002

Page 7

Note: The agitation timer must be adjusted to the

MINIMUM position when dispensing nugget ice.

The timer is located in the electrical box. There

are two items to adjust. One is the Motor On

Time. Set that to the minimum of one half

second. The other is the Off Time. Set that to the

Maximum of 3 hours.

Check the label in the electrical box to confirm

these procedures:

·Rotate the Motor On Time adjustment fully

CCW to get the half second setting.

·Rotate the Off Time adjustment fully CW to

get the 3 hour setting.

INITIAL START UP

1. Sanitize the ice storage system as instructed on

page 11.

2. Fill hopper with sanitary ice.

3. Plug the unit’s power cord into an electrical

outlet and the lighted sign should come on.

Dispense several containers of ice.

In normal operation, pushing the ice dispenser

mechanism will cause ice to flow from the ice

chute. Ice flow will continue until the dispenser

mechanism is released.

CAUTION: Use caution to avoid spilling ice when

filling dispenser. Clean up immediately any spilled

ice from filling or operating the unit. To prevent

contamination of ice, the lid must be installed on

the unit at all times.

If the dispenser fails to dispense ice or beverage

see troubleshooting guide.

ID150, ID200, ID250

May 2002

Page 8

GATE RESTRICTOR PLATE

CAUTION: Disconnect power to dispenser before

installing, removing or adjusting restrictor.

ADJUSTMENT

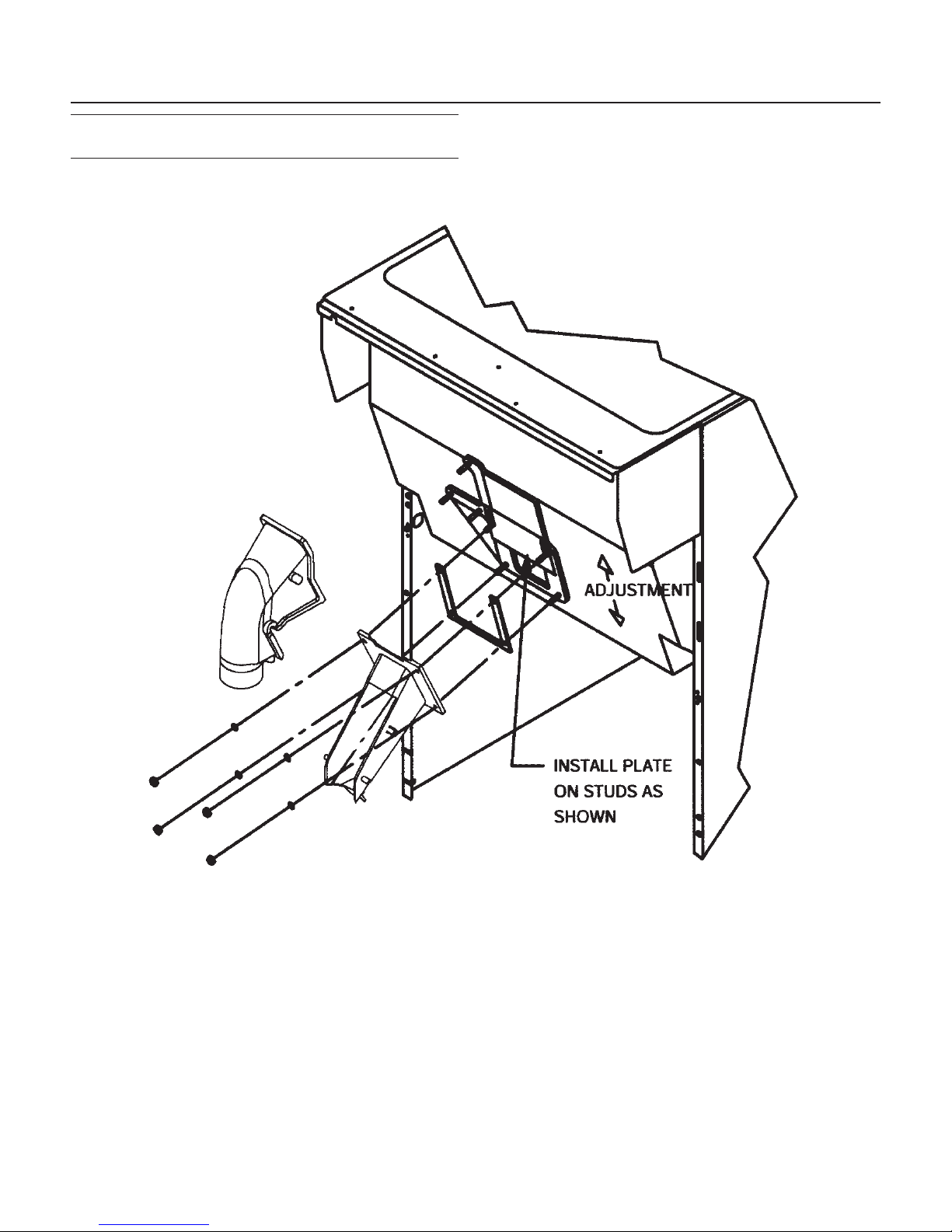

This plate may be adjusted as shown to reduce or

increase the dispensing rate of ice, especially

desirable when using glasses or other containers

with small openings. Adjustment can be made by

sliding up or down with nuts loosened, to obtain the

desired amount of restriction.

ID150, ID200, ID250

May 2002

Page 9

CLEANING AND SANITIZING

The sink, grill and splash panel area should be

cleaned daily.

The following dispenser maintenance should

be performed at the intervals indicated:

DAILY (or as required)

Remove foreign material from vending area drip

tray to prevent drain blockage.

WEEKLY (or as required)

Clean vending area. Check for proper water

drainage from the vending area drip tray.

MONTHLY

Clean and sanitize the hopper interior (see

CLEANING INSTRUCTIONS).

CLEANING PRECAUTIONSS

WARNING: Disconnect Power Before Cleaning! Do

not use metal scrapers, sharp objects or abrasives

on the ice storage hopper, top cover and the

agitator disk, as damage may result.

Do not use solvents or other cleaning agents, as

they may attack the plastic material.

Soap solution - Use a mixture of mild detergent

and warm (100 degrees F) potable water.

ID150, ID200, ID250

May 2002

Page 10

This manual suits for next models

Table of contents

Other Scotsman Ice Maker manuals

Scotsman

Scotsman NH0422 User manual

Scotsman

Scotsman Air and Water Cooled C1448 User manual

Scotsman

Scotsman AC 106 User manual

Scotsman

Scotsman Prodigy Series Operating manual

Scotsman

Scotsman FM2402 User manual

Scotsman

Scotsman CU50 User manual

Scotsman

Scotsman C2648MR-3 User manual

Scotsman

Scotsman CME1002W User manual

Scotsman

Scotsman CME306 User manual

Scotsman

Scotsman CME456R User manual

Scotsman

Scotsman 300 lb Cube Ice Machine C0322 User manual

Scotsman

Scotsman CME650R User manual

Scotsman

Scotsman CSWE1 User manual

Scotsman

Scotsman MXG 328 User manual

Scotsman

Scotsman C1848R User manual

Scotsman

Scotsman CU50PA-1 User manual

Scotsman

Scotsman MCM1062 User manual

Scotsman

Scotsman MV Series Installation guide

Scotsman

Scotsman Eclipse Series Installation guide

Scotsman

Scotsman FME504 User manual

Scotsman

Scotsman FM2400RL User manual

Scotsman

Scotsman AF Series User manual

Scotsman

Scotsman KDIL-PN-ID3 User manual

Scotsman

Scotsman FME1504 User manual

Popular Ice Maker manuals by other brands

Hoshizaki

Hoshizaki KMD-460MWJ instruction manual

Sub-Zero

Sub-Zero 315I Planning information

Unold

Unold 48945 Instructions for use

Kenmore

Kenmore 2217402A Use & care guide

Cornelius

Cornelius WM600 Installation & owner's manual

GE XPIO43SCSS owner's manual

Hoshizaki

Hoshizaki KMD-901MAH Specifications

Whynter

Whynter FIM-450HA instruction manual

U-Line

U-Line UMCR014-SC01A User guide & service manual

Andrew James

Andrew James AJ000522 manual

Kärcher

Kärcher IP 120 manual

U-Line

U-Line SS1095 Quick referenc guide

Maytag

Maytag MIM1554WRS - Ice Maker User instructions

Hoshizaki

Hoshizaki KM-630MAH instruction manual

Princess

Princess Yonanas user manual

Unold

Unold 48946 Instructions for use

Electrolux

Electrolux E15IM60GP Factory parts catalog

Cornelius

Cornelius UC150 ICE ONLY Operator's manual
