Scotsman CME306 Installation guide

Technical Training

CME306 and

CME456

What

What’

’s In The Program

s In The Program

•Introduction to the Product

•Installation & Application

•How it Works

•Service Diagnosis

Introduction

•CME306 and CME456

– Modular Cubers

•115/60/1

•230/50/1

– 22 Inch Wide Platform

– Air Cooled has Cleanable Air

Filter in Left Side Panel

–CM

3Technology

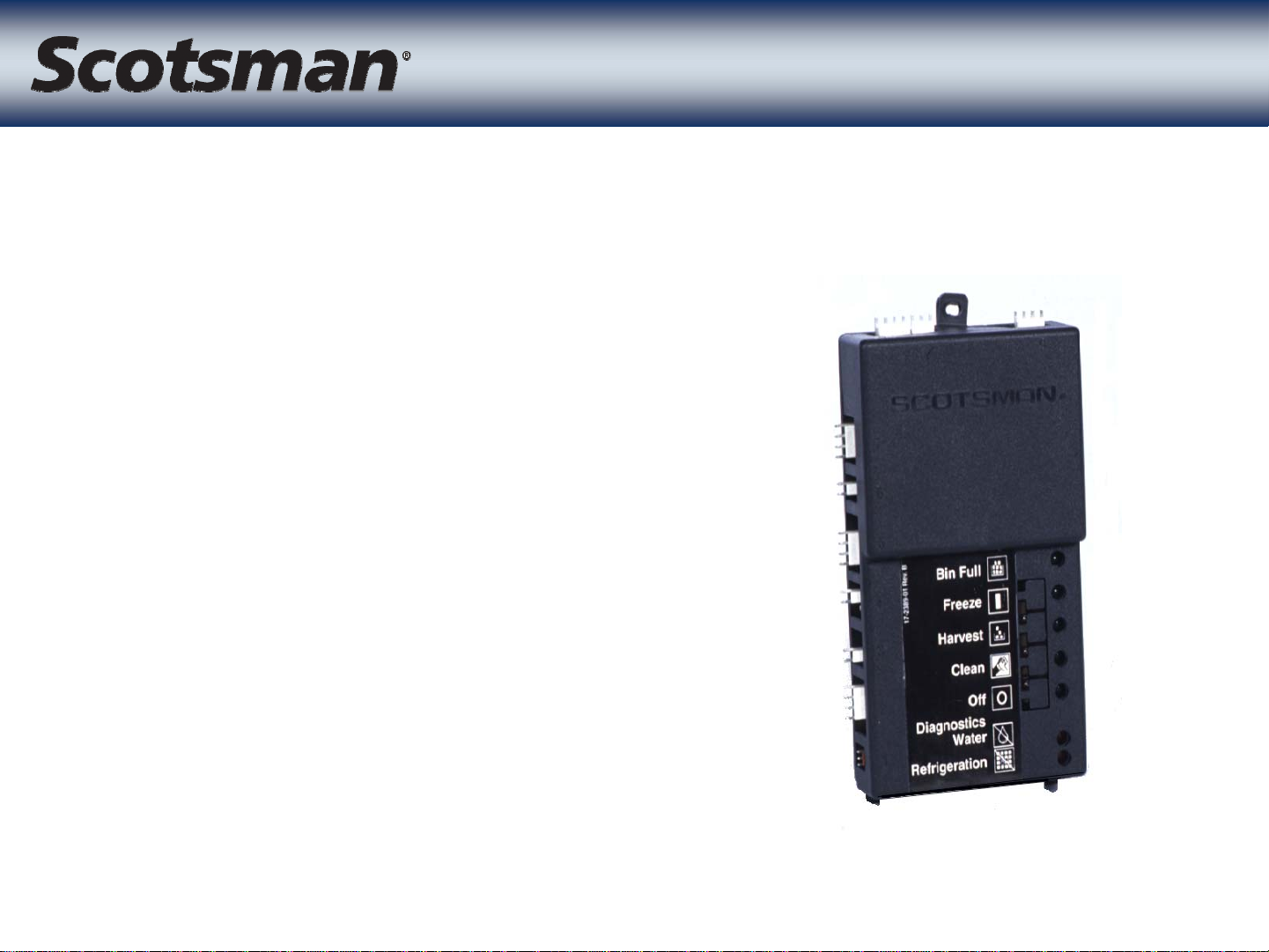

•AutoIQ Controller

•Adaptive Harvest

•Insulated Freezing Compartment

CME306

•Similar to the CME256 System

– Single Evaporator

– Air Cooled

•One Fan

•Major Differences:

– Smaller Cabinet - 22” wide x 28” high x 24” deep

– Purge Valve Reservoir Drain System

– Smaller Fan Motor & Blade

– Compressor (RS43C2E)

CME456

•Similar to CME506 System

– Two evaporators

•Major Differences

– Smaller Cabinet - same as CME306

–PurgeValve

– Has 2 TXVs and 2 Check Valves

•One for each evaporator

– Compressor (RS55C2E)

– Air Cooled

•Two fan motors and blades

Common Parts

•Inlet Water Valve

– Same as on SCE275 through CME806

•Fan Motors

– CME306, CME456 same as SCE275

•TXVs

– CME306, CME456 same as CME256

•Water Pump

– CME306 same as CME256

•Same PTCR

Benefit:LowerPartsInventory

Applications

•On Modular Bin

– BH375 or SLB375

– BH260 or SLB260 w/new mounting bracket

– HTB555 or HTB350 with KBT27

•On Motel Dispenser

– HD150

– SD150 with KDT22 kit

•On Ice and Beverage Dispensers

– Scotsman & Booth

– Lancer & Others

Benefit:WideRangeof

Applications

Installation

•Air Cooled

– Air flows in the left side

and out the back.

– All ship with air baffle for

tight corner installations

•Designed to prevent air

recirculation from the

condenser outlet to the

air inlet

Install Vent on

Reservoir Drain

Baffle

Optional Bin Thermostat Kit

•Normal Ice Level

Control is the Ice

Sensor System

– Fills Bin Very Full

– Bins Without

Baffles May

Overfill

•Add the Optional

Thermostat Kit -

KSTAT-22

Component Location: Front View

Hi Voltage Box

Refrigeration System

Access Valves

Water Pump

Controller

Evaporator

Cover

Water Level

Sensor

Reservoir
