Scosche HY1602 User manual
IN-DASH INSTALLATION KIT FOR
2000-UP HYUNDAI ACCENT
2000-UP HYUNDAI SONATA
HY1602
ACCENT
MOUNTING
PANEL
This premium installation kit is for 2000-UP Hyundai Accent & Sonata vehicles. Included are all the parts
you need to mount your car stereo/cassette or CD player into your vehicle's dash. Refer to the individual
instruction in this manual to remove your Xvehicle's factory radio and assemble the kit.
CAUTION: Disconnect your vehicle's negative battery terminal before the installation to help prevent
electrical damage. We recommend the use of a volt/ohm meter over a test light to check wiring. A test
light or grounded wire probe can cause damage to the vehicle's computer and/or diagnostic systems.
Avoid all factory air bag wiring - air bags can accidentally deploy causing serious injury or death.
NOTES:
• See your vehicle's instructions for any special tools your installation might require.
• Read all instructions accompanying your car stereo/cassette player for proper wiring and mounting
instructions.
SONATA
MOUNTING
PANEL
ISO
MOUNTING
BRACKET
POCKET
SONATA
TRIM RING
INTRODUCTION
POCKET INSTALLATION
POCKET INSTALLATION
1. Locate and align bottom
guides and top snaps of
the pocket to kit panel.
2. Slide pocket on bottom
guides while the top snaps
are aligned.
3. When aligned properly the
top pocket snaps will lock
to kit panel.
IN-DASH DIN MOUNT
IN-DASH DIN PULLOUT, DETACHABLE FACEPLATE, (DIN-E) RADIOS
The kit panel comes DIN ready. Follow the instructions supplied with the radio, secure the mounting kit.
Install the assembly in the dash and use the rear support supplied with the radio to support the rear of
the radio. Snap in the HY1605 trim ring.
SONATA
TRIM RING
RADIO'S
MOUNTING
SLEEVE
FRONT LOAD
DIN RADIO
SONATA
MOUNTING
PANEL
RADIO'S REAR
SUPPORT STRAP
CAUTION:
Rear supporting the
radio adds to the
installation's
structural integrity.
5MM SCREWS
ISO DIN RADIO
ISO
MOUNTING
BRACKET
ACCENT
MOUNTING
PANEL

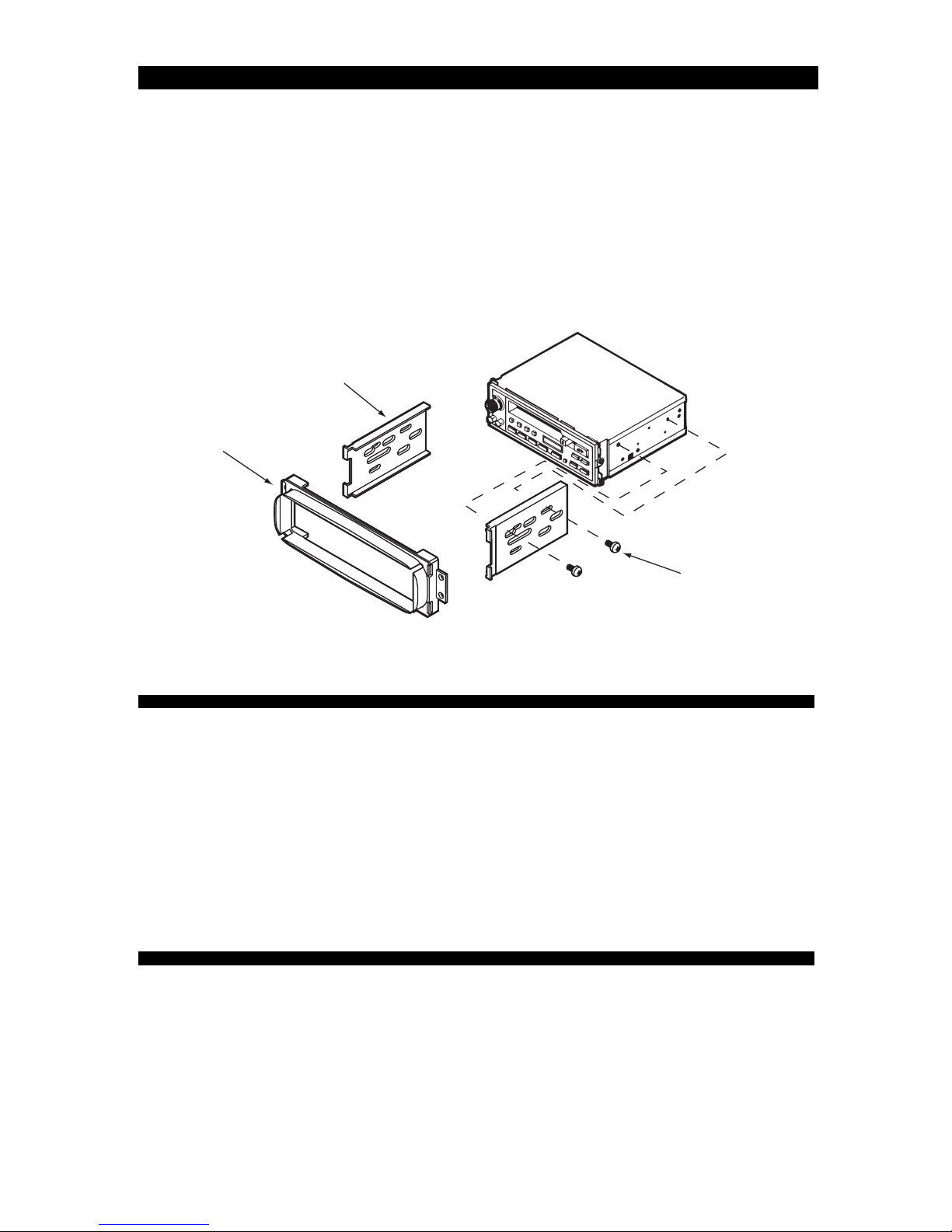

ISO DIN MOUNT: (DIN-E RADIO WITH SIDE MOUNTING HOLES)
1. Snap the ISO DIN side mounting brackets to the back of the mounting panel (1 left and 1 right). Use
supplied hardware to bolt them to the back of the kit panel.
2. Load the radio from the REAR of the mountinfg panel until the nosepiece of the radio comes
through the front of the kit.
3. Use the 5mm screws to secure the radio from the sides.
CAUTION:
Rear supporting the
radio adds to the
installation's structural
integrity.
2000-up Hyundai Accent
RADIO REMOVAL:
1. Open cup holder and extract (2) Phillips head screws from behind.
2. Unsnap and remove the left and right accessory button covers and extract 91) Phillips head screws
behind each cover.
3. Open glovebox and release stoppers so that glove box is hanging down and release (1) cable from
behind.
4. From above gas pedal, release (2) cables.
5. Carefully unsnap perimeter of dash bezel and slowly remove dash bezel. Disconnect and remove.
2000-up Hyundai Sonata
RADIO REMOVAL:
1. Unsnap panel in front of shifter, lift away and remove. Extract (2) Phillips head screws from behind.
2. Put shifter in lower gear, unsnap shifter trim bezel and remove.
3. Extract (2) Phillips head screws from beneath radio dash bezel.
4. Underneath left side of glove box, disconnect cable.
5. Using panel removal tool, unsnap radio bezel, unplug and remove.
ISO DIN MOUNT
