Sanuvox ASEPT.2X User manual

ASEPT.2X TROUBLESHOOTING GUIDE

Procedure

#2 1PS-1PCB

Before touching any electrical components located in the ASEPT.2X housing, always turn off the unit and

disconnect from the power outlet.

SANUVOX Technologies, Montréal QC, Canada

www.sanuvox.com

November 2016

WARNING

Table of Contents

ASEPT.2X ELECTRONIC COMPONENTS.......................................................................................................... 1

1. THE UNIT DOESN’T WORK.....................................................................................................................5

2. FAILURE TO START A DISINFECTION CYCLE (The start/stop buttons flash alternately or still red). ...14

3. STARTING A CYCLE, THE LAMPS DON’T LIGHT UP. .............................................................................20

4. STARTING A CYCLE, THE LAMPS LIGHT UP, THEN TURN OFF AFTER A FEW SECONDS.......................21

5. THE COOLING FAN DOESN’T WORK....................................................................................................23

6. ONLY THE PRIMARY TOWER WORKS, NOT THE SECONDARY TOWER................................................25

7. THE LAMPS DON’T SHUT OFF WHEN SOMEONE WALKS IN. ..............................................................26

8. CANNOT ACCESS THE WEB INTERFACE...............................................................................................27

SUMMARY TABLE........................................................................................................................................28

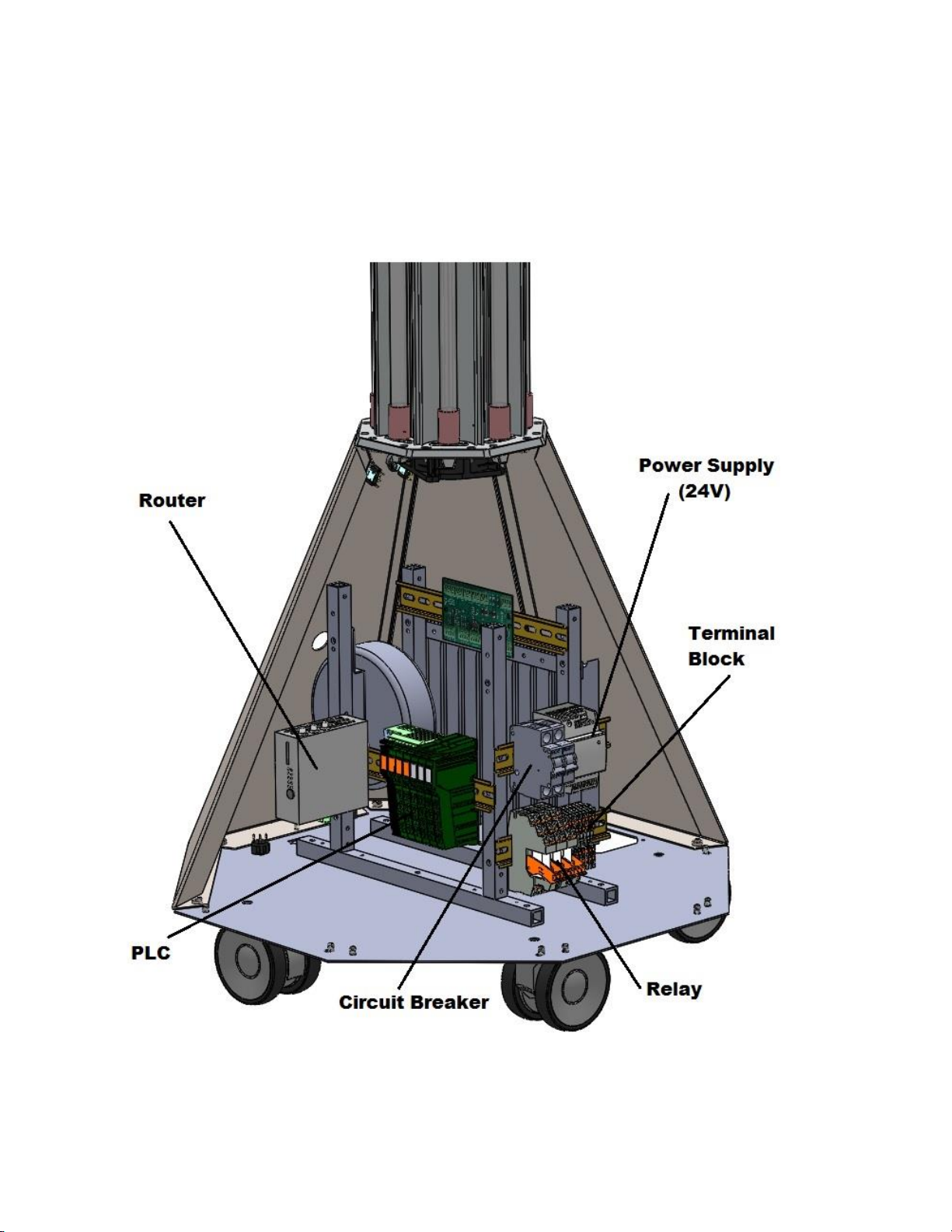

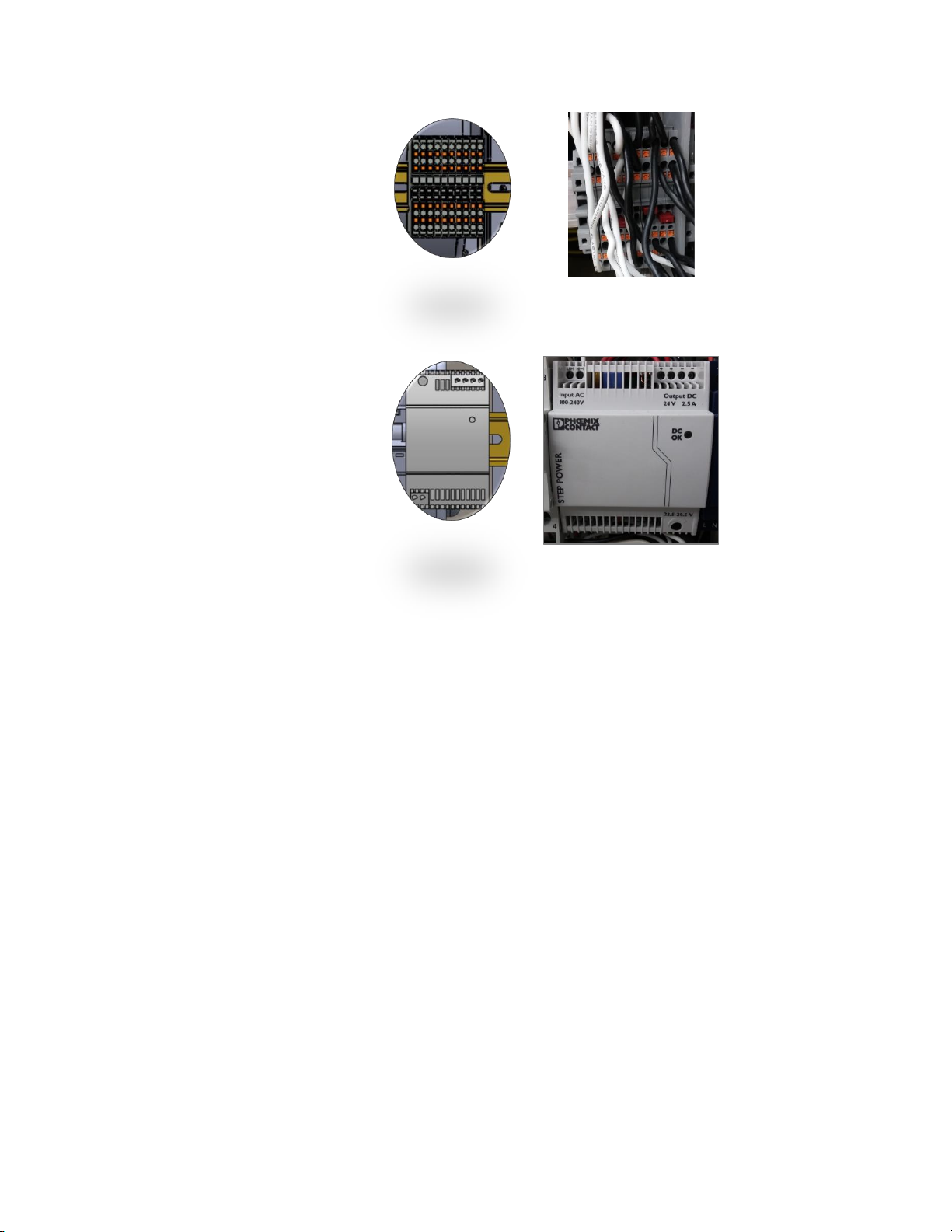

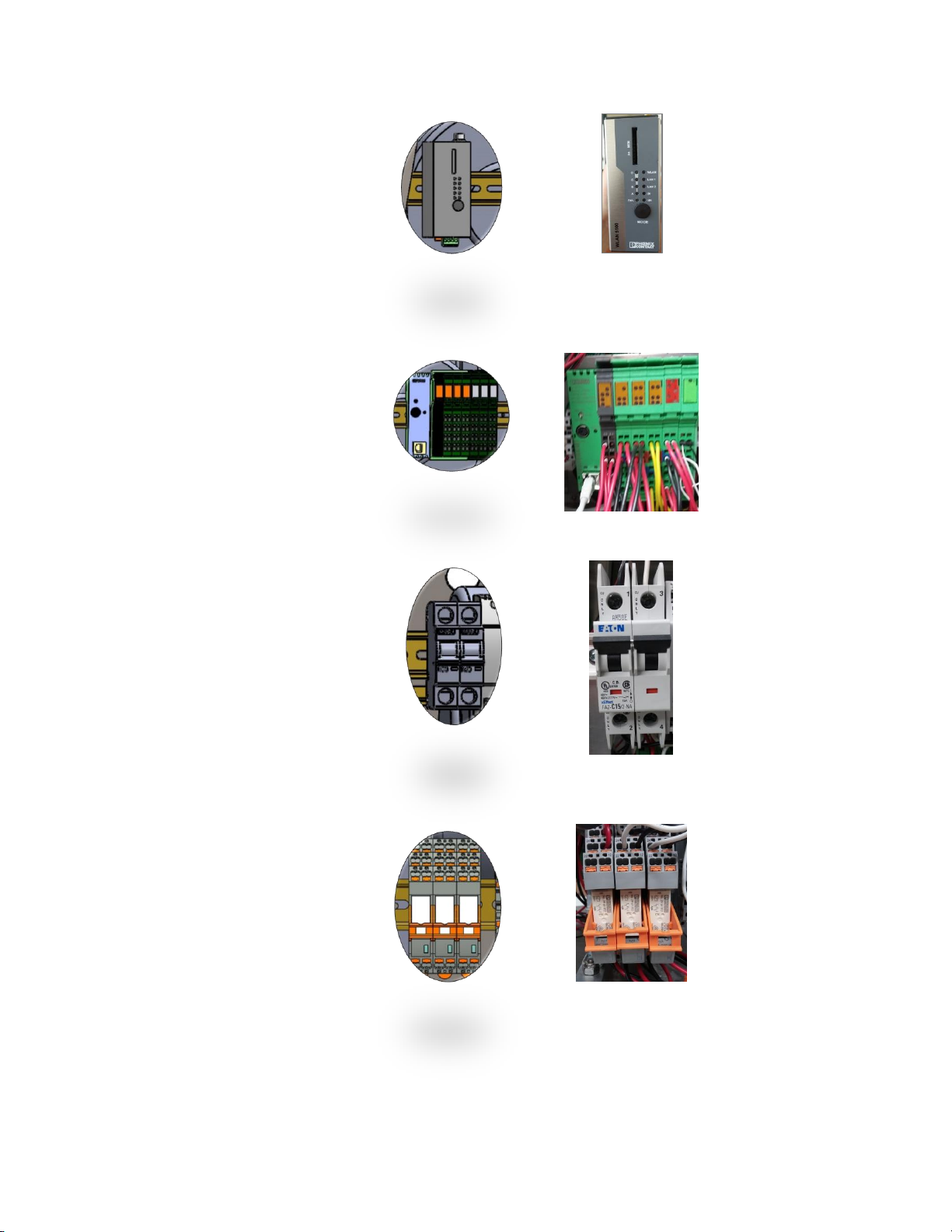

ASEPT.2X ELECTRONIC COMPONENTS

Router

PLC

Circuit breaker

Relays

Terminal block

Power Supply

1. The unit does

not work

1.1 Is the unit plugged

into an electrical outlet?

1.2 Is the POWER switch

under the unit on the ON

position?

1.3 Is the electrical outlet

functional?

1.8 Can you detect any

loose wires?

1.5 Are any components

inside the unit lit up?

1.4

Open up the

2 access panels on

the unit

1.9 Are any components

inside the unit lit up?

1.10 Using the probe sensors of a

voltmeter on the power cord

terminals, do you detect the

appropriate voltage?

Plug the device into an

appropriate electrical

outlet.

Contact

SANUVOX

(replace the

power cord).

Push on the rocker

switch for the ON

position.

With an electrician,

find the problem’s

source.

1.6 Are the Start/Stop

buttons connected

tightly to the PLC?

Push back the

wires in their

sockets.

Push back the circuit

breaker

(red indicator).

1.7 Is the PLC

connected tightly to

the power supply?

Contact SANUVOX

(LEDs, PLC).

Contact SANUVOX

(Power Supply, PLC).

YES

YES YES

YES

NON

NO NO

YES

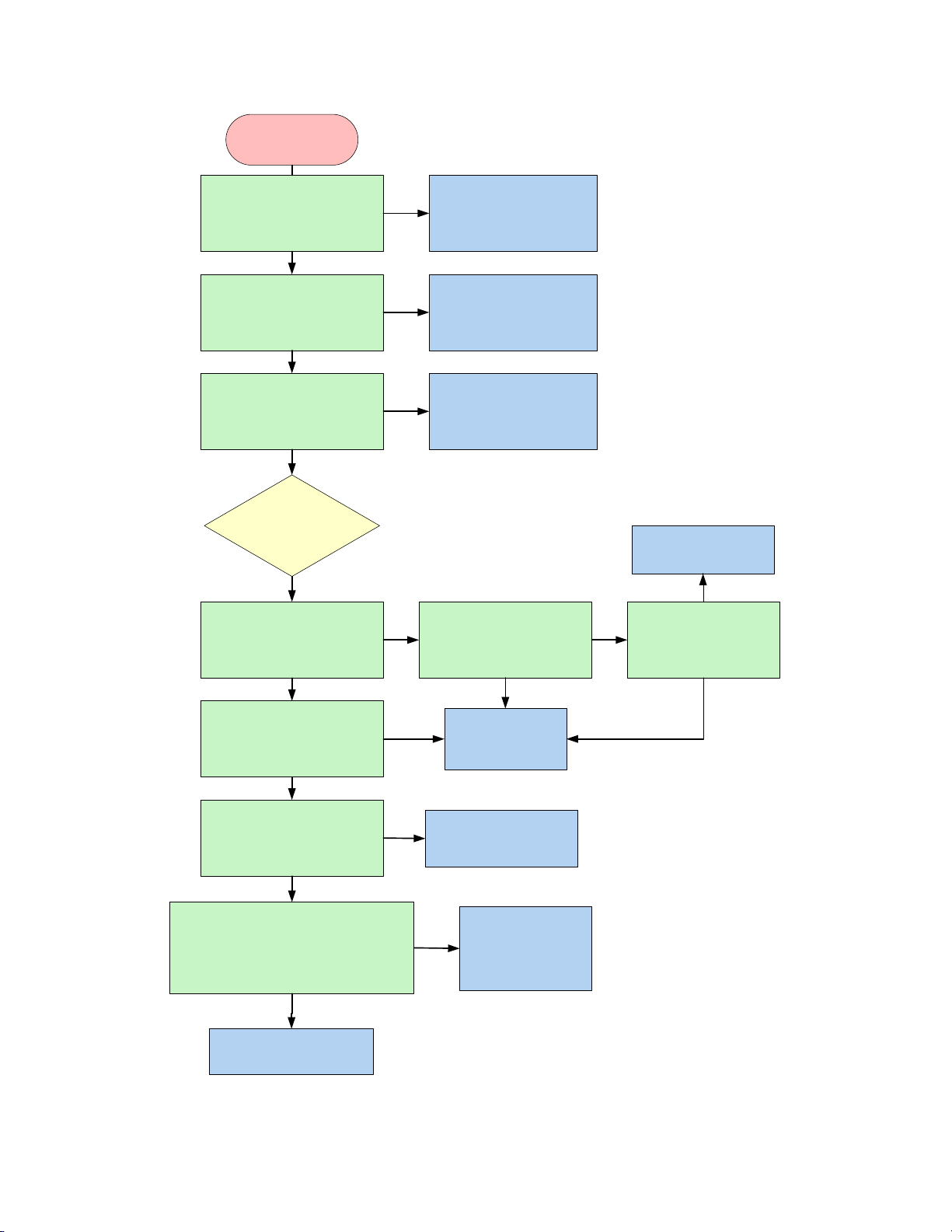

Figure 1: The unit does not work –Decision tree.

1. THE UNIT DOESN’T WORK.

1.1 Check if the unit is plugged to a functioning electrical source.

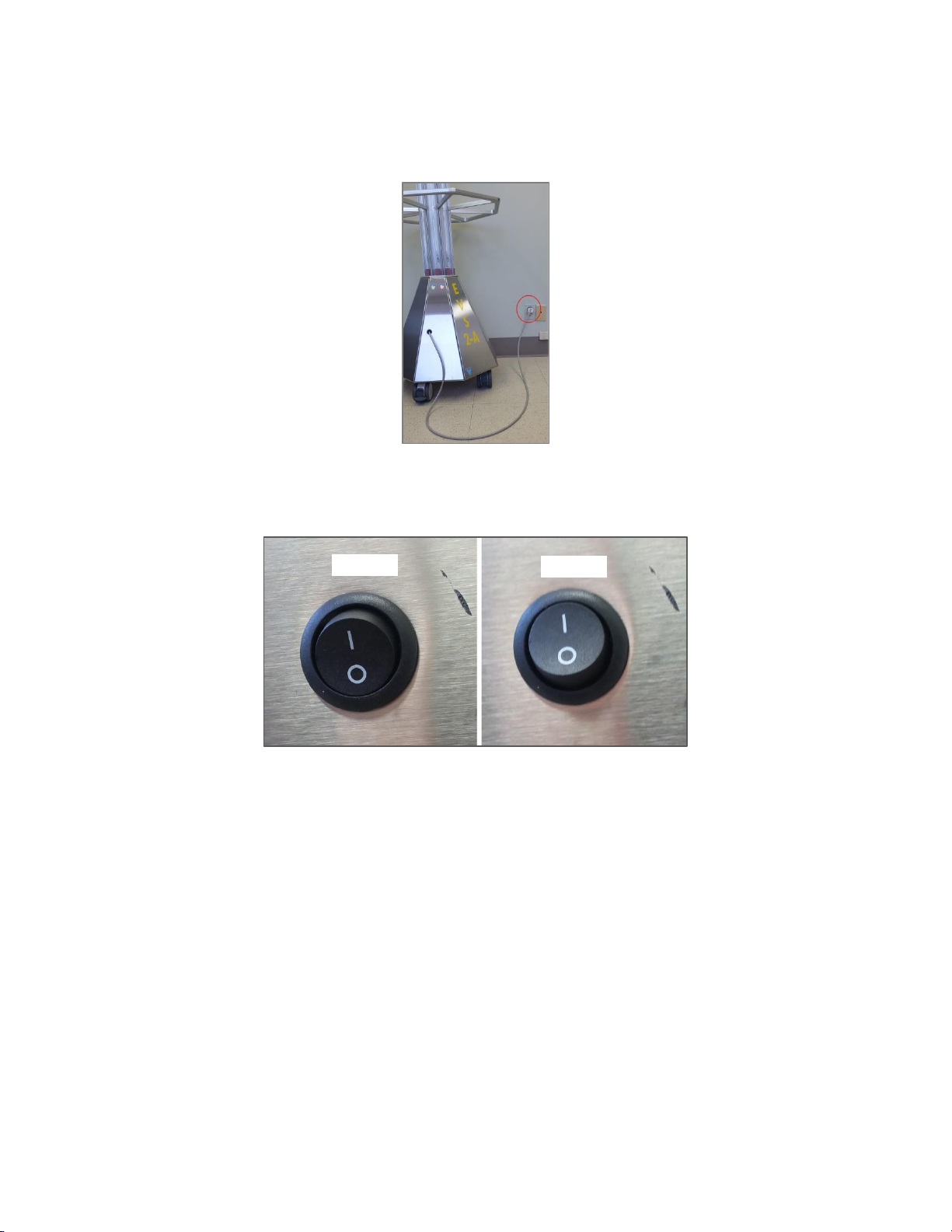

Figure 2: The unit is plugged in an electrical source.

1.2 Check if the power button under the unit is switched ON.

Figure 3 Powering up the unit.

1.3 Check if the power source is functional. It requires that you plug any other electrical

appliance in the outlet e.g. a corded lamp. If the appliance doesn’t work, have the wall

outlet checked by a qualified electrician.

1.4 Open up the two (2) front panels. The first access panel bares the ASEPT.2X blue decal. The

second access panel is the second to the left of the first one.

OFF

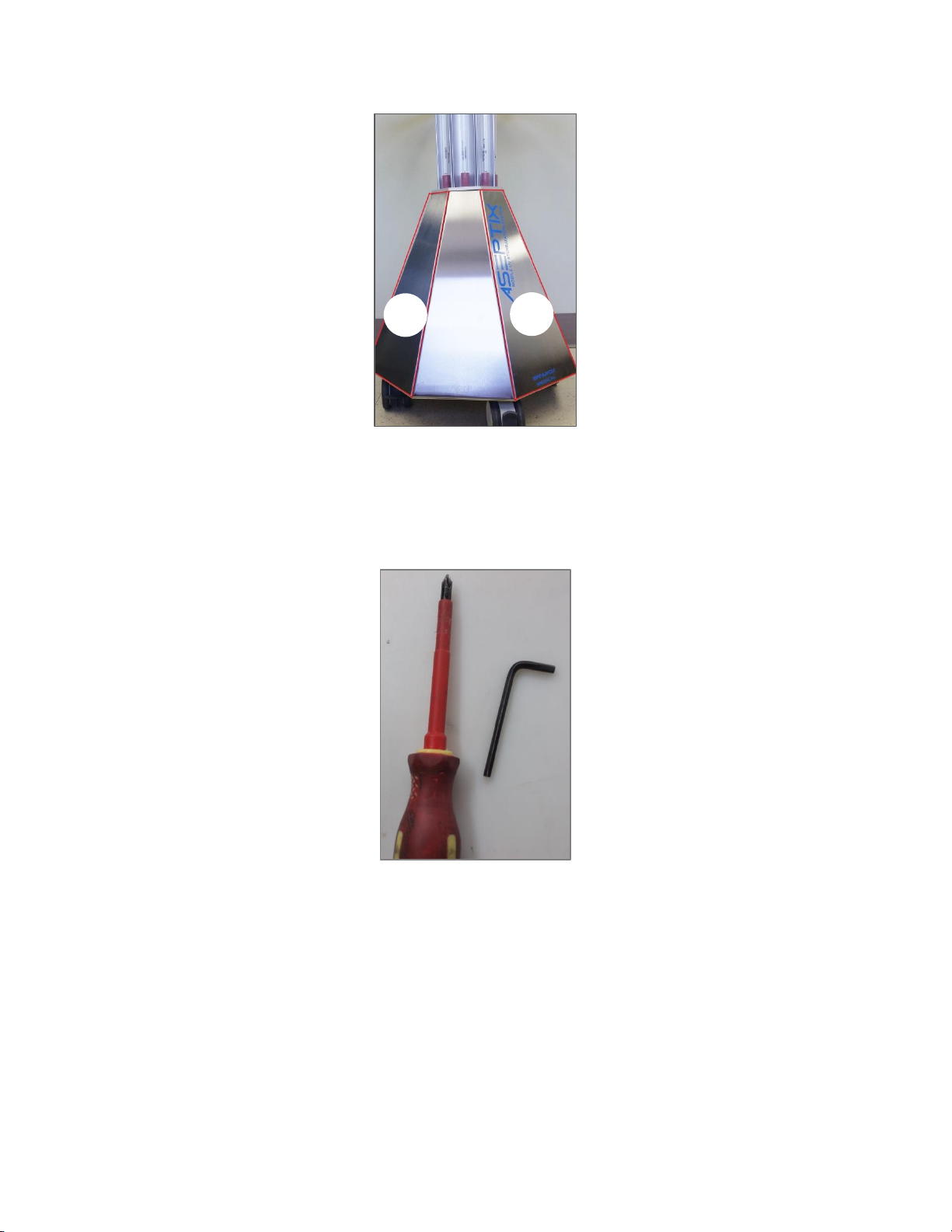

Figure 4: Access panel to the unit.

1.4.1 Tools required:

-One 4 mm Allen key.

-One PHILIPS #3 screwdriver.

Figure 5: Tools required to remove the access panels.

1.4.2 Disconnect the power from the unit then carefully lower the unit on its side to

unscrew the panels from the underneath mounting plate.

2nd

d1S

1st

1St

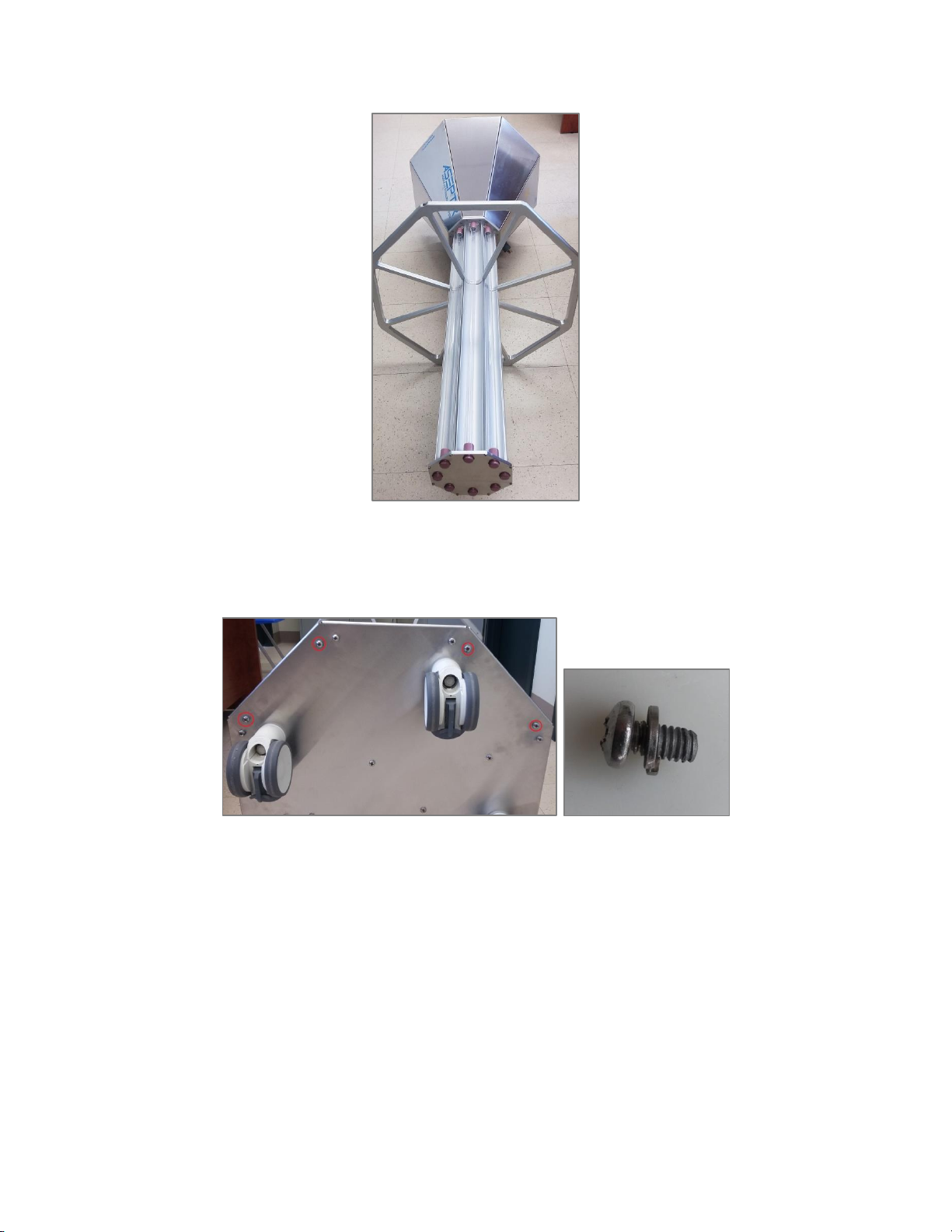

Figure 6: The ASEPT.2X unit on its side.

1.4.3 Using the PHILIPS #3 screwdriver, remove and put aside the 4 screws and the 4

washers for the two access panels.

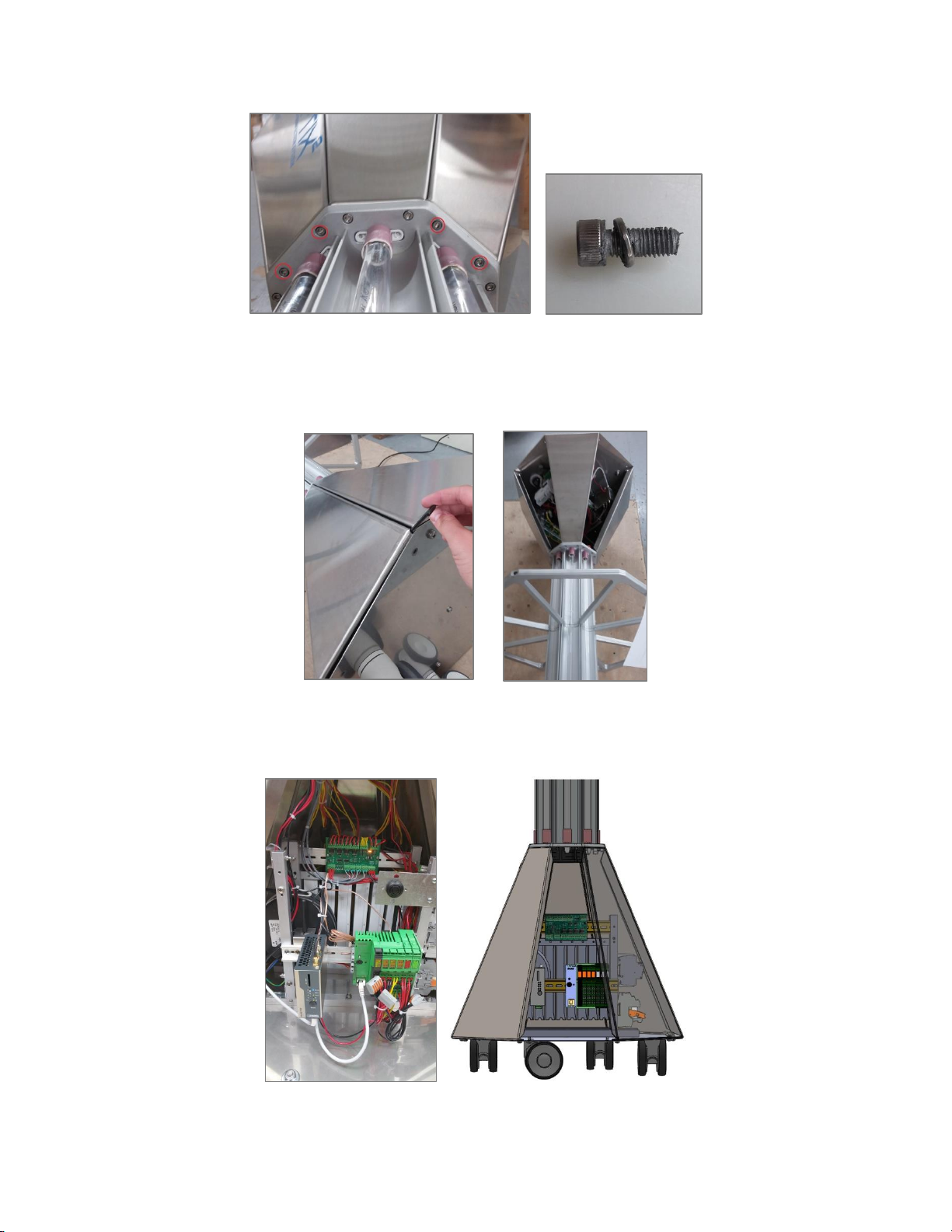

Figure 7: Removing the bottom screws.

1.4.4 Using the 4mm Allen key, remove and put aside the top 4 screws and 4 washers for

the two access panels.

Figure 8: Removing the top screws.

1.4.5 Remove the panels and put back the unit vertically on its wheels. Use the ALLEN key

for extra help to remove panels. Plug in the unit and turn ON the power switch.

Figure 9: Access panel removal.

You now have access to the followings components:

Figure 10 : Access to router and PLC.
