VSF409
Instruction Manual
WARNING:This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter defibrillator (ICD) is in use, magnetic fields may aect the operation of
those devices, resulting in serious injury or death. If you have an implanted medical device, keep at least 13 cm (5in.) between your device and the magnet. Please consult with your physician or medical
professional prior to using this product.
SANUS
MAGNETIC STUD FINDER
Designed to find your studs and make life easier – included in hardware kit.
TWO SIMPLE STEPS
TO FINDING YOUR STUDS:

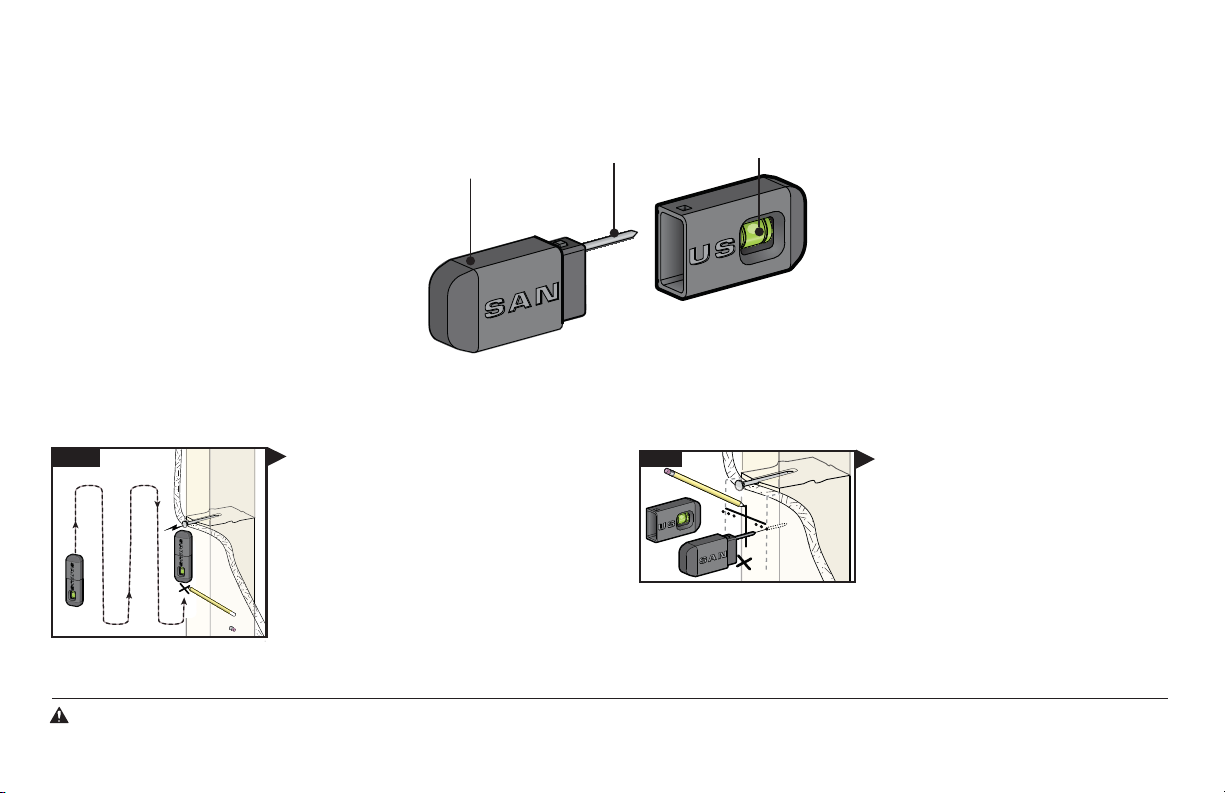

Holding it vertically, lightly move the SANUS
Magnetic Stud Finder up and down while
sliding across your wall. The magnet within
will be attracted to the screws in the stud.
Once the magnet has landed on a screw,
place a pencil mark on the wall
directly below the magnet.
You can verify this is a stud by moving the
Magnetic Stud Finder up or down to find
a second or third screw within the wall.
Pull apart the SANUS Magnetic Stud Finder to
expose the probing pin within. Starting about
1/2inch away from the first pencil mark insert
the probing pin into the wall every 1/8inch until
it inserts completely into the wall. Once that
happens, you know you've found one edge of
your stud. Repeat this process till you have
found the stud edges and center of the stud.
Step 1 Step 2
magnet
locates screws in drywall
to show exactly where
your studs are
probing pin
helps find the edges of
your stud within the wall
level
attaches to your wall plate
for hands free leveling
3
VSF409
Lo haremos sin estrés
Si tiene preguntas mientras realiza la instalación, llámenos.
1-800-359-5520 (Reino Unido: 0800-056-2853) Estamos listos para ayudarlo.
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-800-359-5520 (UK: 0800-056-2853) We’re ready to help!
4
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
Before getting started, let’s make sure this mount is perfect for you!
No
—
Perfect!
Yes
—
This mount is NOT compatible. Visit MountFinder.Sanus.com or call
1-800-359-5520 (UK: 0800-056-2853) to find a compatible mount.
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use
of this product, contact Customer Service at 1-800-359-5520 (UK: 0800-056-2853).
Do you have
all the tools
needed?
1
2
3
4
What is your
wall made of? Unsure?
Drywall with
wood studs?
Solid concrete or
concrete block?
50 lb
(22.7 kg)
CAUTION: Avoid potential personal injuries and property damage!
●This product includes directions and hardware for use with wood stud, solid concrete and concrete block walls –
DO NOT install into drywall alone.
●The wall must be capable of supporting five times the weight of the TV and mount combined.
●Do not use this product for any purpose not explicitly specified by manufacturer.
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
Call Customer Service:
1-800-359-5520 (UK: 0800-056-2853)
Perfect! Perfect!
Ready to
begin?
Does your TV weigh
more than 50 lb
(22.7 kg) including
accessories?
7/32 in.
(5.5 mm)
Wood
Screwdriver Tape Measure Drill Bit Drill Bit Electric Drill Hammer Socket Wrench
3/8 in.
(10 mm)
Concrete
1/2 in.
(13 mm)
Pencil
5
STEP 1 Attach Bracket to TV
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts!
Parts and Hardware for STEP 1
M4 M6/M8
M4 x 12mm
M6 x 12mm
M8 x 12mm
M4 x 30mm
M6 x 20mm M6 x 35mm
M8 x 35mm
M8 x 20mm
M4 M6/M8
TV Bracket 02 x4
04 x4
07 x4 09 x4
08 x4
10 x8 11 x4 12 x4 13 x4
05 x4 06 x4
03 x4
01 x1
NOTE: Not all hardware included will be used. TV Screws
TV Washers TV Spacers
6
1-1 Select TV Screws 1-2 Spacers
Hand thread screws into the threaded inserts on the back of your TV
to determine which screw diameter (M4, M6, or M8) to use.
CAUTION: Verify adequate thread engagement of the screw/
spacer combination on your TV.
Too short will not hold the TV and too long will damage the TV.
M4 M6 M8
Too Short Correct Too Long
TV Bracket
TV Bracket
06
Round Back CablesInset HolesFlat Back
Standard configurations are shown. For special applications, or if you are
uncertain about your hardware selection, contact Customer Service at
1-800-359-5520
.
TV Bracket
A
A
B
B
Your TV type will help you determine which hardware
configuration to use. Match your type of TV to the suggested
hardware configuration on the next page.
A. Installation option without spacers (TVs with flat backs).
B. Installation option using spacers (TVs with obstructed backs
or inset mounting holes).
7
1-3 Attach TV Bracket
Position the TV bracket 01 over your TV hole pattern and install using the screw, washer, and spacer (if needed) combination you selected for
your TV.
M6/M8 spacer, screw, and washer
01
02
10
04
11
05 07
0310
11
13
12 10
M4/M6/M8 screw and washer
M4 spacer, screw, and washers
08
06 09
8
STEP 2 Attach Wall Plate to Wall
Parts and Hardware for STEP 2
For wood stud installations, follow STEP 2A on PAGE 9
For concrete installations, follow STEP 2B on PAGE 11
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are
included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never
use damaged parts!
14 x1
15 x1
Arm Assembly/Wall Plate
Wall Plate
Template
*WARNING:This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter defibrillator (ICD) is in use,
magnetic fields may aect the operation of those devices, resulting in serious injury or death. If you have an implanted medical device, keep at least 13 cm (5 in.)
between your device and the magnet. Please consult with your physician or medical professional prior to using this product.
5/16 x 2 ¾ in.
NOTE: Not all hardware included will be used.
17 x2
18 x2
Sanus Magnetic Stud Finder*
16 x1
19 x2
Lag Bolts Lag Bolt Washers
Concrete Anchors Covers
20 x2
9
STEP 2A Wood Stud Option
1
2
3
CAUTION: Avoid potential personal injuries and property damage!
●Drywall covering the wall must not exceed
16 mm (5/8 in.)
●Minimum wood stud size: common 51 x 102 mm (2 x 4 in.) nominal 38 x
89 mm (1½x 3½in.)
●Stud center must be verified
1. Locate a nail/screw in the stud using the Sanus magnetic stud finder
16 provided.
2. Find the edges of the stud using the probe
of the stud finder 16 .
3. Mark the center of the stud with pencil.
16
Max. 16 mm
(5/8 in.)
Min. 89 mm
(3 1/2 in.)
Min. 38 mm
(1 1/2 in.)
10
4 5 6
75 mm
(3 in.)
5.5 mm
(7/32 in.)
14
14

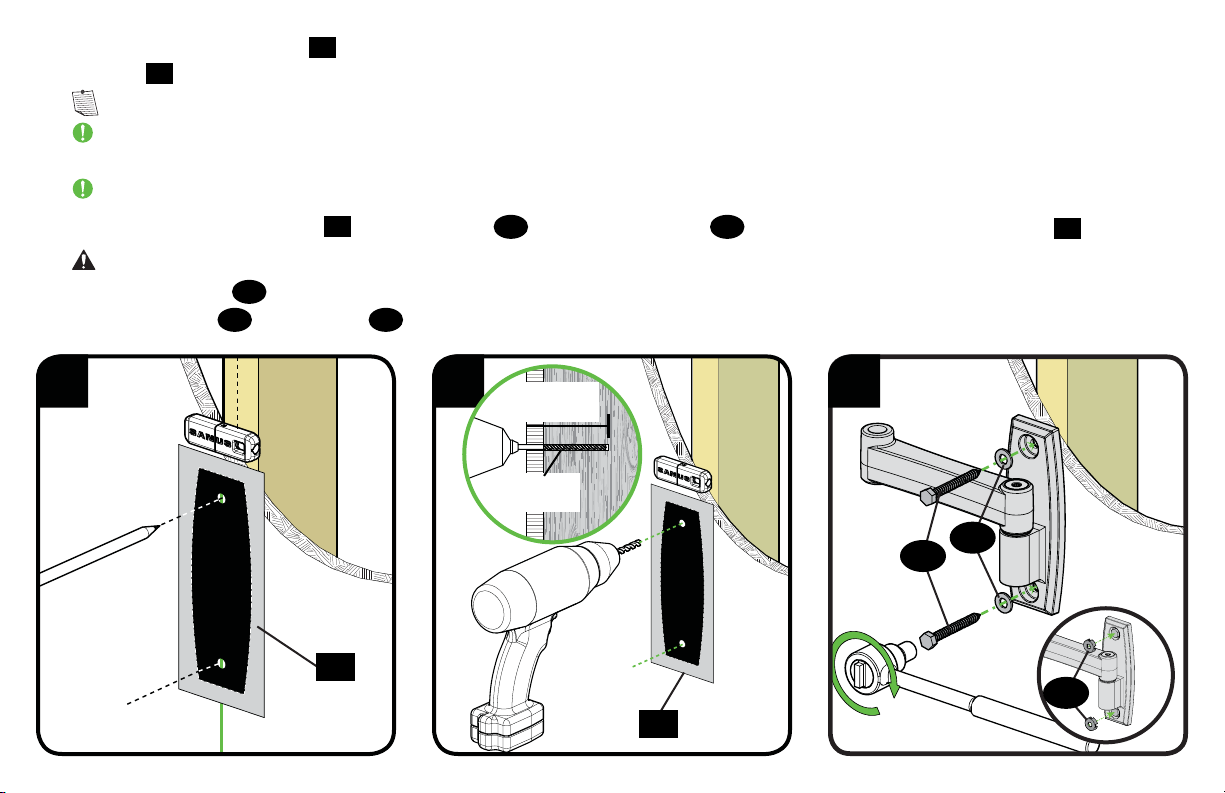

4. Place the wall plate template 14 at your desired height and position the slotted holes over your stud center line. Level the wall plate
template 14 and tape in place.
NOTE: For assistance in determining wall plate location, see HeightFinder at sanus.com.
IMPORTANT: Be sure you mark and drill into the center of the stud.
5. Drill the two pilot holes using a 5.5 mm (7/32 in.) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 75 mm (3 in.).
6. Remove the wall plate template 14 . Tighten lag bolts 17 only until the washers 18 are pulled firmly against the wall plate 15 .
CAUTION: Improper use could reduce the holding power of the lag bolt. To avoid potential injuries or property damage Do not over-
tighten the lag bolts 17 .
Fit lag bolt covers 20 over lag bolts 17 .
17 18
20
