Sanus VLF525-B3 User manual

THANK YOU FOR CHOOSING SANUS

THE #1 TV MOUNT BRAND IN THE US.

Scan for easy

install video

VLF

525

Instruction Manual

WARNING:This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter deﬁbrillator (ICD) is in use, magnetic ﬁelds may aect the operation of

those devices, resulting in serious injury or death. If you have an implanted medical device, keep at least 13 cm (5in.) between your device and the magnet. Please consult with your physician or medical

professional prior to using this product.

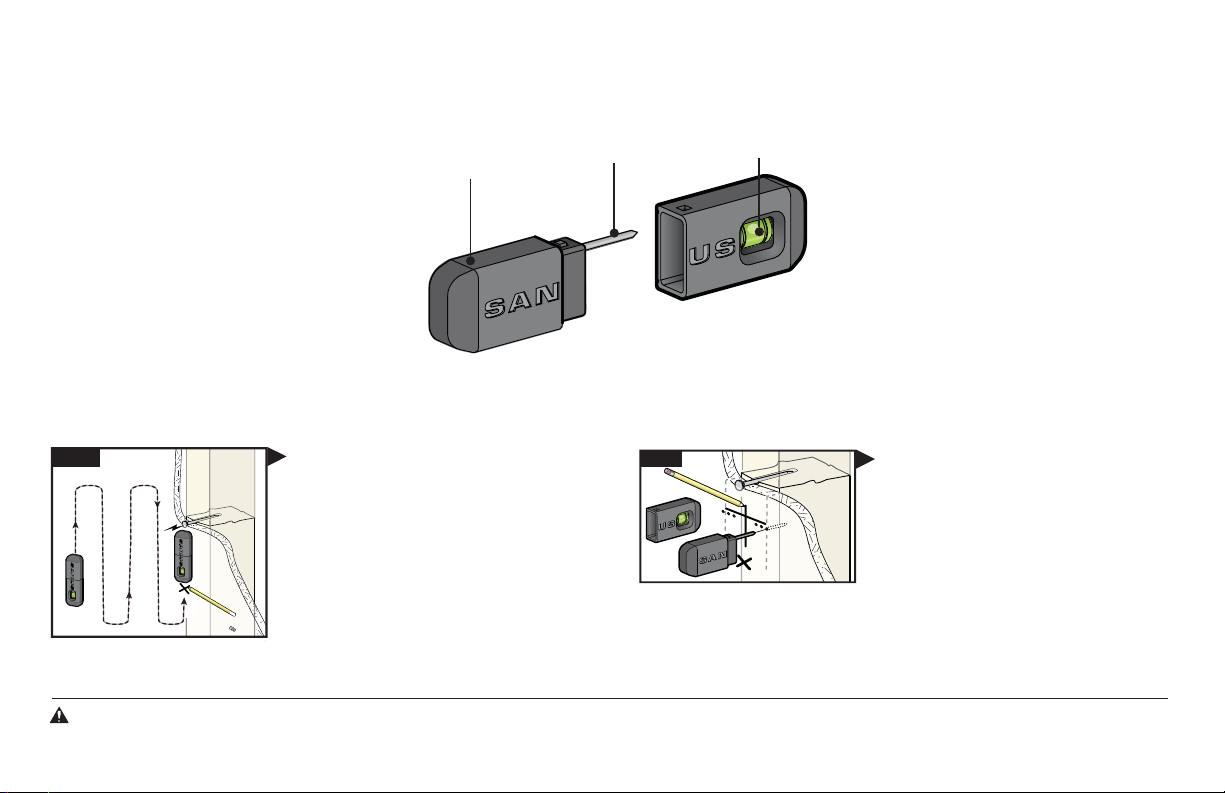

SANUS

MAGNETIC STUD FINDER

Designed to ﬁnd your studs and make life easier– included in hardware kit.

TWO SIMPLE STEPS

TO FINDING YOUR STUDS:

Holding it vertically, lightly move the SANUS

Magnetic Stud Finder up and down while

sliding across your wall. The magnet within

will be attracted to the screws in the stud.

Once the magnet has landed on a screw,

place a pencil mark on the wall

directly below the magnet.

You can verify this is a stud by moving the

Magnetic Stud Finder up or down to ﬁnd

a second or third screw within the wall.

Pull apart the SANUS Magnetic Stud Finder to

expose the probing pin within. Starting about

1/2inch away from the ﬁrst pencil mark insert

the probing pin into the wall every 1/8inch until

it inserts completely into the wall. Once that

happens, you know you've found one edge of

your stud. Repeat this process till you have

found the stud edges and center of the stud.

Step 1 Step 2

magnet

locates screws in drywall

to show exactly where

your studs are

probing pin

helps ﬁnd the edges of

your stud within the wall

level

attaches to your wall plate

for hands free leveling

VLF525

Lo haremos sin estrés

Si tiene preguntas mientras realiza la instalación, llámenos.

1-800-359-5520 (Reino Unido: 0800-056-2853) Estamos listos para ayudarlo.

We’ll Make It Stress-Free

If you have any questions along the way, just give us a call.

1-800-359-5520 (UK: 0800-056-2853) We’re ready to help!

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

—

Perfect!

Yes

—

This mount is NOT compatible. Visit MountFinder.Sanus.com or call

1-800-359-5520 (UK: 0800-056-2853) to ﬁnd a compatible mount.

Please read through these instructions completely to be sure you’re comfortable with this easy install process.

Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use

of this product, contact Customer Service at 1-800-359-5520 (UK: 0800-056-2853).

Do you have

all the tools

needed?

Before getting started, let’s make sure this mount is perfect for you!

What is your

wall made of? Unsure?

Drywall with

wood studs?

Solid concrete or

concrete block?

125 lb

(56.7 kg)

CAUTION: Avoid potential personal injuries and property damage!

●This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone

●The wall must be capable of supporting ﬁve times the weight of the TV and mount combined

●Do not use this product for any purpose not explicitly speciﬁed by manufacturer

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

Call Customer Service:

1-800-359-5520 (UK: 0800-056-2853)

Perfect! Perfect!

Ready to

begin?

Does your TV weigh

more than 125 lb

(56.7 kg) including

accessories?

Para Español ver página 32

CAUTION:

DO NOT install

into drywall alone

Wood Stud Install

Concrete Install

Pencil Screwdriver

Tape

Measure

7/32 in.

(5.5 mm)

Wood

Drill Bit

Electric Drill Hammer

1/2 in.

(13 mm)

Socket

Wrench Drill Bit

3/8 in.

(10 mm)

Concrete

STEP 1 Attach Bracket to TV

Vertical

TV Bracket

04 x1

NOTE: Not all hardware included will be used.

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged

item to your dealer; contact Customer Service. Never use damaged parts!

Parts and Hardware for STEP 1

M4x35 mm

M5x35 mm

M6x35 mm

M8x35 mm

10 11

TV Screws TV Washers

Spacers

Thumb Screws

M8x45 mm

Upper

TV Bracket

Plate

Lower

TV Bracket

01 x1

02 x1

1.1 Select TV Screws

Hand thread screws into the threaded inserts on the back of your TV

to determine which screw diameter (M4, M5, M6, or M8) to use.

1.2 Spacers

M4 M6 M8M5

Mount the spacers 12

above the TV bracket,

so the TV bracket sits

close to the TV surface

for flat back panels.

Mount the spacers 12

under the TV bracket to

create extra space needed

for irregular shape TV

backs or large cables.

TV Bracket

Spacers and screws are supplied to install your TV bracket.

Determine your preference for spacer configuration when

attaching your TV bracket.

CAUTION: Verify adequate thread engagement of the screw/

spacer combination on your TV.

Too short will not hold the TV and too long will damage the TV.

Too Short Correct Too Long

Round Back CablesInset HolesFlat Back

1. Slide TV bracket plate 03 into upper TV bracket 01 and loosely install using two thumb screws 13 .

2. Slide the upper 01 and lower 02 TV brackets onto the ends of the vertical TV bracket 04 .

1.3 Attach TV Brackets

0301

101

3. Position the TV bracket assembly over your TV hole pattern, center horizontally and

loosely install using the spacer, TV screw and washer combination (a) or (b) you

selected for your TV.

CAUTION: Avoid potential personal injury or property damage! The TV Bracket

assembly MUST BE installed with the release cord Roriented on the bottom of the

TV as shown.

If your TV included inset spacers or

wall mount adapters,

see Troubleshooting

on PAGES 26-27.

bSpacer, screw and washer

aSpacer, screw and washer

4. Vertically center TV bracket 04 .

5. Visually line up the locator hole Bin the lower TV bracket 02 , with a hole in the vertical TV bracket 04 and install using

two thumb screws 13 . Tighten the four thumb screws 13 on the upper 01 and lower 02 TV brackets.

413

02 04 13

TV Screws

6. Tighten the four TV screws (PAGE 8) on the upper 01 and lower 02 TV brackets.
