Sanus VLL5-B1 User manual

THANK YOU FOR CHOOSING SANUS

THE #1 TV MOUNT BRAND IN THE US.

Scan for easy

install video

VLL

Instruction Manual

WARNING:This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter deﬁbrillator (ICD) is in use, magnetic ﬁelds may aect the operation of

those devices, resulting in serious injury or death. If you have an implanted medical device, keep at least 13 cm (5in.) between your device and the magnet. Please consult with your physician or medical

professional prior to using this product.

SANUS

MAGNETIC STUD FINDER

Designed to ﬁnd your studs and make life easier– included in hardware kit.

TWO SIMPLE STEPS

TO FINDING YOUR STUDS:

Holding it vertically, lightly move the SANUS

Magnetic Stud Finder up and down while

sliding across your wall. The magnet within

will be attracted to the screws in the stud.

Once the magnet has landed on a screw,

place a pencil mark on the wall

directly below the magnet.

You can verify this is a stud by moving the

Magnetic Stud Finder up or down to ﬁnd

a second or third screw within the wall.

Pull apart the SANUS Magnetic Stud Finder to

expose the probing pin within. Starting about

1/2inch away from the ﬁrst pencil mark insert

the probing pin into the wall every 1/8inch until

it inserts completely into the wall. Once that

happens, you know you've found one edge of

your stud. Repeat this process till you have

found the stud edges and center of the stud.

Step 1 Step 2

magnet

locates screws in drywall

to show exactly where

your studs are

probing pin

helps ﬁnd the edges of

your stud within the wall

level

attaches to your wall plate

for hands free leveling

VLL5

Lo haremos sin estrés

Si tiene preguntas mientras realiza la instalación, llámenos.

1-800-359-5520 (Reino Unido: 0800-056-2853) Estamos listos para ayudarlo.

We’ll Make It Stress-Free

If you have any questions along the way, just give us a call.

1-800-359-5520 (UK: 0800-056-2853) We’re ready to help!

Para Español

ver página 24

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

—

Perfect!

Yes

—

This mount is NOT compatible. Visit MountFinder.Sanus.com or call

1-800-359-5520 (UK: 0800-056-2853) to ﬁnd a compatible mount.

Please read through these instructions completely to be sure you’re comfortable with this easy install process.

Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use

of this product, contact Customer Service at 1-800-359-5520 (UK: 0800-056-2853).

Do you have

all the tools

needed?

Before getting started, let’s make sure this mount is perfect for you!

What is your

wall made of? Drywall

with steel

studs?

Unsure?

Drywall

with wood

studs?

Solid concrete

or concrete

block?

125 lb

(56.7 kg)

CAUTION: Avoid potential personal injuries and property damage!

●This product includes directions and hardware for use with wood stud, solid concrete and concrete block walls –

DO NOT install into drywall alone. For information on how to use this product with steel stud walls contact Customer

Service and ask about the SSMK1 steel stud mounting kit.

●The wall must be capable of supporting ﬁve times the weight of the TV and mount combined.

●Do not use this product for any purpose not explicitly speciﬁed by manufacturer.

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

Call Customer Service: 1-800-359-5520 (UK: 0800-056-2853)

Perfect! Perfect!

Ready to

begin?

Steel stud kit (#SSMK1) required

7/32 in.

(5.5 mm)

Wood

Screwdriver Tape Measure Drill Bit Drill Bit Electric Drill Hammer Socket Wrench

3/8 in.

(10 mm)

Concrete

Does your TV weigh

more than 125 lb

(56.7 kg) including

accessories?

1/2 in.

(13 mm)

STEP 1 Attach Bracket to TV

TV Bracket

01 x2

NOTE: Not all hardware included will be used.

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged

item to your dealer; contact Customer Service. Never use damaged parts!

Parts and Hardware for STEP 1

Spacer

M4 x 20mm M5 x 20mm

M6 x 25mm M8 x 25mm

05 06

x4 x4

07 08

x4 x4

TV Screws

TV Washers Spacers

M8x30 mm

09 x4

1-1 Select TV Screws

Hand thread screws into the threaded inserts on the back of your TV

to determine which screw diameter (M4, M5, M6, or M8) to use.

1-2 Spacers

M4 M6 M8M5

CAUTION: Verify adequate thread engagment of the screw/

spacer combination on your TV.

Too short will not hold the TV and too long will damage the TV.

Too Short Correct Too Long

Mount the spacers 09

above the TV bracket,

so the TV bracket sits

close to the TV surface

for flat back panels.

Mount the spacers 09

under the TV bracket to

create extra space needed

for irregular shape TV

backs or large cables.

Spacers and screws are supplied to install your TV bracket.

Determine your preference for spacer configuration when

attaching your TV bracket.

Round Back CablesInset HolesFlat Back

TV Bracket

IMPORTANT:

For ease of access,

straps should

be level with the

bottom of the TV.

1-3 Attach TV Brackets

Center the TV brackets 01 over your TV hole pattern as shown. Be sure to use the same holes and that the brackets are level.

NOTE: Loosen the adjustment screws Aon TV brackets 01 to extend the mounting holes over your TV hole pattern.

Install using the spacer, TV screw and washer combination you selected for your TV.

IMPORTANT: Tighten the adjustment screws Aon TV brackets 01 when finished.

If your TV included inset spacers or wall mount adapters,

see Troubleshooting on PAGES 20-21.

Loosen

Tighten

Standard

configurations are

shown. For special

applications, or if

you are uncertain

about your hardware

selection, contact

Customer Service at

1-800-359-5520

aSpacer, screw and washer

07 08

02 03 04 05 06

bSpacer, screw and washer

07 08

02 03 04 05 06

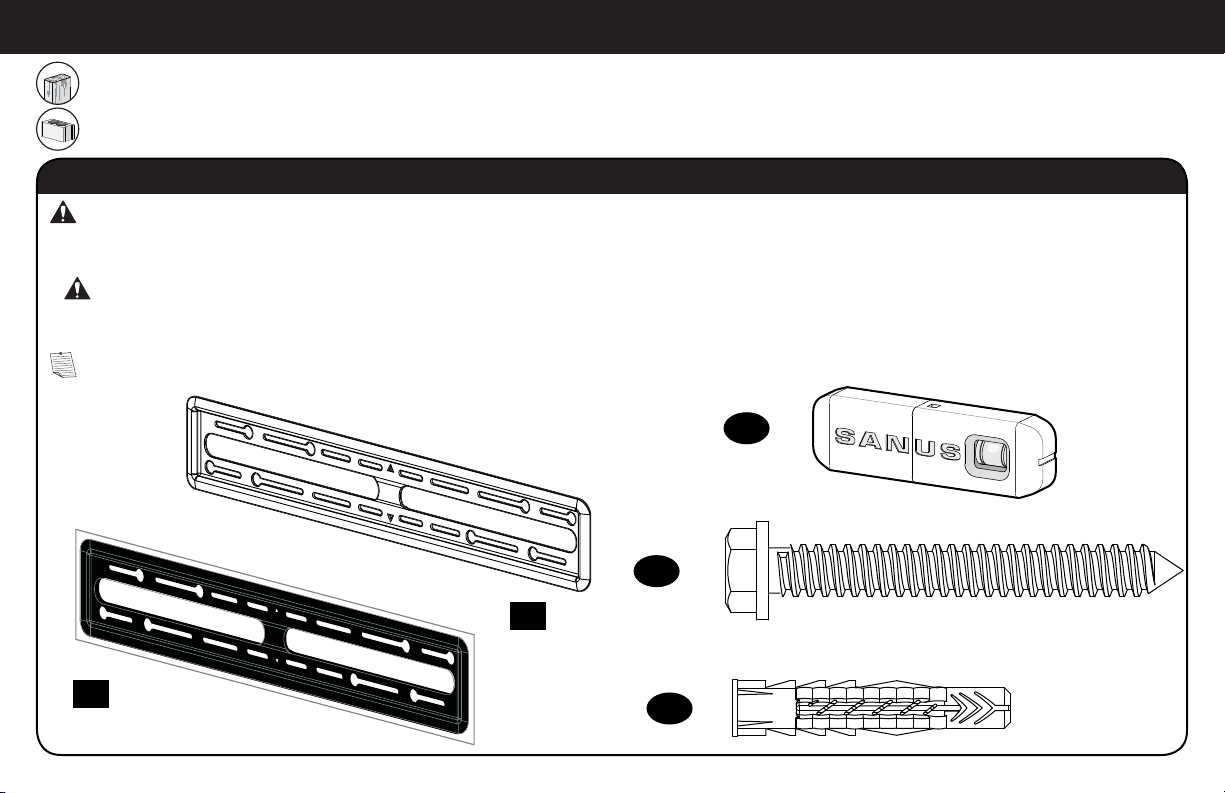

STEP 2 Attach Wall Plate to Wall

5⁄16 in. x 2 3⁄4 in.

Sanus Magnetic Stud Finder*

13 x4

10 x1

11 x1

12 x1

14 x4

Parts and Hardware for STEP 2

NOTE: Not all hardware included will be used.

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged

item to your dealer; contact Customer Service. Never use damaged parts!

Wall Plate

Template Lag Bolt

Concrete Anchor

*WARNING:This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter deﬁbrillator

(ICD) is in use, magnetic ﬁelds may aect the operation of those devices, resulting in serious injury or death. If you have an implanted medical device,

keep at least 13 cm (5 in.) between your device and the magnet. Please consult with your physician or medical professional prior to using this product.

For wood stud installations, follow STEP 2A on PAGE 9

For concrete installations, follow STEP 2B on PAGE 13

STEP 2A Wood Stud Option

CAUTION: Avoid potential

personal injuries and property damage!

●Drywall covering the wall must not

exceed 5/8 in. (16 mm)

●Minimum wood stud size:

common 2 x 4 in. (51 x 102 mm)

nominal 1½ x 3½ in. (38 x 89 mm)

●Minimum horizontal space between

fasteners: 16 in. (406 mm)

●Stud centers must be verified – not all

walls have conventional 16 in. (406 mm)

or 24 in. (610 mm) stud spacing

1. Locate a nail/screw in the studs

using the Sanus magnetic stud

finder 12 provided.

2. Find the edges of the studs using the

probe of the stud finder 12 .

3. Mark the centers of the studs with

a pencil.

1 2 3

Max. 5/8 in. (16 mm)

Min. 16 in. (406 mm) Min. 3 1/2 in. (89 mm)

Min. 1 1/2 in. (38 mm)

4. Place the wall plate template 10 at your desired height and position the slotted holes over your stud center lines. Level the wall plate

template 10 and tape in place.

NOTE: For assistance in determining wall plate location, see HeightFinder at sanus.com.

IMPORTANT: Be sure you mark and drill into the center of the stud.

5. Drill the four pilot holes using a 7/32 in. (5.5 mm) diameter drill bit.

IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm).

10 10

4 5

3 in. (75 mm)

7/32 in.

(5.5 mm)
