Sangean DPR-15 User manual

DPR-15/RD-15

DAB DIGITAL RADIO

CONTENTS

Specification ………………………………………………………………………………………………………2-3

Block Diagram …………………………………………………………………………………………..…………..4

MAIN PCB Top View…………………………………………………………………….……….………….…..5

MAIN PCB Bottom View……………..………………………………………………….……….………….…...6

LCD PCB Top View…………………………………………………………………………….……….……………7

LCD PCB Bottom View.………………………………………………………………………….……..………..…..8

POWER PCB TOP View.……………………………………………………………………….……..………..…..9

Wiring Diagram..….………………………………………….………………….….……………..……….10

Troubleshooting Flow Chart..….………………………………………….……………….….……………..……11

Electrical Parts List………………………………………………………………………………....……………12-13

Mechanical Parts List……………………………………………………………………….………….………….14

Exploded Views.…………………………………………………………………………….…………….……………15

IC Circuit Block Diagram…………………………………………..…………….………………………………16-18

Voltage Chart………………….……………………………..…………………………….…………………19-20

Semiconductor Lead Identifications……………………………………………………………………..……..…21

MAIN Shematic Diagram……………………………………….……………………………………………………22

LCD Shematic Diagram……………………………………….……………………………………………………23

All manuals and user guides at all-guides.com

all-guides.com

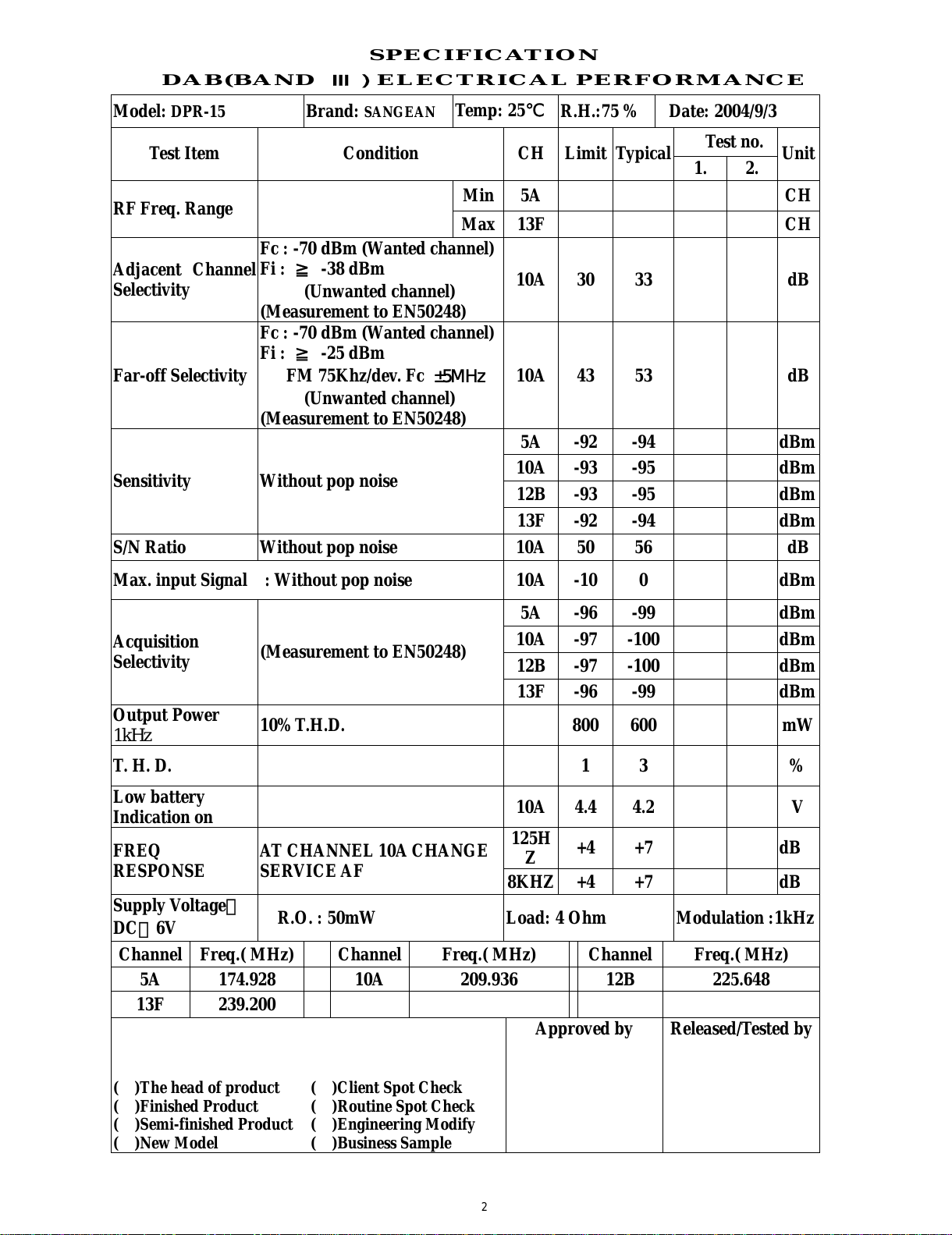

SPECIFICATION
