Samsung GEAR S3 CLASSIC User manual

SM-R770 / SM-R760

Common

Mobile Device

CONTENTS

1. Safety Precautions

2. Specification

3. Product Function

4. Exploded View and Parts list

5. MAIN Electrical Parts List

6. Level 1 Repair

7. Level 2 Repair

8. Level 3 Repair

9. Reference data

Notice: All functionality, features, specifications,

and other product information provided in this

document, including but not limited to, benefits,

design, pricing, components, performance,

availability, and capabiliti-es of the product are

subject to change without notice. Samsung

reserves the right to alter this doc-ument or the

product described herein at anytime, without

obligation to provide notification of such

changes.

This Service Manual is a property of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable

International and/or domestic law.

Samsung Electronics Co.,Ltd

2016. 10. Rev 1.0

ⓒ

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

2. Specification

N/A

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

3. Operation Instruction and Installation

Main Function

Item

Description

Tizen based wearable platform

N/A

Battery

380mAh

Base Band

1.0GHz Dual Core CPU

Other RF

A-GPS, BEIDOU, Glonass, BT v4.2, NFC, WIFI 802.11 b/g/n, MST

Camera

N/A

LCD

1.3”, Circular Super AMOLED, 360x360, 278ppi

RAM

4G Bytes (eMMC) + 768M Bytes (LPDDR3) Memory

Sensor

Accelerometer, Barometer, Gyro Sensor, Ambient Light, HR Sensor

Accessory Charger: 5V/0.7A

Tx PAD : Wireless charger

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

9. Reference Abbreviate

Reference Abbreviate

― AAC: Advanced Audio Coding.

― AVC : Advanced Video Coding.

― BER : Bit Error Rate

― BPSK: Binary Phase Shift Keying

― CA : Conditional Access

― CDM : Code Division Multiplexing

― C/I : Carrier to Interference

― DMB : Digital Multimedia Broadcasting

― EN : European Standard

― ES : Elementary Stream

― ETSI: European Telecommunications Standards Institute

― MPEG: Moving Picture Experts Group

― PN : Pseudo-random Noise

― PS : Pilot Symbol

― QPSK: Quadrature Phase Shift Keying

― RS : Reed-Solomon

― SI : Service Information

― TDM : Time Division Multiplexing

― TS : Transport Stream

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

1. Safety Precautions

1-1. Repair Precaution

Before attempting any repair or detailed tuning, shield the device from RF noise or static

electricity discharges.

Use only demagnetized tools that are specifically designed for small electronic repairs,

as most electronic parts are sensitive to electromagnetic forces.

Use only high quality screwdrivers when servicing products. Low quality screwdrivers can

easily damage the heads of screws.

Use only conductor wire of the properly gauge and insulation for low resistance, because of the low margin

of error of most testing equipment.

We recommend 22-gauge twisted copper wire.

Hand-soldering is not recommended, because printed circuit boards (PCBs) can be easily

damaged, even with relatively low heat. Never use a soldering iron with a power rating of

more than 100 watts and use only lead-free solder with a melting point below 250°C (482°F).

Prior to disassembling the battery charger for repair, ensure that the AC power is disconnected.

Always use the replacement parts that are registered in the SEC system. Third-party replacement parts

may not function properly.

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

1. Safety Precautions

1-2. ESD(Electrostatically Sensitive Devices) Precaution

Many semiconductors and ESDs in electronic devices are particularly sensitive to static discharge and can

be easily damaged by it. We recommend protecting these components with conductive anti-static bags

when you store or transport them.

Always use an anti-static strap or wristband and remove electrostatic buildup or dissipate

static electricity from your body before repairing ESDs.

Ensure that soldering irons have AC adapter with ground wires and that the ground wires are properly

connected.

Use only desoldering tools with plastic tips to prevent static discharge.

Properly shield the work environment from accidental electrostatic discharge before opening

packages containing ESDs.

The potential for static electricity discharge may be increased in low humidity environments,

such as air-conditioned rooms. Increase the airflow to the working area to decrease the

chance of accidental static electricity discharges.

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

6. Level 1 Repair

6-1. S/W installation

6-1-1. Required items in order to install S/W

1.6pi Y-type screw driver

Installation program: Downloader Program (Odin3 v3.12.5.exe)

Mobile Phone Download Jig(Charger Dock, SEC: GH81-12016M)

Data Cable

Mobile device specific S/W: Binary files

※

Settings

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

6. Level 1 Repair

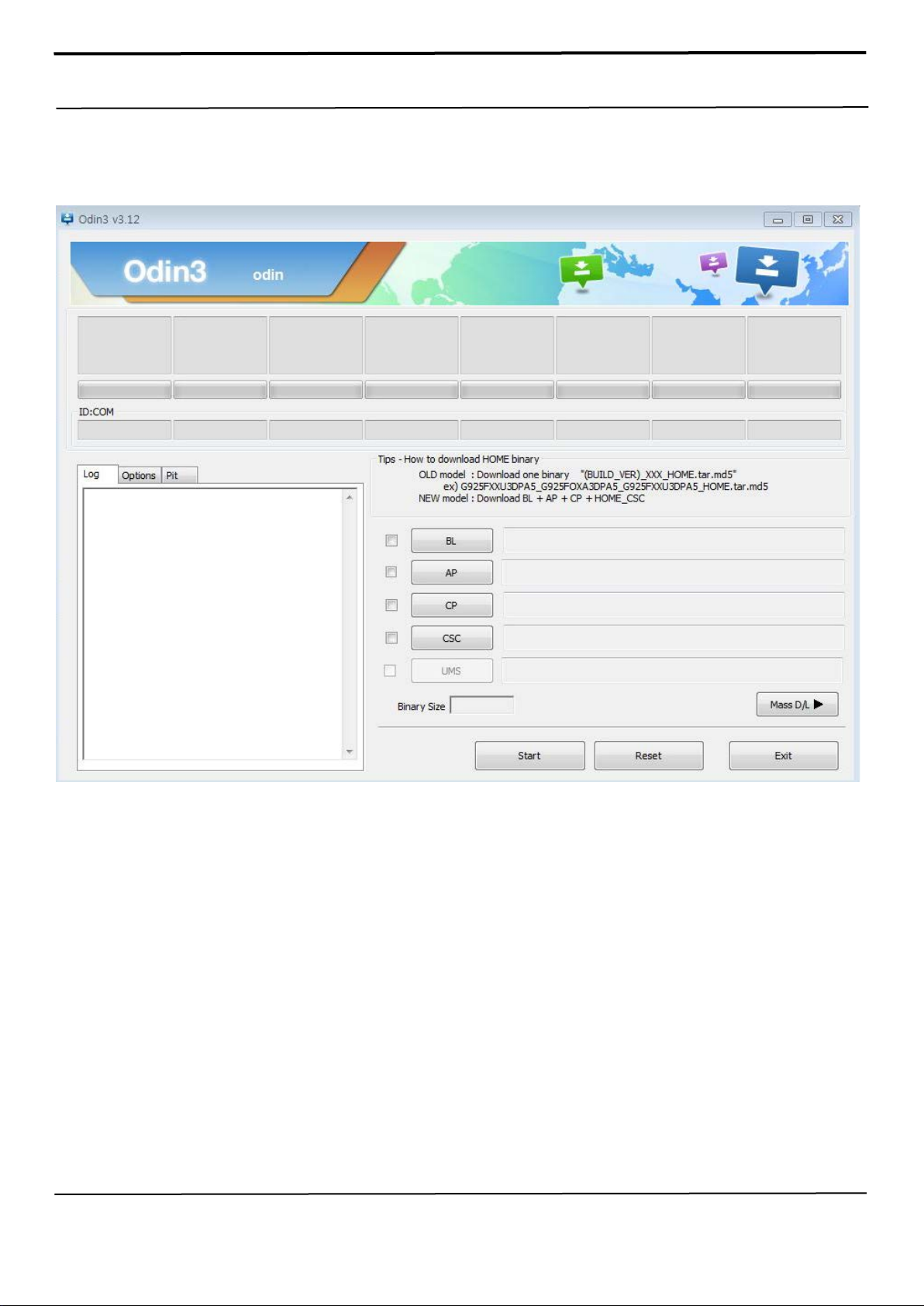

6-1-2. S/W Installation Program (Downloader program)

Open up the S/W Installation Program by executing the "Odin3 v3.12.5.exe"

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

6. Level 1 Repair

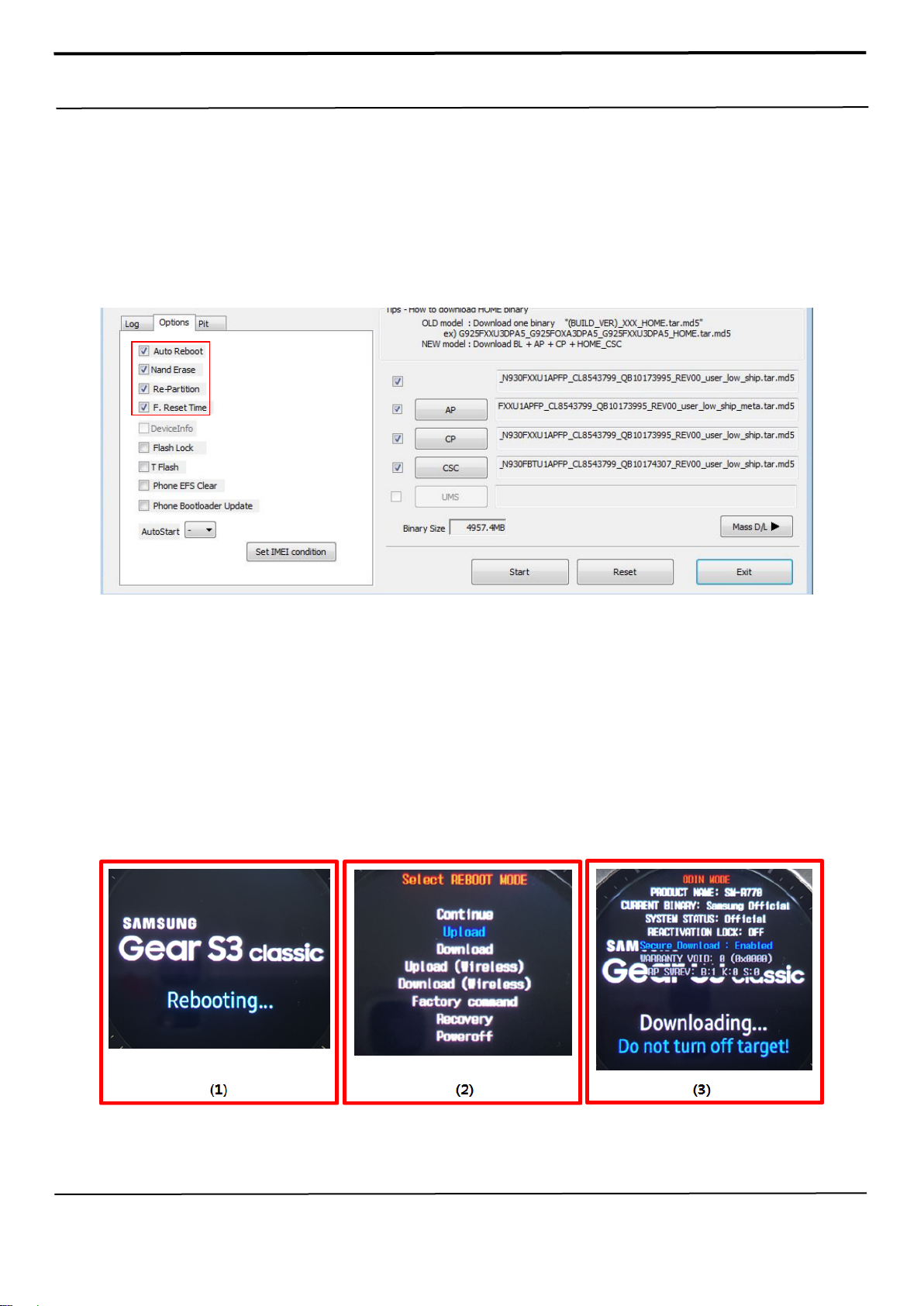

1. Enable the check mark by click on the following options,

- Check Auto Reboot, Re-Partition, and F. Reset Time-

- Check Nand Erase All

- Check BL, AP and CSC Files

* Note : "Odin v3.12 or above" checks MD5 checksum just after file selection.

2. Enter into Download Mode

2.1 Press the Power Key more thatn 7 seconds

2.2 Press the Power Key 3 times after display changed with 'Rebooting...'. (1)

2.3 Select the download mode. (2)

2.4 Check whether target enter the download mode (3)

Insert the device to charging-dock and lock the device in the charging-dock.

※Menu Movement : Power Key Press & Release for 0.5sec

Menu Selection : Power Key Press & Release for 1.6sec

(Auto Restarting if nothing happened)
