Samsung GEAR LIVE Service manual

QUICK REFERENCE MANUAL

DRAFT

Support

This guide provides you with the information you need to

get started. For more information and additional support,

please visit the samsung.com support page.

• Get support for your device online.

• Review your device’s User Manual and

troubleshooting FAQs.

• Review troubleshooting solutions.

NOTE: Devices and software are constantly evolving—the screen

images and icons you see here are for reference only.

NOTE: This device should only be used with firmware versions

that have been approved for use by the carrier and the

device manufacturer. If unauthorized firmware is placed on

the device it will not function.

For a list of compatible smartphones, please visit:

www.samsung.com/us/gearsupport

DRAFT

Device Functions

You can use mobile devices more conveniently by

connecting to various applications with the Samsung

Gear™Live. Set your exercise program and manage your

health by connecting the Gear Live to a mobile device.

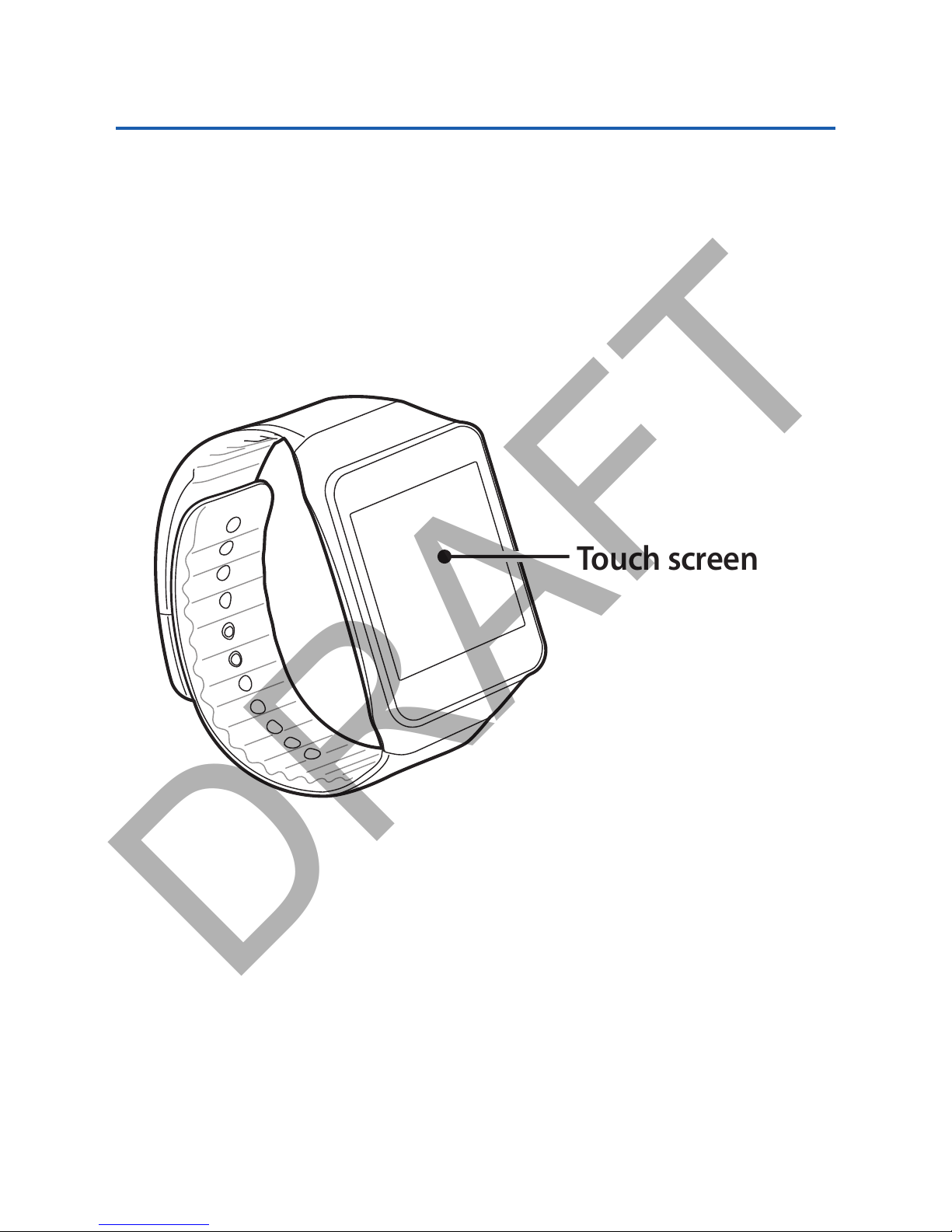

Touch screen

¬Power button: Press and hold to to turn the

Gear Live on/off. Press to turn the screen on/off, or to

move the Home screen.

DRAFT

Charging

terminals

Microphone

Power button

Heart rate sensor

Charging dock

Charging terminals

Multipurpose jack

DRAFT

Setting Up Your Device

Charging the Device

1. Before turning on your Gear Live for the ﬁrst time,

charge it fully.

2. Carefully place the Gear Live on the charging dock

with the charging terminals facing each other and

connect to the charger.

Charging

terminals

Charging dock

DRAFT

3. Plug in the USB cable.

Caution!: Connect the charger properly to the device. An

improper connection can damage the device and void

the warranty.

DRAFT

4. When ﬁnished charging, disconnect the Gear Live

from the charging dock.

DRAFT

Wearing the Gear Live

1. Release the pin from the strap.

2. Place the strap around your wrist, ﬁt the strap to your

wrist, and then fasten it with the pin.

3. Press the button to close the clasp.

DRAFT

Changing the Band

The strap is held in place by small spring-loaded pins

(called presto pins).

¬Press in on the pin to release it from the case, and

then lift the strap out as shown.

Attaching the Band

¬Insert one side of the pin into the Gear Live case, and

then press in on the pin. Slip the band into the case

and then release the pin to secure the band in place.

Presto pins

Press in on

the pin

Lift out to

remove

DRAFT

TecTile are all trademarks of Samsung Electronics Co., Ltd. Bluetooth®is a

registered trademark of Bluetooth SIG. Other company and product names

mentioned herein may be trademarks of their respective owners. Screen

images simulated. Appearance of device may vary.

Printed in Vietnam | 04/2014 | GH68-41040A Rev_1.3

SAMSUNG TELECOMMUNICATIONS AMERICA

1301 E. Lookout Drive | Richardson, TX 75082

1.888.987.HELP

www.samsung.com/mobile
