Samsung WS7000A1 User manual

FEATURES ………………………………………………………………………1

SAFETY INSTRUCTIONS ………………………………………………………2

DESCRIPTION OF PARTS ……………………………………………………3

CONTROL PANEL ………………………………………………………………4

WASHING PROCEDURE ………………………………………………………4

Wash……………………………………………………………………………4

Spin ……………………………………………………………………………5

Rinse …………………………………………………………………………5

INSTALLATION …………………………………………………………………6

Environment …………………………………………………………………6

Assembling the sound absorbing panel ……………………………………6

Connecting the drain hose ……………………………………………………6

Levelling ………………………………………………………………………6

Cleaning the magic filter ………………………………………………………6

How to put the fabric softener ………………………………………………6

LAUNDRY GUIDE ………………………………………………………………7

TROUBLESHOOTING …………………………………………………………7

SPECIFICATIONS ………………………………………………………………8

Before operating the unit, please read this manual

throughly, and retain for future reference.

Owner’s Instructions

FEATURES

TRANSPARENT WINDOW

This Transparent Window is the new concept to solve the curiosity

of users to see inside of washing machine while operation.

While operation, the laundry progress inside of washing machine can be checked

by looking through the transparent window.

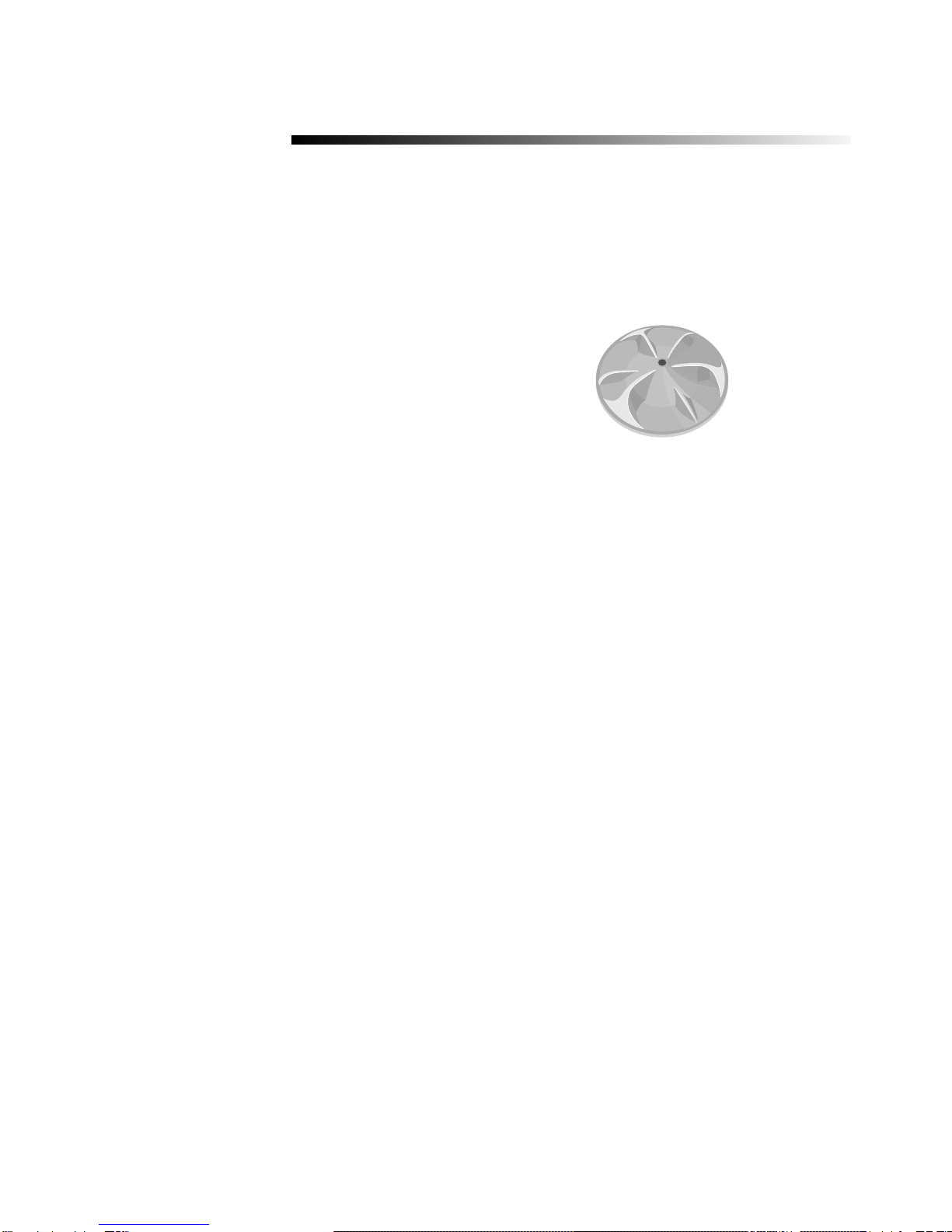

BOOMERANG PULSATOR

The Boomerang Pulsator helps water

and detergent to go through fabrics efficiently while providing both the

powerful water action to clean larger and heavier clothes and the gentle

water action to clean all delicates with less wear and tear on clothes.

WATERFALL FLOW

The Waterfall Flow injected from under the pulsator cascades

with full force back into the tub, pushing down any clothes that float right

under the water surface. It is this Waterfall Flow that enables this washing

machine to effectively wash large and heavy items, such as bluejeans and blankets.

MAGIC FILTER

This unique magic Filter ensures that all the lint inside the tub is captured

for top quality filtering results to deliver consistently effective cleaning

results.

SOFTENER DISPENSER

The Softener Dispenser releases the fabric softener at the appropriate

time when the last rinsing proceeds.

SAFETY INSTRUCTIONS

Where an unearthed power cord is fitted, be

sure that the washer is grounded.

To avoid electrical shock use metal piping for

the ground connection.

Take care not to ground the washer to gas

pipes or telephone cables due to the danger of

explosion from lightning strikes.

During spinning, don't put

your hand in the spin basket.

Because the spin basket

is rotating at the high

speed, rotating parts may

Injure your hand.

Openings must not be obsructed by

carpeting when the washing machine is

installed on a carpeted floor.

To minimize the possibility of electric shock,

unplug this appliance from the power

supply or disconnect the washer at the

household distribution panel by removing

the fuse while any maintenance or cleaning.

The appliance is not intended for use by

young children or infirm persons without

supervision.

Young children should be supervised to

ensure that they do not play with the

appliance.

If the power supply cord is damaged, it must

be replaced by the manufacturer or its

service agent or a similary qualified person

in order to avoid a hazard.

Place clothes evenly into the washer as

unevenly distributed laundry may cause

excessive out-of-balance noise and

vibration.

Don't use excessively hot water.

(50°C or more)

Plastic parts may be deformed or damaged.

Also, clothing may be deformed or bleached.

Before washing, check all pockets.

If nails or pins remain in pockets, they may

damage the washer or clothes.

Don't press the control panel with a sharp

object.

Panel damaged or malfunction may occur.

If the control panel for this washer is damaged,

it must be replaced by a repair shop appointed

by the manufacturer, as special purpose tools

are required.

Do not operate this appliance if it is

damaged, malfunctioning, partially

disassembled, or has missing or broken

parts, including a damaged cord or plug.

Do not store or use gasoline or other

flammable vapors and liquids in the vicinity

of this or any other appliance.

The instructions for use shall specify the

maximum mass or dry cloth in kg, for which

the appliance is designed.

If the appliance is supplied from a cord

extension set or electrical portable outlet

device the cord extension set or electrical

portable outlet device should be positioned

so it is not subject to splashing or ingress of

moisture.

WARNING!

To reduce the risk of fire, electric shock, or injury to persons when using your appliance,

take care to adhere to the following precautions.

DESCRIPTION OF PARTS

BLEACH INLET

FABRIC SOFTENER

DISPENSER

LID

Be sure to keep the lid

closed during washing

and spinning.

MAGIC FILTER

Lint will be collected in the

filter during washing.

SPIN BASKET

Stainless

ADJUSTABLE LEGS

Adjust the length of the

legs when installing

the washer.

WATER DRAIN HOSE

SOUND ABSORPTION

PANEL

POWER CORD

“BOOMERANG”

PULSATOR

GROUND LEAD Option

When the water pipe is

metal, make sure to cover

the end of the ground wire.

Option

CONTROL PANEL

WASHING PROCEDURE

1. WASH TIMER

This is used to set the wash time, 1-15 minutes.

2. WASH SELECTOR

You can wash laundry effectively by various

agitation.

3. CYCLE SELECTOR

This is used to set the Washing/Rinsing or

Draining or Spining.

4. WATER INTAKE

Connect water inlet to tap with a Suitable.

5. DRAIN/SPIN TIMER

This is used to set the drain time 1~2 minutes /

spin time 1-5 minutes.

Before starting washing, check the following ;

Connect the water supply hose to the water tap. Leave a tap open.

Plug the power cord in. Make sure to lay down the drain hose.

Put the laundry into the washer and add detergent, too.

Be careful not to overload, Use right detergent for the fabrics you are washing.

WASH

1. Set the CYCLE SELECTOR KNOB

to “WASH / RINSE”

2. Select the WASH SELECTOR

KNOB for desired mode.

3. Fill water in the wash tub to

the “L1” lower water level by

carefully adjusting the tap

water and add the detergent.

4. Put the cloths into the wash

tub and set the same water

pressure to fill the tub so as

not to exceed “H3” level.

5. Set the WASH TIMER

1-15 minutes.

6. After washing, set the

CYCLE SELECTOR KNOB

to “DRAIN”

7. Set the DRAIN/SPIN

TIMER for drain “H” for drain.

Then, drain will be started.

(In case of need more drain,

repeat the no 2)

❖ Please adjust the drain time like H, M, L depend

on the warer level.

H : High water level.

M : Medium water lever level.

L : Low water level.

WASHING PROCEDURE

1. Distribute laundry evenly in the basket after drain.

(Uneven laundry may cause ABNORMAL NOISE.)

2. Distribute laundry evenly in the basket before

spinning.

(Uneven laundry may cause ABNORMAL NOISE.)

3. Close the lid

4. Set the CYCLE SELECTOR

KNOB to “Spin”

5. Set the DRAIN/SPIN

TIMER 1-5 minutes.

❖In case of a abnormal vibration and noise.

return the “DRAIN/SPIN TIMER” to the “0”

postion and then Distribute laundry evenly.

1. Set the CYCLE SELECTOR

KNOB to “WASH RINSE”

2. Set the same water pressure to fill the tub so as

not to exceed “H3” level.

3. Set the WASH TIMER

2~3 minutes.

4. After finsing,

set the CYCLE SELECTOR

KNOB to “DRAIN”

5. Set the DRAIN/SPIN TIMER for drain "H”.

Then, drain will be started.

(In case of need more drain,

repeat the no 2)

❖Please adjust the drain time like H, M, L depend

on the water level.

H : High water level.

M : Medium water level

L : Low water level.

6. Repeat this cycle until water comes.

(2~3 cycle)

SPIN

RINSE

INSTALLTION

ENVIRONMENT

Leave some space

Maintain at least 10cm between the washer and

the wall.

Place the washer on a sturdy flat surface.

If the washer is placed on an uneven or weak

surface, noise or vibration occurs.

(Allowable is 1˚)

Adjust the legs for even placement.

Never install the washer near water.

Do not place the washer in steamy rooms or

where the washer is directly exposed to rain.

Moisture may destroy the electrical insulation

causing an electrical shock hazard.

Avoid direct sunlight or heaters.

As plastic and electrical components are affected

by direct heat, never place the washer near

furnaces, boilers, etc. Do not place under direct

sunlight.

ASSEMBLING THE SOUND ABSORBING

PANEL Option

Tilt the washer a little and lift up the panel until clicks,

finaly fix the panel with screw to the base as shown

in the figure.

CONNECTING THE DRAIN HOSE

After pressing the joint ring(a), insert the drain

hose(b) to drain direction.

LEVELLING

SEE IF THE MACHINE PLACED LEVEL BY

CHECKING THE POSITION OF THE WASHING TUB.

•Open the lid of the machine, pour water into the

tub up to the level just below the pulsator, and

adjust the legs so that the pulsator is positioned

at the center of the water as shown in the figure.

•Place the machine more than 10cm away from

the wall.

•Adjust the legs on feet for leveling.

1. Push the upper part of

the filter and pull in.

2. Open the cover as

shown in the figure.

Rear-side

(a)

(b)

WATER

LOOSEN LOCK

CLEANING THE MAGIC FILTER

3. Clean the filter.

Close the cover and insert the

lower part of the filter in the

basket first and then push the

filter with "click" sound.

How to put the FABRIC SOFTENER

1. Case 1

Fill the water and then, put the “RINSE”into the basket

for rinse cycle.

2. Case 2

In case of use Softener box, operate like following.

1) Put the Softener into the Softener box.

2) Operate following procedure.

Wash → Drain → Spin → Rinse1 → Drain → Spin →

Rinse2 →Drain → Spin

3) Softener will be flowed into the basket at “Rinse2”cycle.

•When a proper amount (one time does) of fabric

softener is stored in the softener inlet, it is

automatically put in at the last rinsig cylce.

•Do not use detergent, bleach or starch into the

Softener lnlet.

•Using too much softener may produce unsatis-

factory results.

•Do not open the lid during the Spin Dry cycle.

If added too early,

its effectiveness will decrease.

•Do not leave the softener into

the Softener Dispenser for a

long time.

Because softner became stiff.

TIME TYPE OF LAUNDRY

1min. Thin(synthetic fiber)

1~2min. wool

3~5min. cotton

5min thick(cotton)

LAUNDRY GUIDE

TROUBLE SHOOTING

WASHING TIME

DETERGENT

KINDS OF CLOTHING WASHING TIME

Extremely solid heavy fabric 10 to 15minutes

Linen, cotton, etc. 8 to 10minutes

Ordinary clothes 7minutes

(underwear, etc)

Slightly solied synthetic 2 to 5minutes

fiber

100% wool, mixed wool knitting,

thin synthetic fiber with tags 2 to 5minutes

indicating hand washing

AMOUNT OF WATER

DETERGENT LEVEL

41g Low (41 )

48g Medium (48 )

56g High (56 )

SPIN TIME

DRAIN TIME

TIME WATER LEVEL

L Low

M Medium

H High

- The amount of detergent is average.

Follow the instruction detergent printed on the package for

amount of detergent.

- Choose the amount of detergent depending on the fabric type.

TROUBLE CHECK POINT

Washing machine won’t work. Is the water tap opened?

Is the washer plugged in?

Is the power cut off?

Is there enough water?

Clothes will not move freely. Is the laundry overloaded?

Spinning does not work Is the laundry spread evenly in the washer?

Is the washer set on a sturdy flat surface?

Is the lid closed completely?

Water dose not drain Is the drain hose down?

Is the drain hose frozen?

Is the drain hose clogged?

Is the lid closed completely?

Water is not supplied Is the water tap opened?

Is the water cut off?

Is the water supply hose or hose connection clogged

Is the water tap frozen?

SPECIFICATIONS

IF YOU NEED HELP.

Do not hesitate to call your local samusng service center.

They will be willing to help you.

Be sure to give them your name, address, telephone number and the purpose of the call.

RATED POWER

WASH

300W STANDARD HIGH 56

CONSUMPTION

SPIN

240W WATER LEVEL MED 48

DIMENSIONS W540 × D560 × H850mm

WEIGHT 30kg

WATER PRESSURE 0.05~0.78MPa PULSATOR 126 rpm

(0.5~8.0kg•f/cm2) ROTATING SPEED

RATING TIME Washing : 1Hour SPINNING TUB 760 rpm

Spinning : 15minutes ROTATING SPEED

CODE NO. : DC68-00541A

This manual suits for next models

Table of contents

Other Samsung Washer manuals

Samsung

Samsung WA49B5205AW/US User manual

Samsung

Samsung WD15F5 Series User manual

Samsung

Samsung SK-3A1 User manual

Samsung

Samsung WW95H7410E Series User manual

Samsung

Samsung Q1244AS User manual

Samsung

Samsung WW70K5 Series User manual

Samsung

Samsung WD7704C8U User manual

Samsung

Samsung WA14N6780C Series User manual

Samsung

Samsung WW7 T Series User manual

Samsung

Samsung WA48H7400 Programming manual

Samsung

Samsung WF8692NHW/XSG User manual

Samsung

Samsung WF16J6 User manual

Samsung

Samsung WD8704CJF User manual

Samsung

Samsung WF0602WKE/XEO Reference guide

Samsung

Samsung WF455ARG SERIES Installation guide

Samsung

Samsung WF50A88 A Series User manual

Samsung

Samsung F1053V User manual

Samsung

Samsung WD1 T Series User manual

Samsung

Samsung WA16N678 Series User manual

Samsung

Samsung WD16T6300 Series User manual

Samsung

Samsung WE357A7W User manual

Samsung

Samsung WD-B1265C User manual

Samsung

Samsung WF457ARGSWR/AA User manual

Samsung

Samsung WD10T534ABW User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
