Samsung SW60ASP User manual

CONTENTS Page

FEATURES............................................................................................1

DESCRIPTION OF PARTS....................................................................2

SAFETY INSTRUCTIONS .....................................................................3

INSTALLATION & MAINTENANCE......................................................4

ENVIRONMENT................................................................................4

IN CASE OF PUMP-DRAINED WASHER.......................................4

HOW TO CONNECT WATER SUPPLY HOSE................................4

CLEANING THE FILTER NET..........................................................5

HOW TO ADD THE FABRIC SOFTENER.......................................5

HOW TO PUT THE DETERGENT IN ..............................................5

CLEANING THE FILTER..................................................................5

LEVELLING.......................................................................................5

PRECAUTIONS................................................................................6

TO DO A CLEAN WASHING ...........................................................6

WASHING INSTRUCTION.....................................................................6

PROCEDURE...................................................................................6

WASH PROGRAM............................................................................7

WASHING PROGRAM DETAILS..........................................................7

OPTIONAL CYCLE................................................................................8

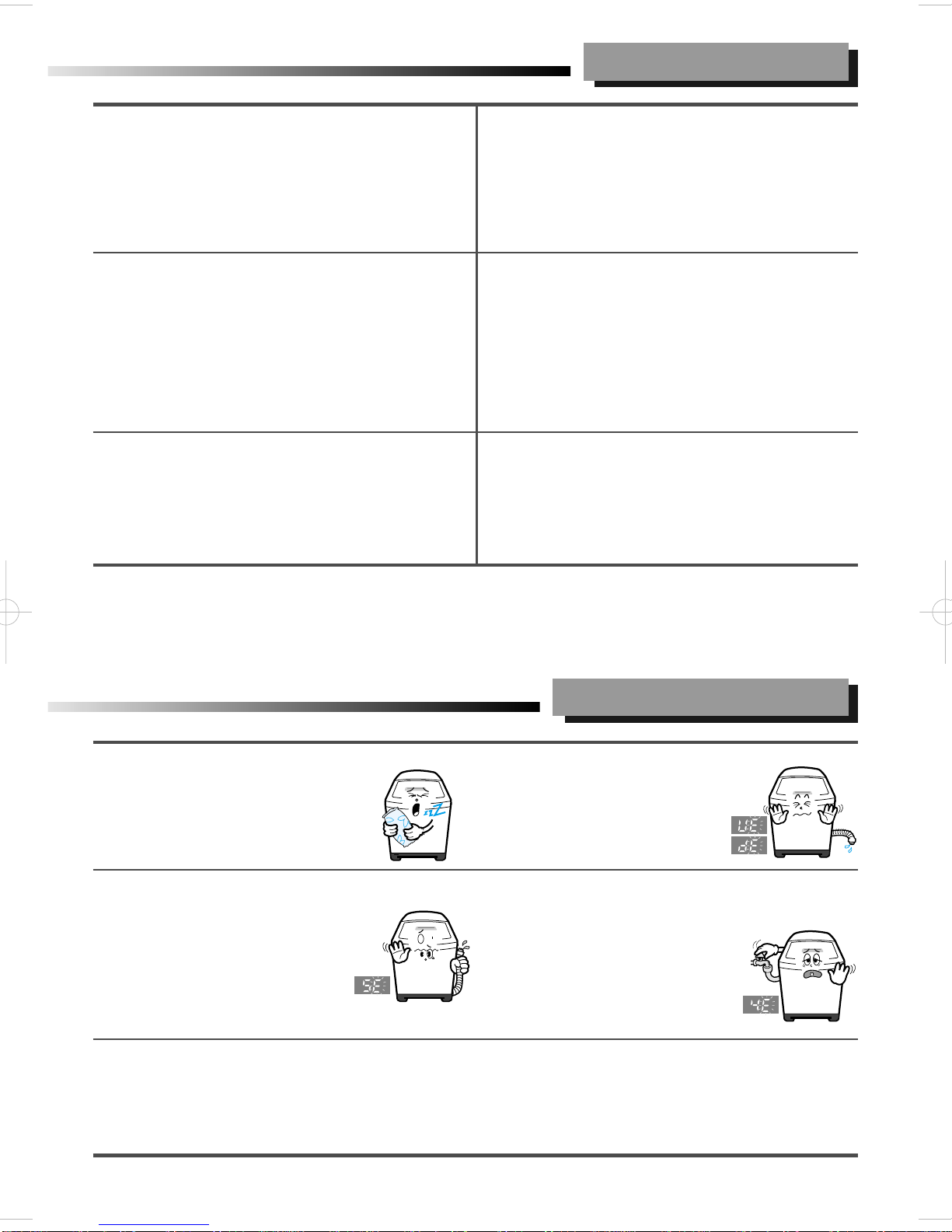

TROUBLESHOOTING...........................................................................8

SPECIFICATION

Owner’s Instructions

SW50ASP/SW60ASP

SW50ASP60ASP-GB-01488C-76% 6/17/02 2:50 PM Page 1

FEATURES

WATERFALL FLOW

• The Waterfall Flow injected from under

the pulsator cascades with full force

back into the tub, pushing down any

clothes that float right under the water

surface. It is this Waterfall Flow that

enables this washing machine to

effectively wash large and heavy

items, such as bluejeans and blankets.

SOFTENER DISPENSER

• The Softener Dispenser releases the

fabric softener at the appropriate time

when the last rinsing proceeds.

MAGIC FILTER

• This unique magic Filter ensures that

all the lint inside the tub is captured for

top quality filtering results to deliver

consistently effective cleaning results.

SW50ASP60ASP-GB-01488C-76% 6/17/02 2:50 PM Page 2

DESCRIPTION OF PARTS

CONTROL PANEL

DRAIN-HOSE (PUMP)

WATER SUPPLY HOSE(HOT)

WATER SUPPLY HOSE (COLD)

LID

Be sure to keep the lid

closed during washing

and spinning.

Lint will be collected in

the filter during

washing.

FILTER

DETERGENT BOX

GROUND LEAD

When the water pipe is

metal, make sure to cover

the end of the ground wire.

POWER CORD

WATER DRAIN HOSE

RAT PROTECTION

PANEL

ADJUSTABLE LEGS

Adjust the length

of the legs when

installing the washer.

FRONT CONTROL

PANEL

BLEACH INLET

PULSATOR

FABRIC SOFTENER

DISPENSER

WATERFALL FLOW

SPIN BASKET

SW50ASP60ASP-GB-01488C-76% 6/17/02 2:50 PM Page 3

SAFETY INSTRUCTIONS

●Where an unearthed power cord is not fitted,

be sure that the washer is grounded.

To avoid electrical shock use metal piping for the ground

connection.

Take care not to ground the washer to gas pipes or

telephone cables due to the danger of explosion from

lightning strikes.

●During spinning, don't put your

hand in the spin basket.

Because the spin basket is rotating at the

high speed, rotating parts may injure your

hand.

●Openings must not be obstructed by carpeting

when the washing machine is installed on a

carpeted floor.

●Turn off water taps when the washer is not in

use to avoid water pressure damage to the

pump.

●To minimize the possibility of electric shock,

unplug this appliance from the power supply or

disconnect the washer at the household

distribution panel by removing the fuse or

switching off the circuit breaker before

attempting any maintenance or cleaning.

●The appliance is not intended for use by young

children or infirm persons without supervision.

●Young children should be supervised to ensure

that they do not play with the appliance.

●If the power supply cord is damaged, it must be

replaced by the manufacturer or its service

agent or a similarly qualified person in order to

avoid a hazard.

●Place clothes evenly into the washer as

unevenly distributed laundry may cause

excessive out-of-balance noise and vibration.

●Maximum hot water supply temperature

60 degrees.

● Before washing, check all pockets.

If nails or pins remain in pockets, they may damage the

washer or clothes.

●Don’t press the control panel with a sharp

object.

Panel damaged or malfunction may occur.

If the control panel for this washer is damaged,

it must be replaced by a repair shop appointed by the

manufacturer, as special purpose tools are required.

● Do not operate this appliance if it is damaged,

malfunctioning, partially disassembled, or has

missing or broken parts, including a damaged

cord or plug.

●Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any

other appliance.

●The instructions for use shall specify the

maximum mass or dry cloth in kg, for which the

appliance is designed.

●If the appliance is supplied from a cord

extension set or electrical portable outlet

device the cord extension set or electrical

portable outlet device should be positioned so

it is not subject to splashing or ingress of

moisture.

WARNING!

To reduce the risk of fire, electric shock, or injury to persons when using your appliance,

take care to adhere to the following precautions.

SW50ASP60ASP-GB-01488C-76% 6/17/02 2:50 PM Page 4

INSTALLATION & MAINTENANCE

ENVIRONMENT

Leave some space

Maintain at least 10cm between the washer and the

wall.

Place the washer on a sturdy flat surface.

If the washer is placed on an uneven or weak

surface, noise or vibration occurs. (Allowable slope

is 1 degree)

Never install the washer in a very steamy

environment or where it might be open to

the rain.

Excessive moisture may cause an electrical shock

hazard.

Avoid direct sunlight or heaters.

As plastic and electrical components are affected by

direct heat,never place the washer near furnaces,

boilers,etc. Do not place under direct sunlight.

IN CASE OF PUMP-DRAINED WASHER

1. Remove the adaptor from the

water supply hose.

2. First,using a "+" type screw

driver, loosen the four screws

on the adaptor. Next,take the

adaptor and turn part(b)

following the arrow for gap

about 5mm between them.

3. Connect adaptor to the water

tap by tightening the screws

firmly.

Then,turn part (b) following the

arrow and put (a) and (b)

together.

5. Connect the other end of the

water supply hose to the inlet

water valve at the top of the

washer.

Screw the hose clockwise all

the way in.

6. If the water tap is a screw

type,assemble a water supply

hose that fits to the tap as

shown.

4. Connect the water supply hose

to the adaptor. Pull down the

part (c) of the water supply

hose. When you release part (c)

the hose is automatically

connects to the adaptor making

a 'click' sound.

HOW TO CONNECT WATER SUPPLY HOSE

Check the type of tap fitting which is in your laundry and then see appropriate instruction below:

A tap of ordinary type is desirable In case of square tap

●

Take out the internal part of the connector

and join it in the following way.

ORDINARY TAP SQUARE TAP ROTATING TAP Internal part

●

Be sure to join tightly

the drain hose into the

drain-outlet on the left

side of the machine.

●

Take out the

cap-hose

and

connect the

outlet-hose.

●

Install the drain

hose in the position

of about 70~80cm

above the ground.

cap-hose

outlet-hose

SW50ASP60ASP-GB-01488C-76% 6/17/02 2:50 PM Page 5

•Open the lid of the machine, pour water into the tub up to the level

just below the pulsator, and adjust the legs so that the pulsator is

positioned at the center of the water as shown in the figure.

•Place the machine more than

10cm away from the wall.

•Adjust the legs on feet

for levelling .

CLEANING THE FILTER NET

1.Push the upper part of

the filter and pull in. 2.Open the cover as

shown in the figure. 3.Clean the filter. 4. Close the cover and insert the lower

part of the filter in the basket first and

then push the filter with "click" sound .

1. Place a rag under washer filter not to wet the floor.

2. Turn the filter-cap to the left.

3. Take out the filter and remove any sludge.

4. Reassemble in reverse order.

CLEANING THE FILTER

(pump drained washer)

•When a proper amount (one time does) of fabric

softener is stored in the softener inlet,it is

automatically put in at the last rinsing cycle.

•Do not use detergent, bleach or starch into

the Softener Inlet.

•Using too much softener may produce

unsatisfactory results.

•Do not open the lid during the Spin Dry cycle.

If added too early, its effectiveness will decrease.

•Do not leave the softener

into the Softener

Dispenser for a long time.

Because softner

became stiff.

HOW TO ADD THE FABRIC SOFTENER

1. Open the detergent box by pulling in the direction of the arrow as shown in the figure and then put the powder detergent in

the detergent box.

2. Put in one-time amount of detergent evenly so the detergent may not brim over the box.

HOW TO PUT THE DETERGENT IN

Detergent Device

Put the detergent

in proportion to

water level

Softener Device

Softener

baseline

CAUTION : If softener is stored over the above base line, it may flow down at any time.

•If the washer is not leveled with the ground, it makes the machine

tremble more or be out of order. So, make sure that the washer is

leveled properly.

LEVELLING

LockLoosen

SEE IF THE MACHINE IS PLACED LEVEL BY CHECKING

THE POSITION OF THE WASHING TUB.

Water

SW50ASP60ASP-GB-01488C-76% 6/17/02 2:50 PM Page 6

WASHING INSTRUCTION

WARNING! NOTE THE FOLLOWING PRECAUTIONS TO PREVENT ELECTRICITY

LEAKAGE AND THE POSSIBILITY OF ELECTRIC SHOCK.

Earthing is necessary to prevent leakage or electric shocks caused by the electric currents leaked from the machine.

How to earth an outlet with earthing terminals when

an earthed power load is not fitted.

Outlet with earthing terminals:

●Even when the internal wires of the earthing terminals are joined,

connect the earthing conductor (green) of the machine to the tap.

When using an extension cord and a boosting transformer:

●Make sure that the earthing conductor is connected.

Never make an earthing to

●The telephone line, lightning rod, or gas pipe as it is

extremely dangerous in case of lightning strikes.

PROCEDURE

1. Sort the laundry into separate wash loads.

Each load of washing should contain clothing which needs the same washing conditions.

For example, you should not wash delicate clothes with very dirty work clothes.

2. Load the laundry into washing.

Before load, check all pockets, and close zippers, hooks and eyes.

3. Add the detergent. (see page 5)

4. Add the fabric softener. (see page 5)

5. Close the lid.

6. Press power button.

7. Choose the wash program & optional cycle. (see page 7~8)

If you choose “SENSOR”program you don’t need to select water level.

Water level is set automatically at “SENSOR”program.

Press the START/PAUSE button.

8. Select the water level.

Before choosing the water level, remember following things.

When you choose SENSOR, HEAVY-DUTY, ECONO-WASH, WOOL program,

water level is selected “AUTO”automatically, but if you wat to choose water level manually

you can select. HIGH, MEDIUM, LOW, MINIMUM

TO DO A CLEAN WASHING

•Press the POWER botton.

•Pour a little detergent into case-detergent.

•Turn on water supply to the wshing machine.

•Choose the SOAK in CYCLE button and the HIGH in WATER LEVEL button.

•Press the START/PAUSE button.

SW50ASP60ASP-GB-01488C-76% 6/17/02 2:50 PM Page 7

Wash Time (SW50ASP)

Wash Time (SW60ASP)

Wash Action

Wash Temp.

Deep Rinse

Spin Time

Total Time

(High Water level)

HEAVY DUTY

26 min

20 min

Normal

HOT

HOT + COLD

COLD

7 min

49 min

SENSOR

25 min

20 min

Normal

HOT

HOT + COLD

COLD

5 min

49 min

9. Select the water temperature.

Before choosing the water temperature remember the following:

•You can choose COLD →COLD+HOT →HOT on all programs.

HOT is hot wash and cold rinse.

COLD is cold wash and cold rinse.

10. Close the lid and press the START/PAUSE button.

11. Do you wat extra rinse?

For extra rinses press the cycle key 1 to 5 times (depending on the number of extra rinse required).

You can select up to 5 extra rinses or return to a single rinse by pressing the cycle key.

The time left display will show the number of rinses selected.

Note tat the extra rinse program is not available when pause is selected or during the spin cycle.

WASH PROGRAM

SENSOR Program

●

The best washing program is chosen automatically

●

Load size and water level is determined automatically

❈

Unplug the power cord after washing.

ECONO WASH Program

●

Saving your time and energy

●

This program is suitable for heavily soiled laundry

●

Load size and water level is determined automatically

or you can choose the water level you want

❈

Unplug the power cord after washing.

WOOL Program

●

This program is suitable for woollen clothes

●

Only high and medium water levels are available

❈

Unplug the power cord after washing.

HEAVY DUTY Program

●

This program is suitable for heavily soiled laundry

●

Load size and water level is determined automatically

or you can choose the water level you want

❈

Unplug the power cord after washing.

WASHING PROGRAM

WOOL

5 min

Gentle

HOT + COLD

COLD

HOT + COLD

COLD

1 min

29 min

ECONO WASH

5 min

Normal

HOT

HOT + COLD

COLD

3 min

32 min

SW50ASP60ASP-GB-01488C-76% 6/17/02 2:51 PM Page 8

OPTIONAL CYCLE

TROUBLESHOOTING

Washing machine won’t work

Is the water tap opened?

Is the washer plugged in?

Is the power cut off?

Is the fuse all right?

Is there enough water?

Water is not supplied

Is the water tap opened?

Is the water cut off?

Is the water supply hose or

hose connection clogged?

Is the water tap frozen?

If water is not supplied in 60 minutes,

a buzzer will sound, and the remaining

time indicator will shown “4E”.

Water does not drain

Is the drain hose down? (No pump)

Is the drain hose frozen?

Is the drain hose clogged?

If the water does not drain in 15

minutes, a buzzer will sound, and the

remaining time indicator will show “5E”

While lid is opening,

the washing machine won’t work

Make sure to close the lid while washing machine is

operating.

Spinning does not work

Is the laundry spread out evenly

in the washer?

Is the washer set on a sturdy

flat surface?

Is the lid closed?

WASH ONLY

●

When you choose this cycle, wash cycle is operated.

●

Pressing optional cycle key during washing changes

the wash time in two minute intervals.

●

The wash time can be changed to between 3 and 25

minutes.

●

Load size and water level is determined automatically

❈

Unplug the power cord after washing.

SOAK

●

The laundry is soaked in water so that heavy dirt can be

eliminated sufficiently.

●

You can choose soak cycle after choosing wash

program.

●

When you select soak function, 5 minute cycle (1 min.

washing then 4 min. pause) continue for 30 minutes

before main wash program.

●

Load size and water level is determined automatically

❈

Unplug the power cord after washing.

SPIN ONLY

●

You can choose this cycle, only cycle is operated.

●

Pressing cycle key during spinning only cycle changes

the spin dry time.

The spin dry time can be changed to between 1 and 7

minutes.

❈

Unplug the power cord after washing.

DELAY START

●

This function allows you to delay the start of your

chosen wash program for 3, 4, ... 18 hours.

●

By pressing the delay start key you can select delayed

period for 3, 4, ... 17, 18 hours, and your washing

machine will finish the selected wash program after the

delayed period.

RINSE AND SPIN ONLY

●

When you choose this cycle, only rinse & spin cycle are

operated without wash cycle.

●

Pressing cycle key during operation changes the

number of rinse (see above).

You cannot change the spin dry time using this function.

❈

Unplug the power cord after washing.

RINSE ONLY

●

When you choose this function, only rinse cycle is

operated.

●

Pressing function key during rinsing changes the

number of rinse. Up to 5 rinses can be optionally

selected.

❈

Unplug the power cord after washing.

SW50ASP60ASP-GB-01488C-76% 6/17/02 2:51 PM Page 9

330 426

5.0 6.0

540 X 560 X 850 588 X 618 X 955

31 38

106(high) 138(high)

50~780KPa 50~780KPa

Power input(Watts)

Load capacity(kg)

Size(WxDxH)(mm)

Net Weight(kg)

Water Consumption(liters)

Water Pressure(min-max)

SW50ASP SW60ASP

IF YOU NEED HELP WITH YOUR NEW

SAMSUNG WASHING MACHINE

Contact your nearest Samsung office or Samsung authorized

service center for technical assistance

SPECIFICATION

CODE NO. : DC68-01488C

SW50ASP60ASP-GB-01488C-76% 6/17/02 2:51 PM Page 10

This manual suits for next models

Table of contents

Other Samsung Washer manuals

Samsung

Samsung WF8702RSD User manual

Samsung

Samsung WF455ARGSGR/A2 User manual

Samsung

Samsung WW8NK 2 Series User manual

Samsung

Samsung WA90V3 User manual

Samsung

Samsung WW90T684DLH/S1 User manual

Samsung

Samsung WD90N6 Series User manual

Samsung

Samsung J1043 User manual

Samsung

Samsung WA11M8700 Series User manual

Samsung

Samsung SW1050 User manual

Samsung

Samsung WF3784YPV/XEG Instructions for use

Samsung

Samsung WA10K1SEG/XSH User manual

Samsung

Samsung WF8804FS(A/F/G/H/S/V/W/Z) User manual

Samsung

Samsung WW85H7410E Series User manual

Samsung

Samsung WF405ATPAWR/AA User manual

Samsung

Samsung WF7602NAW Instructions for use

Samsung

Samsung WA50R5400AW/US User manual

Samsung

Samsung WD17T6300 Series User manual

Samsung

Samsung WA70F5S4 User manual

Samsung

Samsung Washing machine User manual

Samsung

Samsung WF8700SDV User manual

Samsung

Samsung WW8 A Series User manual

Samsung

Samsung WT6500 User manual

Samsung

Samsung WA45K7600A series User manual

Samsung

Samsung WF24B9600KV User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
