Samsung Q1235S User manual

Washing Machine

Owner’s Instructions

Q1636(C/S/V)

Q1436(C/S/V)

Q1435(C/S/V)

Q1236(C/S/V)

Q1235(C/S/V)

Safety Precautions

●

SAVE THESE INSTRUCTIONS

Congratulations on your purchase of this Samsung washing machine. These Owner's

Instructions contain valuable information on the installation, use, and care of this appliance.

Please take the time to read these instructions so that you can take full advantage of the

washing machine's features and enjoy this appliance for many years to come.

Before using the appliance

•Packing materials can be dangerous to children; keep all packing material (plastic bags,

polystyrene, etc.) well out of the reach of children.

•The appliance is designed for home use only.

•Make sure that water and electrical connections are made by qualified technicians,

observing the manufacturer's instructions (see "Installing the Washing Machine" on

page 2) and local safety regulations.

•All packaging and shipping bolts must be removed before the appliance is used. Serious

damage may occur if they are not removed. See "Removing the shipping bolts" on page 3.

•Before washing clothes for the first time, you must run a complete cycle without clothes.

See "Washing for the first time" on page 9.

Safety instructions

•Before cleaning or carrying out maintenance, unplug the appliance from the electrical

outlet or set the (On/Off) button to Off.

•Make sure that the pockets of all clothing to be washed are empty.

Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause

extensive damage to the appliance.

•Always unplug the appliance and turn off the water after use.

•Before you open the door of the appliance, check that the water has drained. Do not

open the door if you can still see water.

•Pets and small children may climb into the appliance. Check the appliance before each

use.

•The glass door becomes very hot during the washing cycle. Keep children away from

the appliance while it is in use.

•Do not attempt to repair the appliance yourself. Repairs made by inexperienced or

unqualified persons may cause injury and/or make more serious repairs to the

appliance necessary.

•If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or

its service agent or a similar qualified person in order to avoid a hazard.

•This appliance should only be serviced by an authorized service center, and only

genuine spare parts should be used.

SAMSUNG

Washing Machine Owner’s Instructions 1

Safety Precautions------------------------------------------- inside cover

lnstalling the Washing Machine ------------------------------------------2

Unpacking the washing machine ----------------------------------------------------2

Overview of the washing machine --------------------------------------------------2

Selecting a location -------------------------------------------------------------------- 3

Adjusting the leveling feet ------------------------------------------------------------3

Removing the shipping bolts --------------------------------------------------------3

Connecting the water supply hose ------------------------------------------------- 4

Connecting the water supply hose(option) -------------------------------------- 5

Positioning the drain hose ----------------------------------------------------------- 5

Plugging in the machine -------------------------------------------------------------6

Washing a Load of Laundry ------------------------------------------------ 7

Washing for the first time ------------------------------------------------------------- 7

Putting detergent in the washing machine --------------------------------------- 7

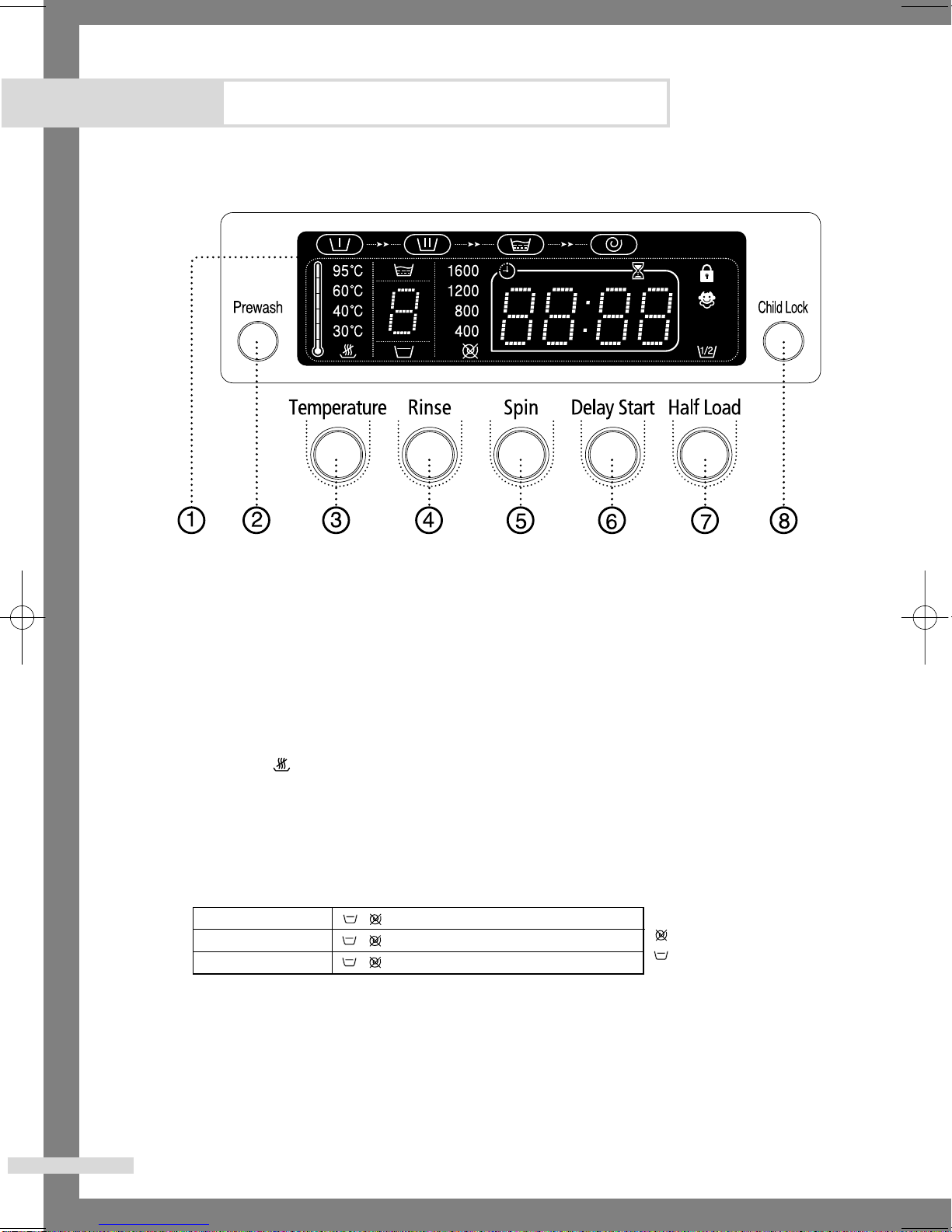

Overview of the control panel ------------------------------------------------------ 8

Washing clothes using Fuzzy Logic --------------------------------------------- 10

Washing clothes manually --------------------------------------------------------- 11

Using delay start --------------------------------------------------------------------- 11

Washing tips and hints ------------------------------------------------------------- 12

Maintaining the Washing Machine --------------------------------- 13

Draining the washing machine in an emergency ----------------------------- 13

Repairing a frozen washing machine -------------------------------------------- 13

Cleaning the exterior ---------------------------------------------------------------- 13

Cleaning the detergent drawer and recess ----------------------------------- 14

Cleaning the debris filter ------------------------------------------------------------ 14

Cleaning the water hose mesh filter --------------------------------------------- 15

Troubleshooting ----------------------------------------------------------------- 16

Problems and solutions ------------------------------------------------------------ 16

Understanding error messages --------------------------------------------------- 16

Cautions of Duvet course ---------------------------------------------------------- 17

Programme chart ------------------------------------------------------------- 18

Appendix ------------------------------------------------------------------------------ 20

Fabric care chart --------------------------------------------------------------------- 20

Electrical warnings ------------------------------------------------------------------ 20

Protecting the environment -------------------------------------------------------- 21

Declaration of conformity ---------------------------------------------------------- 21

Specification --------------------------------------------------------------------------- 21

Table of Contents

Installing the Washing Machine

SAMSUNG

Washing Machine Owner’s Instructions

Unpacking the Washing Machine

Unpack your washing machine and inspect it for shipping damage. Also make sure that

you have received all of the items shown below. If the washing machine was damaged

during shipping or you do not have all of the items, contact your Samsung dealer

immediately.

Overview of the washing machine

Hose guide

Plug

Cold Water

supply hose

Bolt hole

covers

Drain Hose

Detergent

drawer

Door

Worktop

Debris filter

Door release

Emergency drain

tube

Filter-cover

Base cover

Adjustable feet

Control panel

Wrench

SAMSUNG

Washing Machine Owner’s Instructions 3

Selecting a location

Before you install the washing machine, select a location with the following characteristics:

•A hard, level surface (if the surface is uneven, see "Adjusting the leveling feet," below)

•Away from direct sunlight.

•Adequate ventilation

•Room temperature that will not fall below 0 ˚C

•Away from sources of heat such as coal or gas

Make sure that the washing machine does not stand on its power cord.

Ventilation openings must not be obstructed by carpeting when the washing machine is

installed on a carpeted floor.

Adjusting the leveling feet

If the floor is uneven, adjust the feet

(do not insert pieces of wood or any other

objects under the feet):

1. Loosen the leg bolt by turning it with

your hand until it is at the desired height.

2. Tighten the locking nut by turning it

with the supplied wrench.

If the washer is placed on an uneven or weak

surface, noise or vibration occurs.

(Only l degree angle is allowed.)

Removing the shipping bolts

Before using the washing machine, you

must remove the five shipping bolts from the

back of the unit. To remove the bolts:

1. Loosen all bolts with the supplied

wrench before removing them.

2. Take each bolt head and pull it through

the wide part of the hole.

Repeat for each bolt.

3. Fill the holes with the supplied plastic

covers.

4. Keep the shipping bolts for future use.

Installing the Washing Machine

SAMSUNG

Washing Machine Owner’s Instructions

Connecting the water supply hose

The water supply hose must be connected to the washing machine at one end and to the water

faucet at the other. Do not stretch the water supply hose. If the hose is too short replace the

hose with a longer, high pressure hose.

To connect the water supply hose:

1. Take the L-shaped arm fitting for the cold water supply hose and connect to the cold water

supply intake on the back of the machine. Tighten by hand.

2. Connect the other end of the cold water supply hose to your sink's cold water faucet and

tighten it by hand. If necessary, you can reposition the water supply hose at the washing

machine end by loosening the fitting,rotating the hose, and retightening the fitting.

Option:

1. Take the red L-shaped arm fitting for the hot water supply hose and connect to the red

hot water supply intake on the back of the machine. Tighten by hand.

2. Connect the other end of the hot water supply hose to your sink's hot water faucet and

tighten it by hand.

3. Use a Y-piece if you only want to use cold water.

Installing the Washing Machine

Hot water

supply value

SAMSUNG

Washing Machine Owner’s Instructions 5

Installing the Washing Machine

Connecting the water supply hose(Option)

NOTICE After completing connection, if water leaks from the hose, then repeat the same steps. Use

the most conventional type of faucet for water supply. In case the faucet is square or too big,

remove the spacing ring before inserting the faucet into the adaptor.

Positioning the drain hose

The end of the drain hose may be positioned in three ways:

Over the edge of a wash basin.

The drain hose must be placed at a height

of between 60 and 90 cm. To keep the

drain hose spout bent, use the supplied

plastic hose guide. Secure the guide to the

wall with a hook or to the faucet with a

piece of string to prevent the drain hose

from moving.

ln a sink drain pipe branch

The drain pipe branch must be above the sink siphon so that the end of the hose is at least

60 cm above the ground.

ln a drain pipe

Samsung recommends that you use a 65 cm high vertical pipe; it must be no shorter than

60 cm and no longer than 90 cm.

2. First, using a “+” type screw driver,

loosen the four screws on the

adaptor. Next, take the adaptor

and turn part(b) following the

arrow until there is a 5mm gap.

4. Connect the water supply hose to

the adaptor. Pull down part (c) of the

water supply hose. When you

release part (c) the hose automa-

tically connects to the adaptor

making a ’click’ sound.

5. Connect the other end of the water

supply hose to the inlet water valve

at the rear of the washer. Screw the

hose clockwise all the way in.

3.Connect adaptor to the water tap by

tightening the screws firmly.

Then, turn part (b) following the

arrow and put(a) and (b) together.

1. Remove the adaptor from the water

supply hose.

Installing the Washing Machine

SAMSUNG

Washing Machine Owner’s Instructions

Plugging in the machine

For European Users. You will NOTneed to ground the plug of the washing machine.

For U.S. Users. You MUSTground the plug of the washing machine.

Check with a licensed electrician before using the machine to make sure it is properly

grounded.

For U.K. Users.

Wiring lnstructions

WARNING THIS APPLIANCE MUST BE EARTHED.

This appliance must be earthed. In the event of an

electrical short circuit, earthing reduces the risk of electric

shock providing an escape wire for the electric current.

The appliance is equipped with a mains lead which

includes an earth wire for connecting to the earth

terminal of your mains plug.

The plug must be plugged into a socket that is properly

installed and earthed.

*The wires in this mains lead are coloured in accordance

with the following code:

• Green and yellow : Earth

• Blue : Neutral

• Brown : Live

•AS the colours of the wires in the mains lead of this

appliance may not correspond with the coloured

markings indentifying the terminals in your plug,

proceed as follows.

•Connect the green and yellow wire to the terminal

in the plug marked with the letter E or the earth

symbol ( ) or coloured green or green-and-

yellow.

•Connect the blue wire to the terminal marked

with the letter N or coloured black.

•Connect the brown wire to the terminal marked

with the letter L or coloured red.

* Consult a qualified electrician or service

technician if in doubt about any of these

instructions.

The manufacturer of this washing machine will

not accept any liability for damage to persons or

material for non observance of these

requirements. There are no user serviceable

parts inside the washing machine and if the

mains lead of this appliance is damaged, it must

only be replaced by qualified service personnel

approved by the

manufacturer because special tools are required.

GREEN AND

YELLOW 13 AMP

FUSE

BROWN

BLUE

WARNING

Ensure that the plug and power

cord are not damaged before use. If

you have any reason to remove the

moulded plug from this appliance,

immediately remove the fuse and

dispose of the plug.

Do not connect the plug to a mains

socket under any circumstances as

there is a danger of electric shock.

CIRCUITS

Your washing machine should be

operated on a separate circuit

from other appliances. Failure to

do this may cause the circuit

breaker to trip or the fuse to blow.

Washing a Load of Laundry

SAMSUNG

Washing Machine Owner’s Instructions 7

Washing for the first time

Before washing clothes for the first time, you must run a complete cycle without clothes. To do

this:

1. Press the (On/Off) button.

2. Pour a little detergent into compartment in the

detergent drawer.

3. Turn on the water supply to the washing machine.

4. Press the Temperature button repeatedly until

40 ˚C is displayed.

5. Press the Start/Pause button.

•

This will remove any water from the manufacturer’s

test run remaining in the machine.

Dispender :Detergent for prewash or starch.

Dispenser : Detergent for main wash, water softener,pre-soaking agent, bleach and stain removal product.

Dispenser : Additives,e.g.fabric softener or former (fill no higher than lower edge of insert “ A”)

Putting detergent in the washing machine

1. Pull out the detergent drawer.

2. Add laundry detergent into compartment .

3. Add softener into compartment (if you desire).

4. Add prewash detergent into compartment (if you desire).

Caution :

Concentrated or thick fabric softener and

conditioner must be diluted with a little water

before being poured into the dispenser (prevents

the overflow from becoming blocked.)

Washing a Load of Laundry

SAMSUNG

Washing Machine Owner’s Instructions

Overview of the control panel

Q1636/Q1436/Q1435/Q1236/Q1235

1. Digital graphic display

Displays the remaining wash cycle time,all of washing information and error messages.

2.Prewash selection button

Press the button to select prewash. Prewash is available only with Duvet, Bedding,

Towel, Curtain, Cotton, Coloureds, Synthetics and Delicates programs.

3. Temperature selection button

Press the button repeatedly to cycle through the available water temperature options

(cold water( ), 30 ˚C, 40 ˚C , 60 ˚C and 95 ˚C).

4. Rinse selection button

Press the rinse button to add rinse cycles. Maximum number of rinse cycles is five.

5. Spin selection button

Press the button repeatedly to cycle through the available spin speed options.

No spin

The laundry remains in the drum without being spun after the final drain

Rinse Hold

The laundry remains soaking in the final rinse water.

Before the laundry can be unloaded, either “Drain” or the “Spin” program must be run.

Q1636 ,, 400, 800, 1200, 1600 rpm

Q1436/Q1435 ,, 400, 800, 1200, 1400 rpm

Q1236/Q1235 ,, 400, 800, 1000, 1200 rpm

: no spin,

: rinse hold

This manual suits for next models

Table of contents

Other Samsung Washer manuals

Samsung

Samsung WW7 T4 Series User manual

Samsung

Samsung WD0704CQ User manual

Samsung

Samsung WA91R3 User manual

Samsung

Samsung WA85J571 Series User manual

Samsung

Samsung WF1602W5C/YLE User manual

Samsung

Samsung WF419AAU/XAA User manual

Samsung

Samsung WT12J4200MB/TC User manual

Samsung

Samsung SWT65B2 User manual

Samsung

Samsung SilverCare SilverCare Washer User manual

Samsung

Samsung WA49B5205A Series User manual

Samsung

Samsung WD10K6 Series User manual

Samsung

Samsung SW51ASP User manual

Samsung

Samsung WA4837700A Series User manual

Samsung

Samsung Washing machine User manual

Samsung

Samsung WF56H9110CW/A2 User manual

Samsung

Samsung WA50B5100 Series User manual

Samsung

Samsung H146HWB User manual

Samsung

Samsung WF8702RSS Parts list manual

Samsung

Samsung WA45n3050A Series User manual

Samsung

Samsung WF0604N Series User manual

Samsung

Samsung WF8702RSD User manual

Samsung

Samsung WW CGC Series User manual

Samsung

Samsung WF0804W8E User manual

Samsung

Samsung WA15P9WIP User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
