Samsung TC-9015VN Instruction sheet
VACUUM CLEANER
Operating
lnstructions
❈Before operating this unit, please read the instructructions carefully.
DJ68-40131G(0.3) 2002.9.28 1:19 PM 1

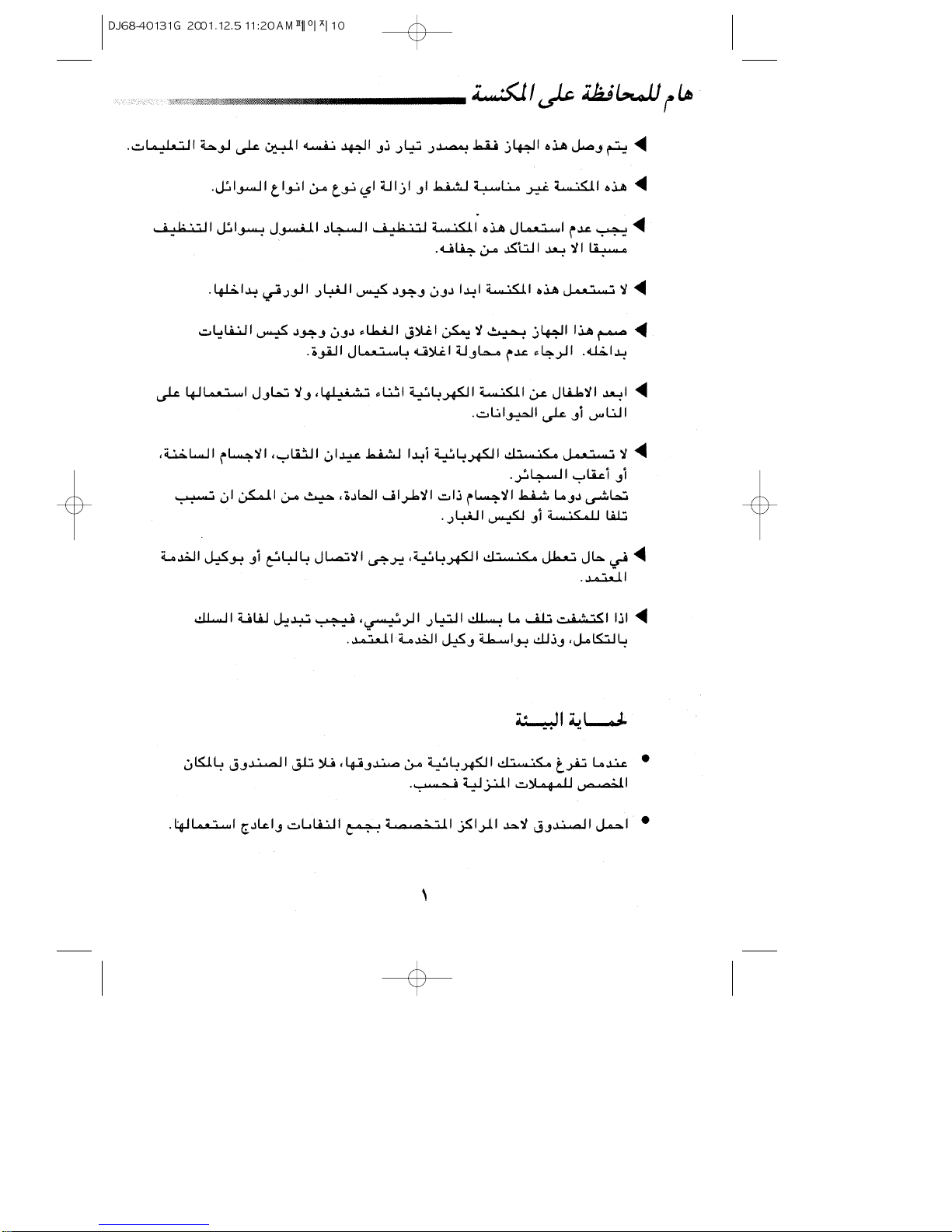

IMPORTANT SAFEGUARDS
● When you have unpacked the unit, do not simply throw the
packaging into the household waste.
● Take them to the appropriate collecting points for recycling.
Protecting the environment
This appliance must be connected to the same mains voltage only
as shown on the rating plate.
This vacuum cleaner is not suitable for removing liquids of any kind.
Carpets treated with a liquid cleaner must be allowed to dry before
being cleaned with the unit.
Never operate the vacuum cleaner without a paper dust bag.
If no paper dust bag is inserted, the cover cannot be closed. Please
do not close forcibly.
Keep children away from the electrical appliance. It must not be
used on people or animals.
Never use your appliance to vacuum matches, glowing embers, or
cigarette-ends.
Avoid vacuuming hard, pointed objects, since they may damage the
appliance or paper dust bag.
If your vacuum cleaner has a fault, please contact your electrical
retailer or an authorized service agent.
If the mains cable is defective, the complete cable winder must be
replaced by a service agent.
1
▼▼▼▼
▼▼
▼▼▼
DJ68-40131G(0.3) 2002.9.28 1:19 PM 2

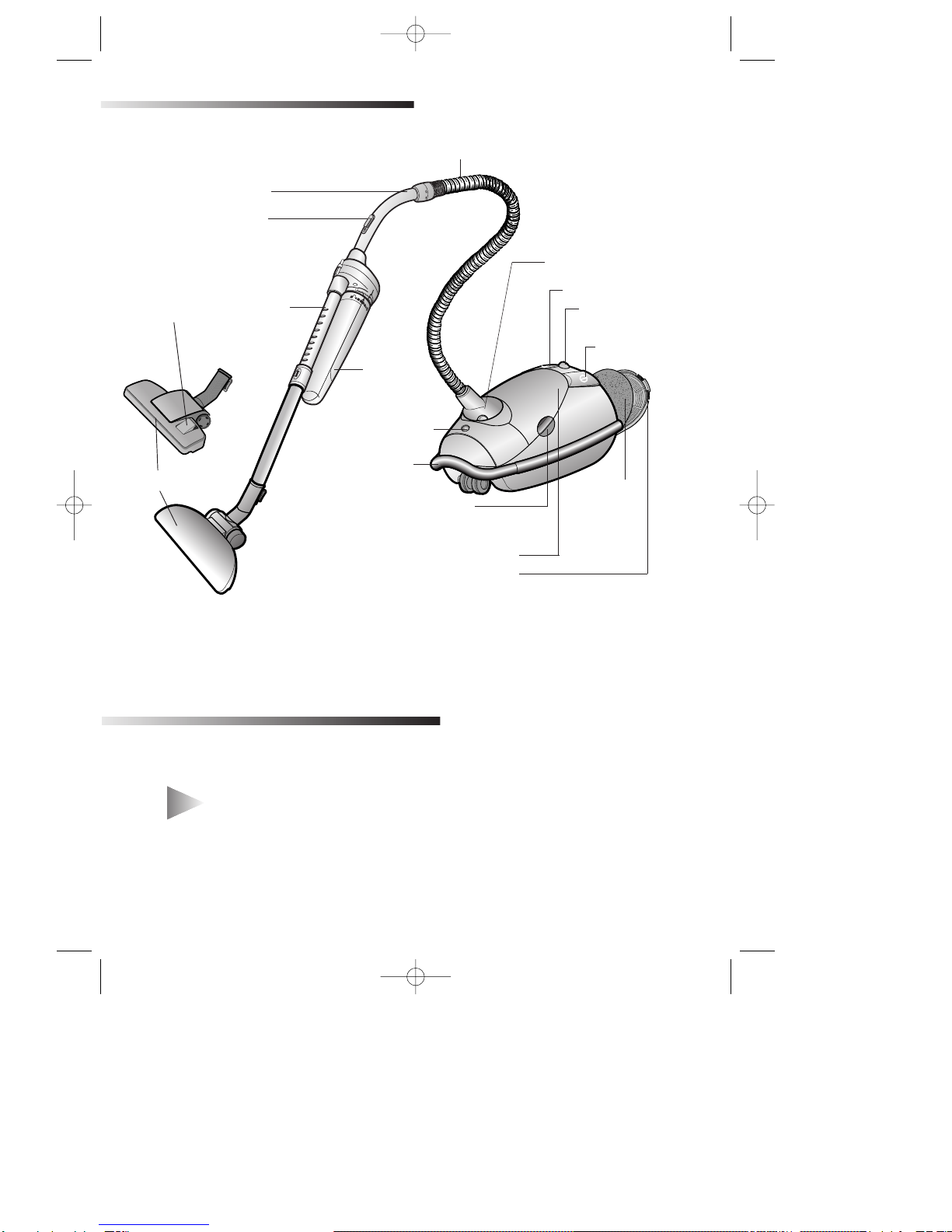

IDENTIFICATIONS PARTS
DUST-FULL INDICATOR
If the “Dust-Full” indicator switches to “RED” while you are cleaning, the paper
dust bag requires replacement.
If the “Dust-Full” indicator continues to display “RED” even
after changing the paper dust bag turn the cleaner off and
check whether the hose, tube or nozzle is clogged.
NOTE :
TAP AIR
: To reduce suction for cleaning draperies, small rugs, and other
light fabrics, pull the tap air until the hole is open.
Features marked with *may vary according to model.
HANDLE
TAP AIR
TUBE *
CYCLONIC
FILTER *
FLOOR NOZZLE *
RUG/FLOOR
SELECTOR
SUCTION HOSE
BUTTON FOR SUCTION
HOSE REMOVAL
CORD REWIND BUTTON
POWER CONTROL
SWITCH *
ON/OFF
BUTTON
DUST-FULL INDICATOR
CARRYING HANDLE
CLAMPER FOR PAPER
DUST BAG COMPARTMENT
TOOL STORAGE COVER
MICROFILTER CASSETTE
MICRO FILTER
2
▼
▼
DJ68-40131G(0.3) 2002.9.28 1:19 PM 3

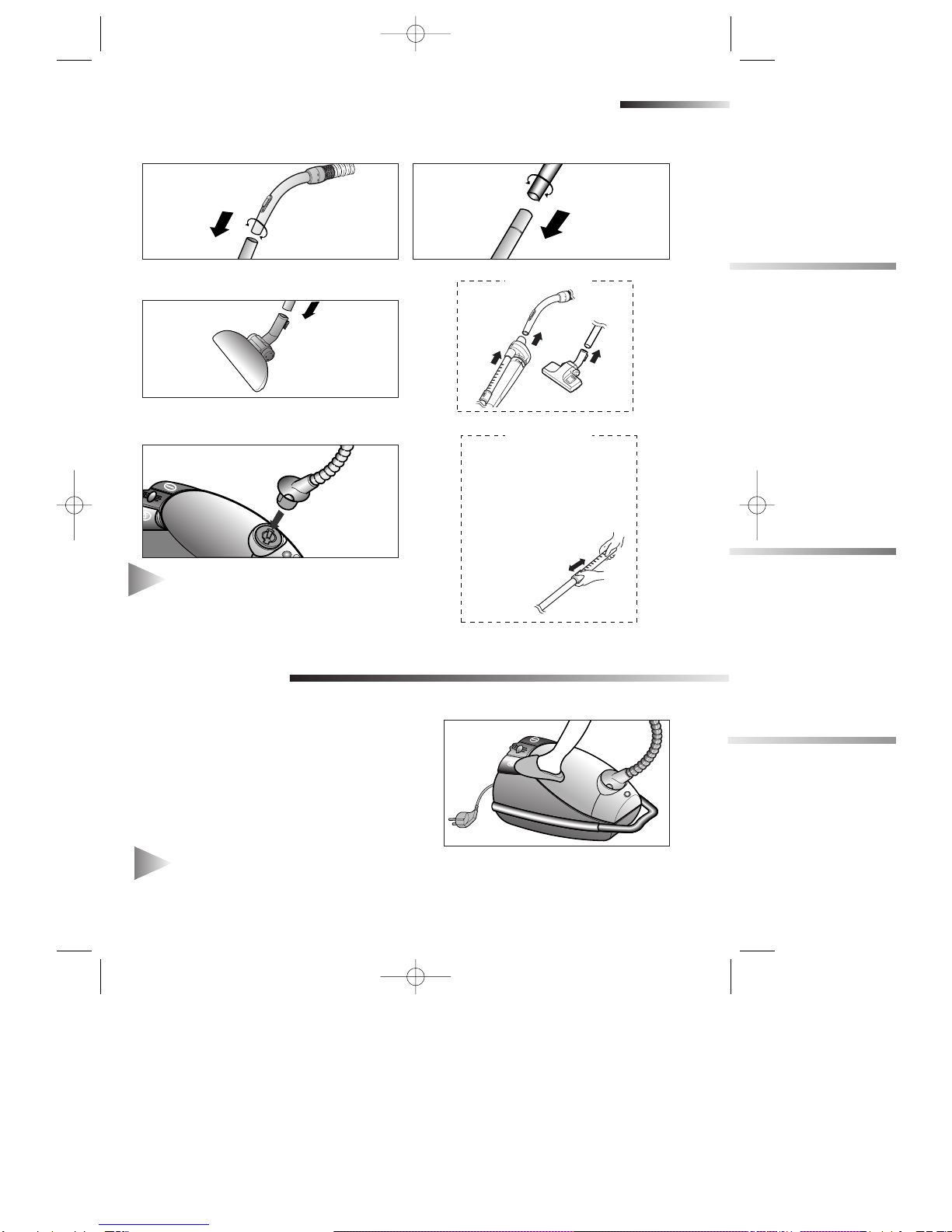

ASSEMBLING THE VACUUM-CLEANER READY FOR USE
1) Connect the suction hose to the
suction tube.
2)
Connect the suction tubes together
(depending on model).
3
①Assemble the CYCLONIC FILTER
with the handle and extension
wand(depending on model).
➁Ajusting the telescopic tubes
(depending on model)
EXTENDING : Holding narrow
side of the telescopic tube with a
hand, pull the handle to the
oppo-site side of it with another
hand.
SHORTENING : Push the
handle
to the narrow side
of the tube, hoding
it with another
hand.
*
OPTION :
3) Connect the nozzle to the
suction tube.
4) Connect the hose clamper to the body
of the cleaner.
POWER CORD
When removing the power cord from the electrical outlet, grasp the plug, not
the cord.
1.PULLING OUT
The power cord is long enough to be drawn
out for a convenience.
2. REWINDING
Upon finishing cleaning disconnect the plug
from the electrical outlet and just press the
cord rewind button lightly with your toe.
NOTE :
*OPTION
①
*OPTION
➁
DJ68-40131G(0.3) 2002.9.28 1:19 PM 4

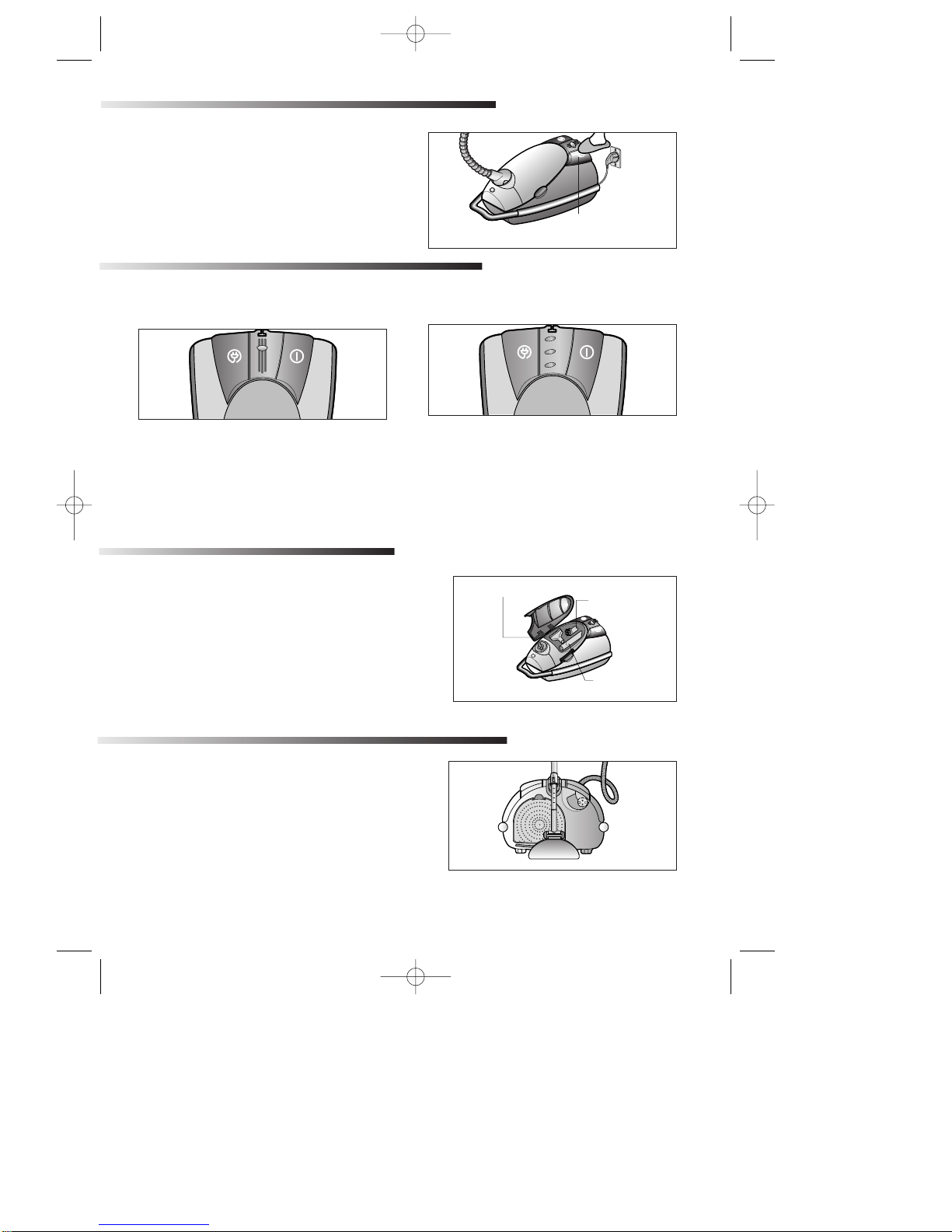

ON/OFF SWITCH
MAX
MIN
ECO
MAX
MIN
With the cord plugged into an electrical
outlet, start or stop the vacuum cleaner
by pushing lightly on the switch
downward with your toe.
DUSTING BRUSH
ON/OFF SWITCH
SLIDING REGULATOR FOOT CONTROLS
UPHOLSTERY BRUSH
CREVICE TOOL
4
POWER CONTROL
The vacuuming power can be adjusted to suit any situation with the electrical
power control.
USING THE ACCESSORIES
Pull the tool storage cover upward.
● Dusting brush-for furniture, shelves,
books, etc.
● Upholstery brush-for cushions and
drapery.
● Crevice tool-for radiators, crevice,
corners, between cushions.
= For delicate fabrics, e.g.net curtains.
= Economy setting for light to normally soiled carpets.
= For hard floors and heavily soiled carpets.
MIN
ECO
MAX
Located in the top rear side of the vacuum
cleaner, there is a support for a
convenient park position during pauses
when using the nozzle.
PARK POSITION
DJ68-40131G(0.3) 2002.9.28 1:19 PM 5

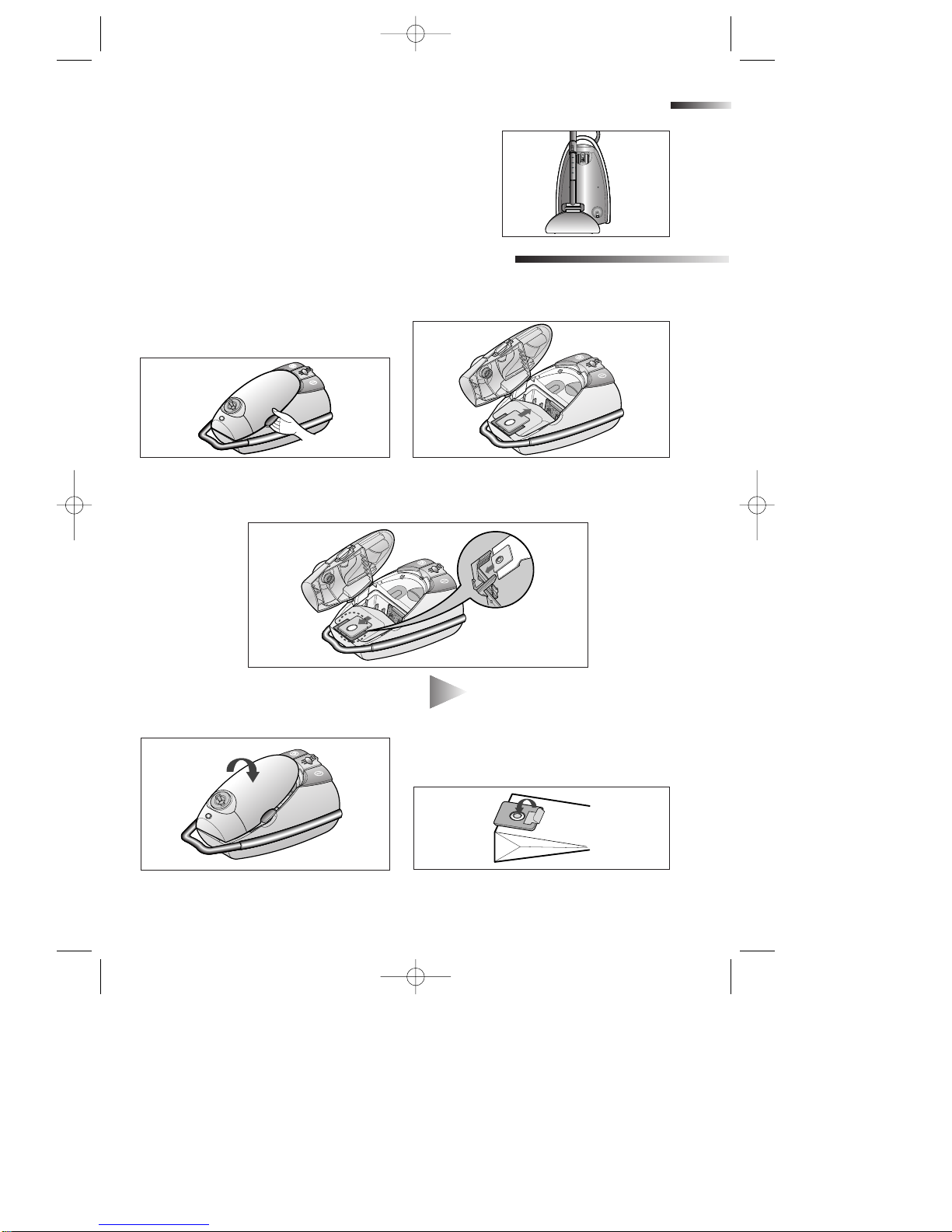

3) After removing the used dust bag, insert the cardboard bag collar of the new
dust bag in to the suction inlet to the full.
5
TRANSPORTING AND STORING THE VACUUM CLEANER
1) To open the dust cover of the dust bag
compartment press the clamper upward
located at the side of the dust cover.
2)Remove the dust bag from the cleaner
For easy storage and transportation, this vacuum cleaner has a
clip system built onto the body, which will keep the tube, hose
and nozzle in a vertical position.
REPLACING THE PAPER DUST BAG
4)Press the dust cover down gently
until the clamper relocks.
Used dust bag can be sea-
led by removing the film from
the paper and sticking the
latter over the suction opening
NOTE :
DJ68-40131G(0.3) 2002.9.28 1:19 PM 6

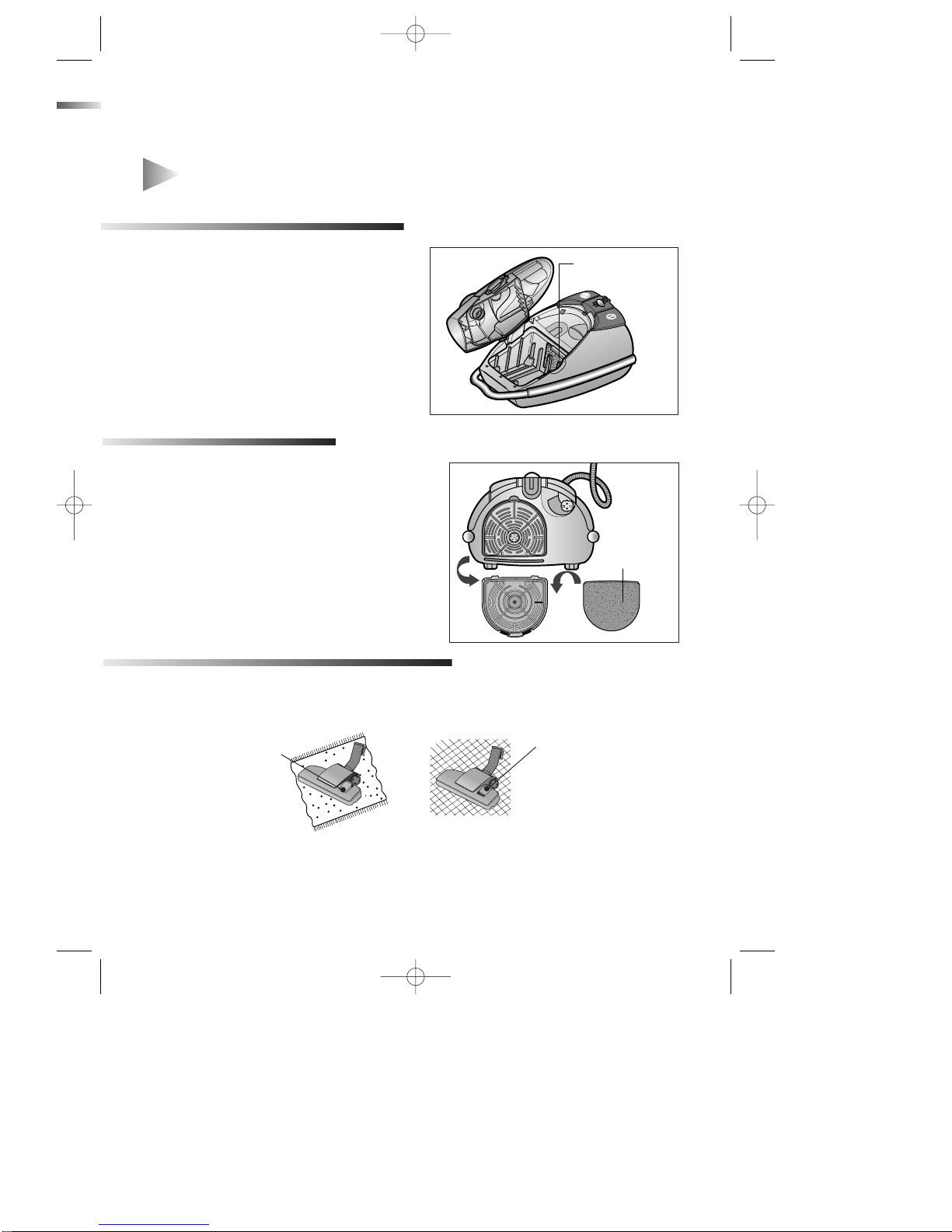

MICRO FILTER
6
CARE OF MOTOR FILTER
The motor filter protects the motor
from dirt and ensures long-lasting and
efficient operation.
Wash the motor filter in warm water,
dry it thoroughly, and position it in
place.
REPLACING THE MICRO FILTER
● The micro filter filters the air which comes
out from the vacuum cleaner.
● To open the filter cover, press down and
pull it simultaneously.
● Remove and replace the exhausted
micro filter.
● Close the cover.
It is advisable to replace the micro filter
when 10 dust bags have been replaced.
CLOTH FILTER BAG
After using, if the cloth filter bag is full of dust, clean the cloth filter bag and use it again.
MOTOR FILTER
Before use, make sure that the position of the selector button is in the right position for
the type of surface to be cleaned.
● In order to maintain best cleaning efficiency, keep floor brush clean using crevice tool
after use.
Push the side ①when cleaning the capets.
Push the side ➁when cleaning the floor, tile,mat,etc.
RUG/FLOOR SELECTOR
①➁
There are two types of dust bag according to the model, one is paper dust bag type
the other is cloth filter bag type.
NOTE :
DJ68-40131G(0.3) 2002.9.28 1:19 PM 7
DJ68-40131G REV(0.3)

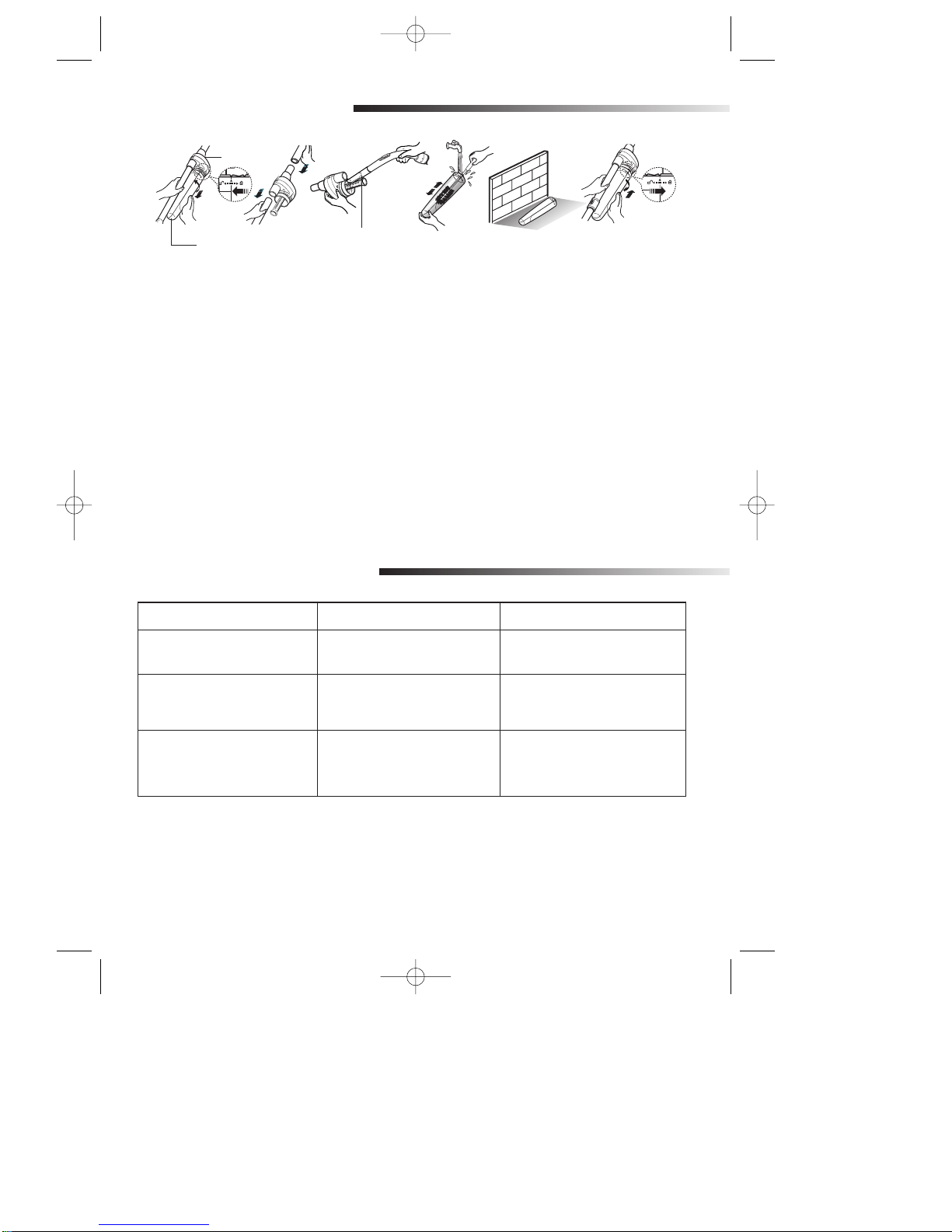

You can use a dust bag in your cleaner for a long time thanks to the Cyclonic Filter system
and it maintain the maximum cleaning efficiency.
The larger particle of dust filtered from Cyclonic Filter remain in Dust Barrel when suctioned
air and dust revolves in the Cyclonic Filter. So the dust bag contains only smaller ones.
When the Dust Barrel is filled with dust up to the indicating line, it needs disposing and
cleaning.
Dust Barrel can be cleaned in water.
1. Turn the Dust Barrel to the left and pull it.
2. Disconnect the Cyclonic Filter from extension wand and handle.
3. Remove thread and hair tangled around the net.
4. After cleaning the Dust Barrel and Cyclonic Filter, connect the Cyclonic Filter with
extension wand and handle(washed part should be dried in the shade throughly before
assembling.)
5. Push and turn the Dust Barrel to the right.
Adjust indicating marks each other carved on Dust Barrel and Cyclonic Filter.
TROUBLE SHOOTING
PROBLEM CAUSE REMEDY
Motor does not start.
Suction force is gradully
decreasing.
Cord does not rewind
fully.
No voltage.
Filter, nozzle, suction hose
or tube blocked.
Check that the cord is not
twisted or wound unevenly.
Check cable, plug and
socket.
Pull the cord out 2~3m &
push down the cord rewind
button.
Remove the object.
CYCLONIC FILTER
CYCLONIC
FILTER
DUST
BARREL CREVICE TOOL
DJ68-40131G(0.3) 2002.9.28 1:19 PM 8
