HW-S50B

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

FULL MANUAL

Para evitar cualquier avería o daños, lea detalladamente este manual de instrucciones antes de conectar y utilizar este

aparato. Conserve el manual para referencia futura. (Sólo México)

2 / 821 / 802 / 821 / 802 / 82

ENG - 2

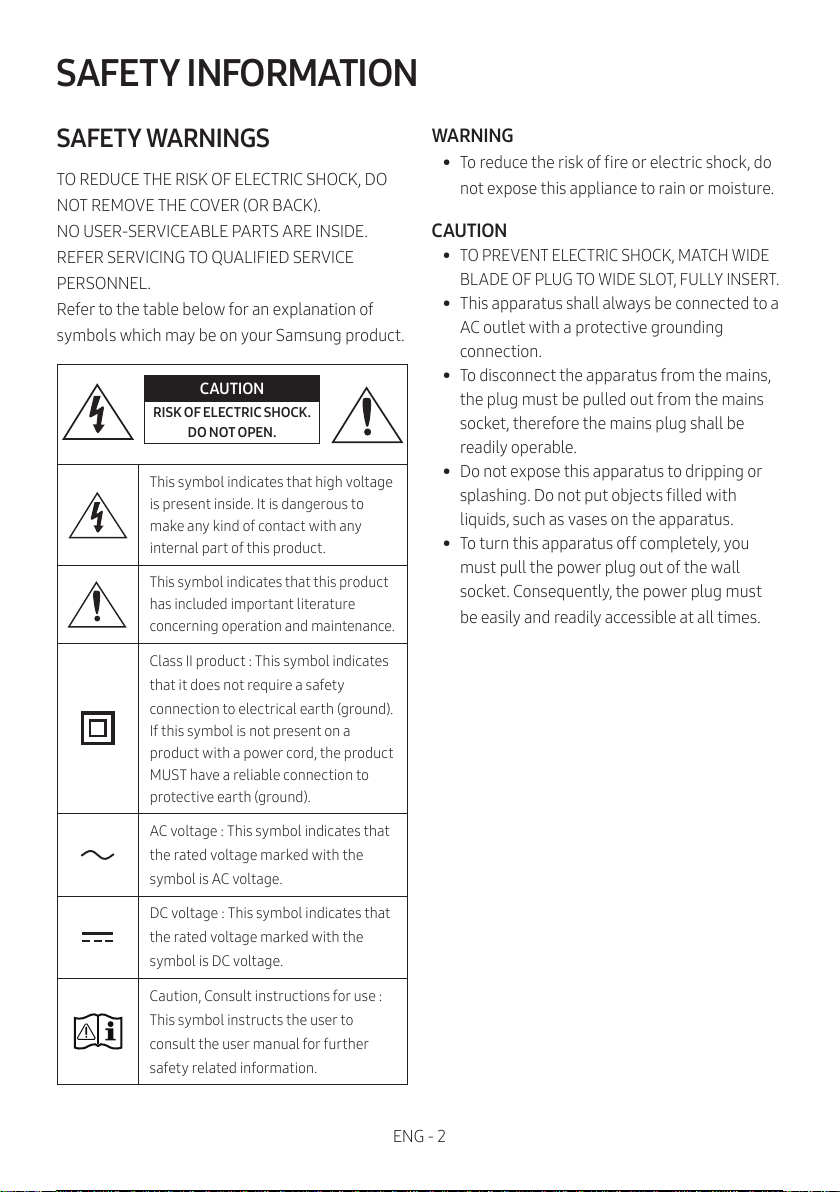

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

Refer to the table below for an explanation of

symbols which may be on your Samsung product.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

If this symbol is not present on a

product with a power cord, the product

MUST have a reliable connection to

protective earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING

•To reduce the risk of re or electric shock, do

not expose this appliance to rain or moisture.

CAUTION

•TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

•This apparatus shall always be connected to a

AC outlet with a protective grounding

connection.

•To disconnect the apparatus from the mains,

the plug must be pulled out from the mains

socket, therefore the mains plug shall be

readily operable.

•Do not expose this apparatus to dripping or

splashing. Do not put objects lled with

liquids, such as vases on the apparatus.

•To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

3 / 822 / 803 / 822 / 803 / 82

ENG - 3

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the bottom of your

product. Install your product horizontally, on

a suitable base (furniture), with enough

space around it for ventilation (7~10 cm).

Make sure the ventilation slots are not

covered. Do not place the unit on ampliers

or other equipment which may become hot.

This unit is designed for continuous use. To

fully turn off the unit, disconnect the AC plug

from the wall outlet. Unplug the unit if you

intend to leave it unused for a long period of

time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or

equipment creating strong magnetic or

electric elds. Unplug the power cable from

the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct

sunlight, or re. Do not short circuit,

disassemble, or overheat the battery.

CAUTION : Danger of explosion if the battery

is replaced incorrectly. Replace only with the

same or equivalent type.

4 / 823 / 804 / 823 / 804 / 82

ENG - 4

CONTENTS

01 Checking the Components 6

02 Product Overview 7

Front Panel / Top Panel of the Soundbar ------------------------- 7

Bottom Panel of the Soundbar ------------------------- 8

03 Using the Remote Control 9

Inserting Batteries before using the Remote Control (AAA batteries X 2) ------------------------- 9

How to Use the Remote Control ------------------------- 9

Using the Hidden Buttons (Buttons with more than one function) ------------------------- 14

Output specications for the different sound effect modes ------------------------- 14

Adjusting the Soundbar volume with a TV remote control ------------------------- 15

04 Connecting the Soundbar 16

Connecting Electrical Power ------------------------- 16

Connecting the Samsung Wireless Rear Kit and Subwoofer to your

Soundbar ------------------------- 16

05 Using a wired connection to the TV 17

Method 1. Connecting with HDMI ------------------------- 17

Method 2. Connecting using an Optical Cable ------------------------- 19

06 Using a wireless connection to the TV 21

Connecting via Bluetooth ------------------------- 21

5 / 824 / 805 / 824 / 805 / 82

ENG - 5

07 Connecting an External Device 23

Connecting using an Optical Cable ------------------------- 23

08 Connecting a USB Storage Device 24

09 Connecting a Mobile Device 26

Connecting via Bluetooth ------------------------- 26

Using Tap Sound ------------------------- 31

10 Installing the Wall Mount 32

Installation Precautions ------------------------- 32

Wallmount Components ------------------------- 32

11 Installing the Soundbar in front of TV 34

12 Software Update 35

Reset ------------------------- 36

13 Troubleshooting 37

14 License 38

15 Open Source License Notice 39

16 Important Notes About Service 39

17 SpecicationsandGuide 40

Specications ------------------------- 40

6 / 825 / 806 / 825 / 806 / 82

ENG - 6

01 CHECKING THE COMPONENTS

SOUND

MODE

WOOFER

TONE

CONTROL

CHLEVEL

Soundbar Main Unit Remote Control / Batteries (Not

available in some locations or

models)

HDMI Cable

AC/DC Adapter (Soundbar) Micro USB to USB adapter

Cable

Power Cord (Soundbar)

x 2 (M4 x L10)

x 2 x 2

Wall Mount Guide Holder-Screw Screw Bracket-Wall Mount

•For more information about the power supply and power consumption, refer to the label attached

to the product. (Label: Bottom of the Soundbar Main Unit)

•To purchase additional components or optional cables, contact a Samsung Service Center or

Samsung Customer Care.

•For more information about the wallmount see page 32.

•Design, specications are subject to change without prior notice.

•The appearance of the accessories may differ slightly from the illustrations above.

7 / 826 / 807 / 826 / 807 / 82

ENG - 7

02 PRODUCT OVERVIEW

Front Panel / Top Panel of the Soundbar

󱂓

Top Panel

󱂔 󱂖

󱂕

󱂓LED

indicator

The LED Indicator ashes, glows, or changes color depending on the Soundbar's current

mode or status. The color of the LED indicator and the number of lights indicate the active

mode as described below.

White LED

Multicolor LED

White LED

•The Multicolor LED changes to White, Cyan, Green, Red, Yellow, Orange, Purple and

Blue depending on the mode or status.

󱂔Power Turns the power on and off.

󱂕Volume Adjusts the volume.

󱂖Source

•Press the (Source) button to change the mode. Each time you change the mode,

the LED lights in white and then turns off.

LED

Indicator

White On -> Off White On -> Off White On -> Off

“Digital Audio In” or

“TV ARC”“Bluetooth” “USB”

8 / 827 / 808 / 827 / 808 / 82

ENG - 8

•When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

•When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

•If you hear sounds from both the TV and Soundbar, go to the Settings menu for the TV audio and

change the TV speaker to External Speaker.

Bottom Panel of the Soundbar

USB (5V 0.5A)

DC 19V

DIGITAL

AUDIO IN

(OPTICAL)

HDMI

(ARC)

DIGITAL

AUDIO IN

(OPTICAL)

HDMI

(ARC)

USB (5V 0.5A)

DC 19V

DIGITAL

AUDIO IN

(OPTICAL)

HDMI

(ARC)

USB (5V 0.5A)

DC 19V

󱂓󱂕

󱂔󱂖

󱂓DC 19V (Power Supply In)

Connect the AC/DC power adapter.

󱂔USB (5V 0.5A)

Connect a USB device here to play music les stored on the USB device through the Soundbar.

󱂕DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device.

󱂖HDMI (ARC)

Connect to the HDMI (ARC) port on a TV.

•When disconnecting the power cable of the AC/DC power adapter from a wall outlet, pull the plug.

Do not pull the cable.

•Do not connect this unit or other components to an AC outlet until all connections between

components are complete.

9 / 828 / 809 / 828 / 809 / 82

ENG - 9

03 USING THE REMOTE CONTROL

Inserting Batteries before using the Remote Control (AAA batteries X 2)

Slide the back cover in the direction of the arrow

until it is completely removed.

Insert 2 AAA batteries (1.5V) oriented so that their

polarity is correct. Slide the back cover back into

position.

How to Use the Remote Control

SOUND

MODE

WOOFER

TONE

CONTROL

CH LEVEL

󱂓

󱂔

󱂕

󱂖

󱂗

󱂘

󱂙

󱂚

󱂛

󱂜

󱂝

󱂞

󱂟

󱂓Power

Turns the Soundbar on and off.

LED

Indicator

Cyan Blinks X1

On Off

Red Blinks X3

•Auto Power Down Function

The unit turns off automatically in the following

situations:

– In “Digital Audio In” or “TV ARC”/ “Bluetooth”/

“USB”mode if there is no audio signal for 20 minutes.

󱂔(Source)

Press to select a source connected to the Soundbar.

󱂕(Mute)

Press the (Mute) button to mute the sound.

Press it again to unmute the sound.

LED

Indicator

Blinks X Repeatly

10 / 829 / 8010 / 829 / 8010 / 82

This manual suits for next models

Table of contents

Languages:

Other Samsung Speakers System manuals

Samsung

Samsung HW-LST70T Installation instructions

Samsung

Samsung HW-Q600A Installation instructions

Samsung

Samsung HW-Q60B Installation instructions

Samsung

Samsung HW-A530 Installation instructions

Samsung

Samsung HW-MM36 Installation instructions

Samsung

Samsung HW-S800B Installation instructions

Samsung

Samsung HW-S60A Installation instructions

Samsung

Samsung HW-S800B User manual

Samsung

Samsung HW-A45E Installation instructions

Samsung

Samsung HW-M360 User manual

Samsung

Samsung HW-A450 Installation instructions

Samsung

Samsung HW-C400 Installation instructions

Samsung

Samsung HW-M550 Installation instructions

Samsung

Samsung HW-J6001R User manual

Samsung

Samsung MX-HS8000 User manual

Samsung

Samsung harman/kardon HWQ60RXY Installation instructions

Samsung

Samsung HW-A50M Installation instructions

Samsung

Samsung HW-Q930C User manual

Samsung

Samsung HW-R530 User manual

Samsung

Samsung HW-Q910C Installation instructions

Samsung

Samsung HW-C400 Installation instructions

Samsung

Samsung HW-S60B Installation instructions

Samsung

Samsung HW-FM45C User manual

Samsung

Samsung HW-S60T Installation instructions

Popular Speakers System manuals by other brands

JVC

JVC CA-MXK5R instructions

LG NB4532B owner's manual

JVC

JVC CA-FSH100 instructions

5Core

5Core Pro Series Operation manual

EAW

EAW MQV1394e Specifications

Lynx

Lynx GXR-LA10A user manual

iLive

iLive ITB066B user guide

RDX

RDX QuickStation 4 product manual

Electro-Voice

Electro-Voice S-122 Specifications

Sven

Sven SPS-619 GOLD Operation manual

Pioneer

Pioneer CS-7070 instruction manual

EAW

EAW UB82e Technical specifications

Sondpex

Sondpex Active Speaker System and Digital Music... User manual and installation instructions

JVC

JVC NX-PN7 instructions

Marshall Amplification

Marshall Amplification AR-DM61-BT user manual

Yamaha

Yamaha NX-A01 - Speaker Sys Product bulletin

SE Audiotechnik

SE Audiotechnik I-LINE manual

Gemini

Gemini WRX-843 Series user manual
