Samsung HW-N400 Installation instructions

FULL MANUAL

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

HW-N400

ENG - ii

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING

•To reduce the risk of re or electric shock, do

not expose this appliance to rain or moisture.

CAUTION

•TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

•This apparatus shall always be connected to a

AC outlet with a protective grounding

connection.

•To disconnect the apparatus from the mains,

the plug must be pulled out from the mains

socket, therefore the mains plug shall be

readily operable.

•Do not expose this apparatus to dripping or

splashing. Do not put objects lled with

liquids, such as vases on the apparatus.

•To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

ENG - iii

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the bottom of your

product. Install your product horizontally, on

a suitable base (furniture), with enough

space around it for ventilation (7~10 cm).

Make sure the ventilation slots are not

covered. Do not place the unit on ampliers

or other equipment which may become hot.

This unit is designed for continuous use. To

fully turn off the unit, disconnect the AC plug

from the wall outlet. Unplug the unit if you

intend to leave it unused for a long period of

time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or

equipment creating strong magnetic or

electric elds. Unplug the power cable from

the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct

sunlight, or re. Do not short circuit,

disassemble, or overheat the battery.

Danger of explosion if the battery is replaced

incorrectly. Replace only with the same or

equivalent type.

ABOUT THIS MANUAL

The user manual has two parts: this simple paper

USER MANUAL and a detailed FULL MANUAL you

can download.

USER MANUAL

See this manual for safety instructions,

product installation, components,

connections, and product specications.

FULL MANUAL

You can access the FULL MANUAL on

Samsung’s on-line customer support centre by

scanning the QR code. To see the manual on

your PC or mobile device, download the

manual in document format from Samsung’s

website. (http://www.samsung.com/support)

Design and specications are subject to change

without prior notice.

ENG - iv

CONTENTS

01 Checking the Components 2

Inserting Batteries before using the Remote Control (AA batteries X 2) ------------------------- 2

02 Product Overview 3

Front Panel / Right Side Panel of the Soundbar ------------------------- 3

Bottom Panel of the Soundbar ------------------------- 4

03 Connecting the Soundbar 5

Connecting Electrical Power ------------------------- 5

04 Connecting to your TV 6

Method 1. Connecting with a Cable ------------------------- 6

– Connecting a TV using an HDMI Cable ------------------------- 6

– Connecting using an Optical Cable ------------------------- 7

Method 2. Connecting Wirelessly ------------------------- 8

– Connecting a TV via Bluetooth ------------------------- 8

05 Connecting an External Device 10

Connecting using an HDMI Cable ------------------------- 10

Connecting using an Optical or Analogue Audio (AUX) Cable ------------------------- 11

06 Connecting a USB 12

ENG - v

07 Connecting a Mobile Device 14

Connecting via Bluetooth ------------------------- 14

Using the Samsung Audio Remote App ------------------------- 17

– Installing the Samsung Audio Remote App ------------------------- 17

– Launching the Samsung Audio Remote App ------------------------- 17

08 Using the Remote Control 18

How to Use the Remote Control ------------------------- 18

Adjusting the Soundbar volume with a TV remote control ------------------------- 21

Using the Hidden Buttons ------------------------- 22

Output specications for the different sound effect modes ------------------------- 22

09 Installing the Wall Mount 23

Installation Precautions ------------------------- 23

Wallmount Components ------------------------- 23

10 Software Update 25

Updating Procedure ------------------------- 26

If UPDATE is not displayed ------------------------- 26

11 Troubleshooting 27

12 Licence 28

13 Open Source Licence Notice 28

14 Important Notes About Service 28

15 SpecicationsandGuide 29

Specications ------------------------- 29

ENG - 2

01 CHECKING THE COMPONENTS

VOL BASS

SOUNDBAR

SOUND

MODE

PAIR

Soundbar Main Unit Remote Control / Batteries

1 2

AC/DC Adapter (Main Unit) Power Cord

(AC/DC Adapter)

HDMI Cable

•For more information about the power supply and power consumption, refer to the label attached

to the product. (Label : Bottom of the Soundbar Main Unit)

•The power components are labelled (1, 2). For more information about power connections, see

page 5.

•For Soundbar wall mounting components, see page 23.

•The Micro USB to USB adapter cable is sold separately. To purchase, contact a Samsung Service

Centre or Samsung Customer Care.

•The appearance of the accessories may differ slightly from the illustrations above.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the battery cover in the direction of the arrow until it is completely removed. Insert 2 AA batteries

(1.5V) oriented so that their polarity is correct. Slide the battery cover back into position.

ENG - 3

02 PRODUCT OVERVIEW

Front Panel / Right Side Panel of the Soundbar

󱂓

󱂔 󱂕 󱂖

Right Side of the Soundbar

Position the product so

that the SAMSUNG logo is

located on the top.

󱂓Display

Displays the product’s status and current mode.

󱂔

+/- (Volume) Button

Adjusts the volume.

•When adjusted, the volume level appears on the Soundbar’s front display.

󱂕(Power) Button

Turns the power on and off.

󱂖

(Source) Button

Selects the source input mode.

Input mode Display

Optical Digital input D.IN

ARC (HDMI OUT) input D.IN TV ARC (Auto conversion)

AUX input AUX

HDMI input HDMI

BLUETOOTH mode BT

USB mode USB

•To turn on “BT PAIRING” mode, change the source to “BT” mode, and then press and hold the

(Source) button for more than 5 seconds.

•When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

•When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

•If you want to enjoy sound only from the Soundbar, you must turn off the TV’s speakers in the Audio

Setup menu of your TV. Refer to the owner’s manual supplied with your TV.

ENG - 4

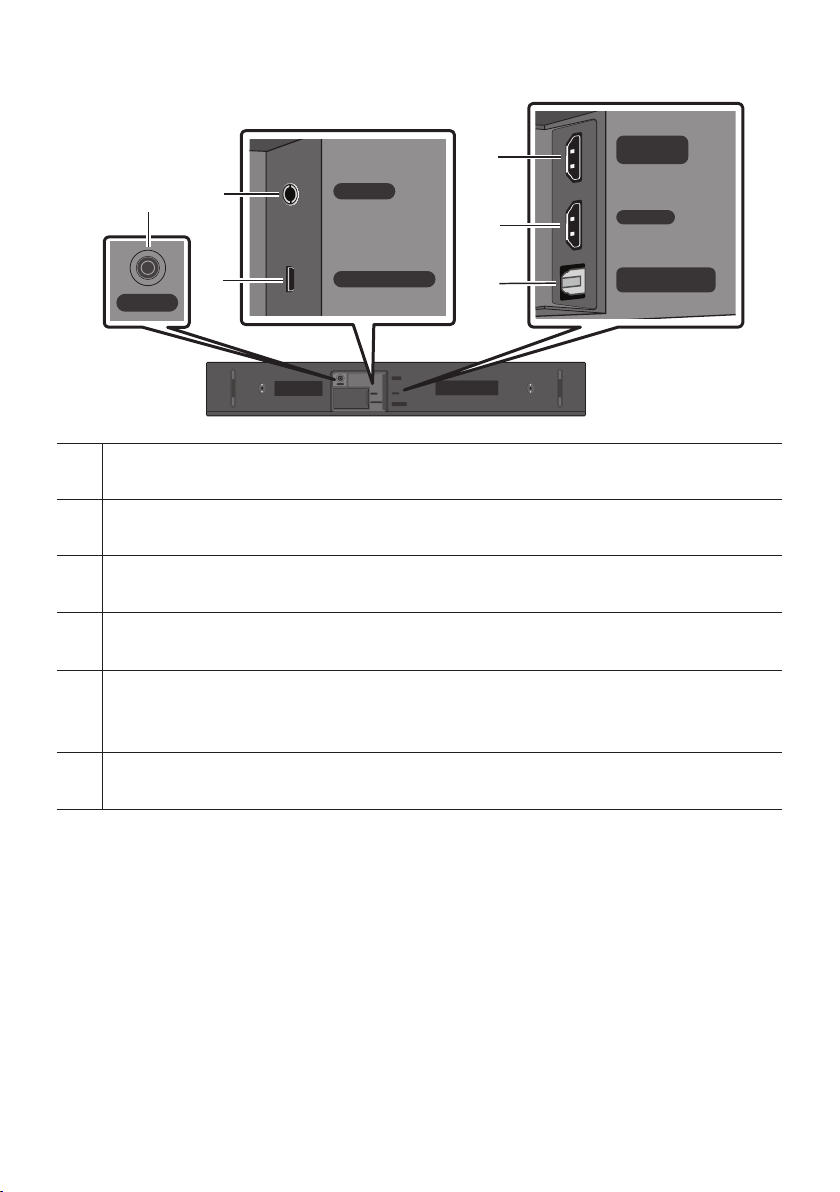

Bottom Panel of the Soundbar

HDMI OUT

(TV-ARC)

DC 24V

USB (5V 0.5A)

AUX IN HDMI IN

DIGITAL AUDIO IN

(OPTICAL)

USB (5V 0.5A)

AUX IN

DC 24V

HDMI OUT

(TV-ARC)

HDMI IN

DIGITAL AUDIO IN

(OPTICAL)

󱂔

󱂕

󱂓

󱂖

󱂗

󱂘

󱂓DC 24V (Power Supply In)

Connect the AC/DC power adapter.

󱂔AUX IN

Connect to the Analogue output of an external device.

󱂕USB (5V 0.5A)

Connect a USB device here to play music les on the USB device through the Soundbar.

󱂖HDMI OUT (TV-ARC)

Connect to the HDMI (ARC) jack on a TV.

󱂗

HDMI IN

Inputs digital video and audio signals simultaneously using an HDMI cable.

Connect to the HDMI output of an external device.

󱂘DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device.

•When disconnecting the power cable of the AC/DC power adaptor from a wall outlet, pull the plug.

Do not pull the cable.

•Do not connect this unit or other components to an AC outlet until all connections between

components are complete.

ENG - 5

03 CONNECTING THE SOUNDBAR

Connecting Electrical Power

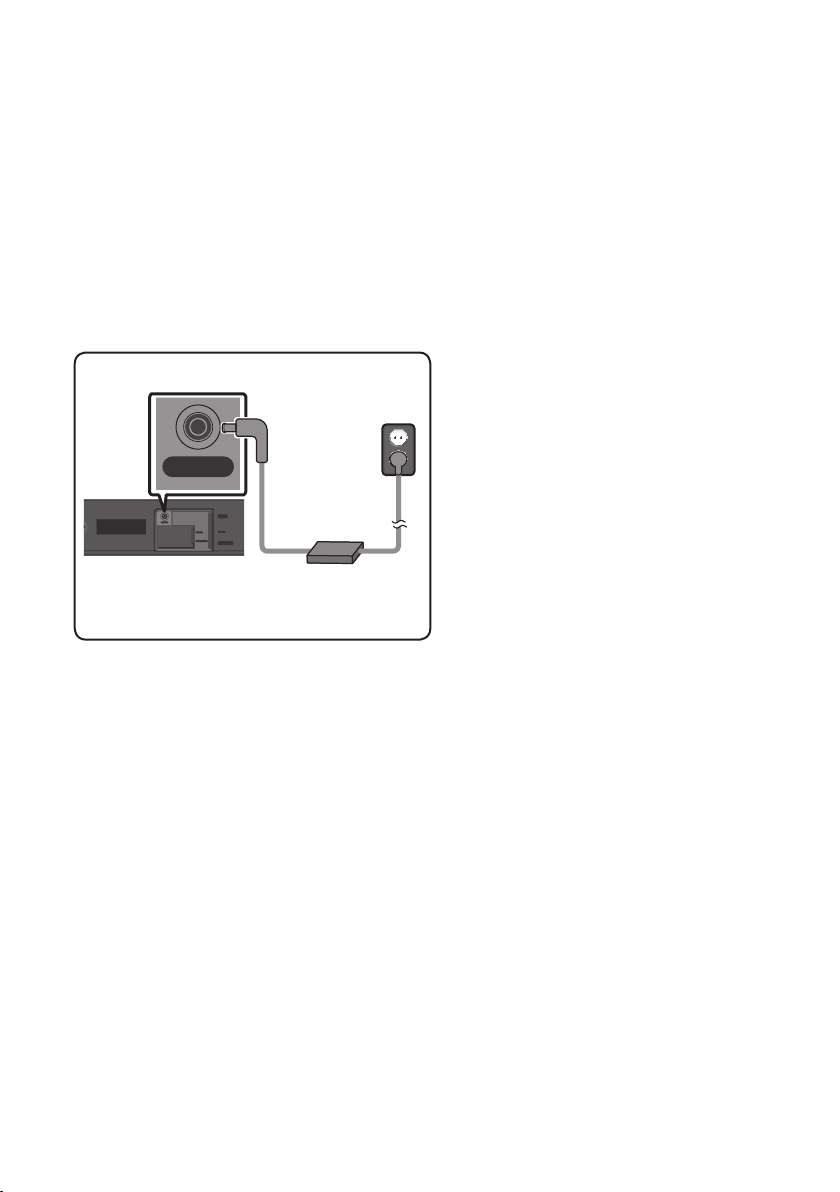

Use the power components (1, 2) to connect the Soundbar to an electrical outlet in the following order:

1 Connect the power output cable to the power adapter, and then to the Soundbar.

Connect the power cord to a wall socket.

See the illustrations below.

•For more information about the required electrical power and power consumption, refer to the

label attached to the product. (Label : Bottom of the Soundbar Main Unit)

HDMI OUT

(TV-ARC)

DC 24V

USB (5V 0.5A)

AUX IN HDMI IN

DIGITAL AUDIO IN

(OPTICAL)

DC 24V

Bottom of the

Soundbar Main Unit

1 AC/DC Adapter

2Power Cord

Connecting

Electrical Power

•Make sure to rest the AC/DC Adapter at

on a table or the oor. If you place the

AC/DC Adapter so that it is hanging with

the AC cord input facing upwards, water

or other foreign substances could enter

the Adapter and cause the Adapter to

malfunction.

Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker

Kit (SWA-8500S) to your Soundbar (Sold separately). For more information, see the

Samsung Wireless Rear Speaker Kit manual.

ENG - 6

04 CONNECTING TO YOUR TV

Hear TV sound from your Soundbar through wired or wireless connections.

•When the Soundbar is connected to selected Samsung TVs, the Soundbar can be controlled using

the TV’s remote control.

– When you connect using an optical cable, this feature is supported by 2017 Samsung Smart TVs

that support Bluetooth.

– This function also allows you to use the TV menu to adjust the sound eld and various settings

as well as the volume and mute.

Method 1. Connecting with a Cable

When the audio in a broadcast is encoded in Dolby Digital and the “Digital Output Audio Format” on

your TV is set to PCM, we recommend that you change the setting to Dolby Digital. When the setting on

the TV is changed, you will experience better sound quality. (The TV menu may differ depending on the

TV manufacturer.)

Connecting a TV using an HDMI Cable

Connect to the HDMI IN

(ARC) port of your TV.

HDMI OUT

(TV-ARC)

HDMI IN

DIGITAL AUDIO IN

(OPTICAL)

HDMI IN

(ARC) HDMI Cable

Bottom of the Soundbar

󱂓

TV ARC

󱂔

Connect to the HDMI OUT (TV-ARC)

port of the Soundbar main unit.

Right Side of the Soundbar

1. With the Soundbar and TV turned on, connect the HDMI cable as shown in the gure.

Other manuals for HW-N400

Table of contents

Languages:

Other Samsung Speakers System manuals

Samsung

Samsung HW-M450 Installation instructions

Samsung

Samsung HW-T42E Installation instructions

Samsung

Samsung HW-J6501R User manual

Samsung

Samsung HW-A550 Installation instructions

Samsung

Samsung HW-J650 User manual

Samsung

Samsung HW-J6000R User manual

Samsung

Samsung HW-S60T User manual

Samsung

Samsung HW-K950 User manual

Samsung

Samsung HW-T60C Installation instructions

Samsung

Samsung HW-B45E Installation instructions

Samsung

Samsung HW-Q67CB Installation instructions

Samsung

Samsung Crystal Surround Air Track HW-F450 User manual

Samsung

Samsung HW-K950 User manual

Samsung

Samsung HW-N950 Installation instructions

Samsung

Samsung HW-S50B Installation instructions

Samsung

Samsung HW-S60B Installation instructions

Samsung

Samsung Harman/Kardon HW-Q70R Installation instructions

Samsung

Samsung HW-C450/ZA Installation instructions

Samsung

Samsung HW-950T Installation instructions

Samsung

Samsung Crystal Surround Air Track HW-F550 User manual

Samsung

Samsung HW-Q6CB Installation instructions

Samsung

Samsung HW-JM6000C User manual

Samsung

Samsung HT-SB1G User manual

Samsung

Samsung S1000 - Digimax Digital Camera User manual

Popular Speakers System manuals by other brands

JVC

JVC CA-MXK5R instructions

LG NB4532B owner's manual

JVC

JVC CA-FSH100 instructions

5Core

5Core Pro Series Operation manual

EAW

EAW MQV1394e Specifications

Lynx

Lynx GXR-LA10A user manual

iLive

iLive ITB066B user guide

RDX

RDX QuickStation 4 product manual

Electro-Voice

Electro-Voice S-122 Specifications

Sven

Sven SPS-619 GOLD Operation manual

Pioneer

Pioneer CS-7070 instruction manual

EAW

EAW UB82e Technical specifications

Sondpex

Sondpex Active Speaker System and Digital Music... User manual and installation instructions

JVC

JVC NX-PN7 instructions

Marshall Amplification

Marshall Amplification AR-DM61-BT user manual

Yamaha

Yamaha NX-A01 - Speaker Sys Product bulletin

SE Audiotechnik

SE Audiotechnik I-LINE manual

Gemini

Gemini WRX-843 Series user manual
