Samsung HW-Q70T Installation instructions

HW-Q70T

FULL MANUAL

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

ENG - 2

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

Refer to the table below for an explanation of

symbols which may be on your Samsung product.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

If this symbol is not present on a

product with a power cord, the product

MUST have a reliable connection to

protective earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING

•To reduce the risk of re or electric shock, do

not expose this appliance to rain or moisture.

•To prevent injury, this apparatus must be

securely attached to the oor/wall in

accordance with the installation instructions.

CAUTION

•Do not expose this apparatus to dripping or

splashing. Do not put objects lled with

liquids, such as vases, on the apparatus.

•To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

CAUTION (for Canada)

This device contains licence-exempt

transmitter(s)/receiver(s) that comply with

Innovation, Science and Economic Development

Canada’s licence-exempt RSS(s). Operation is

subject to the following two conditions:

(1) This device may not cause interference.

(2) This device must accept any interference,

including interference that may cause undesired

operation of the device.

This device and its antenna(s) must not be co-

located or operation in conjunction with any other

antenna or transmitter.

This device may automatically discontinue

transmission if there is no information to

transmit, or an operational failure. Note that this

is not intended to prohibit the transmission of

control or signaling information or the use of

repetitive codes where required by the

technology.

This Class B digital apparatus complies with

Canadian ICES-003.

ENG - 3

Radiation Exposure Statement

This equipment complies with IC RSS-102

radiation exposure limits set forth for an

uncontrolled environment. This equipment should

be installed and operated with minimum distance

20 cm between the radiator & your body.

Important Safety Instructions

Read these operating instructions carefully

before using the unit. Follow all the safety

instructions listed below. Keep these operating

instructions handy for future reference.

1. Read these instructions.

2. Keep these Instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings.

Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as

radiators, heat registers, stoves, or other

apparatus (including ampliers) that produce

heat.

9. Do not defeat the safety purpose of the

polarized or grounding-type plug.

A polarized plug has two blades with one

wider than the other. A grounding type plug

has two blades and a third grounding prong.

The wide blade or the third prong are

provided for your safety. If the provided plug

does not t into your outlet, consult an

electrician for replacement of the obsolete

outlet.

10.Protect the power cord from being walked

on or pinched particularly at plugs,

convenience receptacles, and the point

where they exit from the apparatus.

11. Only use attachments/accessories specied

by the manufacturer.

12. Use only with the cart, stand,

tripod, bracket, or table

specied by the manufacturer,

or sold with the apparatus.

When a cart is used, use caution when

moving the cart/apparatus combination to

avoid injury from tip-over.

13. Unplug this apparatus during lightning

storms or when unused for long periods of

time.

14. Refer all servicing to qualied service

personnel. Servicing is required when the

apparatus has been damaged in any way,

such as power-supply cord or plug is

damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does

not operate normally, or has been dropped.

ENG - 4

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the bottom of your

product. Install your product horizontally, on

a suitable base (furniture), with enough

space around it for ventilation (3~4 inches).

Make sure the ventilation slots are not

covered. Do not place the unit on ampliers

or other equipment which may become hot.

This unit is designed for continuous use.

To fully turn off the unit, disconnect the AC

plug from the wall outlet. Unplug the unit if

you intend to leave it unused for a long

period of time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or

equipment creating strong magnetic or

electric elds. Unplug the power cable from

the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct

sunlight, or re. Do not short circuit,

disassemble, or overheat the battery.

Danger of explosion if the battery is replaced

incorrectly. Replace only with the same or

equivalent type.

ENG - 5

CONTENTS

01 Checking the Components 7

02 Product Overview 8

Front Panel / Top Panel of the Soundbar ------------------------- 8

Bottom Panel of the Soundbar ------------------------- 9

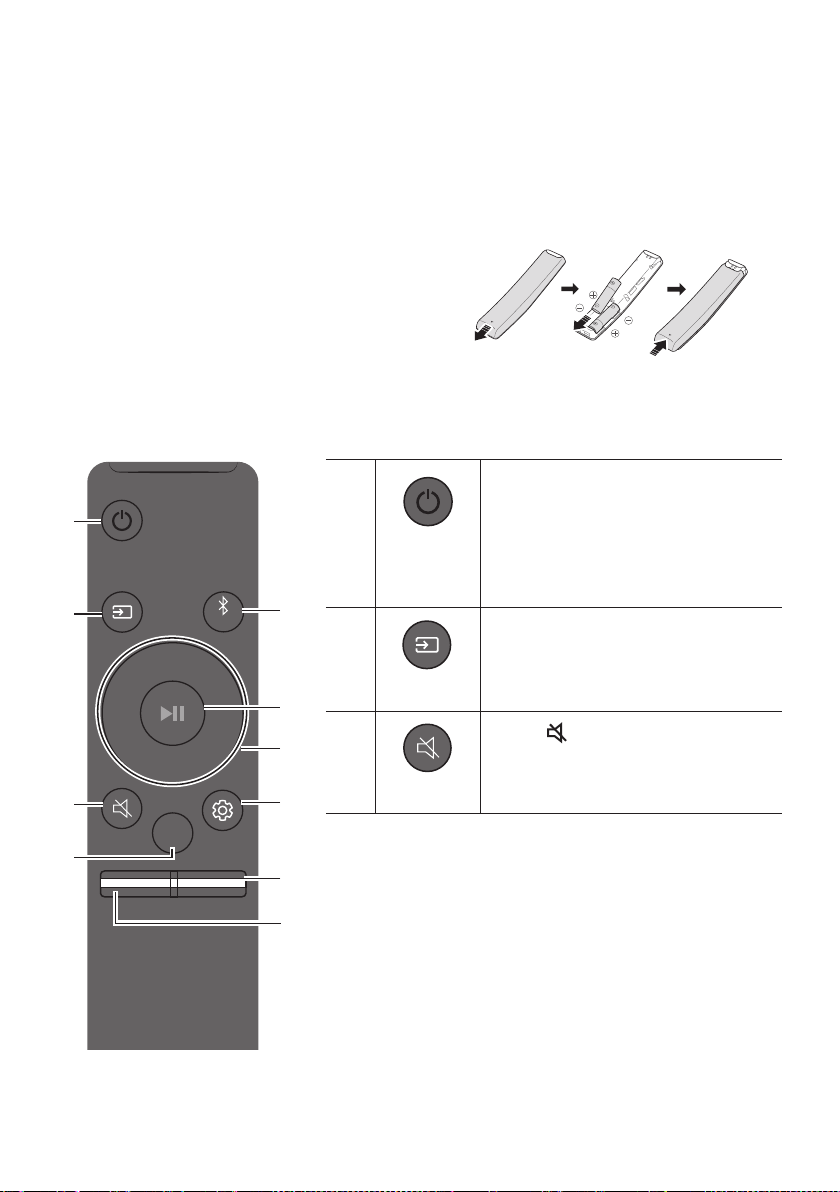

03 Using the Soundbar Remote Control 10

Inserting Batteries before using the Remote Control (AA batteries X 2) ------------------------- 10

How to Use the Remote Control ------------------------- 10

Using the Hidden Buttons (Buttons with more than one function) ------------------------- 13

Output specications for the different sound effect modes ------------------------- 13

Adjusting the Soundbar volume with a TV remote control ------------------------- 14

04 Connecting the Soundbar 15

Connecting the power and units ------------------------- 15

– Manually connecting the Subwoofer ------------------------- 16

– LED Indicator Lights on the Rear of Subwoofer ------------------------- 18

Connecting an SWA-9000S (Sold Separately) to your Soundbar ------------------------- 19

05 Using a wired connection to the TV 21

Method 1. Connecting with HDMI ------------------------- 21

– Connecting the TV that supports HDMI ARC (Audio Return Channel) ------------------------- 21

Method 2. Connecting using an Optical Cable ------------------------- 22

06 Using a wireless connection to the TV 24

Connecting via Bluetooth ------------------------- 24

07 Connecting an External Device 26

Method 1. Connecting using an HDMI Cable

(Capable of Dolby Atmos decoding and playback) ------------------------- 26

Method 2. Connecting using an Optical Cable ------------------------- 27

ENG - 6

08 Connecting a Mobile Device 28

Method 1. Connecting via Bluetooth ------------------------- 28

Method 2. Connecting via Wi-Fi (Wireless Network) ------------------------- 31

09 Connecting an Amazon product 32

Connect and use with an Amazon product (Amazon Echo) ------------------------- 32

Use voice commands to control the Soundbar ------------------------- 32

Using the Tap Sound ------------------------- 33

10 Installing the Wall Mount 34

Installation Precautions ------------------------- 34

Wallmount Components ------------------------- 34

11 Installing the Soundbar above a TV Stand 36

Component ------------------------- 36

12 Software Update 37

Auto Update ------------------------- 37

USB Update ------------------------- 37

Initialization ------------------------- 38

13 Troubleshooting 39

14 License 41

15 Open Source License Notice 41

16 Important Notes About Service 41

17 SpecicationsandGuide 42

Specications ------------------------- 42

ENG - 7

01 CHECKING THE COMPONENTS

VOL WOOFER

SOUNDBAR

SOUND

MODE

PAIR

Soundbar Main Unit Soundbar Remote Control

Batteries

Subwoofer

x 2

Power Cord

(Subwoofer, Soundbar)

AC/DC Adapter

(Main Unit)

HDMI Cable

x 2

(M4 x L10)

x 2

Wall Mount Guide Holder-Screw Screw

x 2 x 4

Bracket-Wall Mount Rubber-Foot

•For more information about the power supply and power consumption, refer to the label attached

to the product. (Label: Bottom of the Soundbar Main Unit)

•To purchase additional components or optional cables, contact a Samsung Service Center or

Samsung Customer Care.

•For more information about the wallmount or rubber-foot, see pages 34~36.

•Design, specications, and App screen are subject to change without prior notice.

•The appearance of the accessories may differ slightly from the illustrations above.

ENG - 8

02 PRODUCT OVERVIEW

Front Panel / Top Panel of the Soundbar

Top Panel

Position the product so that

the SAMSUNG logo is

located on the top.

󱂓 󱂕

󱂖

󱂔

󱂓(Power) Button

Turns the power on and off.

󱂔(Volume) Button

Adjusts the volume.

󱂕

(Source) Button

Selects the source input mode.

Input mode Display

Optical Digital input D.IN

ARC (HDMI OUT) input D.IN TV ARC (Auto conversion)

HDMI input HDMI

Wi-Fi mode WIFI

BLUETOOTH mode BT

󱂖

Display

Displays the product’s status and current mode.

D.IN HDMI Wi-Fi BT

•When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

•When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

•If you hear sounds from both the TV and Soundbar, go to the Settings menu for the TV audio and

change the TV speaker to External Speaker.

ENG - 9

Bottom Panel of the Soundbar

DIGITAL AUDIO IN

(OPTICAL)

SERVICE

DC 19V

HDMI

NETWORK ID SET

DIGITAL AUDIO IN

(OPTICAL)

SERVICE

NETWORK ID SET

HDMI TO TV

(eARC/ARC)

HDMI IN

HDMI OUT

(TV-ARC)

DIGITAL AUDIO IN

(OPTICAL)

SERVICE

DC 19V

DIGITAL AUDIO IN

(OPTICAL)

SERVICE

DC 19V

HDMI

HDMI TO TV

(eARC/ARC)

DIGITAL AUDIO IN

(OPTICAL)

SERVICE

DC 19V

HDMI

NETWORK ID SET

DIGITAL AUDIO IN

(OPTICAL)

SERVICE

NETWORK ID SET

HDMI TO TV

(eARC/ARC)

HDMI IN

HDMI OUT

(TV-ARC)

DIGITAL AUDIO IN

(OPTICAL)

SERVICE

DC 19V

DIGITAL AUDIO IN

(OPTICAL)

SERVICE

DC 19V

HDMI

HDMI TO TV

(eARC/ARC)

DIGITAL AUDIO IN

(OPTICAL)

SERVICE

DC 19V

HDMI

NETWORK ID SET

DIGITAL AUDIO IN

(OPTICAL)

SERVICE

NETWORK ID SET

HDMI TO TV

(eARC/ARC)

HDMI IN

HDMI OUT

(TV-ARC)

DIGITAL AUDIO IN

(OPTICAL)

SERVICE

DC 19V

DIGITAL AUDIO IN

(OPTICAL)

SERVICE

DC 19V

HDMI

HDMI TO TV

(eARC/ARC)

DIGITAL AUDIO IN

(OPTICAL)

SERVICE

DC 19V

HDMI

NETWORK ID SET

DIGITAL AUDIO IN

(OPTICAL)

SERVICE

NETWORK ID SET

HDMI TO TV

(eARC/ARC)

HDMI IN

HDMI OUT

(TV-ARC)

DIGITAL AUDIO IN

(OPTICAL)

SERVICE

DC 19V

DIGITAL AUDIO IN

(OPTICAL)

SERVICE

DC 19V

HDMI

HDMI TO TV

(eARC/ARC)

󱂓

󱂔

󱂕

󱂖 󱂗

󱂘

󱂙

󱂓DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device. (See page 27)

󱂔SERVICE

Connect a USB storage device to upgrade the product's software.

󱂕DC 19V (Power Supply In)

Connect the AC/DC power adapter. (See page 15)

󱂖NETWORK

Press to connect to a wireless network (Wi-Fi) via the SmartThings app.

󱂗

ID SET

Press to connect the Soundbar to surround speakers and a subwoofer wirelessly. (The surround speaker is

sold separately.)

󱂘

HDMI

Inputs digital video and audio signals simultaneously using an HDMI cable.

Connect to the HDMI output of an external device. (See page 26)

󱂙HDMI TO TV (eARC/ARC)

Connect to the HDMI jack on a TV. (See page 21)

•When disconnecting the power cable of the AC/DC power adaptor from a wall outlet, pull the plug.

Do not pull the cable.

•Do not connect this unit or other components to an AC outlet until all connections between

components are complete.

ENG - 10

03 USING THE SOUNDBAR REMOTE

CONTROL

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the back cover in the direction of the arrow

until it is completely removed. Insert 2 AA batteries

(1.5V) oriented so that their polarity is correct. Slide

the back cover back into position.

How to Use the Remote Control

VOL WOOFER

SOUNDBAR

SOUND

MODE

PAIR

󱂓

󱂔

󱂕

󱂖

󱂗

󱂙

󱂘

󱂚

󱂜

󱂛

󱂓

Power

VOL WOOFER

SOUND

MODE

PAIR

Turns the Soundbar on and off.

•Auto Power Down Function

The unit turns off automatically in the

following situations:

– In D.IN / HDMI / Wi-Fi / BT mode if

there is no audio signal for 18 minutes.

󱂔

VOL WOOFER

SOUND

MODE

PAIR

Source

Press to select a source connected to the

Soundbar.

󱂕

Mute

VOL WOOFER

SOUND

MODE

PAIR

Press the (Mute) button to mute the

sound.

Press it again to unmute the sound.

Other manuals for HW-Q70T

Table of contents

Languages:

Other Samsung Speakers System manuals

Samsung

Samsung HW-M460 Installation instructions

Samsung

Samsung HW-Q800A User manual

Samsung

Samsung HW-S60B Installation instructions

Samsung

Samsung HW-T430 Installation instructions

Samsung

Samsung HW-H550 User manual

Samsung

Samsung HW-N300 User manual

Samsung

Samsung HW-T450 User manual

Samsung

Samsung HW-KM37 User manual

Samsung

Samsung harman/kardon HWQ60RXY Installation instructions

Samsung

Samsung HW-N400 Installation instructions

Samsung

Samsung HW-FM45C User manual

Samsung

Samsung HW-Q995GC User manual

Samsung

Samsung HW-M4500 User manual

Samsung

Samsung HW-R530/XN Installation instructions

Samsung

Samsung HW-T45E Installation instructions

Samsung

Samsung HW-J250 User manual

Samsung

Samsung HW-K470 User manual

Samsung

Samsung HW-A450 Installation instructions

Samsung

Samsung HW-H500 User manual

Samsung

Samsung HW-Q935GC User manual

Samsung

Samsung HW-S50A Installation instructions

Samsung

Samsung HW-A40M Installation instructions

Samsung

Samsung HW-N400 User manual

Samsung

Samsung HW-JM45C User manual

Popular Speakers System manuals by other brands

JVC

JVC CA-MXK5R instructions

LG NB4532B owner's manual

JVC

JVC CA-FSH100 instructions

5Core

5Core Pro Series Operation manual

EAW

EAW MQV1394e Specifications

Lynx

Lynx GXR-LA10A user manual

iLive

iLive ITB066B user guide

RDX

RDX QuickStation 4 product manual

Electro-Voice

Electro-Voice S-122 Specifications

Sven

Sven SPS-619 GOLD Operation manual

Pioneer

Pioneer CS-7070 instruction manual

EAW

EAW UB82e Technical specifications

Sondpex

Sondpex Active Speaker System and Digital Music... User manual and installation instructions

JVC

JVC NX-PN7 instructions

Marshall Amplification

Marshall Amplification AR-DM61-BT user manual

Yamaha

Yamaha NX-A01 - Speaker Sys Product bulletin

SE Audiotechnik

SE Audiotechnik I-LINE manual

Gemini

Gemini WRX-843 Series user manual
