Samsung WAM7500 User manual

Wireless Audio - 360

R7/R6 Portable

WAM7500/WAM7501/WAM6500/WAM6501

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service,

please register your product at

www.samsung.com/register

User Manual

Contents

GETTING STARTED

Accessories................................... 4

Standby Mode............................... 4

Front Panel.................................... 5

Rear Panel - WAM6500/WAM6501

.. 6

CONNECTIONS

Preparing connection..................... 7

Installing the Samsung Multiroom

App.....................................................7

Accessing the Samsung Multiroom

App.....................................................7

Connecting wirelessly .................... 8

Connecting to your wireless network

automatically (Android/iOS) .................8

Connecting to the wireless network

manually (Android).............................10

Connecting to the wireless network

manually (iOS) ...................................12

Connecting with a HUB (Not

Included) ..................................... 15

Adding a HUB...................................18

Adding additional speaker(s)........ 19

Connecting to Bluetooth Devices

.. 20

USING THE SAMSUNG

MULTIROOM APP

Switching the input source .......... 22

Playing Music .............................. 23

Playing a music file stored in the

smart device .....................................23

Listening to streaming music.............26

Listening to music from nearby

Devices .............................................26

Listening to the internet radio ...... 27

Following a station ............................28

Setting Presets..................................29

Using the Settings menu.............. 30

Add Speaker.....................................30

Guide ................................................31

Services ............................................31

Device Settings .................................32

Clock ................................................35

Support.............................................36

Information........................................37

CONNECTING MULTIPLES

PRODUCTS

Selecting the product .................. 39

Selecting another product for

playback ..........................................39

Setting Groups ............................ 40

Setting the Surround Sound

Mode........................................... 41

USING MISCELLANEOUS

FUNCTIONS

Connecting with TV SoundConnect

function ....................................... 43

Playing Media Content Saved in

a PC............................................ 44

Wireless Audio - Multiroom for

Desktop ............................................44

APPENDIX

Troubleshooting........................... 46

Open Source License Notice ....... 48

Licences...................................... 48

Specifications .............................. 49

Regulatory Compliance

Statements.................................. 51

Warning ............................................51

CAUTION..........................................51

Wiring the Main Power Supply Plug

(UK Only)...........................................52

Important Safety Instructions.............52

Safety precautions....................... 53

Power Supply Precautions ................53

Installation Precautions......................54

Usage Precautions ............................54

Cleaning Precautions ........................55

Additional Information.................. 55

About the Network Connection .........55

Compatible products.........................56

Getting Started

A Accessories

Confirm you have the supplied accessories shown below.

• WAM7500/WAM7501

Quick Setup Guide

• WAM6500/WAM6501

Power Adapter Quick Setup Guide

A Standby Mode

`In Wi-Fi / Bluetooth / TV SoundConnect mode

- The product switches to Standby mode if there is no operation (music playing, button

operation, app use) for 15 minutes.

NOTES

9While playing music in the Wi-Fi, Bluetooth, or TV SoundConnect connection modes, the product will

not switch to Standby mode.

9The WAM6500 and WAM6501 models use battery power if the power adapter is disconnected and

the Standby mode is activated.

(You can minimize battery consumption by pressing the

DC24V SERVICEPOWER DC24V SERVICEPOWER

POWER button on the rear of the product

and turning the product off.)

A Front Panel

Source button Touch this button to switch to TV SoundConnect or Bluetooth.

Touch and hold this button for more than 5 seconds to re-search TV SoundConnect.

Standby button

Touch this button to switch the product to Standby mode.

- Standby mode: This mode turns off the product’s basic functions and maintains

Wi-Fi connections only.

If you touch and hold this button for 3 seconds, the speaker turns off.

(WAM7500, WAM7501 only)

Play/Pause button Touch this button to play or pause playback.

Pause does not work when the speaker is set to TV SoundConnect.

Volume Control

button

Controls the volume level.

Press the + key to increase the volume level and press the - key to decrease the

volume level.

Press and hold both the + and - buttons simultaneously for 5 seconds to reset the

product.

< WAM7500/WAM7501 > < WAM6500/WAM6501 >

e tr

Be careful not to insert your hand

or finger into the tweeter opening

on top of the product.

POWER To turn the product on or off, press and hold this button for more than 2 seconds.

DC 24V

The connection for the product's power adapter.

Charging stops if the volume level reaches 25 or more.

(The maximum volume level of this product is 30.)

SERVICE For service only. Lets service technicians update the firmware of the product.

Battery Status

(WAM6500, WAM6501

Only)

You can check product's battery status.

Battery LED indicator when power

adapter is connected

Battery LED indicator when power

adapter is not connected

• Red LED : Charging

• LED OFF : Fully charged

• Rapid red blinking : Not charging

• Green LED : 100% to 10% of charge

remaining

• Slow red blinking : 10~0% remaining

- Slow red blinking indicates that the

battery requires charging. Connect the

power adapter.

- The sound volume may decrease and

the speaker may turn off automatically

when the battery is low.

NOTES

9+ Add Speaker : Press and hold both buttons simultaneously for 5 seconds to use the Add

Speaker function.

9+ Wi-Fi Setup : Press and hold both buttons simultaneously for 5 seconds when connecting this

product to your network using the Wi-Fi Setup method.

- For more details, follow the instructions in the app on your smart device.

A Rear Panel - WAM6500/WAM6501

DC24V SERVICEPOWER DC24V SERVICEPOWER

< WAM6500/WAM6501 >

q w e

A Preparing connection

1 Requirements: Wireless Router, Smart Device

2 The wireless router should be connected to the Internet.

3 The smart device should be connected to the router via a Wi-Fi connection.

❚Installing the Samsung Multiroom App

To use the product, you must download and then install the Samsung Multiroom App by

accessing the app through Google play or App Store.

With the Samsung Multiroom App installed, you can play music stored in your smart device,

from connected devices and other content providers, and from Internet radio stations through

the product.

Android iOS

Market search : Samsung Multiroom

ANDROID APP ON

Market search : Samsung Multiroom

ANDROID APP ON

❚Accessing the Samsung Multiroom App

To access the Samsung Multiroom app, press the Multiroom app icon on your smart device.

NOTE

9Please terminate the Samsung Multiroom App when audio products are not used because the battery of

your smart device can be consumed quickly if the app is working.

Connections

Wireless Router Samsung LinkInternet

Samsung

Multiroom

A Connecting wirelessly

❚Connecting to your wireless network automatically (Android/iOS)

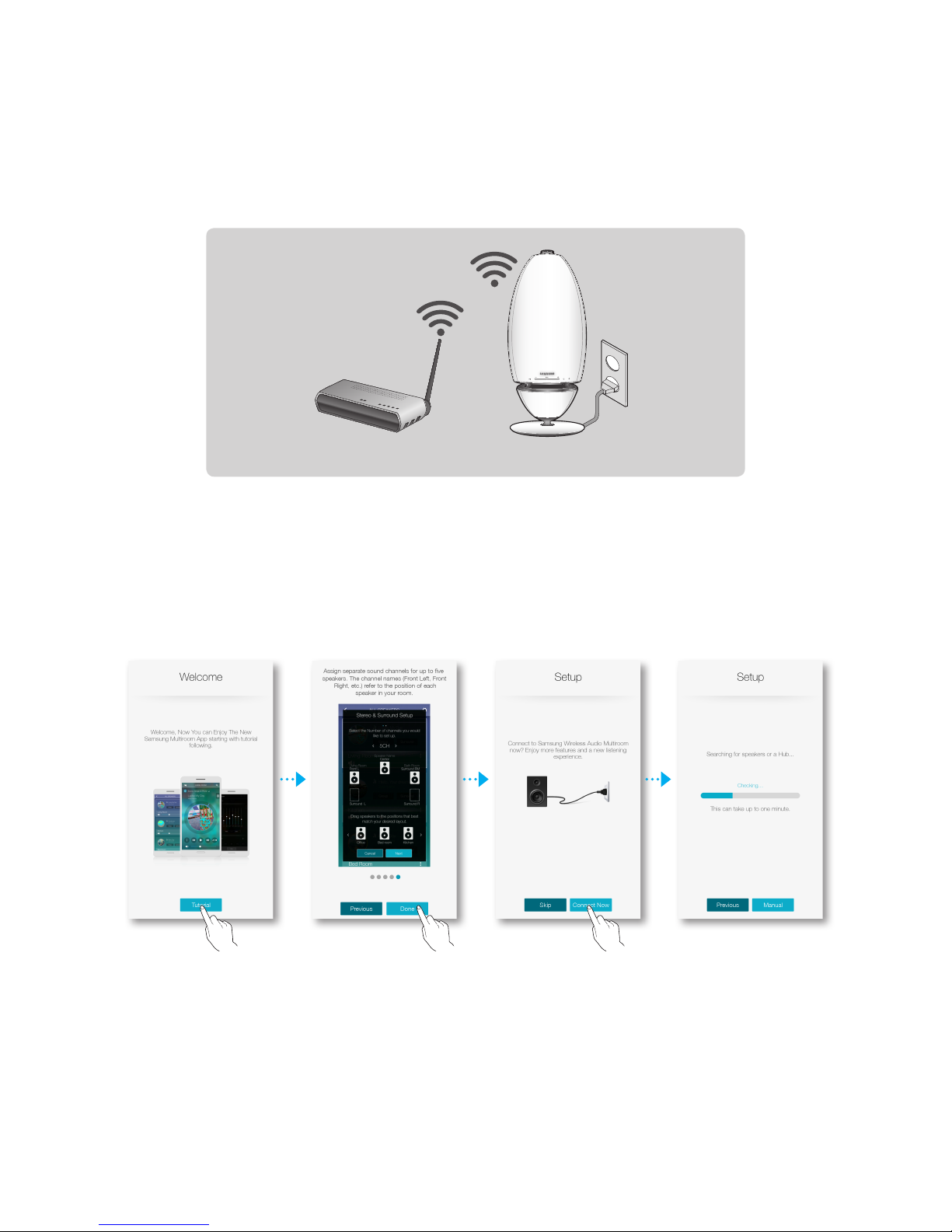

1 Plug the product into an electrical outlet.

2 On your Smart device, select the Samsung Multiroom app.

3 Run the Tutorial if you want, and then press Done.

4 Press Connect Now.

• It searches for the device available for pairing.

Wireless Router

5 Once an available device is found, it attempts to connect to the wireless network.

In case of secure network, the password prompt appears on the smart device screen.

Use the onscreen keyboard to enter the password.

• Depending on the network environments, the product(s) may not be automatically

connected. In such cases, select the Manual, and then proceed the next steps by

referring to pages 10~15.

Click here.

6 Press Connect.

• Network connection is completed.

NOTES

9To connect to your wireless network safely, you must enter the valid password.

- For connecting to the home or work wireless network, consult your service provider or the network

administrator.

9If the product fails to connect to a network or the network connection does not work normally, move the

product closer to the hub or router, and then try again.

9The distance between devices or obstruction and interference from other wireless devices may

influence communication between the product and network.

9This product may be found by some other Wi-Fi devices. However, they are not allowed to connect to

this product.

9Once the Wi-Fi connection is established initially, it is maintained unless the wireless router is replaced

or its network settings are changed.

❚Connecting to the wireless network manually (Android)

Depending on the network environments, the product(s) may not be automatically connected. In

that case, you can set up the product manually to connect to the network.

1 If the automatic setup fails, select the Manual.

2 Press and hold both Play/Pause and Standby buttons simultaneously for more

than 5 seconds to configure the Wi-Fi Setup.

• The product can wait for 2 minutes in its standby mode until the Wi-Fi connection is

established.

Wireless Router
