Samsung SH37R User manual

Samsung Electronics owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited. Trademarks other than Samsung Electronics are

property of their respective owners.

SH37R

The color and the appearance may differ depending on the product, and the content in the

manual is subject to change without prior notice to improve the performance.

Smart Signage User Manual (By Model)

This manual provides information about your Smart Signage including supported types and product specications per model.

Table of contents

Preparations

Checking the Components 3

Parts 4

Ports 5

Control menu 6

Before Installing the Product (Installation

Guide) 7

Tilting Angle and Rotation 7

Ventilation 7

Installing the Wall Mount 8

Wall Mount Kit Specifications (VESA) 8

Specifications

General 9

Preset Timing Modes 10

Appendix

License 11

Preparations

Chapter 01

"Contact the vendor where you

purchased the product if any

components are missing.

"The appearance of the components

may differ from the images shown.

"A stand is not provided with the

product. To install a stand, you can

purchase one separately.

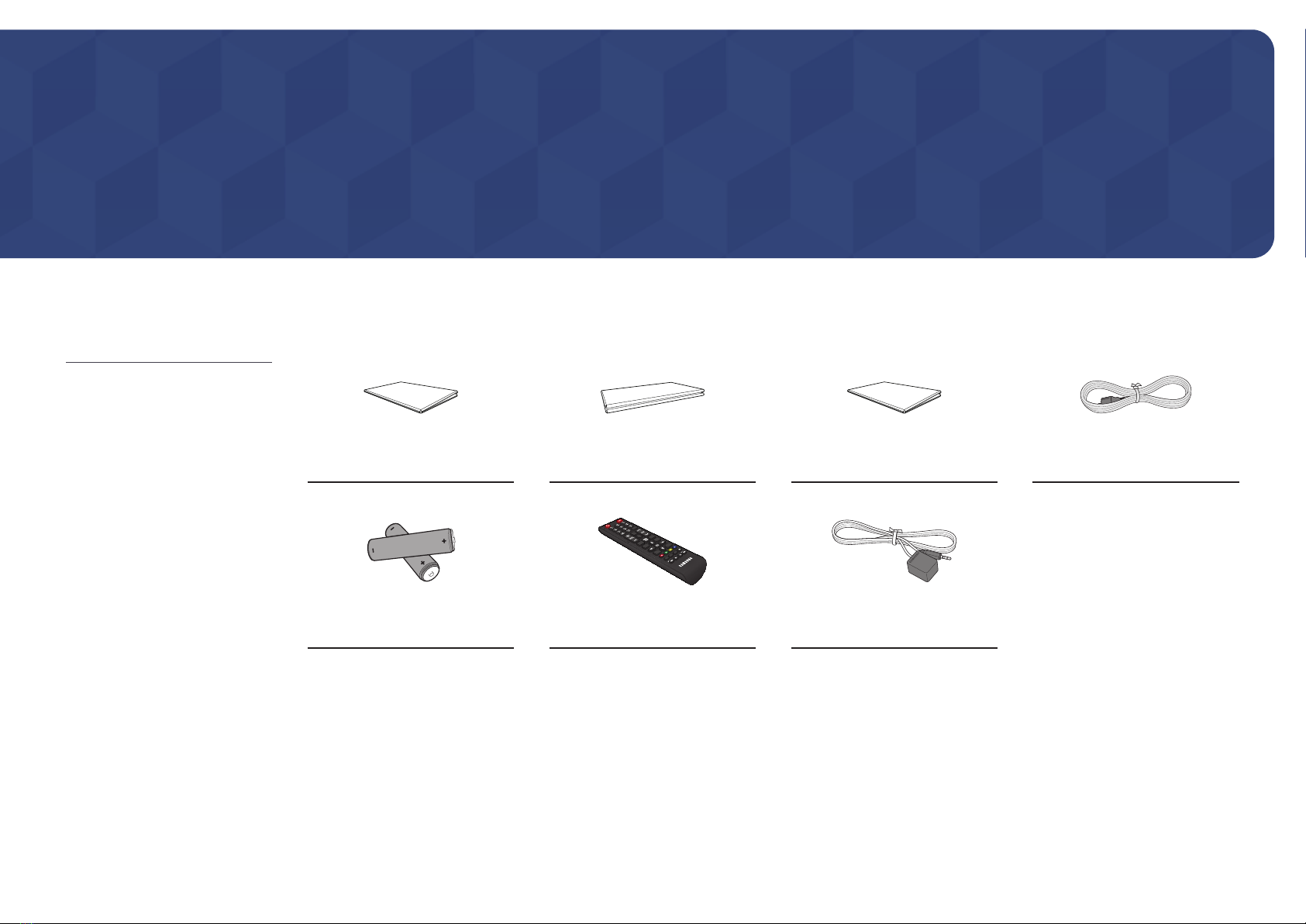

Checking the Components

Quick Setup Guide Warranty card

(Not available in some locations) Regulatory guide Power cord

Batteries (AAA x 2)

(Not available in some locations) Remote Control External IR cable

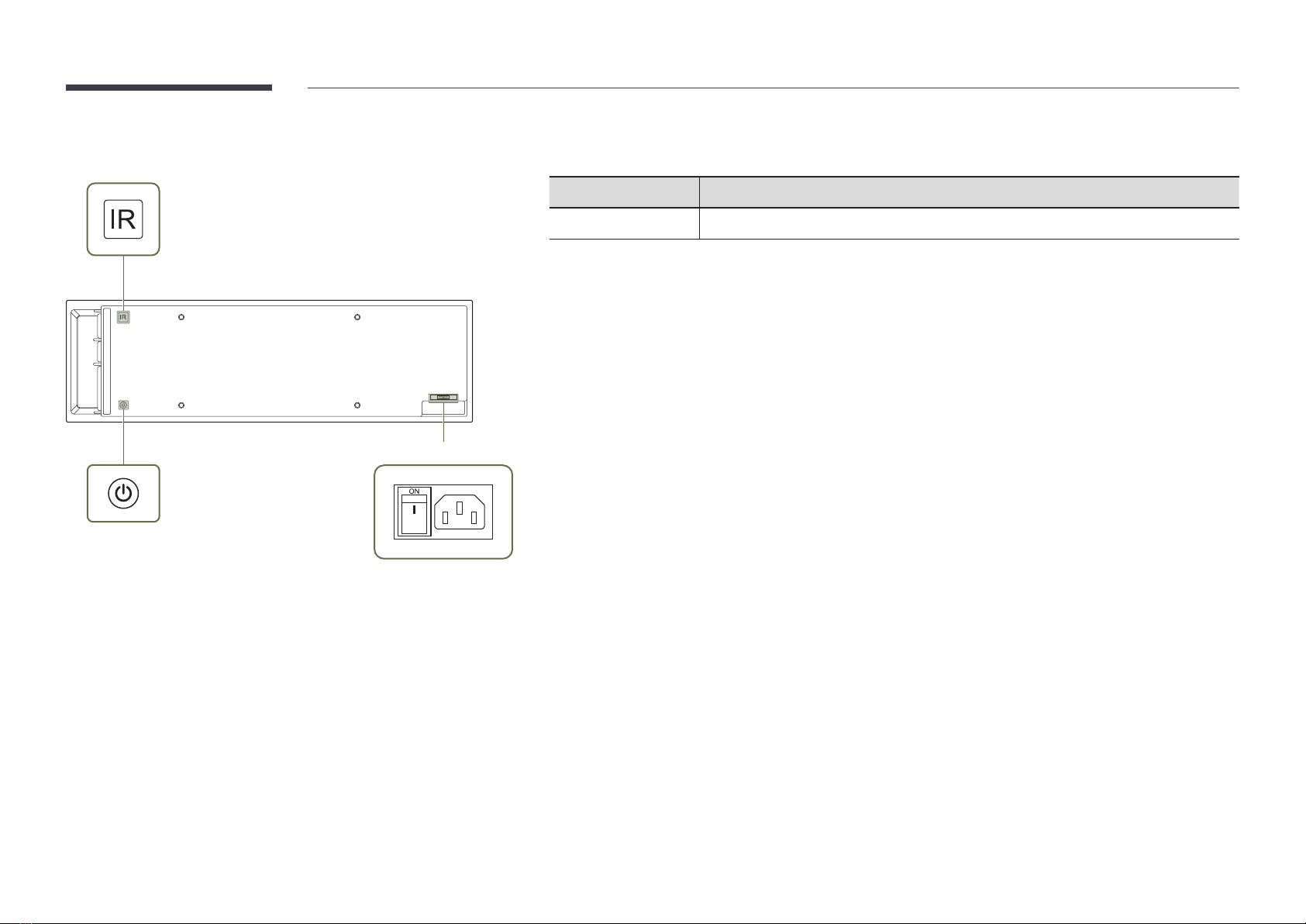

Parts

POWER

Power button

Stick the receiver of an external IR cable to this location

when the cable is not used or the product is moved.

"The color and shape of parts may differ from what is shown. Specifications are subject to change without notice

to improve quality.

Parts Description

Power button

Turns the product on or off.

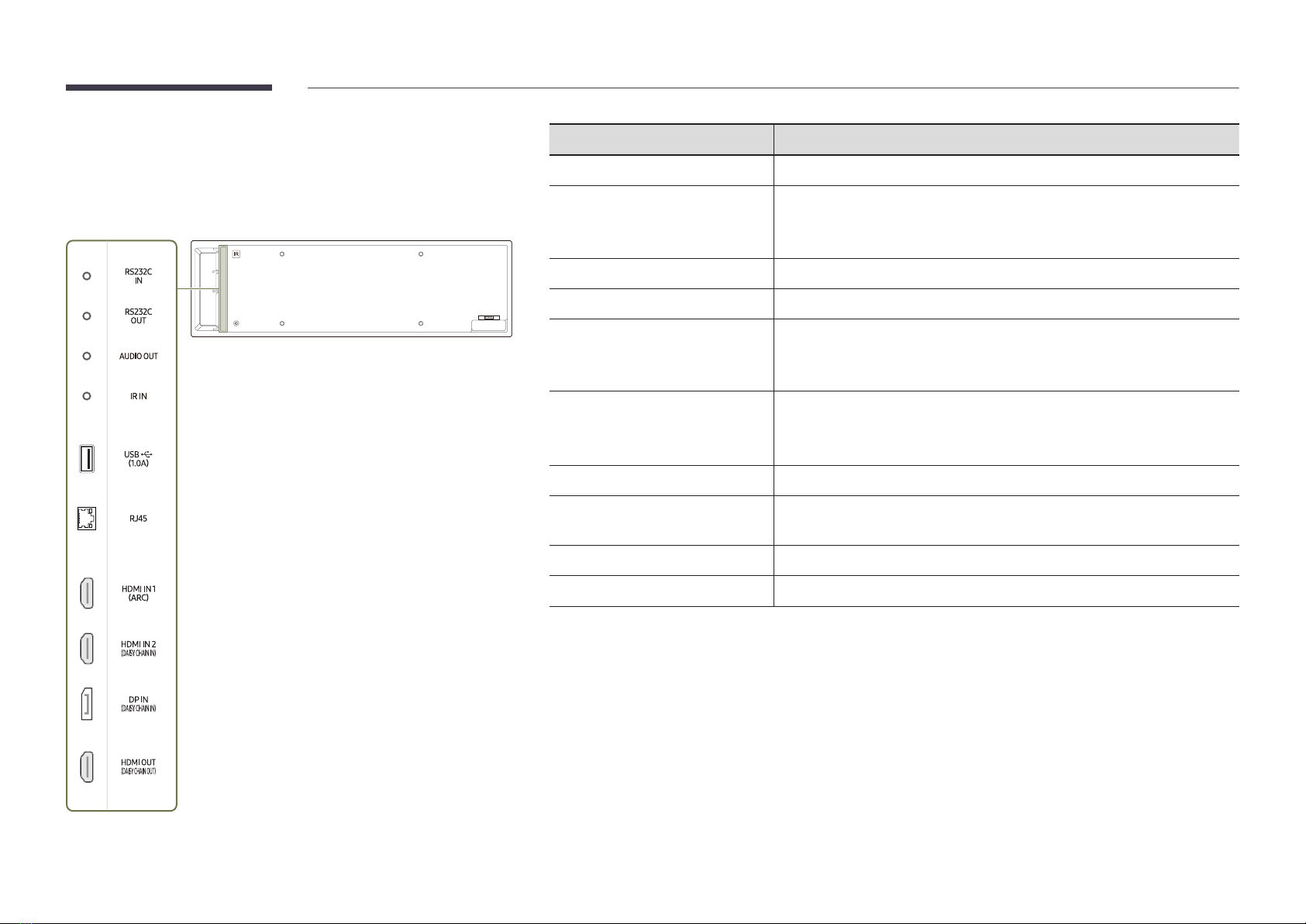

Ports

"The color and shape of parts may differ from what is shown.

Specifications are subject to change without notice to improve quality.

Port Description

RS232C IN

Connects to MDC using an RS232C adapter.

RS232C OUT

Connects to multiple products using a serial cable.

"The serial cable is not provided with the product. Contact yourvendor for

purchase.

AUDIO OUT

Outputs sound to an audio device via an audio cable.

IR IN

Connects to an external IR cable that receives signals from the remote control.

USB ¨(1.0A)

Connect to a USB memory device.

"The USB port on the product accept a maximum constant current of 1.0A.

If the maximum value is exceeded, USB port may not work.

RJ45

Connects to MDC and the Internet using a LAN cable. (10/100 Mbps)

"Use Cat7(*STP Type) cable for the connection.

*Shielded Twist Pair.

HDMI IN 1 (ARC)

Connects to a source device using a HDMI cable or HDMI-DVI cable.

HDMI IN 2 (DAISY CHAIN IN)

•Connects to a source device using a HDMI cable or HDMI-DVI cable.

•Connects to another product using a HDMI cable.

DP IN (DAISY CHAIN IN)

Connects to a PC using a DP cable.

HDMI OUT (DAISY CHAIN OUT)

Connects to another product using a HDMI cable.

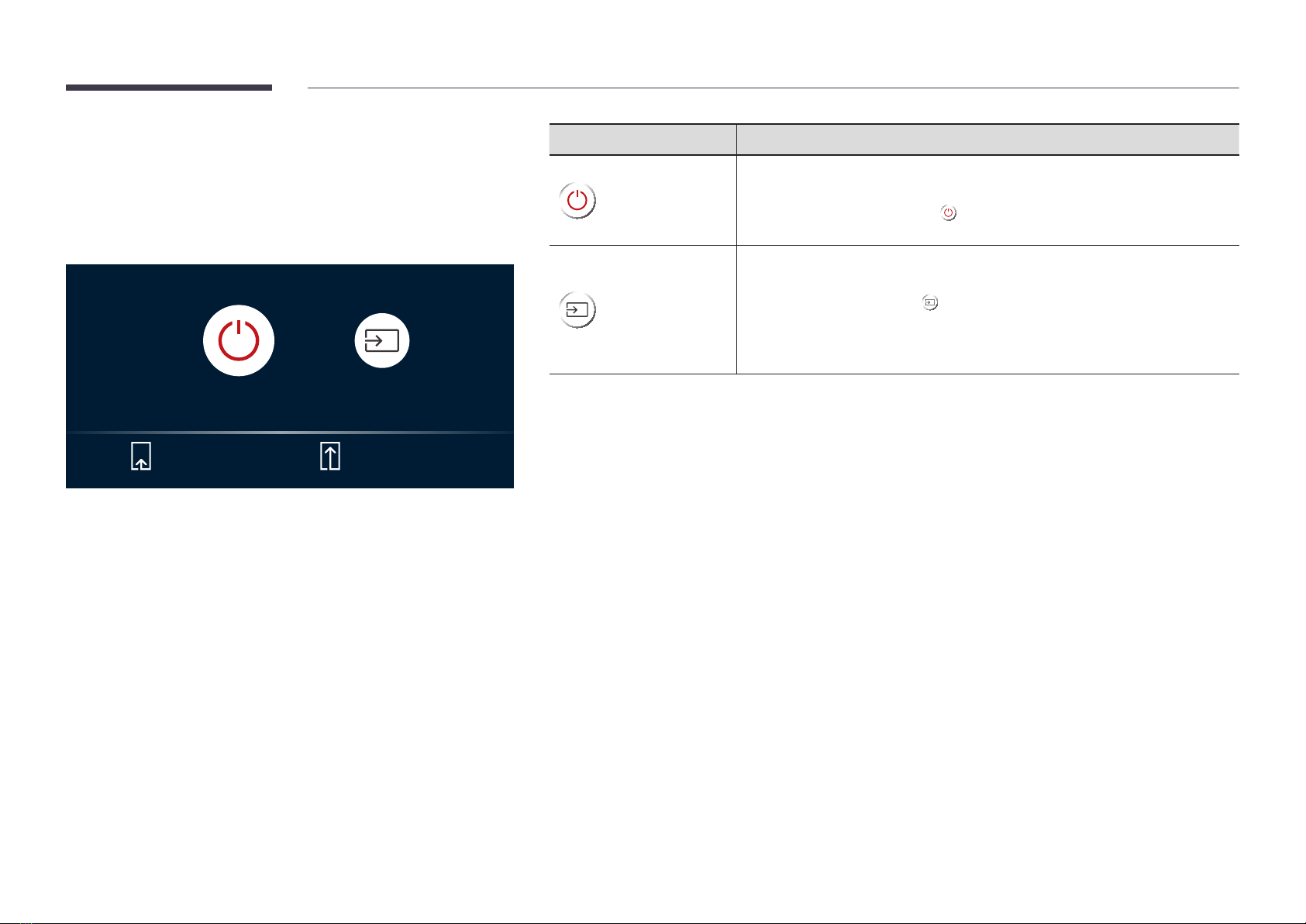

Control menu

"The power button («) is located in the back of the product.

"If you press the power button on the product when the product is

turned on, the control menu will be displayed.

Power Off Source

Press: Move Press & Hold: Select

Items Description

Power Off

Power off the product.

•With the control menu screen displayed, briefly press the power button to

move the cursor to Power Off , and then press and hold the power button to

turn off the product.

Source

Select the connected input source.

•With the control menu screen displayed, briefly press the power button to

move the cursor to Source , and then press and hold the power button to

display the input source screen.

•With the input source screen displayed, press and hold the power button to

switch to the desired input source.

"With the control menu displayed, the power button can only be used for Power Off and Source.

"To exit from the control menu screen, wait for 3 seconds or more without pressing the power button.

Before Installing the Product (Installation

Guide)

To prevent injury, this apparatus must be securely attached to the floor/wall in accordance

with the installation instructions.

•Ensure that an authorized installation company installs the wall mount.

•Otherwise, it may fall and cause personal injury.

•Make sure to install the specified wall mount.

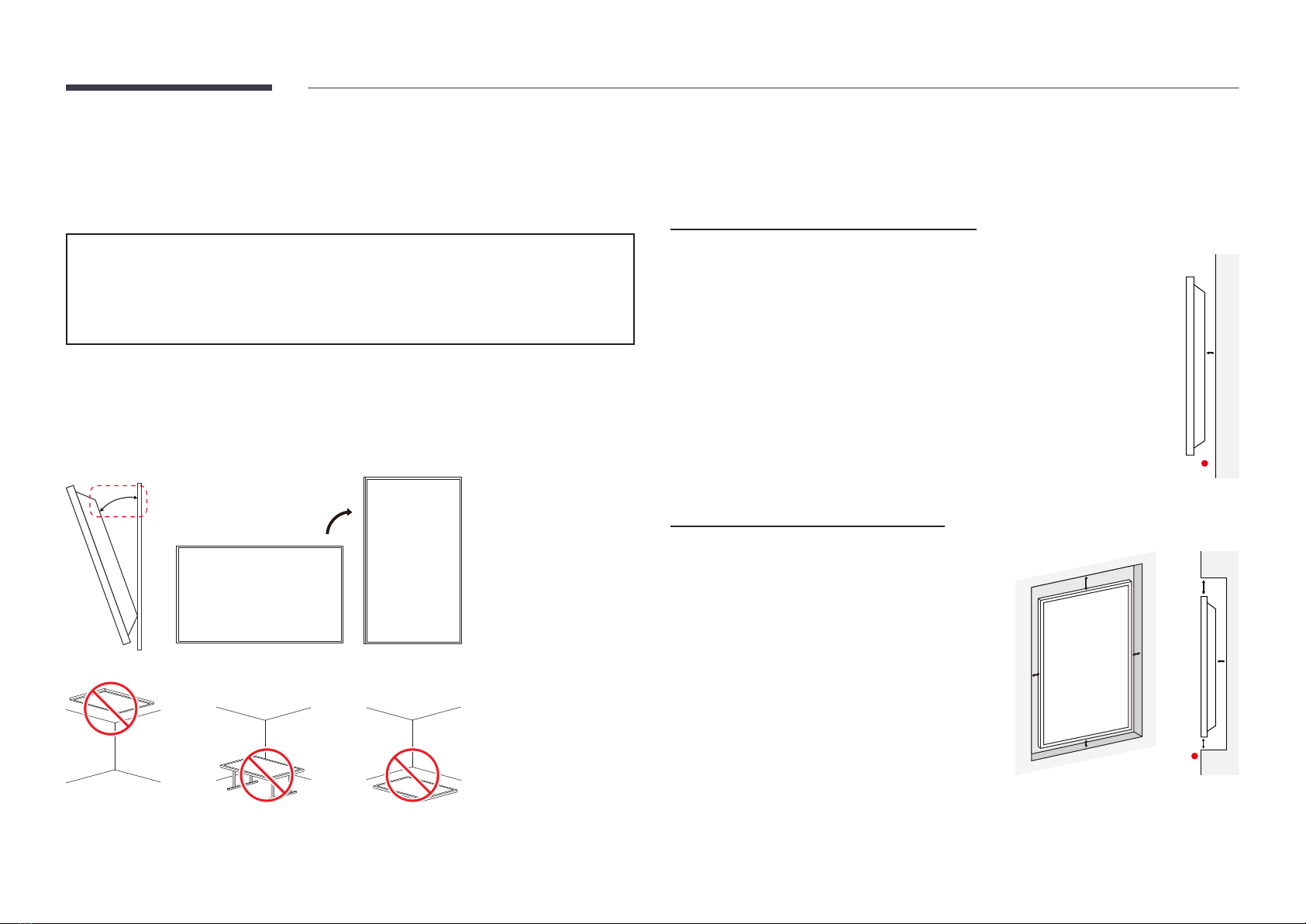

Tilting Angle and Rotation

"Contact Samsung Customer Service Center for further details.

•The product can be tilted at a maximum angle of 15° from a perpendicular wall surface.

•To use the product in portrait orientation, rotate it clockwise.

15°

"Do not use this model installed on a ceiling, floor, or table.

Ventilation

"Contact Samsung Customer Service Center for further details.

Installation on a PerpendicularWall

AMinimum 40 mm

BAmbient temperature: Under 35 °C

"When installing the product on a perpendicularwall, allow at least

40 mm of space between the product and wall surface forventilation

and ensure that the ambient temperature is kept below 35 °C.

Installation on an Indented Wall

AMinimum 40 mm

BMinimum 70 mm

CMinimum 50 mm

DMinimum 50 mm

EAmbient temperature: Under 35 °C

"When installing the product on an indented

wall, allow at least the space specified above

between the product and wall for ventilation

and ensure that the ambient temperature is

kept below 35 °C.

Installing the Wall Mount

•The wall mount kit (sold separately) allows you to mount the product on the wall.

•The provided image is only for reference. For detailed information on installing the wall mount, see instructions provided with the wall mount.

•We recommend you contact a technician for assistance when installing the wall mount bracket.

•Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you select to install the wall mount on your own.

Wall Mount Kit Specications (VESA)

"Install yourwall mount on a solid wall perpendicular to the floor. To

install the product on the otherwall area, contact the nearest agency.

If you install the product on a slanted wall, it may fall and result in

severe personal injury.

•Do not use screws that are longer than the standard length or do not comply with the VESA standard screw

specifications. Screws that are too long may cause damage to the inside of the product.

•For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may

differ depending on the wall mount specifications.

•Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to

personal injury. Samsung is not liable for these kinds of accidents.

•Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is

used or the consumer fails to follow the product installation instructions.

•Do not mount the product at more than a 15 degree tilt.

•Always have at least two people mount the product on a wall.

•Standard dimensions forwall mount kits are shown in the table below.

VESA screw hole specs (A * B) in millimeters Screw Depth Standard Screw Quantity

400 × 200 22~28 M8 4

"Do not install your Wall Mount Kit while your product is turned on. It may result in personal injury due to electric

shock.

Specications

Model Name SH37R

Panel

Size

37 CLASS (36.9 inches / 93.9 cm)

Display area

904.32 mm (H) x 254.34 mm (V)

Resolution

Optimum resolution

1920 x 540 @ 60 Hz

Maximum resolution

Power Supply

AC100-240V~ 50/60Hz

Refer to the label at the back of the product as the

standard voltage can vary in different countries.

Environmental

considerations

Operating

Temperature: 32 °F – 104 °F (0 °C – 40 °C)

* For installing the enclosure, keep the internal

temperature at 40 °C or below.

Humidity: 10% – 80%, non-condensing

Storage

Temperature: -4 °F – 113 °F (-20 °C – 45 °C)

Humidity: 5% – 95%, non-condensing

* Applicable before the product package is

unpacked.

"Plug-and-Play

This monitor can be installed and used with any Plug-and-Play compatible systems. Two-

way data exchange between the monitor and PC system optimizes the monitor settings.

Monitor installation takes place automatically. However, you can customize the installation

settings if desired.

"Due to the nature of the manufacturing of this product, approximately1 pixel per

million (1ppm) may appear brighter or darker on the panel. This does not affect product

performance.

"This product can be set to only one resolution for each screen size to obtain the optimum

picture quality due to the nature of the panel. Using a resolution other than the specified

resolution may degrade the picture quality. To avoid this, it is recommended that you select

the optimum resolution specified foryour product.

"For detailed device specifications, visit the Samsung Electronics website.

Chapter 02

General

Preset Timing Modes

The screen will automatically be adjusted if a signal that belongs to the following standard

signal modes is transmitted from your PC. If the signal transmitted from the PC does not belong

to the standard signal modes, the screen may become blank. In such a case, change the settings

according to the following table by referring to the graphics card user manual.

Resolution Horizontal Frequency

(kHz)

Vertical Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

(H/V)

IBM, 640 x 480 31.469 59.940 25.175 -/-

IBM, 720 x 400 31.469 70.087 28.322 -/+

MAC, 640 x 480 35.000 66.667 30.240 -/-

MAC, 832 x 624 49.726 74.551 57.284 -/-

MAC, 1152 x 870 68.681 75.062 100.000 -/-

VESA, 640 x 480 31.469 59.940 25.175 -/-

VESA, 640 x 480 37.861 72.809 31.500 -/-

VESA, 640 x 480 37.500 75.000 31.500 -/-

VESA, 800 x 600 35.156 56.250 36.000 +/+

VESA, 800 x 600 37.879 60.317 40.000 +/+

VESA, 800 x 600 48.077 72.188 50.000 +/+

VESA, 800 x 600 46.875 75.000 49.500 +/+

VESA, 1024 x 768 48.363 60.004 65.000 -/-

VESA, 1024 x 768 56.476 70.069 75.000 -/-

VESA, 1024 x 768 60.023 75.029 78.750 +/+

VESA, 1152 x 864 67.500 75.000 108.000 +/+

VESA, 1280 x 720 45.000 60.000 74.250 +/+

VESA, 1280 x 800 49.702 59.810 83.500 -/+

VESA, 1280 x 1024 63.981 60.020 108.000 +/+

Resolution Horizontal Frequency

(kHz)

Vertical Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

(H/V)

VESA, 1280 x 1024 79.976 75.025 135.000 +/+

VESA, 1366 x 768 47.712 59.790 85.500 +/+

VESA, 1440 x 900 55.935 59.887 106.500 -/+

VESA, 1600 x 900 60.000 60.000 108.000 +/+

VESA, 1680 x 1050 65.290 59.954 146.250 -/+

VESA, 1920 x 540 27.917 49.940 67.000 -/+

VESA, 1920 x 540 33.614 59.812 81.750 -/+

VESA, 1920 x 1080 67.500 60.000 148.500 +/+

VESA, 2560 x 1440 88.787 59.951 241.500 +/-

CEA, 3840 x 2160

(HDMI) 67.500 60.000 297.000 +/+

VESA, 3840 x 2160

(DP) 133.313 59.997 533.250 +/-

Table of contents

Other Samsung Monitor manuals

Samsung

Samsung SMT-1930 User manual

Samsung

Samsung F2380 - SyncMaster - 23" LCD Monitor User guide

Samsung

Samsung LS26KIEEFV/XAA User manual

Samsung

Samsung Odyssey S49CG954SU User manual

Samsung

Samsung SyncMaster 50X User manual

Samsung

Samsung S29E790C User manual

Samsung

Samsung S22E310H User manual

Samsung

Samsung S19C350NW User manual

Samsung

Samsung SyncMaster 400UX-3 User manual

Samsung

Samsung SyncMaster 460FP-3 Installation and operation manual

Samsung

Samsung SyncMaster 570S TFT User manual

Samsung

Samsung S49CG93 S Series User manual

Samsung

Samsung CA17K Series User manual

Samsung

Samsung SyncMaster 713N User manual

Samsung

Samsung SyncMaster P2050 User manual

Samsung

Samsung GH15LS User manual

Samsung

Samsung SyncMaster S22A300H User manual

Samsung

Samsung 204B - SyncMaster - 20.1" LCD Monitor Quick start guide

Samsung

Samsung SyncMaster 763MB User manual

Samsung

Samsung SyncMaster 305TPLUS User manual

Samsung

Samsung 740BF - SyncMaster - 17" LCD Monitor User manual

Samsung

Samsung CRG50 Series User manual

Samsung

Samsung SyncMaster 520TFT User manual

Samsung

Samsung SyncMaster TS190W User manual

Popular Monitor manuals by other brands

Linear Acoustic

Linear Acoustic LQ-1000 user guide

AOC

AOC I2579V user manual

Gateway

Gateway FPD1520 user guide

Furuno

Furuno Mu 120c Operator's manual

Asus

Asus VB171D - 17" LCD Monitor Service manual

Dell

Dell S2230MX Setting up

Philips

Philips 107C64 user manual

Dell

Dell S2409WFP user guide

EverFocus

EverFocus EN-7517E instruction manual

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Service manual

Dell

Dell Precision 7680 Connection guide

LG 50PM1M - - 50" Plasma Panel Service manual

Bosch

Bosch DDU 9 manual

Acer

Acer A231HL user manual

Philips

Philips 86BDL4152T user manual

NEC

NEC AccuSync LCD5V user manual

Emay

Emay SleepO2 user manual

IBM

IBM 6360 Product support manual
