Samsung LE46B750U1W User manual

English -4

Connecting a AV device

WY R

WYR

W R

RGB

HD connection

DVD / Blu-Ray player / Cable Box

/ Satellite receiver (STB)

Using a DVI Cable

AUDIO OUTDVI OUT

HD connection

DVD / Blu-Ray player / HD Cable

Box / HD Satellite receiver (STB)

Using an HDMI Cable

HDMI OUT

Audio/Video connection

VCR

Using an Audio/Video Cable

AUDIO OUTVIDEO OUT

Component connection

DVD / Blu-Ray player / Cable

Box / Satellite receiver

Using a Component Cable

AUDIO OUT COMPONENT OUT

HDMI/DVI

PC/COMPONENT

EXT/VIDEO

Best

Normal

VCR / DVD

Using a Scart Cable

EXT

BN68-02004D-01Eng.indd 1 2009-09-09 �� 3:13:35

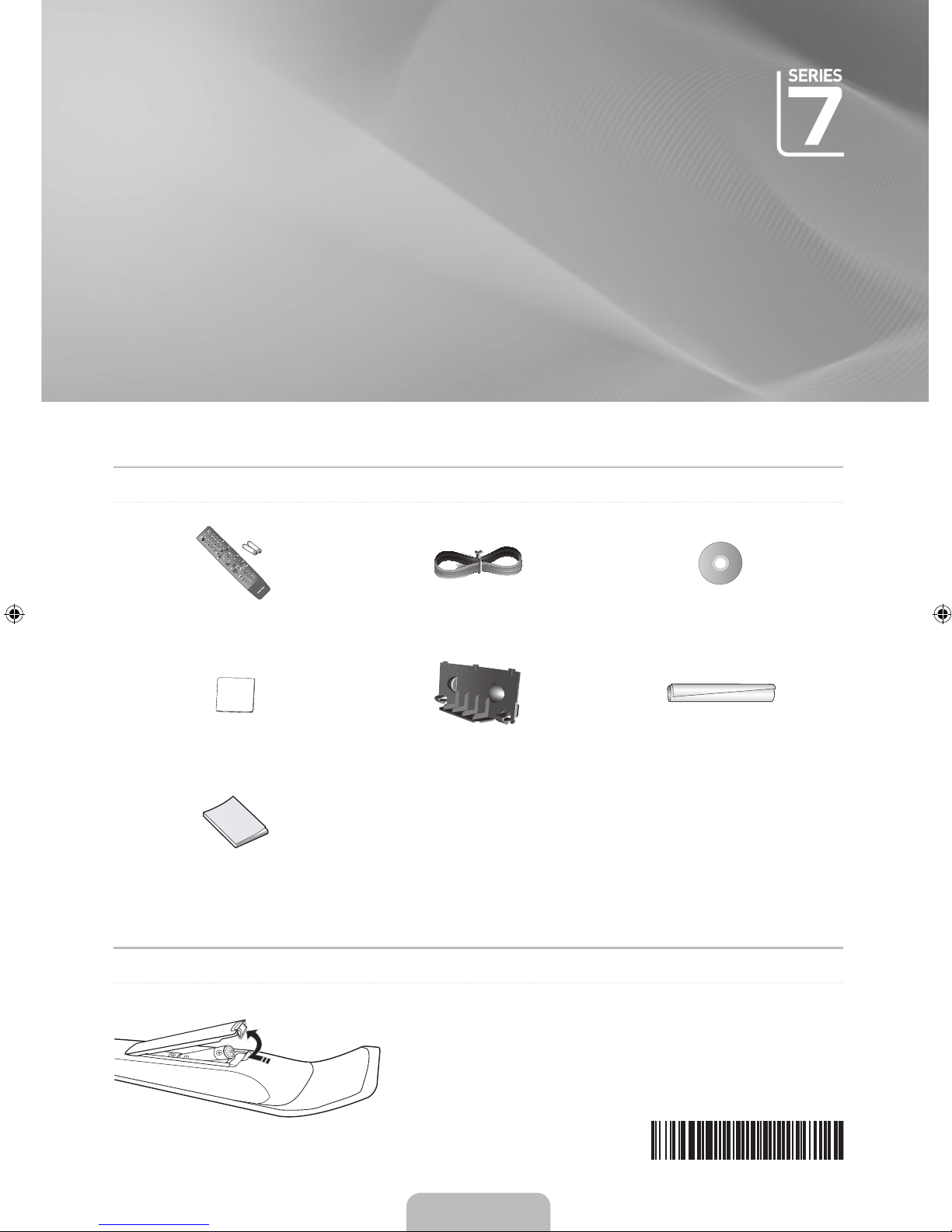

The Supplied Accessories

Remote Control & Batteries (AAA x 2) Power Cord Programme CD

Cleaning Cloth Cover-Bottom Holder-Wire Cable

(Depending on the model)

User Manual

Installing Batteries in the Remote Control

LCD TV

QUICK SETUP GUIDE

English - 1

BN68-02004D-01

BN68-02004D-01Eng.indd 2 2009-09-09 �� 3:13:38

Installing the Stand

Preset: Place the Guide Stand and Cover Neck onto the stand and fasten it using the screws.

Step 1. Attach your LCD TV to the stand.

Two or more people should carry the TV.

Make sure to distinguish between the front and back of the stand when assembling them.

To make sure the TV is installed on the stand at a proper level, do not apply excess downward pressure to the upper left

of right sides of the TV.

Step 2. Fasten two screws at position

and then fasten two screw at position

Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed down, it may lean to one

side.

Assembling the Cables

Enclose the cables in the Holder-Wire Cable so that the cables are not visible through the

transparent stand.

Using the remote control buttons

MENU Button

Display the main on-screen menu.

ENTER

/ DIRECTION Button

Move the cursor and select an

item. Select the currently selected

item. Confirm the setting.

RETURN Button

Return to the previous menu.

EXIT

Exit the on-screen menu.

English - 2

Back

Front

Back

Preset Step 1 Step 2

BN68-02004D-01Eng.indd 3 2009-09-09 �� 3:13:39

English - 3

Plug & Play

When the TV is initially powered on, basic settings proceed automatically and subsequently.

If you want to reset this feature, press the MENU button to display menu.

You can set the Plug & Play by selecting ‘Setup → Plug & Play’.

On the screen, you can set as follows.

The each step may vary depending on the Antenna source.

Step 1 Step 2 Step 3

Step 4 Step 5 Step 6

Step 7 Step 8 Step 9

Select the OSD Language.

Menu Language : English

Move

Enter

Plug & Play



Nederlands

English

Eesti



Select ‘Home Use’ when installing this TV in your

home.

Move

Enter

Plug & Play

Store Demo Home Use

Select Country.

Country : English

Move

Enter

Plug & Play



Switzerland

United Kingdom

CIS



Select the Antenna source to memorise.

Move

Enter

Skip

Plug & Play

StartCable

StartAir

Select the Channel source to memorise.

Move

Enter

Skip

Plug & Play

StartDigital

StartDigital & Analogue

StartAnalogue

Auto Store in progress.

Enter

Skip

Plug & Play

Stop

Digital Channels : 5 Analogue Channels : 6

Channels : 11

15%

Set the Clock Mode.

Clock Mode : English

Move

Enter

Skip

Plug & Play

Auto

Manual

Enjoy your TV.

See Product Guide Watch TV

How to get the best perfotmance from your new HDTV

Step 1. Connect the HD Box to the using HDMI or Component

cables.

Skip

Plug & Play

1/2

▼

HD box

TV rear view

▶

HDMI Cable

Component Cable
