Samsung LE15S51B User manual

English-5

Viewing the Connection Panel

Power Input

Option

Whenever you connect an audio or video system to your set, ensure that all elements are switched off.

Refer to the documentation supplied with your equipment for detailed connection instructions and

associated safety precautions.

01-BN68-00816C-00Eng.qxd 1/19/05 8:59 AM Page 5

English-52

Installing VESA compliant mounting devices

Align the mounting interface pad with the holes in the stand bottom and secure it with the four screws that

come with the arm-type base, wall mount hanger or other bases.

Fold the stand pressing the button on the back of the stand.

Mounting pad

<1> <2>

04-BN68-00816C-00Eng.qxd 1/19/05 9:08 AM Page 52

English-53

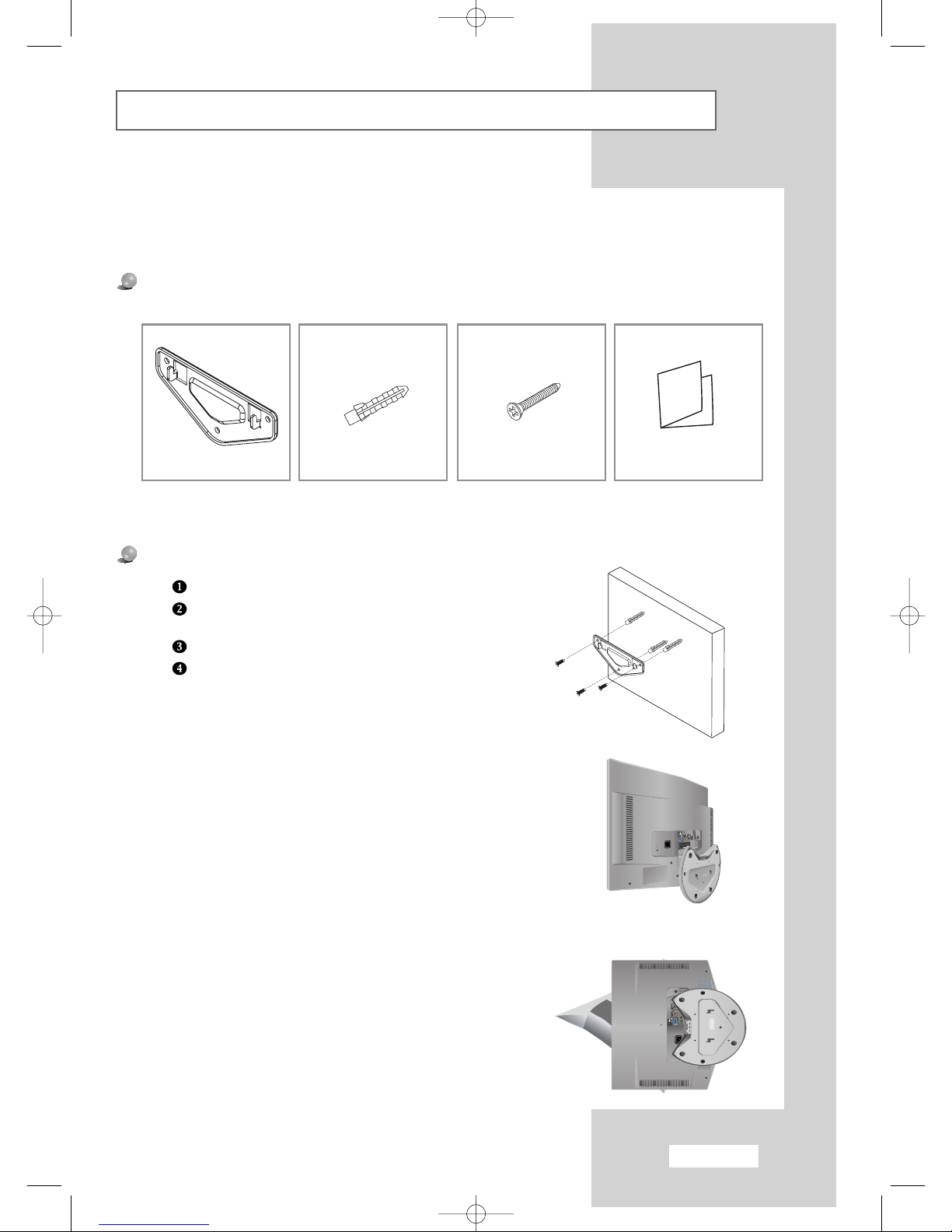

Installing the Wall Mount Kit

Components

Please use provided components or parts to install the Wall Mount Kit.

Mark the location of hole on the wall using installation guide.

Make over 35mm- depth- hole on the marked location using

5.0-diameter drill.

Fix anchors on each hole on the wall.

Connect bracket to the wall with screws after fitting anchors

into the bracket holes.

Note : If the bracket is not firmly fixed to the wall, LCD TV can fall off.

Note : This installation is to be used when attaching the wall mount to a concrete wall.

When attaching to other building materials, please contact your nearest dealer.

How to assemble the Wall Mount Kit

Bracket Anchors : 3EA crews : 3EA Installation Guide

You may use LCD TV right after fixing it to the wall since stand is

wrapped already turned over as shown in the picture below.

When using LCD TV in stand-based form, place the product on a

cushion or other soft materials. Then turn over stand following the

arrow direction below only after pressing button on the connected part

where LCD TV is attached to stand.

(Turn over stand in the opposite direction after pressing button when

using LCD TV in wall-mounted form as well.)

04-BN68-00816C-00Eng.qxd 1/19/05 9:08 AM Page 53

English-54

Installing the Wall Mount Kit

How to ad ust an angle

When bracket is assembled on the wall

How to hang LCD TV up on a hook When installation is completed

(1)

Angle adjustment section of

general stand-based LCD TV

(2)

Angle abjustment section

while converting the form

(1->3, 3->1)

(3)

Angle adjustment section of

wall-mounted LCD TV

Adjust LCD TV to the hook on the bracket and move in the direction of the arrow(Left) so that LCD TV can be

completely fixed to the bracket.

Remove Installation Guide after completing setup of monitor on the wall.

Push the LCD TV up and shift to the right to detach it from bracket.

When moving or transferring to other areas, reverse No. 4 procedure so as to disconnect LCD TV with ease.

Picture(1) shows the adjustment angle(0°~ 13°)when you use LCD TV in its general form(stand-based LCD TV).

Excessive tilting can turn LCD TV over which might cause damage to LCD TV.

Picture(2) shows the adjustment angle(13°~ 80°)when you convert stand-based LCD TV into wall-mounted one.

Picture(3) shows the adjustment angle(0°~ 10°)when you use wall-mounted LCD TV after fixing it to wall.

Note : Pict re (2) shows the angle adj stment section while LCD TV is being converted from stand-based one to

wall-mo nted one or vice versa.

- Click" so nd indicates section change from 1 to 2 or 3 to 2(1->2, 3->2).

04-BN68-00816C-00Eng.qxd 1/19/05 9:08 AM Page 54
