Samsung S22C650D User manual

User manual

S22C650D

S22C650K

S22C650P

S23C650D

S23C650K

S24C650PL

S27C650D

S27C650P

The color and the appearance may differ depending on

the product, and the specifications are subject to

change without prior notice to improve the performance.

BN46-00301C-02

Table Of Contents 2

Table Of Contents

BEFORE USING THE

PRODUCT

7 Copyright

7 Icons used in this manual

8 Cleaning

9 Securing the Installation Space

9 Precautions for storage

10 Safety Precautions

10 Symbols

11 Electricity and Safety

12 Installation and Safety

14 Operation and Safety

17 Correct posture to use the product

PREPARATIONS 18 Checking the Contents

18 Removing the Packaging

19 Checking the Components

20 Parts

20 Frontal Buttons

22 Reverse Side

24 Installation

24 Attaching the Stand

25 Adjusting the Product Tilt and Height

25 Rotating the Monitor

26 Installing a Wall-mount Kit or Desktop Stand

27 Anti-theft Lock

CONNECTING AND USING

A SOURCE DEVICE

28 Before Connecting

28 Pre-connection Checkpoints

28 Connecting the Power

Table Of Contents

Table Of Contents 3

29 Connecting and Using a PC

29 Connecting to a PC

33 Driver Installation

34 Setting Optimum Resolution

35 Changing the Resolution Using a PC

SCREEN SETUP 39 Brightness

39 Configuring Brightness

40 Contrast

40 Configuring Contrast

41 Sharpness

41 Configuring Sharpness

42 SAMSUNG MAGIC Bright

42 Configuring SAMSUNG MAGIC Bright

44 Image Size

44 Changing the Image Size

46 HDMI Black Level

46 Configuring the HDMI Black Level Settings

47 Response Time

47 Configuring Response Time

48 H-Position & V-Position

48 Configuring H-Position & V-Position

49 Coarse

49 Adjusting Coarse

50 Fine

50 Adjusting Fine

CONFIGURING TINT 51 Red

51 Configuring Red

52 Green

52 Configuring Green

Table Of Contents

Table Of Contents 4

53 Blue

53 Configuring Blue

54 Color Tone

54 Configuring the Color Tone Settings

55 Gamma

55 Configuring Gamma

RESIZING OR

RELOCATING THE

SCREEN

56 Language

56 Changing the Language

57 Menu H-Position & Menu V-Position

57 Configuring Menu H-Position & Menu V-

Position

58 Display Time

58 Configuring Display Time

59 Transparency

59 Changing Transparency

SETUP AND RESET 60 Reset

60 Initializing Settings (Reset)

61 Eco Saving

61 Configuring Eco Saving

62 Off Timer

62 Configuring Off Timer

63 Turn Off After

63 Configuring Turn Off After

64 PC/AV Mode

64 Configuring PC/AV Mode

66 Key Repeat Time

66 Configuring Key Repeat Time

67 Source Detection

67 Configuring Source Detection

Table Of Contents

Table Of Contents 5

68 Customized Key

68 Configuring Customized Key

INFORMATION MENU AND

OTHERS

69 INFORMATION

69 Displaying INFORMATION

70 Configuring Brightness and Contrast in

the Initial Screen

71 Configuring Volume in the Initial Screen

INSTALLING THE

SOFTWARE

72 Magic Tune

72 What is MagicTune?

72 Installing the Software

73 Removing the Software

74 MultiScreen

74 Installing the Software

75 Removing the Software

76 MagicRotation

76 Installing the Software

78 Removing the Software

TROUBLESHOOTING

GUIDE

79 Requirements Before Contacting

Samsung Customer Service Center

79 Testing the Product

79 Checking the Resolution and Frequency

79 Check the following.

82 Q & A

SPECIFICATIONS 84 General

92 PowerSaver

93 Standard Signal Mode Table

APPENDIX 102 Contact SAMSUNG WORLD WIDE

Table Of Contents

Table Of Contents 6

108 Responsibility for the Pay Service (Cost

to Customers)

108 Not a product defect

108 A Product damage caused by customer's fault

108 Others

109 Correct Disposal

109 Correct Disposal of This Product (Waste

Electrical & Electronic Equipment)

110 Terminology

INDEX

Before Using the Product

The contents of this manual are subject to change without notice to improve quality.

Samsung Electronics owns the copyright for this manual.

Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is

prohibited.

Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation.

VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.

Icons used in this manual

An administration fee may be charged if either

(a) an engineer is called out at your request and there is no defect in the product

(i.e. where you have failed to read this user manual).

(b) you bring the unit to a repair center and there is no defect in the product

(i.e. where you have failed to read this user manual).

The amount of such administration charge will be advised to you before any work or home visit is

carried out.

The following images are for reference only. Real-life situations may

differ from what is shown in the images.

Before Using the Product

Cleaning

Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.

Take the following steps when cleaning.

1. Power off the monitor and computer.

2. Disconnect the power cord from the monitor.

Hold the power cable by the plug and do not touch the cable with wet

hands. Otherwise, an electric shock may result.

3. Wipe the monitor screen using a clean, soft and dry cloth.

Do not apply a cleaning agent that contains alcohol,

solvent, or surfactant to the monitor.

Do not spray water or detergent directly on the product.

4. Wet a soft and dry cloth in water and wring thoroughly to clean the

exterior of the monitor.

5. Connect the power cord to the product after cleaning the product.

6. Power on the monitor and computer.

Before Using the Product

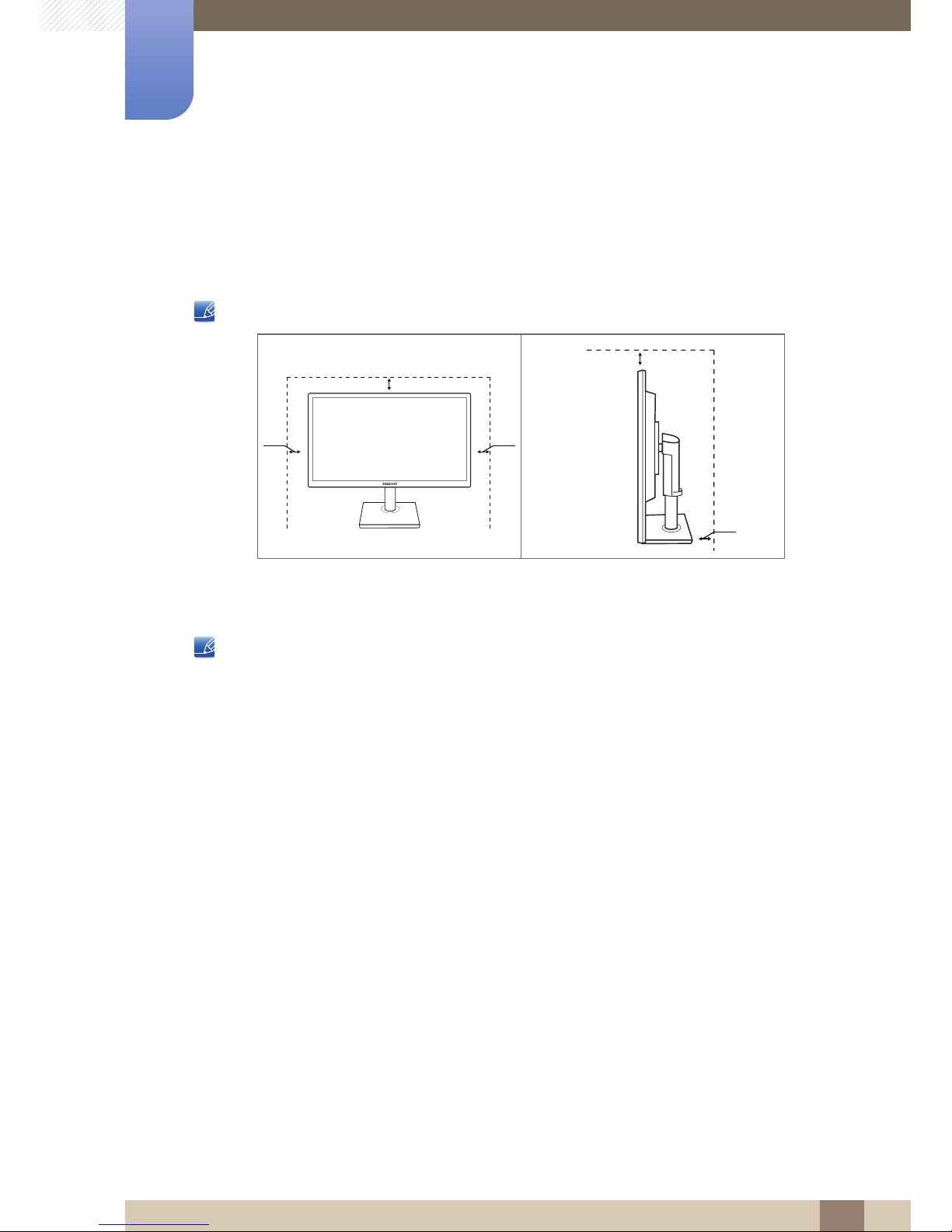

Securing the Installation Space

Ensure some space around the product for ventilation. An internal temperature rise may cause fire

and damage the product. Be sure to allow the amount of space as shown below or greater when

installing the product.

The exterior may differ depending on the product.

Precautions for storage

Be sure to contact Samsung Customer Service Center (page 102) if the inside of the monitor needs

cleaning. (Service fee will be charged.)

3.93

inches

(10 cm)

3.93

inches

(10 cm)

3.93 inches(10 cm)

Before Using the Product

Safety Precautions

Symbols

Caution

RISK OF ELECTRIC SHOCK DO NOT OPEN

Caution : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. (OR BACK)

THERE ARE NO USER SERVICEABLE PARTS INSIDE.

REFER ALL SERVICING TO QUALIFIED PERSONNEL.

This symbol indicates that high voltage is present inside.

It is dangerous to make any kind of contact with any internal part of this product.

This symbol alerts you that important literature concerning operation and maintenance

has been included with this product.

Warning A serious or fatal injury may result if instructions are not followed.

Caution Personal injury or damage to properties may result if instructions are not followed.

Activities marked by this symbol are prohibited.

Instructions marked by this symbol must be followed.
