Samsung PS-42D4SK Quick start guide

ENG

Connecting to the External Devices

“MONITOR OUT” are used for the equipment with an RGB output, such as

video game devices or video disc players.

Rear of the TV

(Input/Output)

①

This end can be fitted with:

◆Three RCA connectors (VIDEO + AUDIO-L/R)

②

If you have a second VCR and wish to copy cassettes tape, connect the source VCR to

“AV”

and the target VCR to

“MONITOR OUT”

so that you can redirect the signal from

“AV”

“MONITOR OUT”

③

When you wish to record a programme, connect the receiver to

“AV”

and the VCR to

“MONITOR OUT”

so that you can redirect the signal from

“AV”

“MONITOR OUT”

①

VCR

Decoder /

Video game device

Video disc player

Satellite receiver

DVD

②

③

Rear of the TV

(Input/Output)

Camcorder

Video disc player

Video game device

BN68-00690A-00Eng 4/23/04 9:16 AM Page 53

ENG

Connecting to the S-Video Input

The S-VIDEO and RCA (AUDIO-L/R) connectors are used for equipment with an S-Video output,

such as a camcorder or VCR.

Rear of the TV

Camcorder

VCR

①

To play picture and sound, both the S-VIDEO and RCA

connectors must be used.

and

①

☛Whenever you connect an audio or video system to your television,

ensure that all elements are switched off. Refer to the documentation

supplied with your equipment for detailed connection instructions

and associated safety precautions.

BN68-00690A-00Eng 4/23/04 9:16 AM Page 54

ENG

Connecting to the DVI Input

Connecting to the PC Input

The “RGB” (video) and “AUDIO” connectors are used for interfacing with your PC.

Personal Computer

and

Rear of the TV

The “DVI” (video) and “L-AUDIO-R” connectors are used for equipment with a DVI output.

Personal Computer

Rear of the TV

and

BN68-00690A-00Eng 4/23/04 9:16 AM Page 55

ENG

Connecting to the Component Input

①

The “COMPONENT” connectors are

used for DTV receiver or DVD.

(480i,p/576i,p/720p/1080i)

DVD

Rear of the TV

DTV receiver

BN68-00690A-00Eng 4/23/04 9:16 AM Page 56

ENG

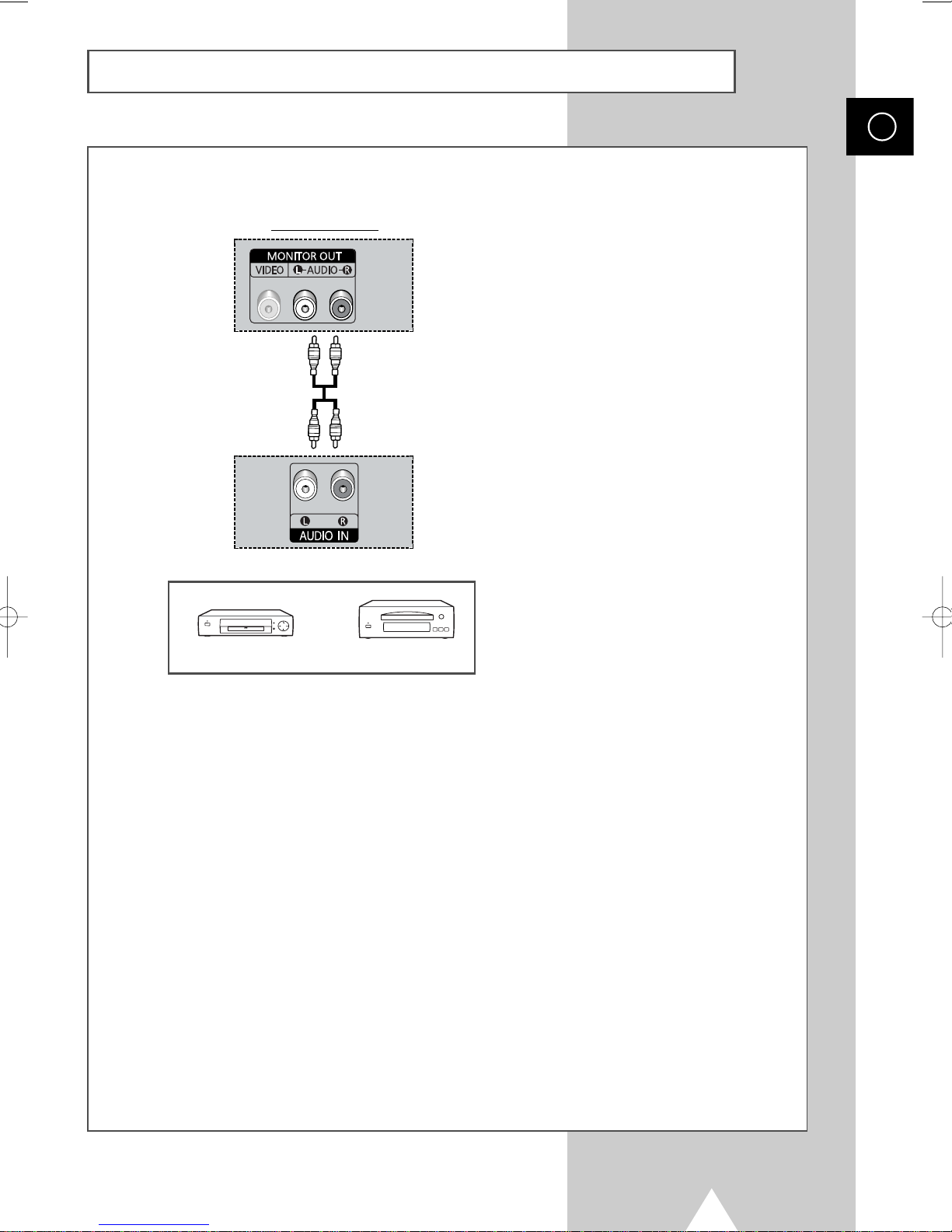

Connecting and Using the Home Theater System

Connecting the Home Theater System

①

Connect the monitoring audio out L, and

R jacks of the MONITOR OUT on the

rear-side connection panel of the PDP

TV to the AUDIO IN jacks of the DVD

Home Theater System (or AV Receiver)

using the audio cable.

②

Press the TV/VIDEO button to select the

desired external device connected to the

PDP TV.

③

If you want to hear the sound through

separate speakers, cancel the internal

amplifier.

To Display the DVD Home Theater

Turn the PDP on and press the TV/VIDEO button to select the AV or Component.

Be sure to connect the video cable properly if desired external input AV cannot be selected.

Play the DVD after activating the DVD Home Theater System.

Use the volume control of the Home Theater System while watching the PDP using the DVD

Home Theater, where the PDP TV does not produce the audio.

DVD Home Theater

Rear of the TV

AV Receiver Amplifier

①②

Use the Monitor Out ports of the PDP for Home Theater System Connections.

☛◆Refer to corresponding user’s manual from the manufacturer for wiring the

speakers to the DVD Home Theater System (or AV Receiver).

◆Disable the PDP TV internal speaker to enjoy the rich sound through the

speakers of your Home Theater System.

◆In this case, enjoy the sound from the Home Theater System while the PDP TV

does not produce the audio.

BN68-00690A-00Eng 4/23/04 9:16 AM Page 57
