Samsung PS-37S4A1 User manual

ENG

Infrared Remote Control

➢The performance of the remote control may be affected by bright light.

PICTURE EFFECT SELECTION

PICTURE SIZE/

TELETEXT SIZE SELECTION

MENU DISPLAY/

TELETEXT INDEX

TELEWEB DISPLAY

(DEPENDING ON THE MODEL)

MOVE TO THE REQUIRED

MENU OPTION/

ADJUST AN OPTION VALUE

RESPECTIVELY

TURNS THE PDP ON AND OFF

FASTEXT TOPIC SELECTION

INFORMATION DISPLAY/

TELETEXT REVEAL

TV MODE SELECTION

EXIT TELETEXT

EXIT TELEWEB

(DEPENDING ON THE MODEL)

DIRECT CHANNEL SELECTION

EXTERNAL INPUT SELECTION/

TELETEXT PAGE HOLD

AUTOMATIC SWITCH-OFF/

TELETEXT SUB-PAGE

CONFIRM YOUR CHOICE

(STORE OR ENTER)

NEXT CHANNEL/

TELETEXT NEXT PAGE/

TELEWEB FORWARD

SOUND MODE SELECTION

IF YOUR REMOTE CONTROL IS NOT

FUNCTIONING PROPERLY, TAKE

OUT THE BATTERIES AND PRESS

THE RESET BUTTON FOR ABOUT

2~3 SECONDS. RE-INSERT THE

BATTERIES AND TRY USING THE

REMOTE CONTROL AGAIN.

TruSurround XT

MODE SELECTION

PREVIOUS CHANNEL/

TELETEXT PREVIOUS PAGE/

TELEWEB BACKWARD

PIP FUNCTIONS;

-PIP ACTIVATING OR DEACTIVATING

(PIP ON)

-SWAPPING THE MAIN AND THE SUB

PICTURE (SWAP)

-LOCATION SELECTION (POSITION)

-SOURCE SELECTION (SOURCE)

-SIZE SELECTION (SIZE)

-SCAN

-SELECTING THE CHANNEL OF SUB

PICTURE (P )

MAKE THE REMOTE CONTROL WORKS

FOR TV, VCR, CATV, DVD PLAYER, STB

SOUND EFFECT SELECTION

TELETEXT CANCEL

VOLUME INCREASE

TEMPORARY SOUND SWITCH-OFF

VOLUME DECREASE

TELETEXT DISPLAY/

MIX BOTH TELETEXT INFORMATION

AND THE NORMAL BROADCAST

PICTURE STILL

WHEN YOU PRESS A BUTTON , ‘

’

APPEARS ALONG WITH SELECTED MODE

(TV, VCR, CATV, DVD OR STB) AND

REMAINING BATTERIES ON LCD

VCR/DVD FUNCTIONS;

-REWIND (REW)

-STOP

-PLAY/PAUSE

-FAST FORWARD (FF)

REMOTE CONTROL SETUP

BN68-00707A-00Eng_0806 9/14/04 1:25 PM Page 8

ENG

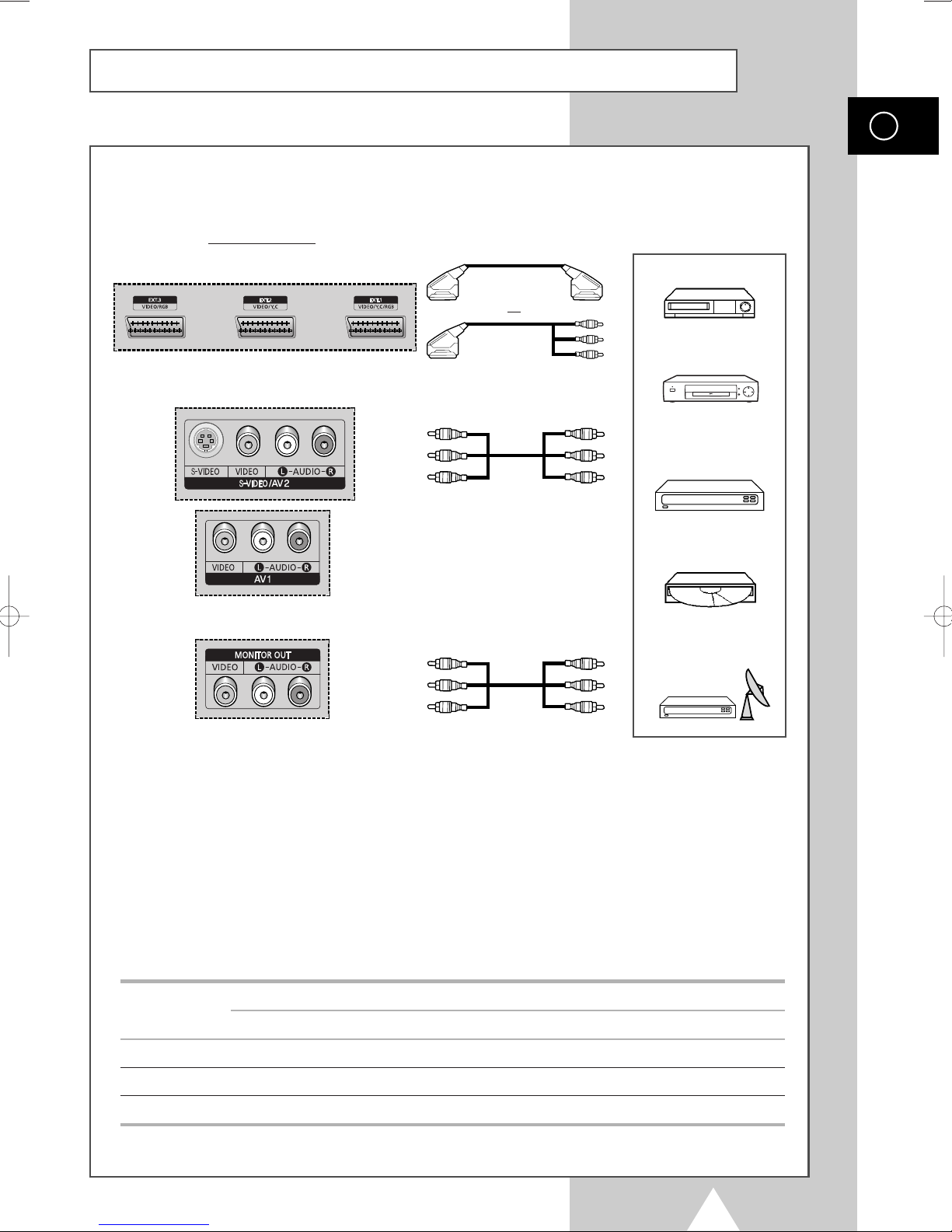

Connecting to the External Devices

“MONITOR OUT” are used for the equipment with an RGB output, such as

video game devices or video disc players.

Rear of the TV

(Input/Output)

①

This end can be fitted with:

◆A SCART connector

◆Three RCA connectors (VIDEO + AUDIO-L/R)

②

If you have a second VCR and wish to copy cassettes tape, connect the source VCR to

“EXT.1(EXT.2,

EXT.3, AV1 or AV2)”

and the target VCR to

“MONITOR OUT”

so that you can redirect the signal from

“EXT.1(EXT.2, EXT.3, AV1 or AV2)”

“MONITOR OUT”

③

When you wish to record a programme, connect the receiver to

“EXT.1(EXT.2, EXT.3, AV1 or AV2)”

and the VCR to

“MONITOR OUT”

so that you can redirect the signal from

“EXT.1(EXT.2, EXT.3, AV1

or AV2)”

“MONITOR OUT”

①

VCR

Decoder /

Video game device

Video disc player

Satellite receiver

DVD

②

③

Input/Output Specification

Connector Input Output

Video Audio (L/R) S-Video RGB Video + Audio (L/R)

EXT.1 ✔✔ ✔✔ Only TV output is available.

EXT.2 ✔✔ ✔ Output you can choose.

EXT.3 ✔✔ ✔ Output you can choose.

BN68-00707A-00Eng_0806 9/14/04 1:31 PM Page 55

ENG

Connecting to the S-Video Input

The S-VIDEO and RCA (AUDIO-L/R) connectors are used for equipment with an S-Video output,

such as a camcorder or VCR.

Rear of the TV

Camcorder

VCR

①

To play picture and sound, both the S-VIDEO and RCA connectors must be used.

and

①

☛Whenever you connect an audio or video system to your television,

ensure that all elements are switched off. Refer to the documentation

supplied with your equipment for detailed connection instructions

and associated safety precautions.

BN68-00707A-00Eng_0806 9/14/04 1:31 PM Page 56

ENG

Connecting to the DVI Input

Connecting to the PC Input

The “RGB” (video) and “AUDIO” connectors are used for interfacing with your PC.

Personal Computer

and

Rear of the TV

The “DVI” (video) and “L-AUDIO-R” connectors are used for equipment with a DVI output.

Personal Computer

Rear of the TV

and

BN68-00707A-00Eng_0806 9/14/04 1:31 PM Page 57

ENG

Connecting to the Component Input

①

The “COMPONENT 1” connectors are

used for equipment with a DVD output.

(480i/480P/576i/576P/720P/1080i)

②

The “COMPONENT 2” connectors are

used for DTV receiver.

(480i/480P/576i/576P/720P/1080i)

DVD

Rear of the TV

DTV receiver

①②

BN68-00707A-00Eng_0806 9/14/04 1:31 PM Page 58

ENG

Connecting and Using the Home Theater System

Connecting the Home Theater System

①

Connect the monitoring audio out L, and

R jacks of the MONITOR OUT on the

rear-side connection panel of the PDP

TV to the AUDIO IN jacks of the DVD

Home Theater System (or AV Receiver)

using the audio cable.

②

Press the SOURCE button to select the

desired external device connected to the

PDP TV.

③

If you want to hear the sound through

separate speakers, cancel the internal

amplifier.

To Display the DVD Home Theater

Turn the PDP on and press the SOURCE button to select the Ext.1 (or Ext.2,Ext.3).

Be sure to connect the video cable properly if desired external input (Ext.1, Ext.2, or Ext.3)

cannot be selected.

Play the DVD after activating the DVD Home Theater System.

Use the volume control of the Home Theater System while watching the PDP using the DVD

Home Theater, where the PDP TV does not produce the audio.

DVD Home Theater

Rear of the TV

AV Receiver Amplifier

①②

Use the Monitor Out ports of the PDP for Home Theater System Connections.

☛◆Refer to corresponding user’s manual from the manufacturer for wiring the

speakers to the DVD Home Theater System (or AV Receiver).

◆Disable the PDP TV internal speaker to enjoy the rich sound through the

speakers of your Home Theater System.

◆In this case, enjoy the sound from the Home Theater System while the PDP TV

does not produce the audio.

BN68-00707A-00Eng_0806 9/14/04 1:31 PM Page 59
