Samsung LW46G15W User manual
BN68-00746E-00
LL
LLWW
WW44
4466
66GG
GG11
1155
55WW
WW
QQ
QQuu
uuii
iicc
cckk
kk
SS
SSee
eett
ttuu
uupp
pp
GG
GGuu
uuii
iidd
ddee
ee
BN68-00746E (Eng) 2004/11/04 03:53 PM Page 1
English - 2
Connecting to an Aerial or Cable Television Network
1Connect the aerial or network input cable to the ANT.IN terminal on the TV.
For more detailed antenna/cable TV connections, see pages 13 of the owner's instructions.
1
2
3
4
Connecting a VCR or (S-VHS VCR)
Connect the cable or antenna to the ANTENNA IN terminal on the back of the VCR.
Connect an RF cable between the ANTENNA OUT terminal on the VCR and the ANT. IN terminal on the TV.
Connect an audio cable between the AUDIO OUT jacks on the VCR and the L-AUDIO-R jacks on the TV.
Connect a video (or S-Video) cable between the VIDEO (or S-VIDEO) OUT jack on the VCR and
the VIDEO (or S-VIDEO) jack on the TV.
1
4
3
2
◆
If you have a “mono” (non-stereo) VCR, use a Y-connector (not supplied) to hook up to the
L-AUDIO-R
jacks on the TV. If your VCR is stereo, you must connect two cables.
◆
An S-Video cable is usually included with an S-VHS VCR.
Cable Television Network or
S-Video Cable
(Not supplied)
VCR Rear Panel
TV Rear Panel
Video Cable
(Not supplied)
Audio Cable (Not supplied)
RF Cable
or
BN68-00746E (Eng) 2004/11/04 03:53 PM Page 2
English - 3
Connecting a DVD/Samsung Set-top box via DVI
1
2
Connect a DVI-D cable between the DVI IN jack on the TV and the DVI OUT jack
on the DVD player/Samsung Set-top box.
Connect an audio cable between the DVI AUDIO IN (L/R) jacks on the TV and the
AUDIO OUT jacks on the DVD player/Samsung Set-top box.
DVI-D does not support PC function.
1
2
Connecting a DVD/ Samsung Set-top box via HDMI
1Connect a HDMI cable between the HDMI IN jack on the TV and the HDMI OUT jack
on the DVD player/Samsung Set-top box.
1
DVD Player Rear Panel
TV Rear Panel
DVI-D Cable (Not supplied)
DVD Player
Rear Panel
TV Rear Panel
HDMI Cable (Not supplied)
Audio Cable (Not supplied)
BN68-00746E (Eng) 2004/11/04 03:53 PM Page 3
English - 4
Connecting a DVD Player & Digital TV Set-top box
1
2
Connect an audio cable between the COMPONENT AUDIO IN (L/R) jacks on the TV and
the AUDIO OUT jacks on the DVD player/Samsung Set-top box.
Connect a video cable between the COMPONENT IN (Y, PB, PR) jacks on the TV and the
COMPONENT VIDEO OUT (Y, Pb, Pr) jacks on the DVD player/ Samsung Set-top box.
Each external input source device (DVD, STB, VCR etc.) has a different back panel
configuration.
Connecting a PC
1
2
Connect the D-Sub cable to PC IN on the TV.
Connect the stereo audio cable to PC AUDIO IN on the TV and the other end to
“Audio Out” of the sound card on the computer.
1
2
1
2
Set-Top Box Rear Panel
DVD Player Rear Panel TV Rear Panel
Audio Cable (Not supplied)
Video Cable (Not supplied)
TV Rear Panel
PC Video Cable (Not supplied)
PC Audio Cable (Not supplied)
BN68-00746E (Eng) 2004/11/04 03:53 PM Page 4
English - 5
Connecting a Headphone & Subwoofer
1
2
Connect an audio cable between the INPUT jack on an active (powered) Sub woofer and the
SUB WOOFER OUT jack on the TV.
Prolonged use of headphones at a high volume may damage your hearing.
Plug a set of headphones into the 3.5mm mini-jack socket on the TV.
An external subwoofer helps to emphasize low frequencies.
Connecting a Home Theater System
1Connect the optical audio cable between the OPTICAL AUDIO OUT jack on the TV and the
“Audio In” jack on the Home Theater System.
1
2
1
TV Rear Panel
TV Rear Panel
Home Theater
Optical Cable (Not supplied)
BN68-00746E (Eng) 2004/11/04 03:53 PM Page 5
English - 6

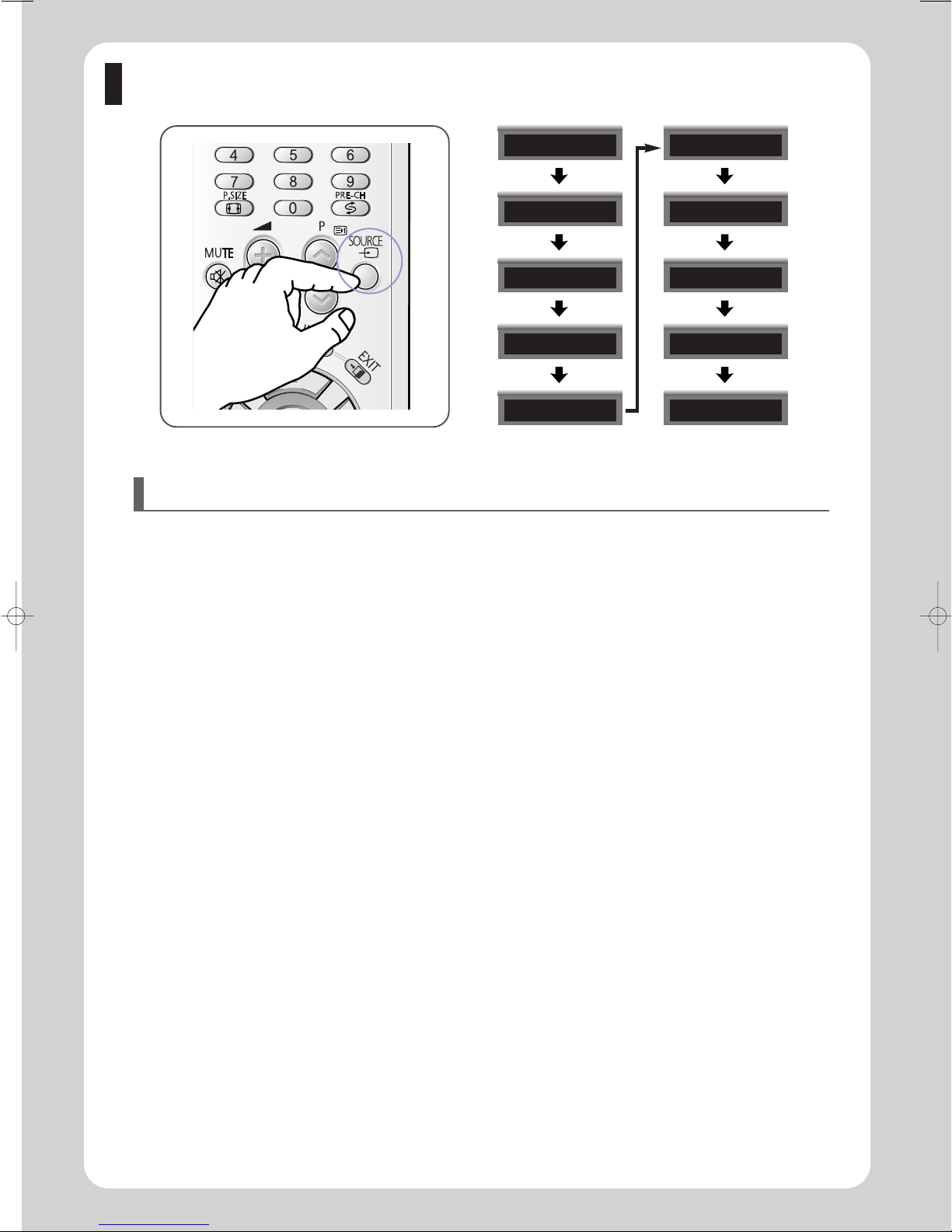

To Select Source
You can select the TV mode or an input source (DVD, VCR, STB, PC) connected to the TV.
Use this button to choose an input source that you would like to watch.
Press the SOURCE button on the remote control
P1
Ext.1
Ext.2
Ext.3
Component
S-Video
HDMI
DVI
PCAV
BN68-00746E (Eng) 2004/11/04 03:53 PM Page 6
English - 7
Infrared Remote Control
If you are trying to program this remote to use another manufacturer's DVD, VCR or
Cable box, see page 9 of the owner's
instructions
.
PICTURE SIZE
MENU DISPLAY/
TELETEXT INDEX
TELEVISION STANDBY
INFORMATION DISPLAY/
TELETEXT REVEAL
EXIT FROM ANY DISPLAY
TELETEXT SUB-PAGE
TELETEXT SIZE SELECTION
AUTOMATIC SWITCH-OFF/
TELETEXT PAGE HOLD
SOUND MODE SELECTION
CONFIRM YOUR CHOICE
(STORE OR ENTER)
TRUSURROUND XT
MODE SELECTION
DIRECT CHANNEL SELECTION
EXTERNAL INPUT
SELECTION
SWITCH REPEATEDLY
BETWEEN THE LAST TWO
CHANNELS DISPLAYED
NEXT CHANNEL/
TELETEXT NEXT PAGE
IF YOUR REMOTE CONTROL IS
NOT FUNCTIONING PROPERLY,
REMOVE THE BATTERIES AND
PRESS THE RESET BUTTON FOR
ABOUT 2~3 SECONDS. RE-INSERT
THE BATTERIES AND TRY USING
THE REMOTE CONTROL AGAIN.
PREVIOUS CHANNEL/
TELETEXT PREVIOUS PAGE
DNIE ON/OFF/DEMO
PIP FUNCTIONS;
-PIP ACTIVATION OR
DEACTIVATION (PIP ON)
-SWAPPING THE MAIN AND
THE SUB PICTURE (SWAP)
-SELECTING THE CHANNEL
OF THE SUB PICTURE
(P / )
SELECT THE DEVICE (TV, VCR,
CABLE BOX, DVD PLAYER,
STB) FOR THE REMOTE
CONTROL
VCR/DVD FUNCTIONS;
-BACKWARDS (REW)
-STOP
-PLAY/PAUSE
-FAST FORWARDS (FF)
PICTURE EFFECT SELECTION
INCREASE VOLUME
TEMPORARY SOUND SWITCH-OFF
DECREASE VOLUME
TELETEXT DISPLAY/
MIX BOTH TELETEXT
INFORMATION AND THE NORMAL
BROADCAST
CHANNEL ADD/DELETE
PC INPUT SELECTION/
TELETEXT CANCEL
WHEN YOU PRESS A BUTTON,
‘ ’ APPEARS ALONG WITH
THE SELECTED MODE (TV,
VCR, CATV, DVD, OR STB) AND
THE REMAINING BATTERIES
ON THE LCD
TUNER/CABLE NETWORK
SELECTION
CONTROL THE CURSOR
IN THE ON-SCREEN MENU
SOUND EFFECT SELECTION
PICTURE FREEZE
FASTEXT TOPIC SELECTION
REMOTE CONTROL SETUP
BN68-00746E (Eng) 2004/11/04 03:53 PM Page 7
English - 8
Plug & Play
When the television is initially powered on several basic customer settings proceed automatically
and subsequently. The following settings are available.
1
If the television is in Standby mode, press the
POWER ()
button on the remote control.
The message Plug & Play is displayed.
Plug & Play
Language
English
Deutsch
Français
Nederlands
††
Plug & Play
Move
Enter Skip
Check antenna input.
Plug & Play
Enter Skip
OK
Clock Set
œœ√√
Move Adjust Skip
TV
Hour Minute
00 00
Auto Store
P1 C 2 76MHz
0%
Enter Skip
Start
Country
▲
United Kingdom
Eastern Europe
Others
Plug & Play
Move
Enter Skip
2
To start Plug & Play, press the
ENTER ()
button.
The Language menu is displayed.
Select the appropriate language by pressing the
▲or ▼
button.
Press the
ENTER ()
button to confirm your
choice.
3
The message Check antenna input. is displayed.
Make sure that the antenna is connected to the TV,
then press the
ENTER ()
button.
4
The Country menu is displayed.
Select your country by pressing the
▲or ▼
button.
Press the
ENTER ()
button to confirm your
choice.
5
The Auto Store menu is displayed.
To start channel store, press the
ENTER ()
button.
The search will end automatically. Channels are
sorted and stored in the order which reflects their
position in the frequency range (with lowest first
and highest last).
To stop the search before it has finished or return
to normal viewing, press the MENU
()
button.
6
When it has finished, the Clock Set menu is
displayed.
Press the
œor √
button to move to the Hour or
Minute. Set these by pressing the
▲or ▼
button.
You can also set the Hour and Minute by pressing
the number buttons directly.
7
Press the
ENTER ()
button.
When the setting has all finished, the message
Enjoy your viewing is displayed, then the channel
which has been stored will be activated.
Enjoy your viewing
BN68-00746E (Eng) 2004/11/04 03:53 PM Page 8
English - 9
FAQ
If a still image is displayed for an
extended period of time, residual
images or blurring may appear.
When you need to leave the TV unused
for an extended period of time, adjust
the settings so that the TV automatically
goes into energy saving mode or
activates the screen saver to display
moving images.
No picture or sound.
Try another channel.
Press the SOURCE button.
Make sure the TV is plugged in.
Check the antenna connections.
Poor picture
Try another channel.
Adjust the antenna.
Check all wire connections.
Image is not centered on the
screen.
Adjust the horizontal and vertical
position. The screen position must be
adjusted on the output source
(i.e. STB) with a digital signal.
“Not Supported Mode”
message.
Check the maximum resolution and
the frequency of the Video Adapter.
Compare these values with the data
in the Display Modes.
Remote control malfunctions
Replace the remote control batteries.
Clean the upper edge of the remote
control (transmission window).
Check the battery terminals.
No sound or sound is too low
at maximum volume.
First, check the volume of units connected
to your TV (digital broadcasting receiver,
DTV, DVD, cable broadcasting receiver,
VCR, etc.). Then, adjust the TV volume
accordingly.
Image is not stable and may
appear to vibrate.
If the setting is not correct, use your
computer utility program to change
the display settings.
Check the following
items before calling
a Samsung authorized
service center.
BN68-00746E (Eng) 2004/11/04 03:53 PM Page 9
ELECTRONICS
BN68-00746E (Eng) 2004/11/04 03:53 PM Page 10
