Samsung SF-340 User manual
SERVICE
SAMSUNG FACSIMILE
SF-340 Series
SF-340/SF-341P
SF-345TP
Manual
FACSIMILE CONTENTS
1. Precautions
2. Reference Information
3. Specifications
4. Summary of product
5. Disassembly and Reassembly
6. Alignment and Adjustments
7. Troubleshooting
8. Exploded Views and Parts List
9. Block Diagram
10. Connection Diagram
Exploded View & Parts List
Service Manual
8-1
Samsung Electronics
8. Exploded Views and Parts List
8.1 Main Assembly Exploded view ........................................................ page(8-2)
8.2 OPE Unit Assembly Exploded view ................................................ page(8-5)
8.3 Handset Unit Assembly Exploded view .......................................... page(8-7)
8.4 ASF Unit Assembly Exploded view ................................................. page(8-8)
8.5 Engine Unit Assembly Exploded view ............................................ page(8-10)
8.6 Base Unit Assembly Exploded view ............................................... page(8-12)
Up-date On July. 28. 2004
Service Manual
Exploded View & Parts List
8-2
Samsung Electronics

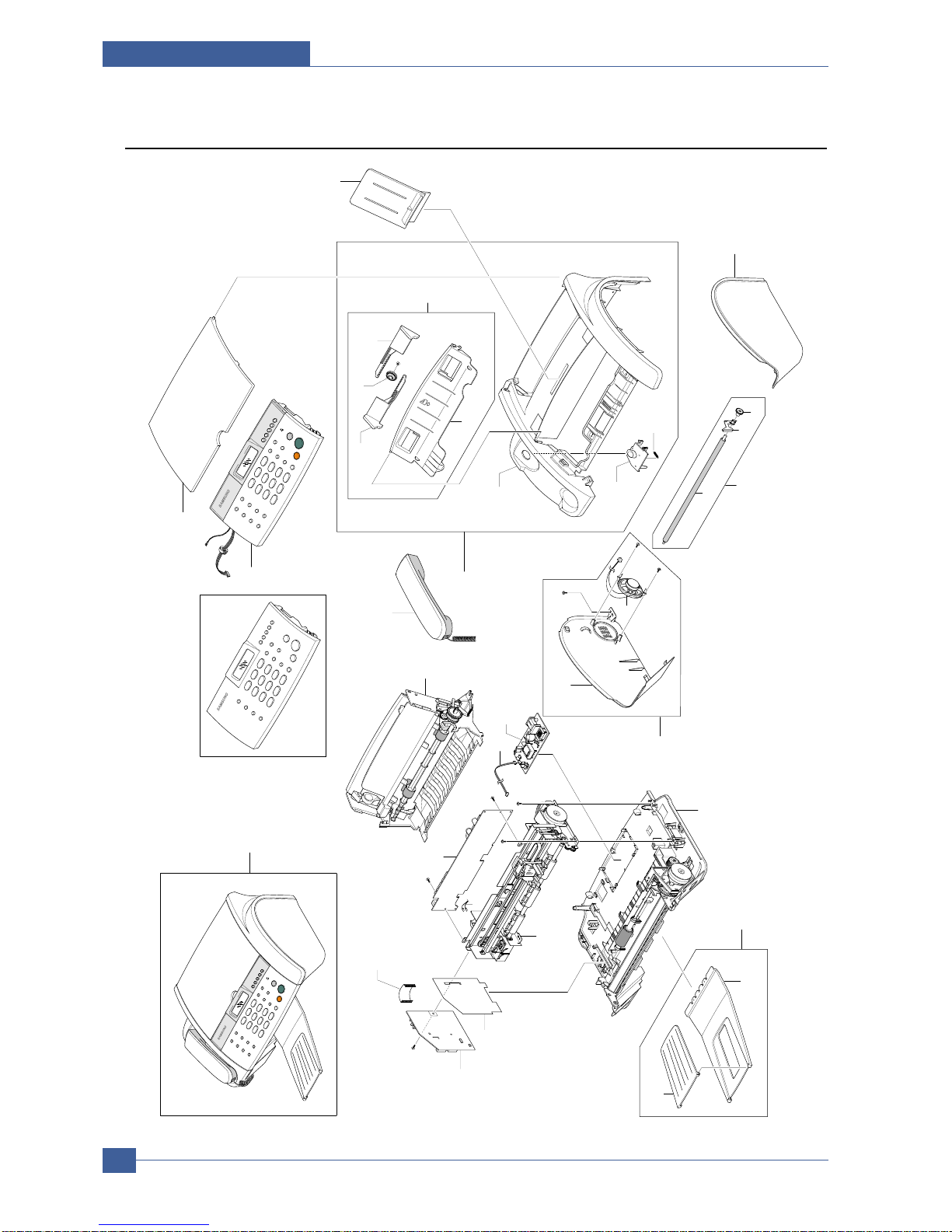

8.1 Main Assembly
0
1
2
3
4
5
6
7
8
9
10
11
12
13
13-1
13-2
14
15
16
17-1
17
17-2
18
1-1
1-2
1-3
1-4
1-2-1
1-2-2 1-2-3
1-2-4
19
19-1
19-2
19-3
15-1
Exploded View & Parts List
Service Manual
8-3
Samsung Electronics
Main Assembly Parts List
SA : Service Available
O : Service available X: Service not available
No. Description SEC.Code Q’ty SA Remark
0 SET SF-340/341P/345TP
1 MEA HOU-COVER TOP JB97-01840A 1 O SF-340
MEA HOU-COVER TOP (T) JB97-01840B 1 O SF-345TP
MEA HOU-COVER TOP (P) JB97-01840C 1 O SF-341P
1-1 COVER-M-TOP JB63-00220A 1 O
1-2 MEA-HOU DOOR JB97-01835A 1 O SF-340
MEA-HOU DOOR (T) JB97-01835B 1 O SF-345TP
MEA-HOU DOOR (P) JB97-01835C 1 O SF-341P
1-2-1 COVER-M_DOOR JB63-00221A 1 O SF-340
COVER-M_DOOR (T) JB63-00221C 1 O SF-345TP
COVER-M_DOOR (P) JB63-00221D 1 O SF-341P
1-2-2 GUIDE-M_DOC L JB61-00357A 1 O SF-340
GUIDE-M_DOC L (T) JB61-00357B 1 O SF-345TP
GUIDE-M_DOC L (P) JB61-00357C 1 O SF-341P
1-2-3 GUIDE-M_DOC R JB61-00356A 1 O SF-340
GUIDE-M_DOC R (T) JB61-00356B 1 O SF-345TP
GUIDE-M_DOC R (P) JB61-00356C 1 O SF-341P
1-3 BUTTON-M_HOOK SWICH JB64-00065A 1 O
1-4 SPRING ETC-LEVER JB61-70908A 1 O
2 ELA UNIT-HANDSET JB96-01535A 1 O SF-340
ELA UNIT-HANDSET (TP) JB96-01535B 1 O SF-341P/345TP
3 CBF HARNESS-CR MOTOR-MAIN JB39-00179A 1 O
4 SHEET-INSULATION LIU JB63-00059A 1 O
5 LIU PBA JB92-01248A 1 O SF-340, UK
LIU PBA JB92-01248B 1 O SF-345TP, UK
LIU PBA JB92-01248C 1 O SF-341P, CHINA
LIU PBA JB92-01248D 1 O SF-340, CHINA
LIU PBA JB92-01248E 1 O SF-345TP, RUSSIA
LIU PBA JB92-01248H 1 O SF-340, USA
LIU PBA JB92-01248I 1 O SF-349TP, RUSSIA
LIU PBA JB92-01248J 1 O SF-345TP, USA
LIU PBA JB92-01248K 1 O
SF-345TP, GERMANY
6 CBF HARNESS-MAIN LIU FFC JB39-00181A 1 O
7 ELA UNIT-ENGINE JB96-01540A 1 O
8 PBA MAIN JB92-01247A 1 O SF-340
PBA MAIN JB92-01247B 1 O SF-345TP
PBA MAIN JB92-01247C 1 O SF-341P
* Appendix : see appendix table
Service Manual
Exploded View & Parts List
8-4
Samsung Electronics
Main Assembly Parts List
SA : Service Available
O : Service available X: Service not available
No. Description SEC.Code Q’ty SA Remark
9 SMPS-RHINE_2 (V1) JB44-00035A 1 O 110V
SMPS-RHINE_2 (V2) JB44-00036A 1 O 230V
SMPS-RHINE_2 (V2) China JB44-00037A 1 O 230V
10 CBF HARNESS-SMPS-MAIN JB39-00177A 1 O
11 MEA UNIT-ASF JB97-01621E 1 O
12 ELA UNIT-BASE (BASIC) JB96-01539A 1 O SF-340
ELA UNIT-BASE (TAD) JB96-01542A 1 O SF-345TP
ELA UNIT-BASE (P) JB96-01558A 1 O SF-341P
13 MEA HOU-STACKER TX JB97-01624B 1 O
13-1 TRAY-M_STACKER TX1 JB63-00065D 1 O
13-2 TRAY-M_STACKER TX2 JB63-00047D 1 O
14 COVER-M_FLIP JB63-00222A 1 O
15 ELA UNIT-OPE (BASIC) *Appendix 1 O
15-1 ELA HOU-OPE *Appendix 1 O
16 CHUTE-M_DOC JB61-00358A 1 O
17 ELA HOU-SIDE L JB96-01549A 1 O SF-340
ELA HOU-SIDE L (TP) JB96-01549B 1 O SF-345TP
ELA HOU-SIDE L (P) JB96-01549C 1 O SF-341P
17-1 COVER-M_SIDE L JB63-00215A 1 O SF-340
COVER-M_SIDE L JB63-00215B 1 O SF-345TP
17-2 SPEAKER 3001-001293 1 O
18 COVER-M_SIDE R JB63-00214A 1 O SF-340
COVER-M_SIDE R (TP) JB63-00214B 1 O SF-341P/345TP
19 MEA ETC-ROLLER WHITE JB97-01207A 1 O
19-1 MEA-ROLLER WHITE JB75-00053A 1 O
19-2 PMO-BUSHING WHITE JB72-00137A 1 O
19-3 GEAR-DRIVE JB66-00004A 1 O
* Appendix : see appendix table
Exploded View & Parts List
Service Manual
8-5
Samsung Electronics
8.2 OPE Unit Assembly
0
0
1
2
1-1
1-2
1-3
1-3 1-3 1-4
1-5
1-6
1-7
1-8
1-9
1-10
1-11
2-2 2-6
2-5 2-4
2-7
2-72-3
S1
S1
2-1
2-9
2-10
2-8
2-11
2-11
SF-345TP
SF-340
Service Manual
Exploded View & Parts List
8-6
Samsung Electronics
OPE Unit Assembly Parts List
SA : Service Available
O : Service available X: Service not available
No. Description SEC.Code Q’ty SA Remark
0 ELA UNIT-OPE
*Appendix
1 O SF-340
ELA UNIT-OPE(TAD)
*Appendix
1 O SF-345TP
1 ELA HOU-OPE
*Appendix
1 X SF-340/341P
ELA HOU-COVER OPE_TAD
*Appendix
1 X SF-345TP
1-1 COVER-M_OPE
*Appendix
1 O SF-340/341P
COVER-M_OPE(TAD)
*Appendix
1 O SF-345PT
1-2 COVER-M-OVERLAY OPE
*Appendix
1 O only SF-345TP
1-3 KEY-M_LIGHT JB64-00064A 3 O
1-4 KEY-M_STOP JB64-00026A 1 O
1-5 KEY-M_COPY JB64-00021A 1 O
1-6 KEY-M_START JB64-00022A 1 O
1-7 RUBBER-CONTACT TAM JB73-00123A 1 O
1-8 RUBBER-CONTACT MAIN JB73-00122A 1 O
1-9 PBA SUB-UK(CONTRACT) JB92-01249A 1 O SF-340/341P
PBA SUB-UK(CONTRACT) JB92-01249B 1 O SF-345TP
1-10 RUBBER-MIC ADAPTER JB73-00124A 1 O only SF-345TP
1-11 COVER-M_LCD JB63-00217A 1 O
2 MEA UNIT-SCAN UPPER JB97-01690A 1 O
2-1 FRAME-M_UPPER JB61-00141A 1 O
2-2 CBF HARNESS-OPE-ENGINE JB39-00180A 1 O
2-3 LEVER-M_SENSOR DOC JB66-00168A 1 O
2-4 LEVER-M_SENSOR SCAN JB66-00169A 1 O
2-5 SUPPORT-M_ADF JB61-00142A 1 O
2-6 ICT-SPRING COIL JG70-40514A 1 O
2-7 SPRING ETC-LEVER SENSOR JB61-00107A 2 O
2-8 MEC-ANTISTATIC BRUSH JB75-00051A 1 O
2-9 RUBBER-ADF JB73-00100A 1 O
2-10 HOLDER-M_RUBBER JB61-00143A 1 O
2-11 MEC-ANTISTATIC BRUSH ATT JB75-00382A 1 O
* Appendix : see appendix table
Exploded View & Parts List
Service Manual
8-7
Samsung Electronics
8.3 Handset Unit Assembly
0
1
2
3
4
5
6
7
Handset Unit Assembly Parts List
SA : Service Available
O : Service available X: Service not available
No. Description SEC.Code Q’ty SA Remark
0 ELA-UNIT-HANDSET JB96-01535A 1 O SF-340
ELA-UNIT-HANDSET(TP) JB96-01535B 1 O
SF-341P/SF-345TP
1 COVER-M_HANDSET LOWER JB63-00145C 1 X SF-340
COVER-M_HANDSET LOWER(TP) JB63-00145D 1 X
SF-341P/SF-345TP
2 RMO-RUBBER MIC JF73-40501A 1 X
3 CBF HARNESS-HANDSET MODULAR JB39-00026A 1 X
4 PBA SUB-ETC MIC JF92-00625A 1 X
5 AUDIO-RECEIVER 3009-001028 1 X
6 IPR-WEIGHT BALANCE JB70-00007A 1 X
7 COVER-M-HANDSET UPPER JB63-00189A 1 X
Service Manual
Exploded View & Parts List
8-8
Samsung Electronics
8.4 ASF Unit Assembly
0
13 3
2
3
11
11
1
4
56
7
8910
12
12
14
15
17
18
16
Exploded View & Parts List
Service Manual
8-9
Samsung Electronics
ASF Unit Assembly Parts List
SA : Service Available
O : Service available X: Service not available
No. Description SEC.Code Q’ty SA Remark
0 MEA UNIT-ASF JB97-01621E 1 O
1 FRAME-M_ASF JB61-00145F 1 O
2 SHAFT-M_PICK UP JB66-00176A 1 O
3 RMO-PICK UP RUBBER JB73-00009A 2 O
4 LEVER-M_FINGER ASF JB66-00174A 1 X
5 GEAR-M_DUST IDLE 21 JB66-00170A 1 X
6 LEVER-M_FINGER ASSI ASF JB66-00175A 1 X
7 SPRING-ES 6107-000011 1 O
8 GEAR-M_PICK UP ROLLER 35 JB66-00172A 1 X
9 LATCH-M DUST JB66-00171A 1 X
10 GEAR-M_PICK UP ROLLER 30 JB66-00173A 1 X
11 SHEET-FILM ASF JB63-00058A 2 X
12 SPRING CS 6107-001136 2 X
13 COVER-M_DUST JB63-00040F 1 O
14 PLATE-M_PRESSURE ASF JB61-00146F 1 O
15 GUIDE-M_PAPER SIDE JB61-00144D 1 O
16 MPR-PAD JF74-10234A 2 O
17 SPRING-ES 6107-001147 1 O
18 LEVER-M_FINGER LH ASF JB66-00191A 1 X
