SERVICEManual
DISHWASHER CONTENTS
Refer to the service manual in the GSPN (see the rear cover) for the more information.
1. Safety Instructions
2. Features and Specifications
3. Disassembly and
Reassembly
4. Troubleshooting
5. PCB Diagram
6. Wiring Diagram
7. Schematic Diagram
8. Reference
Prgho#Frgh# = DMT800RHS/XAA DMT800RHS/XAC
DMT800RHB/XAA DMT800RHB/XAC
DMT800RHW/XAA DMT800RHW/XAC
DMT700RHS/XAA DMT700RHS/XAC
DMT700RHB/XAA DMT700RHB/XAC
DMT700RHW/XAA DMT700RHW/XAC
DMT400RHS/XAA DMT400RHS/XAC
DMT400RHB/XAA DMT400RHB/XAC
DMT400RHW/XAA DMT400RHW/XAC
1-1
1. Safety Instructions
1. Safety Instructions
1-1. Safety Instructions for Service Engineers
Make sure to observe the following instructions to operate the product correctly and safely and prevent possibleሪ
accidents and hazards while servicing.
Two types of safety symbols, Warning and Caution, are used in the safety instructions.ሪ
Warning Hazards or unsafe practices that may result in severe personal injury or death.
Caution Hazards or unsafe practices that may result in minor personal injury or property damage.
Warning
Before Servicing
(When servicing electrical parts or harnesses) Make sure to disconnect the circuitࣃ
breaker or power cable before servicing.
Failing to do so may result in a risk of electric shock.¯
Do not allow consumers to connect several appliances to a single power outlet at the
ࣃ
same time.
There is a risk of fire due to overheating.¯
When removing the power cord, make sure to hold the power plug when pulling the plugࣃ
from the outlet.
Failing to do so may damage the plug and result in fire or electric shock.¯
When the dishwasher is not being used, make sure to disconnect the circuit breaker orࣃ
power cable from the power outlet.
Failing to do so may result in electric shock or fire due to lightning.¯
Do not place or use gasoline, thinners, alcohol, or other flammable or explosiveࣃ
substances near the dishwasher.
There is a risk of explosion and fire caused from electric sparks.¯
1-2
1. Safety Instructions
While Servicing
Check if the power cable is damaged, flattened, cut or otherwise degraded.ࣃ
If faulty, replace it immediately.¯
Failing to do so may result in electric shock or fire.
Completely remove any dust or foreign material from the housing, wiring and connection
ࣃ
parts.
This will prevent a risk of fire due to arcing and short circuits in advance.¯
When connecting wires, make sure to connect them using the relevant connectors and
ࣃ
check that they are completely connected.
If tape is used instead of the connectors, it may cause fire due to arcing.¯
Make sure to disconnect the PBA power terminals before starting the service.
ࣃ
Failing to do so may result in a high voltage electric shock.¯
When replacing the heater, make sure to fasten the nut after ensuring that it is inserted
ࣃ
into the bracket-heater.
If not fasten the nut of the heater, it cause water and electric leakage.¯
After Servicing
Check for any water leakage.ࣃ
Perform a test run for the dishwasher using the standard(normal) cycle and check¯
whether there is any water leakage through the floor section or the pipes.
Do not allow consumers to repair or service any part of the dishwasher themselves.
ࣃ
This may result in personal injury and shorten the product lifetime.¯
If it seems that grounding is needed due to water or moisture, make sure to runࣃ
grounding wires.
Failing to do so may result in electric shock due to electric leakage.¯
1-3
1. Safety Instructions
Caution
Before Servicing
Do not sprinkle water onto the dishwasher directly when cleaning it.ࣃ
This may result in electric shock or fire, and may shorten the product lifetime.¯
Do not place any containers with water on the dishwasher.
ࣃ
If the water is spilled, it may result in electric shock or fire. This will also shorten the¯
product lifetime.
Do not install the dishwasher in a location exposed to snow or rain.ࣃ
This may result in electric shock or fire, and shorten the product lifetime.¯
Do not press a control button using a sharp tool or object.ࣃ
This may result in electric shock or damage to the product.¯
During Servicing
When wiring a harness, make sure to seal it completely so no liquid can enter.ࣃ
Make sure that they do not break when force is exerted.¯
Check if there is any residue that shows that liquid entered the electric parts or
ࣃ
harnesses.
If any liquid has entered into a part, replace it or completely remove any remaining¯
moisture from it.
If you need to place the dishwasher on its back for servicing purposes, place a support(s)
ࣃ
on the floor and lay it down carefully so the back is on the floor.
Do not lay it down on its front or side. This may result in scratches to the surface or¯
damage to the parts.
1-4
1. Safety Instructions
After Servicing
Check the assembled status of the parts.ࣃ
They must be the same as before servicing.¯
Check whether the product is level with the floor. Check if there are any deformations in
ࣃ
the sink. Check that the dishwasher is firmly installed to the sink.
Vibrations can shorten the lifetime of the product.¯
2-1
2. Features and Specifications
2. Features and Specifications
2-1. Features
Features Description Remarks
Extra large capacity
The upper rack is slanted for larger dishes. The spaceሪ
has been maximized to accommodate a variety of dish
sizes.
Elegant design with digital
touch sensors
Digital touch sensors are used in the control panel for moreሪ
simple operation, with a touch of elegance.
Increased convenience
The smart auto cycle determines the level of soil on theሪ
dishes and initiates the optimal cycle using this feature
saving water, energy and time.
Extremely quiet operation
Efficient noise control technology is used for the quietestሪ
possible operation. Your new Samsung dishwasher will be
quieter than ever.
Self-cleaning filter
Cleaning the filter yourself is a thing of the past! This productሪ
keeps food waste internally while operating, then drains it
automatically with the water.
Storm wash
(For DMT800 & DMT700
series)
With a jet stream like a geyser, Storm Wash effectivelyሪ
cleans big, heavily soiled pots with ease. Look for the built-in
extra nozzle and spray in the specialized Storm Washing
Zone.
Twin fan condensing drying
Two fans connected to one motor make for better dryingሪ
performance. Still better, your dishwasher emits no hot
steam. Instead, it mixes external fresh air with the internal
hot steam during drying to eliminate the steam, making your
dishwasher safer and easier to use.
2-2
2. Features and Specifications
2-2. Specifications
Wash capacity 14 place settings
Type Dishwasher
Model DMT800 Series, DMT700 Series, DMT400 Series
Power Single-phased alternating current of 60Hz, 15A at 120V
Used water pressure 20 ~ 120 psi (140 ~ 830 kPa)
Wash type Rotating nozzle spray
Dry type Air diffusion condensing dry system
Power usage Main Motor : (2-step) 185W/150W, Heater : 1100W
Standard amount of used water 5.3~7.9 gallon (20~30L), Normal Cycle
Size (W×D×H) 23 ” x 24 ¾” x 33 ” inch (605 x 627 x 860 mm )

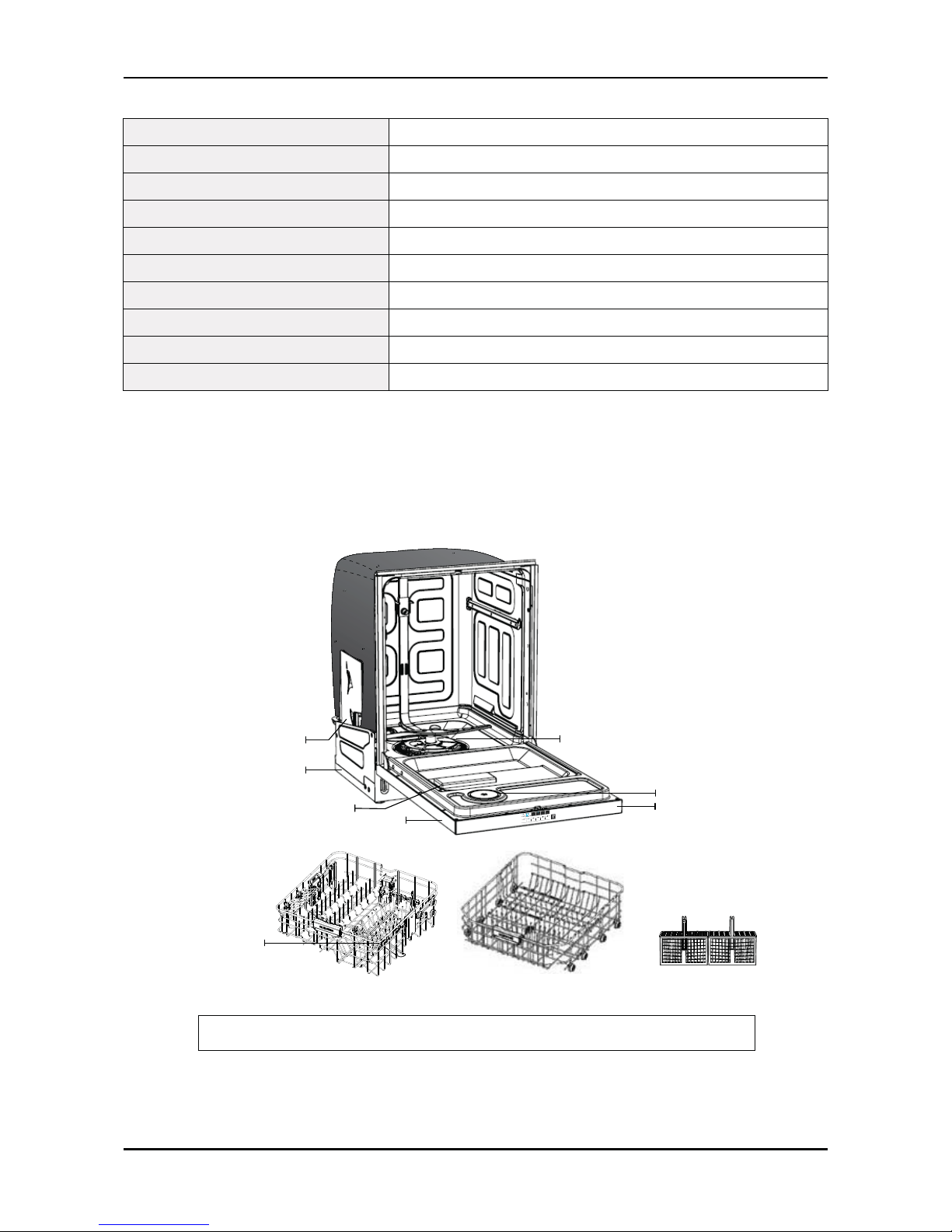

Above images might differ in the dishwasher models.
Middle nozzle
Upper rack Lower rack Cutlery basket
Air brake
Base
Dispenser
Door
Lower nozzle
Vapor vent cover
Control panel
2-3
2. Features and Specifications
2-3. Comparing Specifications with Existing Models
Model
NEW MODEL BASIC MODEL
DMT800RHS/B/W DMT700RFS/B/W DMT400RHS/B/W DMR78AHS/B/W DMT300RFS/B/W
Design Specifications
Panel Control Black Silver/Black /White Black Black Silver/Black /White
Control Type Touch Touch Touch Touch Button
Frame Front STS/Black/White
Basket Handle Blue + STS Blue + STS Blue + Gray Gray Blue + Gray
Function Specifications
Soil Detection Sensors OOOOO
Drying method Air diffusion condensing
Basket Height Adjustment One-touch One-touch 2-stage One-touch 2-stage
Leakage Sensor OOOOO
Programs
6 (Normal, Heavy,
Delicate, Pot & Pans,
Quick+, Smart Auto)
6 (Normal, Heavy,
Delicate, Pot & Pans,
Quick, Smart Auto)
4 (Normal, Heavy,
Delicate, Smart Auto)
6 (Normal, Heavy,
Delicate, Rinse, Quick,
Smart Auto)
4 (Normal, Heavy,
Delicate, Quick)
Options
6 (Delay Start,
Sanitize, Half Load,
Storm Wash, Child
Lock, Cancel & Drain)
6 (Delay Start,
Sanitize, Half Load,
Storm Wash, Child
Lock, Cancel & Drain)
3
(Sanitize, Child Lock,
Cancel & Drain)
5 (Delay Start,
Sanitize, Half Load,
Child Lock, Cancel &
Drain)
3
(Sanitize, Child Lock,
Cancel & Drain)
2-4
2. Features and Specifications
2-4. Options Specifications
Photo Item Code Quantity Remarks
Bracket-install DD61-00176A 2
Provided with
the dishwasher
Assy-install kit for Top
mounting
(Bracket-install + Screw)
DD94-01002A 2+2
Screw for side mounting 2
User Manual
DD68-00050A (DMT800)
DD68-000xxA (DMT700)
DD68-00074A (DMT400)
1
Installation Guide DD68-00046A 1
Elbow - 1
Sold separately
Water Supply Line
(Flexible STS supply line is
recommend)
-1
Air Gap - 1
Rubber Connector -1
Hose Clamp -1
Strain Relief -1
2-4
2. Features and Specifications
2-5
2. Features and Specifications
Memo
