Samsung Vluu ST600 Instruction manual

Quick Start Manual

ST600

This Quick Start Manual has been specially designed to guide

you through the basic functions and features of your device.

Please read the Quick Start Manual and User Manual carefully

to ensure safe and correct use.

For more information, refer to

the User Manual included on the

supplied CD-ROM.

ENG / FIN / SWE / DAN / RUS / LAV / LIT / EST / UKR / NOR

ST600_QSM_EUR2.indb 3 2010-07-19 오후 7:22:37

Health and safety informationContents

Warnings

Do not use your camera near ﬂammable or explosive

gases and liquids

Do not use your camera near fuels, combustibles, or

ﬂammable chemicals. Do not store or carry ﬂammable

liquids, gases, or explosive materials in the same

compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of

small children and animals. Small parts may cause choking

or serious injury if swallowed. Moving parts and accessories

may present physical dangers as well.

Prevent damage to subjects’ eyesight

Do not use the ﬂash in close proximity (closer than 1 m/3

ft) to people or animals. Using the ﬂash too close to your

subject’s eyes can cause temporary or permanent damage.

Health and safety information 2

Camera layout ……………… 4

Setting up your camera …… 5

Unpacking ……………………… 5

Inserting the battery and

memory card …………………… 6

Charging the battery ……………6

Turning on your camera………… 7

Using the touch screen ………… 7

Capturing photos or videos 8

Selecting a shooting mode

using motion recognition… … 9

Playing ﬁles ………………… 9

Transferring ﬁles to a PC

(Windows) ……………………10

Speciﬁcations ………………11

113

ST600_QSM_EUR2.indb 2 2010-07-19 오후 7:22:37

English

Exercise caution when connecting cables or adapters•

and installing batteries and memory cards. Forcing

the connectors, improperly connecting cables, or

improperly installing batteries and memory cards can

damage ports, connectors, and accessories.

Do not insert foreign objects into any of your camera’s•

compartments, slots, or access points. This type of

damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from

damage

Avoid exposing batteries or memory cards to very•

cold or very hot temperatures (below 0° C/32° F or

above 40° C/104° F). Extreme temperatures can

reduce the charging capacity of your batteries and

can cause memory cards to malfunction.

Prevent memory cards from making contact with•

liquids, dirt, or foreign substances. If dirty, wipe the

memory card clean with a soft cloth before inserting

in your camera.

Handle and dispose of batteries and chargers with

care

Use only Samsung-approved batteries and chargers.•

Incompatible batteries and chargers can cause serious

injuries or damage to your camera.

Never place batteries or cameras on or in heating•

devices, such as microwave ovens, stoves, or

radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

Do not allow your camera to get wet—liquids can•

cause serious damage. Do not handle your camera

with wet hands. Water damage to your camera can

void your manufacturer’s warranty.

Avoid using or storing your camera in dusty, dirty,•

humid, or poorly-ventilated areas to prevent damage

to moving parts and internal components.

ST600_QSM_EUR2.indb 3 2010-07-19 오후 7:22:38

Shutter button

Microphone

POWER button

Front LCD button

AF-assist light/timer lamp

Lens

Front display

Flash

Speaker

Camera layout

Status lamp

Zoom button

Playback button

USB and A/V port (Accepts USB cable or A/V cable)

HDMI port (Accepts HDMI cable)

Battery chamber cover

Tripod mount

Main display

(Referred to "Touch screen" in this manual)

ST600_QSM_EUR2.indb 4 2010-07-19 오후 7:22:38

English

Setting up your camera

Camera AC adapter/USB cable Rechargeable battery Strap

Cleaner User Manual CD-ROM Quick Start Manual

Unpacking

Optional accessories

Camera case Memory card

(microSD

)

A/V cable Battery charger HDMI cable

ST600_QSM_EUR2.indb 5 2010-07-19 오후 7:22:40

Setting up your camera

Inserting the battery and memory card Charging the battery

▼

Removing the battery

▼

Removing the memory card

Push gently the card until the

card disengages from the

camera, and then pull it out of

the slot.

Before using the camera for the ﬁrst time, you must

charge the battery.

Indicator light

Red▪: Charging

Green▪: Fully charged

Insert the memory

card with the gold-

colored contacts

facing up.

Insert the battery with

the Samsung logo

facing up.

ST600_QSM_EUR2.indb 6 2010-07-19 오후 7:22:40

English

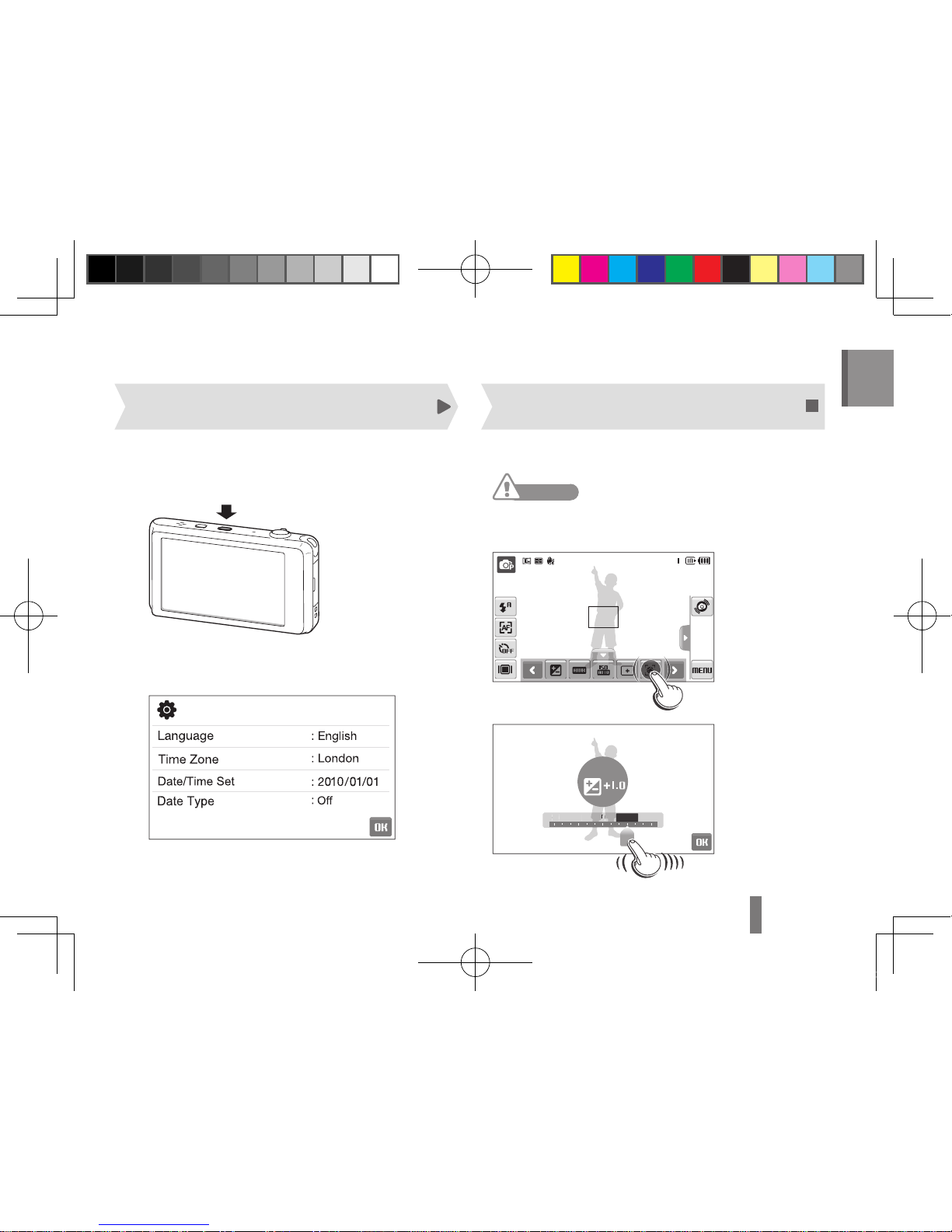

Press [

POWER].

The initial setup screen appears when you turn▪

on your camera for the ﬁrst time.

Select a language and a time zone, set the

date and time, and select a date type.

Use your ﬁnger to touch or drag on the touch screen.

Caution

Do not use other sharp objects, such as pens or pencils,

to touch the screen. Doing so may damage the screen.

Touching

Touch an icon to

open a menu or

set an option.

-2 -1 0+2-2 -

2+1

Dragging

Drag left or

right to scroll

horizontally.

Turning on your camera Using the touch screen

ST600_QSM_EUR2.indb 7 2010-07-19 오후 7:22:41

Recording a video

Select

a→v.

Align your subject in the frame.

Press [

Shutter].

To pause, select▪.

To resume, select▪.

Press [

Shutter] again to stop recording.

Note

Number of photos by resolution (for 1 GB microSD

)

Resolution Super ﬁne Fine Normal

4320 X 3240 122 240 353

4320 X 2880 137 267 391

4000 X 3000 142 278 409

4320 X 2432 163 320 471

3264 X 2448 211 409 594

2560 X 1920 335 637 908

2048 X 1536 510 936 1,314

1920 X 1080 762 1,373 1,931

1024 X 768 1,626 2,575 3,090

These ﬁgures are measured under Samsung’s standard conditions and may

vary depending on shooting conditions and camera settings.

Taking a photo

Make sure that the camera is in the

amode

(Auto mode).

Align your subject in the frame.

Press [

Shutter] halfway down to focus

automatically.

A green frame means the subject in focus.▪

Press [

Shutter] all the way down to take the

photo.

Capturing photos or videos

ST600_QSM_EUR2.indb 8 2010-07-19 오후 7:22:43

English

Selecting a shooting mode

using motion recognition

In Shooting mode, tilt the camera while touching

and holding .

Note

Motion recognition may not work well if you hold the

camera parallel to the ground.

Access the Program mode

Access the Movie mode

Access the Smart Auto mode

Playing ﬁles

Viewing photos

Press [

Playback].

Drag ﬁles left or right to scroll through ﬁles.

You can also view ﬁles by tilting your camera.▪

You can select and hold▪<or >to view photos.

Viewing videos

Press [

Playback] and select .

Use the following icons to control playback.

Scan backward. The camera scans

backward in 2X, 4X, and 8X increments

when you select and hold .

Pause or resume playback

Stop playback

Scan forward. The camera scans

forward in 2X, 4X, and 8X increments

when you select and hold .

Adjust volume or mute sound

ST600_QSM_EUR2.indb 9 2010-07-19 오후 7:22:44

Connect the camera to the PC with the USB

cable.

Note

Make sure that the PC Software option is set to On in the

settings menu.

Turn on the camera.

The computer recognizes the camera automatically.▪

For Windows Vista and Windows 7, select▪

Run iStudio.exe from the AutoPlay window.

Select a folder on your computer to save new

ﬁles.

If your camera has no new ﬁles, the pop-up window▪

for saving new ﬁles will not appear.

Select

Yes.

New ﬁles will be transferred to your computer.▪

You can now use the Intelli-studio program.

Note

About Intelli-studio

Intelli-studio is a built-in program that allows you to play

back and edit ﬁles. You can upload ﬁles to websites,

such as Flickr or YouTube. Also, you can download short

animations for use in Children mode.

Transferring ﬁles to a PC (Windows)

ST600_QSM_EUR2.indb 10 2010-07-19 오후 7:22:44
