Samsung SGH-E950 User manual

GSM TELEPHONE

SGH-E950

GSM TELEPHONE CONTENTS

1. Specification

2. Exploded View and Parts list

3. Chart of Troubleshooting

4. Array course control

5. Block Diagrams

6. PCB Diagrams

7. MAIN Electrical Parts List

8. Reference data

9. Safety Precautions

10. Product Function

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable

International and/or domestic law.

Samsung Electronics Co.,Ltd.

2007. 09. Rev.1.0

ⓒ

Country Web Site

North America service.samsungportal.com

Latin America latin.samsungportal.com

CIS cis.samsungportal.com

Europe europe.samsungportal.com

China china.samsungportal.com

Asia asia.samsungportal.com

Mideast &Africa mea.samsungportal.com

GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice

1. Safety Precautions

1-2

This Document can not be used without Samsung's authorization

1-1. Repair Precaution

●Repair in Shield Box, during detailed tuning.

Take specially care of tuning or test,

because specipicty of cellular phone is sensitive for surrounding interference(RF noise).

●Be careful to use akind of magnetic object or tool,

because performance of parts is damaged by the influence of manetic force.

●Surely use astandard screwdriver when you disassemble this product,

otherwise screw will be worn away.

●Use athicken twisted wire when you measure level.

Athicken twisted wire has low resistance, therefore error of measurement is few.

●Repair after separate Test Pack and Set because for short danger (for example an

overcurrent and furious flames of parts etc) when you repair board in condition of

connecting Test Pack and tuning on.

●Take specially care of soldering, because Land of PCB is small and weak in heat.

●Surely tune on/off while using AC power plug, because arepair of battery charger is

dangerous when tuning ON/OFF PBA and Connector after disassembing charger.

●Don't use as you pleases after change other material than replacement registered on SEC

System.

Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice

Safety Precautions

1-2

This Document can not be used without Samsung's authorization

1-2. ESD(Electrostatically Sensitive Devices) Precaution

Several semiconductor may be damaged easilly by static electricity. Such parts are called by

ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.

You can prevent from ESD damage by static electricity.

●Remove static electricity remained your body before you touch semiconductor or parts with

semiconductor. There are ways that you touch an earthed place or wear static electricity

prevention string on wrist.

●Use earthed soldering steel when you connect or disconnect ESD.

●Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by

static electricity.

●Don't unpack until you set up ESD on product. Because most of ESD are packed by box

and aluminum plate to have conductive power,they are prevented from static electricity.

●You must maintain electric contact between ESD and place due to be set up until ESD is

connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice

2. Specification

2-1

This Document can not be used without Samsung's authorization

2-1. GSM/DCS1800/PCS1900 General Specification

EGSM 900

Phase 2

DCS1800

Phase 1 PCS1900

Freq. Band[MHz]

Uplink/Downlink

880~915

925~960

1710~1785

1805~1880

1850~1910

1930~1990

ARFCN range 0~124 & 975~1023 512~885 512~810

Tx/Rx spacing 45 MHz 95 MHz 80 MHz

Mod. Bit rate/

Bit Period

270.833 kbps

3.692 us

270.833 kbps

3.692 us

270.833 kbps

3.692 us

Time Slot

Period/Frame

Period

576.9 us

4.615 ms

576.9 us

4.615 ms

576.9 us

4.615 ms

Modulation 0.3 GMSK 0.3 GMSK 0.3 GMSK

MS Power 33 dBm~5 dBm 30 dBm~0 dBm 30 dBm~0 dBm

Power Class 5 pcl ~19pcl 0pcl ~15pcl 0pcl ~15pcl

Sensitivity -102 dBm -100 dBm -100 dBm

TDMA Mux 8 8 8

Cell Radius 35 Km 2Km -

SAMSUNG Proprietary-Contents may change without notice

Specification

2-2

This Document can not be used without Samsung's authorization

2-2. GSM TX power class

TX Power

control level EGSM900

533±2

dBm

631±2

dBm

729±2

dBm

827±2

dBm

925±2

dBm

10 23±2 dBm

11 21±2 dBm

12 19±2 dBm

13 17±2 dBm

14 15±2 dBm

15 13±2 dBm

16 11±3 dBm

17 9± 3dBm

18 7±3 dBm

19 5±3 dBm

TX Power

control level DCS1800

030±3

dBm

128±3

dBm

226±3

dBm

324±3

dBm

422±3

dBm

520±3

dBm

618±3

dBm

716±3

dBm

814±3

dBm

912±4

dBm

10 10±4 dBm

11 8±4 dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

15 0±5 dBm

TX Power

control level PCS1900

030±3

dBm

128±3

dBm

226±3

dBm

324±3

dBm

422±3

dBm

520±3

dBm

618±3

dBm

716±3

dBm

814±3

dBm

912±4

dBm

10 10±4 dBm

11 8±4 dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice

3. Product Function

3-1

This Document can not be used without Samsung's authorization

Main Function

-Camera and Camcorder

-Synchronisation with Windows Media Player

-Music player

-FM radio

-Image editor

-Photo printing

-Phone to TV

-Offline mode

-Bluetooth

-File viewer

-SOS message

SAMSUNG Proprietary-Contents may change without notice

4. Array course control

4-1

This Document can not be used without Samsung's authorization

Test Jig (GH80-03307A)

RF Test Cable (GH39-00397A)

Test Cable (GH39-00484A)

SAMSUNG Proprietary-Contents may change without notice

Array course control

4-2

This Document can not be used without Samsung's authorization

Software Downloading

4-1. Downloading Binary Files

•Three binary files for downloading E950.

–E950XXYY.s3 :Main source code binary.

4-2. Pre-requsite for Downloading

•Downloader Program(OptiFlash.exe)

•E950 Mobile Phone

•Data Cable

•Binary files

SAMSUNG Proprietary-Contents may change without notice

Array course control

4-3

This Document can not be used without Samsung's authorization

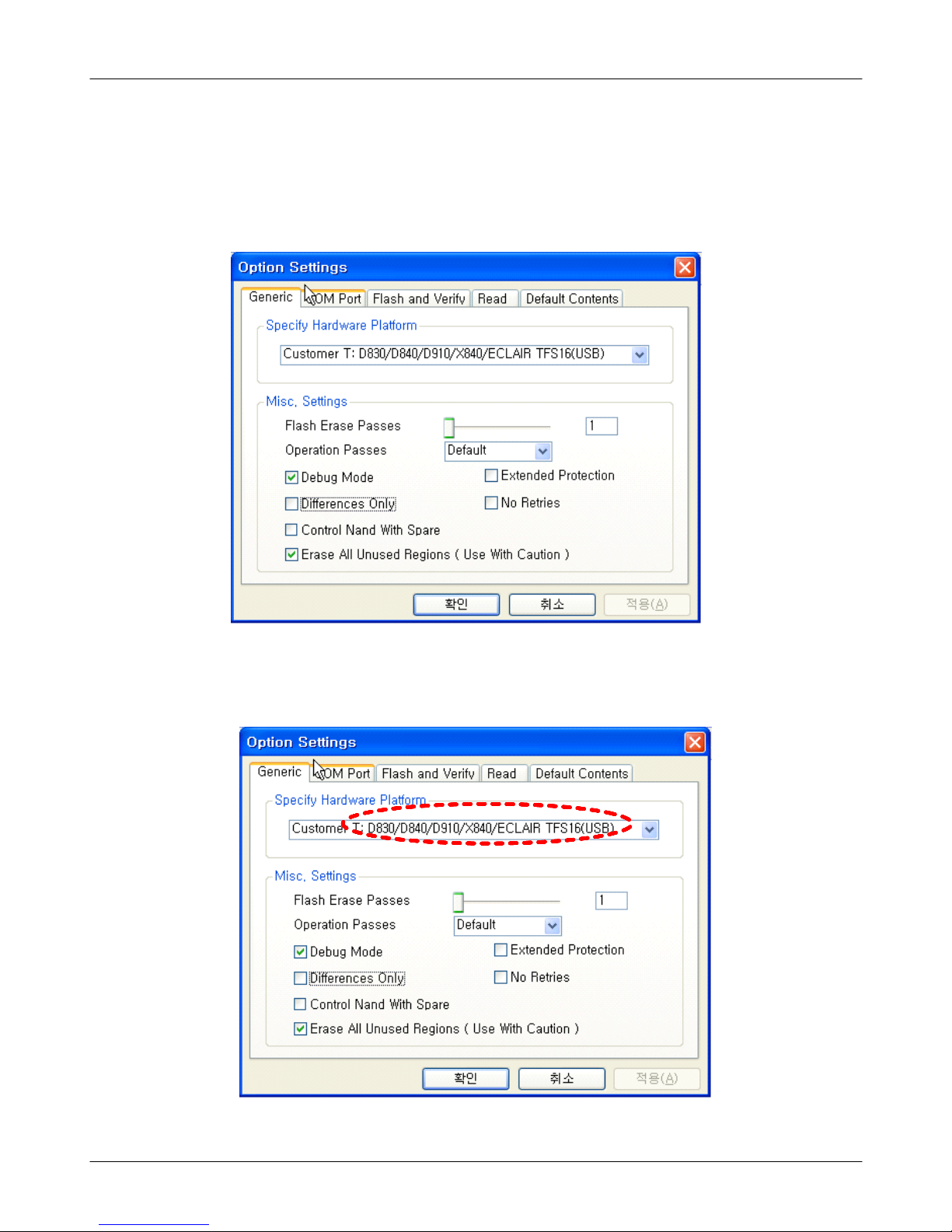

4-3. S/W Downloader Program

1. Load the binary download program by executing the “OptiFlash.exe”

2. Select the “Options”->“

Settings”->“

Generic”->“

Specify hardware platform”.

Choose hardware platform for the downloader file setting.

Set the everything else as the default values which are shown below
