Samsung Mobile phone User manual
1
TABLE OF CONTENTS
YOUR DEVICE 4
Front and Back Features 4
Side Features 5
Battery Installation/Removal 6
Charging Your Battery 8
Turning Your Phone On or Off 10
DEVICE FUNCTIONS 11
Extending Your Battery Life 11
Locking and Unlocking Your Device 13
Creating a New Google Account 14
Setting Up Voicemail 16
Calling Features 17
Contacts 21
Bluetooth 24
Web Browsing 26
Setting Up Email 28
Messaging 32
TABLE OF CONTENTS
TABLE OF CONTENTS
2
Using Android Market 34
Customizing Your Phone 36
Camera & Camcorder 39
GPS Navigation 41
NOTES 45
3
WELCOME
WELCOME
Thank you for choosing U.S. Cellular.
This guide will introduce you to the features and
functions of your new phone.
For assistance, go to http://www.uscellular.com/.
or contact Customer Care at 1-888-944-9400.
NOTE: Screen images and icons are simulated. Actual display may
vary. Instructions in this guide may change depending on the
software version on your device. All procedures begin in portrait
mode, with phone open unless otherwise noted.
8
9
7
6
54
3
2
1
YOUR DEVICE
4
FRONT AND BACK FEATURES
1. HEADSET
CONNECTOR
2. FRONT FACING
CAMERA
3. DISPLAY
4. MENU KEY
5. HOME KEY
6. BACK KEY
7. SEARCH KEY
8. EARPIECE
9. CAMERA LENS
10. FLASH
YOUR DEVICE
5
YOUR DEVICE
2
3
1
SIDE FEATURES
1. VOLUME KEY
2. CHARGER/USB
CONNECTOR
3. POWER/LOCK KEY
NOTE: The microSD card slot is
located under the battery
cover.
YOUR DEVICE
6
BATTERY INSTALLATION/REMOVAL
Your device is powered by a rechargeable, standard
Li-Ion battery.
NOTE: Although the battery comes partially charged, you must fully
charge this battery before using your phone for the first.
WARNING: Use only Samsung-approved charging devices and
batteries. Samsung accesories are designed to maximize
battery life. Using other accessories may invalidate your
warranty and may cause damage.

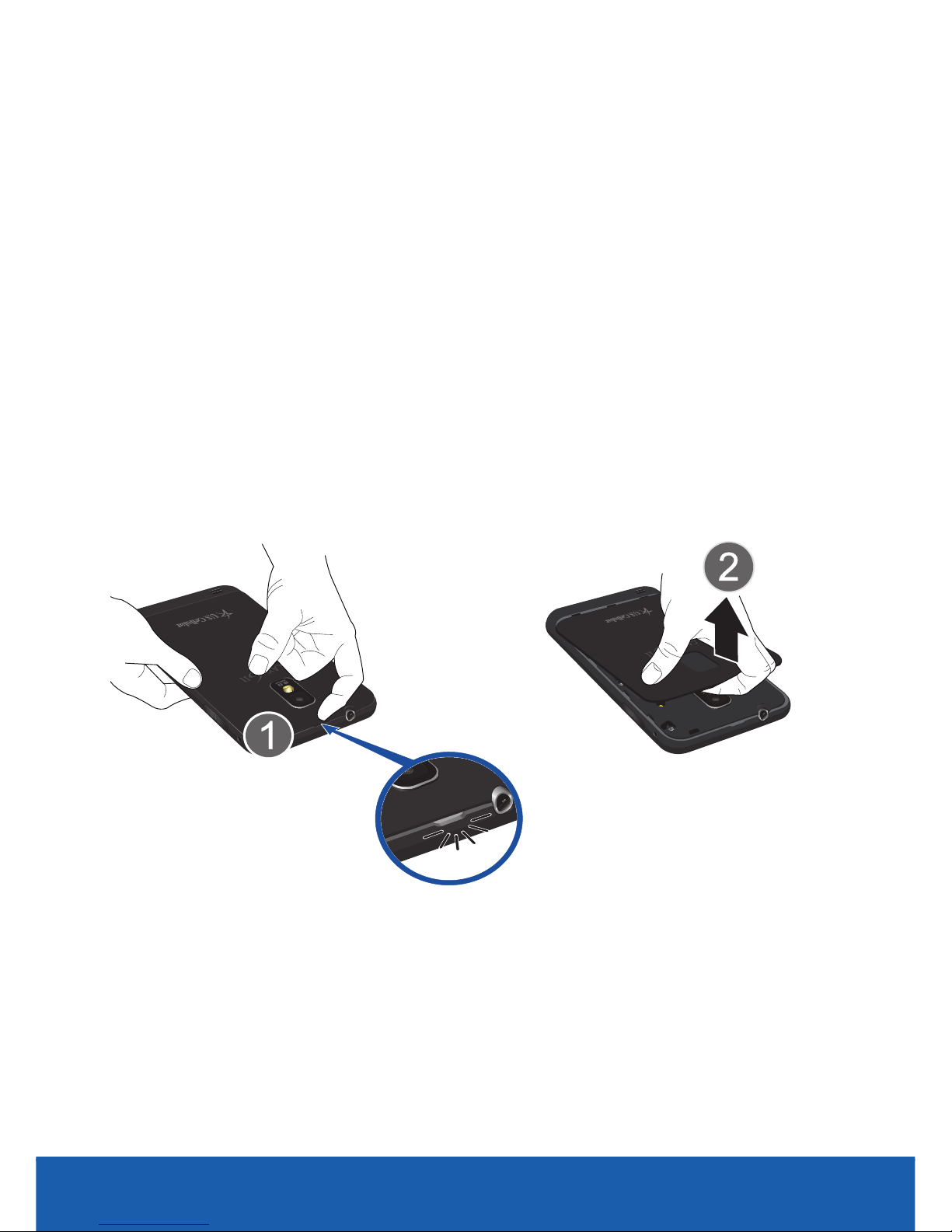

Installing the Battery
Release Latch
1. Hold the device firmly and locate the cover
release latch.
2. Place your fingernail in the opening and firmly
“pop” the cover off the device (similar to a
soda can).
3. Slide the battery into the compartment (3) so
that the tabs on the end align with the slots
at the bottom of the phone, making sure the
connectors align.
4. Gently press down to secure the battery (4).
5. Replace the battery cover by sliding it back into
place and snapping the edges securely at all
four corners.
Removing the Battery
1. Place your fingernail in the opening on the
cover release latch and firmly “pop” the cover
off the device (similar to a soda can).
2. Place your finger into the battery groove.
3. Grip the battery at the top end (5) and lift it up
and out of the battery compartment (6).

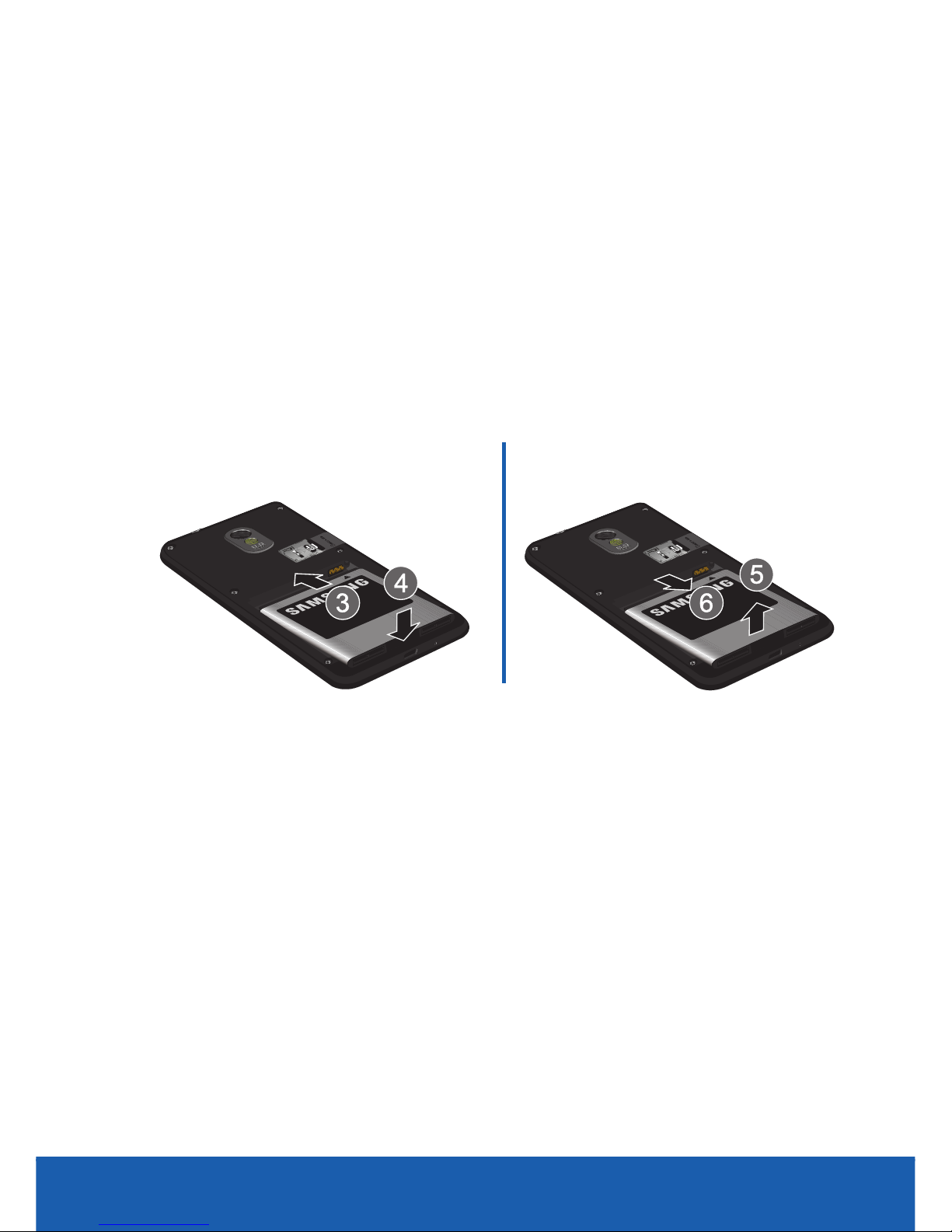

Battery Insertion Battery Removal
7
YOUR DEVICE

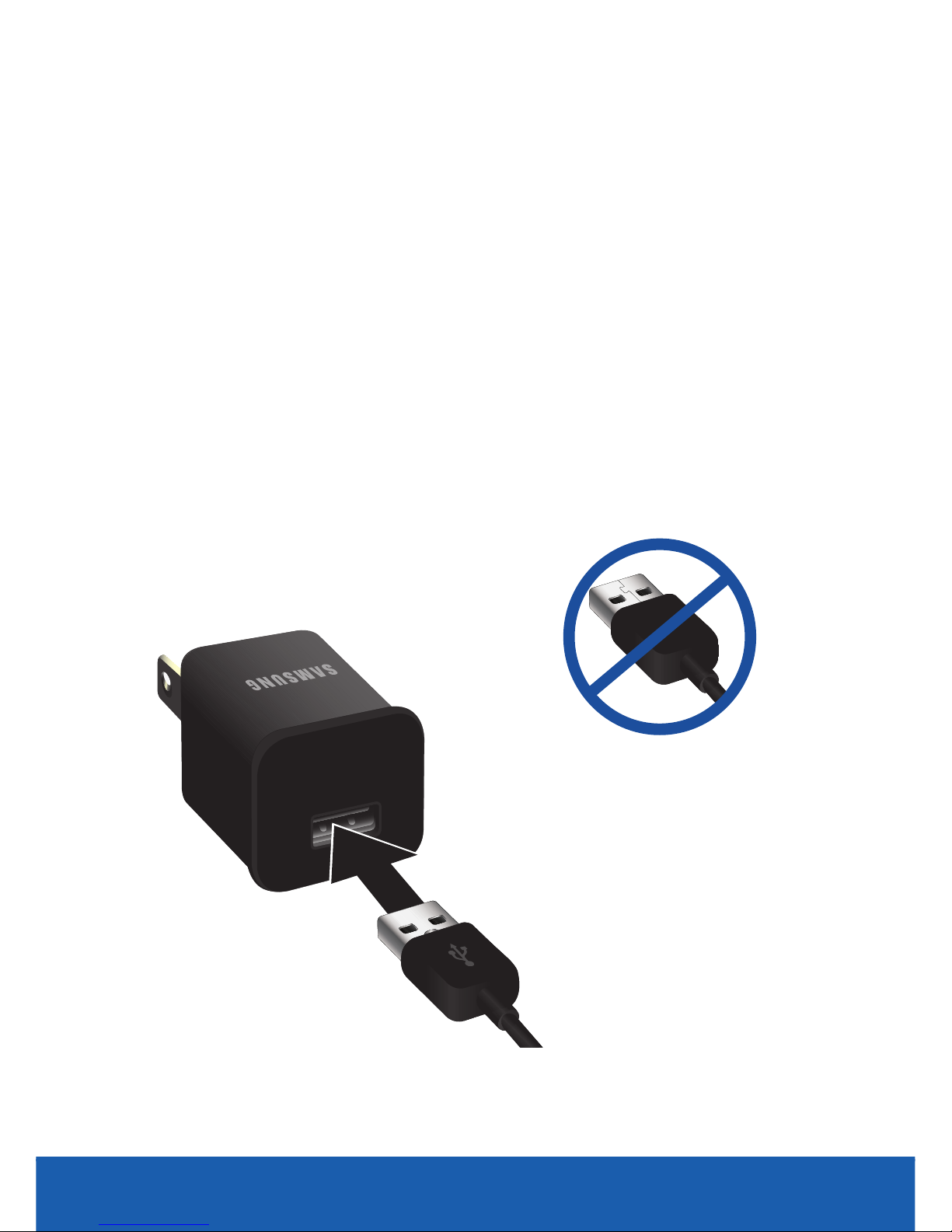

CHARGING YOUR BATTERY
Your device comes with a USB cable and charging
head to rapidly charge your phone from any 120/220
VAC outlet.
NOTE: Although the battery comes partially charged, you must fully
charge this battery before using your phone for the first.
1. Connect the USB cable to the charging head.
2. Plug the charging head into a standard AC
power outlet.
CHARGING HEAD
INCORRECT
CORRECT
YOUR DEVICE
8
CORRECT
9
YOUR DEVICE

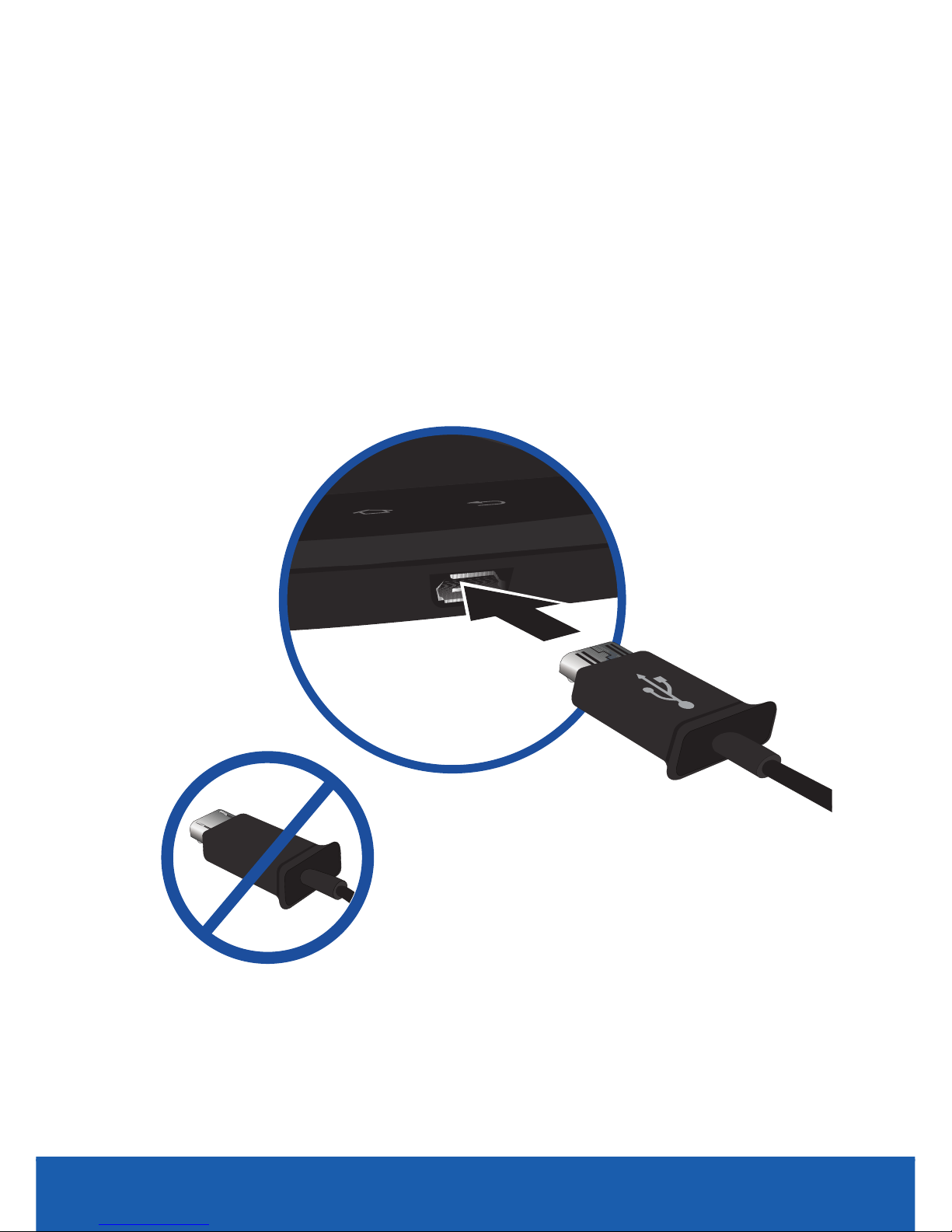

3. Insert the USB cable into the device’s Power/
USB connector. The device turns on with the
screen locked and indicates both its charge
state and percent of charge.
4. Once complete, unplug the charging head from
the power outlet and remove the USB cable
from the device.
INCORRECT
YOUR DEVICE
10
TURNING YOUR PHONE ON OR OFF
To power on your device:
XPress and hold (Power/Lock) until the
device turns on.
To power off your device:
1. Press and hold the (Power/Lock) until
the device options screen appears.
2. Touch Power off.
