Samsung GT-E1117L User manual
GSM TELEPHONE
GT-E1117L
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts List
6. Main Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
instructions
efrcom efrcom
GSPN (Global Service Partner Network)
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast &Africa mea.samsungportal.com
This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2008. 10. Rev.1.0
ⓒ
SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
5-1. Cellular phone Exploded View
SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Discription SEC CODE
QAN02 INTENNA-GTE1117L GH42-01822A
QBA00 ASSY COVER-BATTERY GH98-10940A
QBA01 INNER BATTERY PACK-1000MAH,BLA GH43-02694A
QFR01 ASSY CASE-FRONT GH98-10665A
QKP01 RMO KEY-RUBBER GH73-12295A
QLC01 LCD-1.63 CSTN LCD GH07-01316A
QME01 DOME SHEET-GT-E1110 GH59-06345A
QMI01 MICROPHONE-ASSY-GT_E1110 GH30-00539A
QMO01 MOTOR DC-SCH-S369 GH31-00392A
QMP01 A/S ASSY-GTE1117L GH82-03255A
QMW02 PCT WINDOW-MAIN(FMRADIO) GH72-50996A
QSH01 ICT SHIELD-CAN GH70-04050A
QSP01 SPEAKER 3001-002306
QRE01 ASSY CASE-REAR GH98-10666A
QIF01 PMO COVER-IF V3 GH72-50854A
5-2. Cellular phone Parts list
SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description
0401-001110 ZD300 DIODE-SWITCHING
0401-001110 ZD301 DIODE-SWITCHING
0403-001547 ZD302 DIODE-ZENER
0406-001267 ZD304 DIODE-TVS
0406-001288 ZD100 DIODE-TVS
0406-001288 ZD101 DIODE-TVS
0406-001288 ZD102 DIODE-TVS
0406-001288 ZD103 DIODE-TVS
0406-001306 ZD303 DIODE-TVS
0505-002341 U305 FET-SILICON
0601-002591 LED300 LED
0601-002591 LED301 LED
0601-002591 LED303 LED
0601-002591 LED305 LED
1001-001394 U104 IC-ANALOG SWITCH
1001-001508 U102 IC-ANALOG SWITCH
1003-001440 TR300 IC-RELAY DRIVER
1108-000217 UME200 IC-MCP
1201-002610 U100 IC-AUDIO AMP
1201-002675 U101 IC-AUDIO AMP
1201-002731 PAM100 IC-POWER AMP
1203-005289 U303 IC-DC/DC CONVERTER
1203-005347 U300 IC-POSI.FIXED REG.
1203-005498 U304 IC-VOL. DETECTOR
1204-002979 U103 IC-TUNER
1205-003565 UCP200 IC-MODEM
1404-001221 TH200 THERMISTOR-NTC
2007-000138 R114 R-CHIP
2007-000138 R115 R-CHIP
2007-000138 R130 R-CHIP
2007-000138 R131 R-CHIP
2007-000138 R329 R-CHIP
2007-000138 R331 R-CHIP
2007-000139 R303 R-CHIP
2007-000140 R122 R-CHIP
2007-000141 R100 R-CHIP
2007-000141 R104 R-CHIP
2007-000141 R301 R-CHIP
2007-000141 R305 R-CHIP
2007-000143 R126 R-CHIP
2007-000143 R127 R-CHIP
2007-000146 R109 R-CHIP
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description
2007-000146 R110 R-CHIP
2007-000148 R125 R-CHIP
2007-000148 R128 R-CHIP
2007-000148 R129 R-CHIP
2007-000148 R205 R-CHIP
2007-000148 R208 R-CHIP
2007-000148 R209 R-CHIP
2007-000148 R302 R-CHIP
2007-000162 R200 R-CHIP
2007-000168 R107 R-CHIP
2007-000168 R112 R-CHIP
2007-000171 R105 R-CHIP
2007-000171 R132 R-CHIP
2007-000172 R206 R-CHIP
2007-000172 R328 R-CHIP
2007-000173 R113 R-CHIP
2007-000173 R308 R-CHIP
2007-000174 R311 R-CHIP
2007-001294 R121 R-CHIP
2007-001294 R123 R-CHIP
2007-001333 R321 R-CHIP
2007-003025 R317 R-CHIP
2007-007698 R202 R-CHIP
2007-008500 R324 R-CHIP
2007-009822 R323 R-CHIP
2203-000233 C133 C-CER,CHIP
2203-000386 C100 C-CER,CHIP
2203-000386 C103 C-CER,CHIP
2203-000386 C106 C-CER,CHIP
2203-000627 C300 C-CER,CHIP
2203-000679 C302 C-CER,CHIP
2203-000679 C304 C-CER,CHIP
2203-000679 C305 C-CER,CHIP
2203-000696 C129 C-CER,CHIP
2203-000696 C136 C-CER,CHIP
2203-000696 C138 C-CER,CHIP
2203-000812 C114 C-CER,CHIP
2203-000812 C121 C-CER,CHIP
2203-000812 C311 C-CER,CHIP
2203-000995 C109 C-CER,CHIP
2203-000995 C308 C-CER,CHIP
2203-000995 C309 C-CER,CHIP
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description
2203-001153 C218 C-CER,CHIP
2203-001153 C219 C-CER,CHIP
2203-001153 C220 C-CER,CHIP
2203-001153 C221 C-CER,CHIP
2203-001153 C332 C-CER,CHIP
2203-002525 C115 C-CER,CHIP
2203-002525 C124 C-CER,CHIP
2203-002709 C113 C-CER,CHIP
2203-002709 C131 C-CER,CHIP
2203-002709 C137 C-CER,CHIP
2203-002709 C200 C-CER,CHIP
2203-002709 C201 C-CER,CHIP
2203-002709 C202 C-CER,CHIP
2203-002709 C203 C-CER,CHIP
2203-002709 C215 C-CER,CHIP
2203-002709 C216 C-CER,CHIP
2203-002709 C310 C-CER,CHIP
2203-005057 C128 C-CER,CHIP
2203-005288 C110 C-CER,CHIP
2203-005344 C321 C-CER,CHIP
2203-005395 C134 C-CER,CHIP
2203-005395 C135 C-CER,CHIP
2203-005481 C141 C-CER,CHIP
2203-005481 C142 C-CER,CHIP
2203-006047 C118 C-CER,CHIP
2203-006047 C123 C-CER,CHIP
2203-006048 C102 C-CER,CHIP
2203-006048 C105 C-CER,CHIP
2203-006048 C108 C-CER,CHIP
2203-006048 C119 C-CER,CHIP
2203-006048 C120 C-CER,CHIP
2203-006048 C301 C-CER,CHIP
2203-006048 C303 C-CER,CHIP
2203-006048 C330 C-CER,CHIP
2203-006208 C204 C-CER,CHIP
2203-006208 C206 C-CER,CHIP
2203-006260 C127 C-CER,CHIP
2203-006348 C324 C-CER,CHIP
2203-006348 C326 C-CER,CHIP
2203-006562 C111 C-CER,CHIP
2203-006562 C122 C-CER,CHIP
2203-006562 C125 C-CER,CHIP
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-4
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description
2203-006562 C126 C-CER,CHIP
2203-006562 C132 C-CER,CHIP
2203-006562 C147 C-CER,CHIP
2203-006562 C205 C-CER,CHIP
2203-006562 C207 C-CER,CHIP
2203-006562 C208 C-CER,CHIP
2203-006562 C209 C-CER,CHIP
2203-006562 C210 C-CER,CHIP
2203-006562 C316 C-CER,CHIP
2203-006562 C318 C-CER,CHIP
2203-006562 C320 C-CER,CHIP
2203-006562 C327 C-CER,CHIP
2203-006562 C333 C-CER,CHIP
2203-006562 C334 C-CER,CHIP
2203-006824 C213 C-CER,CHIP
2203-006824 C214 C-CER,CHIP
2203-006841 C323 C-CER,CHIP
2404-001377 C212 C-TA,CHIP
2404-001377 TA100 C-TA,CHIP
2404-001381 TA101 C-TA,CHIP
2404-001381 TA300 C-TA,CHIP
2703-001613 L106 INDUCTOR-SMD
2703-001938 L100 INDUCTOR-SMD
2703-002170 L101 INDUCTOR-SMD
2703-002198 L104 INDUCTOR-SMD
2703-002201 L301 INDUCTOR-SMD
2703-002201 L302 INDUCTOR-SMD
2703-002203 L103 INDUCTOR-SMD
2703-003064 L303 INDUCTOR-SMD
2703-003297 L202 INDUCTOR-SMD
2703-003470 L105 INDUCTOR-SMD
2801-004353 OSC200 CRYSTAL-SMD
2801-004769 OSC201 CRYSTAL-SMD
2904-001731 F100 FILTER-SAW
3001-002306 SPK100 SPEAKER
3301-001158 L200 BEAD-SMD
3301-001729 L108 BEAD-SMD
3301-001729 L109 BEAD-SMD
3301-001812 R312 BEAD-SMD
3301-001812 R313 BEAD-SMD
3301-001812 R332 BEAD-SMD
3301-001812 R333 BEAD-SMD
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-5
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description
3301-001812 R334 BEAD-SMD
3301-001912 L300 BEAD-SMD
3705-001503 RFS100 CONNECTOR-COAXIAL
3709-001384 SIM300 CONNECTOR-CARD EDGE
3710-002683 IFC300 SOCKET-INTERFACE
3711-006084 BTC300 HEADER-BATTERY
GH70-03276A SC100 ICT SHIELD-CAN CLIP
GH70-03276A SC101 ICT SHIELD-CAN CLIP
GH70-03276A SC103 ICT SHIELD-CAN CLIP
GH70-03276A SC104 ICT SHIELD-CAN CLIP
GH70-03276A SC105 ICT SHIELD-CAN CLIP
GH70-03276A SC106 ICT SHIELD-CAN CLIP
GH70-03276A SC107 ICT SHIELD-CAN CLIP
GH70-03276A SC108 ICT SHIELD-CAN CLIP
GH70-03276A SC109 ICT SHIELD-CAN CLIP
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's part list.
SAMSUNG Proprietary-Contents may change without notice
7. Block Diagrams
7-1
This Document can not be used without Samsung's authorization

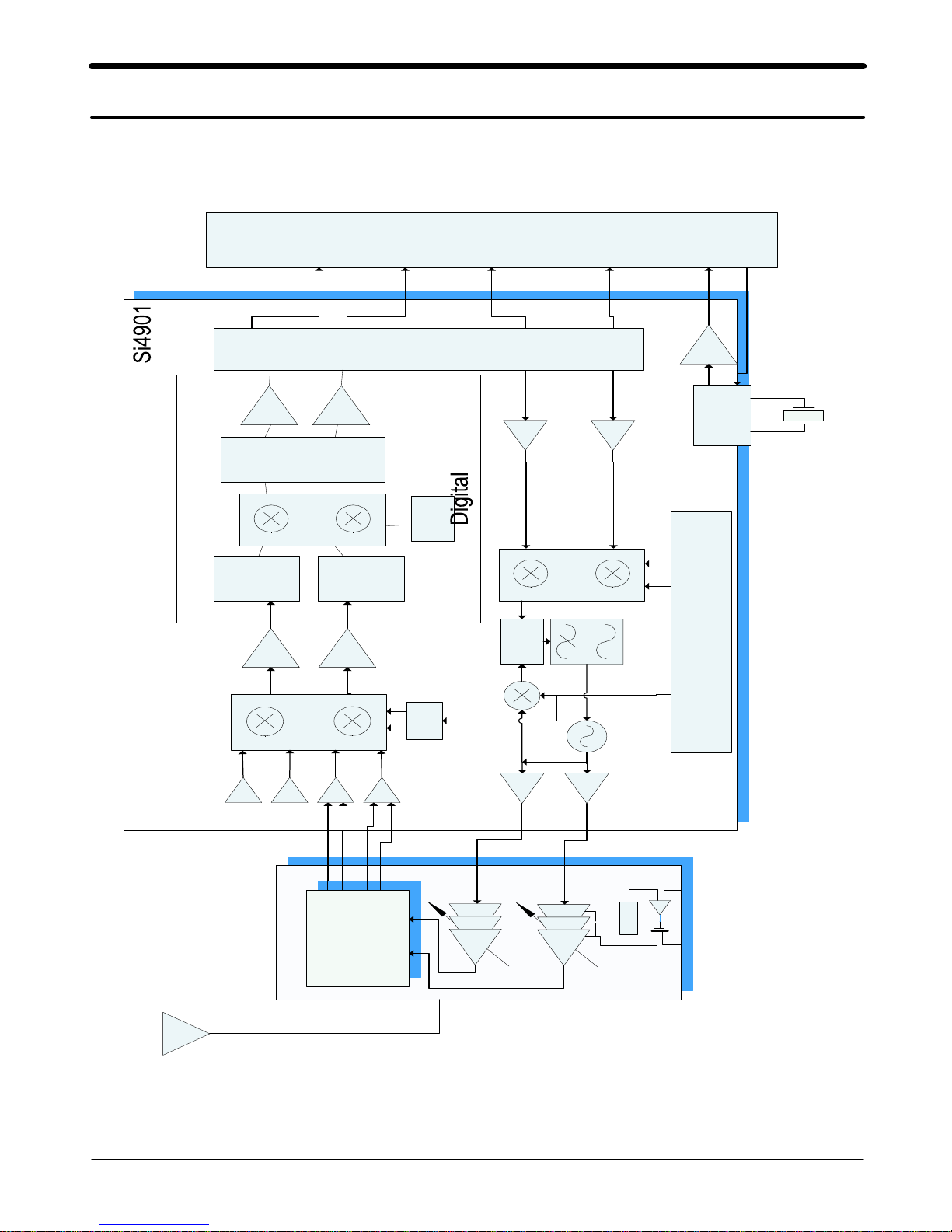

7-1. RF Solution Block Diagram
eludoMxT
MSALAUD
)SCD,MSG(
ANL
ANL
ANL
ANL
D
I
GIT
A
L
F
I
L
T
E
R
RFR
X
YCNEUQERF+OCV
REZISEHTNYS
ф
TED
OXCD
09/0
D
S
P
AGP
AGP
I
CDA
Q
CDA
AGP
AGP
FI-woL
TUOX
CFA
Q
I
latsyrC
an
n
et
n
A
xTMSGE
xTSCD
