Samsung GT-C3530 User manual

GSM TELEPHONE

GT-C3530

1. Safety Precautions

2. Specification

3. Product Function

4. Exploded View and Parts list

5. MAIN Electrical Parts List

6. Level 1Repair

7. Disassembly and Assembly

Instructions

8. Chart of Troubleshooting

9. Reference data

Notice :

All functionality, features, specifications and other

product information provided in this document inclu

ding, but not limited to, the benefits, design, pricing,

components, performance, availability, and capabiliti

-es of the product are subject to change without

notice or obligation. Samsung reserves the right to

make changes to this document and the product

described herein, at anytime, without obligation on

Samsung to provide notification of such change.

GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable

International and/or domestic law.

Samsung Electronics Co.,Ltd.

2010. 10. Rev.1.0

ⓒ

Country Web Site

North America service.samsungportal.com

Latin America latin.samsungportal.com

CIS cis.samsungportal.com

Europe europe.samsungportal.com

China china.samsungportal.com

Asia asia.samsungportal.com

Mideast &Africa mea.samsungportal.com

GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice

8. Level 3Repair

8-1

This Document can not be used without Samsung's authorization

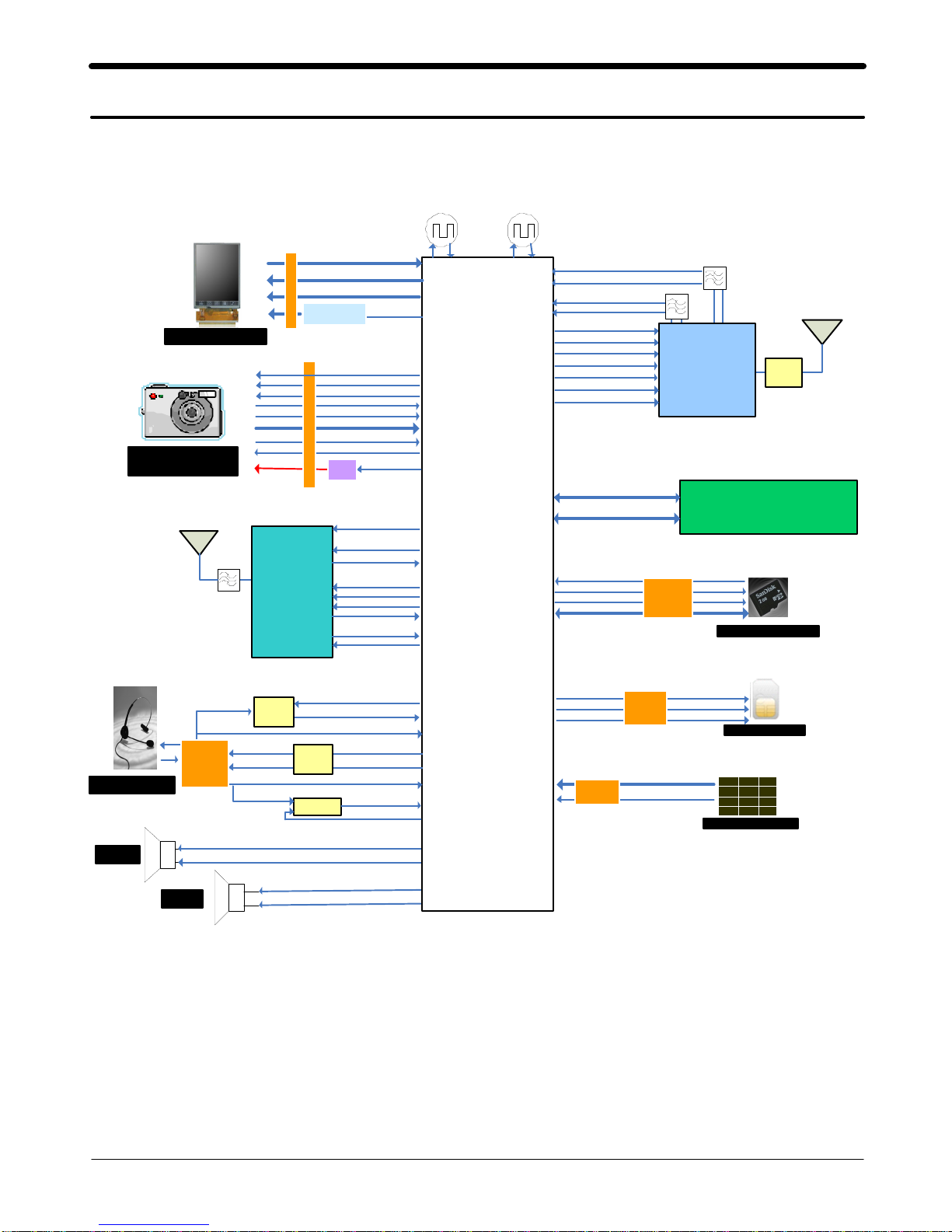

8-1. Block Diagram

RCV_N

RCV_P

SPK _P

SP K _N

SPK

KEY_ROW(0:4)

KEY_COL(0:4)

MAINKEY

CON

Main Key

Base Band

Catfish213

PMB8810

TCXO

BS1

BS2

TX_EN

VL OGI C

RAMP

LB _TX

HB_TX

Main ANT

GSM850_RX

GSM900_RX

DCS1800_RX

PCS1 9 00_ RX

SAW

2G PAM

SWITCH

Module

RF7161

SAW

RCV

SEN D_END_D IR EC T

SI M_ R ST

SIM_C LK

SI M Card

SI M _ I O

SIM

So ck e t

SD _DA TA(0:3)

SD_C LK T-F LA SH

Socket

DETECT _SD

T-FLA SH Card

SD_CMD

ONKEY_N

1 2 3

4 5 6

7 8 9

＊ 0 #

AD (0: 1 5 )

A(16:26)

256 NOR/1G On eN a n d /256 UtRAM

MEMORY

KAP202N00 M-B WE W

26MHz RTC 32.736KHz

EN_LC D_BL

CAM_SD A

CAM_ RST

CAM _HSYN C

CAM_VSYNC

CAM_DATA(0:7)

CAM

LDO

CAM_ MCLK_OUT

CAM_PC LK_ IN

EN _C AM_ PW R

CA M _C ON

3 ME GA

CAM Module

CAM_SCL

CLK26M_BT

BC63B239A04

BT_ R EQ_ CL K

BT _RST

PCM_CL K

PCM _S YNC

PCM_T XD

PCM _RX D

UART2_TXD

UART2_RXD

SAW

BT ANT

EAR PHONE

FM_LNA_SW

FM_LNA_OUT

COMP

FM_ANT_EAR FM

LNA

EA R _ S PK _ L

EAR_SPK_R

EAR _MIC_P

SE N D _ EN D

3.5_ CON_D ET ECT

EAR _SW

EA R

AMP

EAR _3 .5_L

EAR _3. 5_R

3.5pi

Soc ket

BA CKLIGHT

DRIVER

LCD_CON

LCD _RS,C S,WR,RD

FLM,LCD_RST

LCD _D(0: 7)

LCD Module

SAMSUNG Proprietary-Contents may change without notice

Level 3Repair

8-2

This Document can not be used without Samsung's authorization

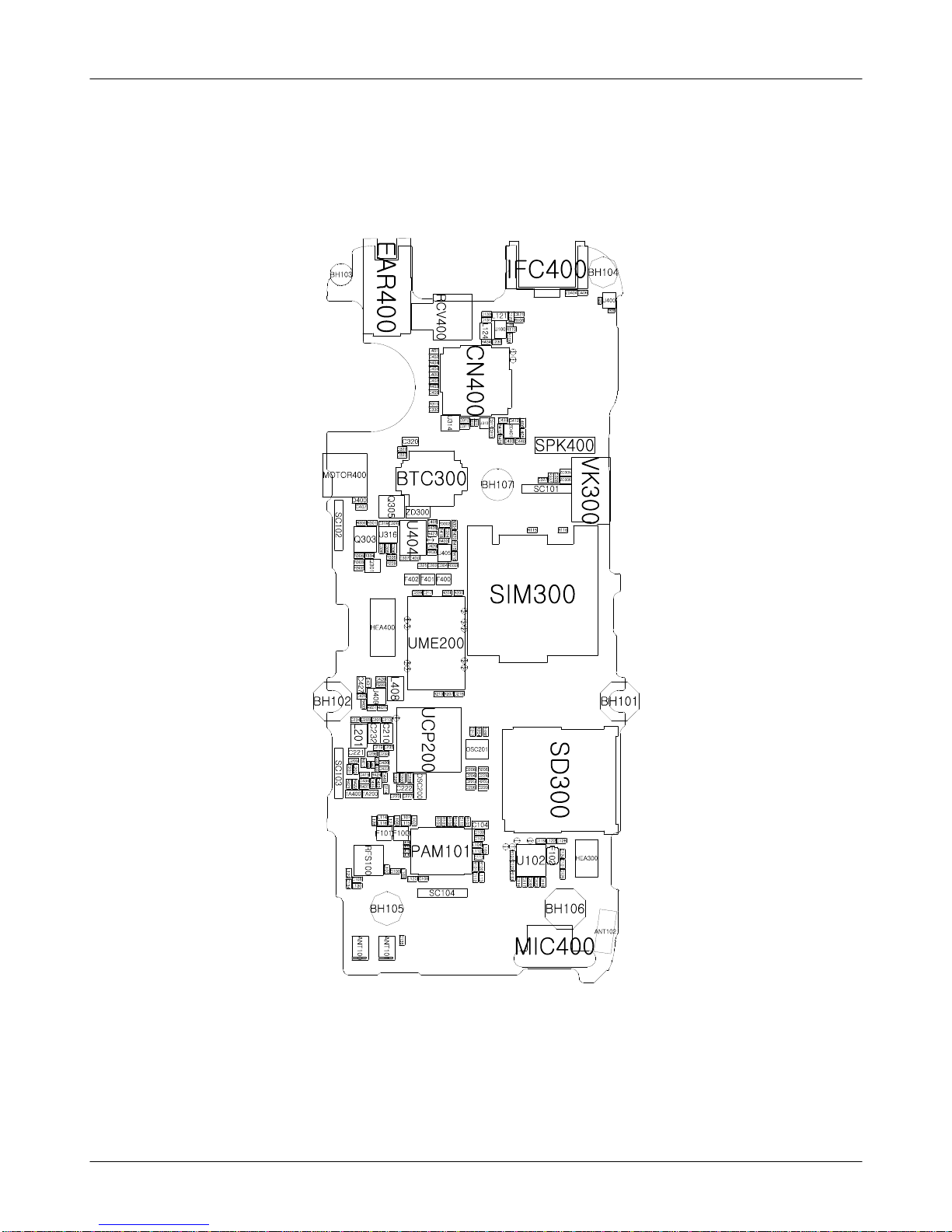

8-2. PCB Diagrams

8-2-1. Top

SAMSUNG Proprietary-Contents may change without notice

Level 3Repair

8-3

This Document can not be used without Samsung's authorization

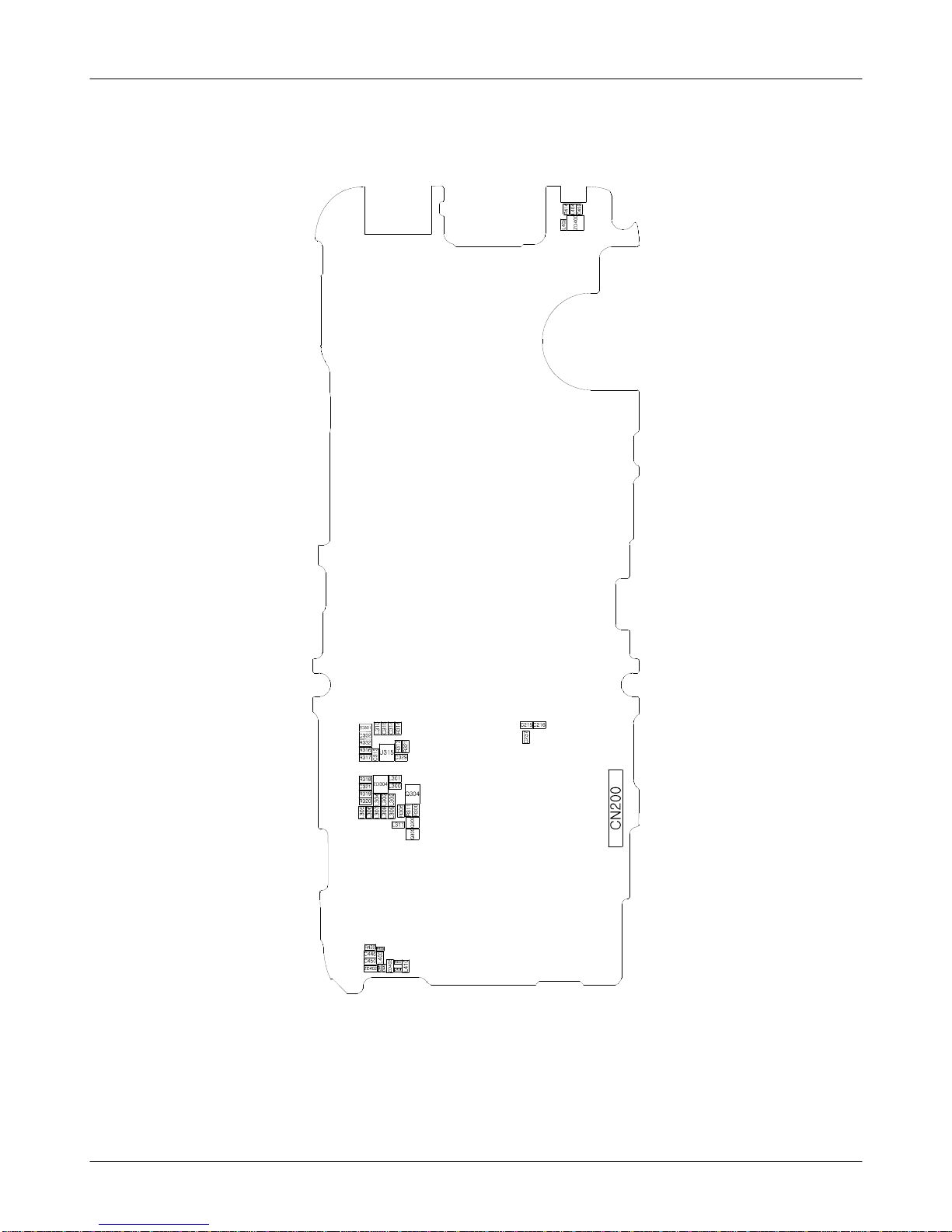

8-2-1. Bottom

SAMSUNG Proprietary-Contents may change without notice

Level 3Repair

8-4

This Document can not be used without Samsung's authorization

8-3. Flow Chart of Troubleshooting

（presetting methods for checking TP

-GND &TP(exp. VBAT=C210, C210, C320)using Oscilloscope

-look over the coming out signal.

Oscilloscope

SAMSUNG Proprietary-Contents may change without notice

Level 3Repair

8-5

This Document can not be used without Samsung's authorization

Multi-meter

Checking the TP(test point) using Multi-meter

-EX) to look up the TP, shunt Cap. -if checking the GND, you can listen "beep"

if checking the Signal, you can't listen it.

SAMSUNG Proprietary-Contents may change without notice

Level 3Repair

8-6

This Document can not be used without Samsung's authorization

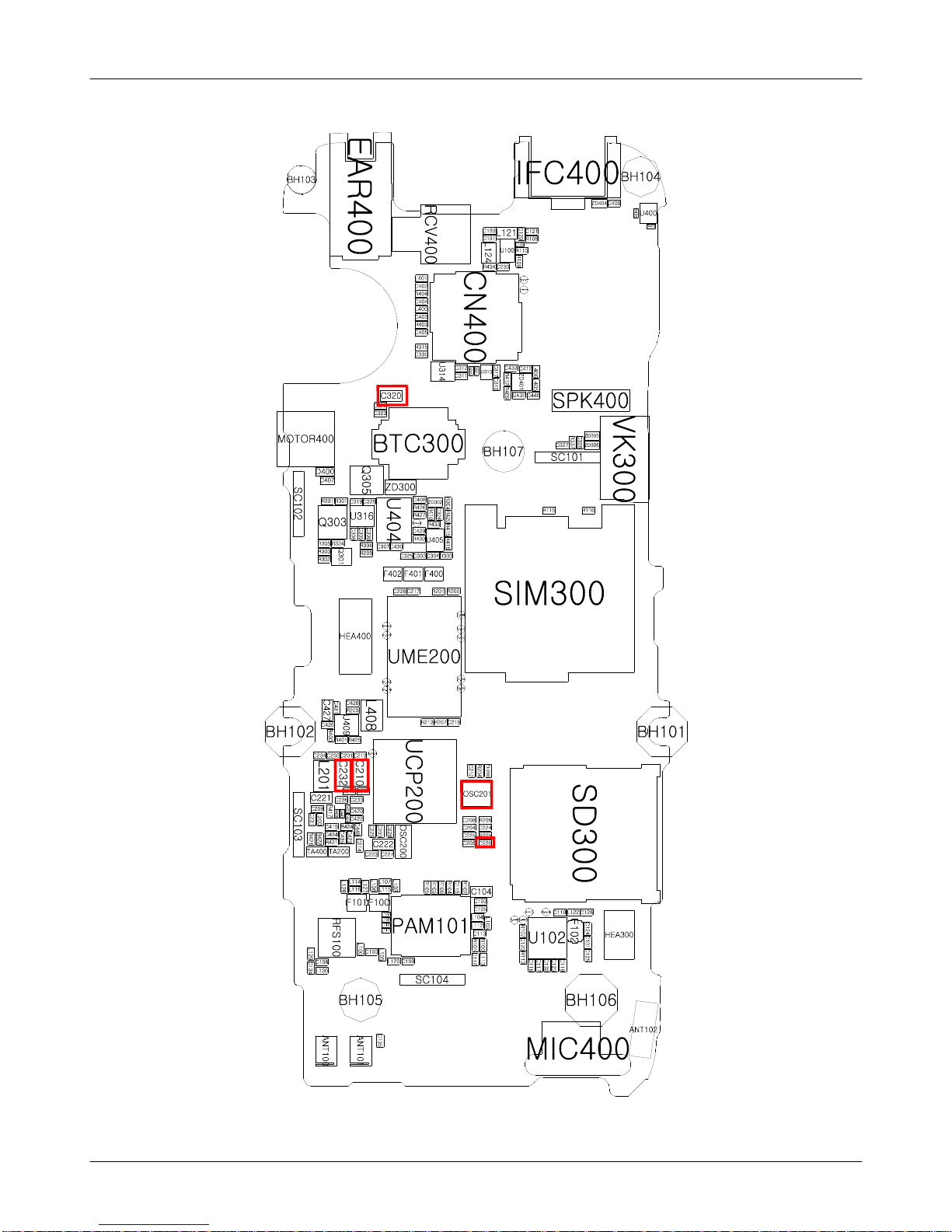

8-3-1. Power On

Check the Battery Voltage

is more than 3.7V

(TP:C210 C220, C320)

'Power On 'does not work

Change the Battery

(Because of low batt. power)

END

Yes

VDD_1.8V =1.8V?

(TP: C232) Check the UCP200 is demaged.

Yes

Check the Clock at

UCP200 A11pin

(CLK26M)=26MHZ

(TP:OSC201 1,3pin)Change the OSC201.

Yes

Check the UCP200 is demaged.

Yes

SAMSUNG Proprietary-Contents may change without notice

Level 3Repair

8-7

This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice

Level 3Repair

8-8

This Document can not be used without Samsung's authorization
