Samsung AC45EP0E User manual

OWNER’S

INSTRUCTIONS

AIR CLEANER

DB68-02512A(1)

AC45EP0E

Safety Precautions

The following safety precautions must be taken when using your air cleaner.

1 The air cleaner must be installed in accordance with national wiring regulations and safety regulations

wherever applicable.

2 Some installation locations may require installation of a short circuit breaker or grounding.

3 If the supply cord is damaged, it must be replaced by a specialist or service person.

4 MAKE sure that the unit is correctly ventilated at all times: do NOT place clothing or other materials over it.

5 NEVER spill any kind of liquid into the unit. Should this happen, unplug the unit and contact an authorized

service center.

6 Do NOT insert anything between the air outlet blades because the inner fan may be damaged and could

cause injury. Keep children away from the unit.

7 Do NOT place any obstacles in front of the unit.

8 Users of this product are cautioned not to attempt repairs. Instead, they are requested to directly contact a

designated service center or the outlet at which the product was purchased.

9 Use of an extension cord is not recommended if use of extension cord, it shall the use of cord with

grounding conduct and comply with national wiring regulations.

10 The appliance is not intended for use by young children without supervision; young children should be

supervised to ensure that they do not play with the appliance.

11 Never store or ship the air cleaner upside down or sideways to avoid damage to the unit.

12 If the remote control will not be used for a long time, remove the batteries.

The manufacturer does not assume responsibility of the accident or injury caused by an

incorrectly installed air cleaner. If you are unsure about installation, contact an installation

specialist.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

Contents

◆◆

REPARING YOUR AIR CLEANER

■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ Remote Control-Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

■ Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . . . . . . . 8

◆◆

PERATING YOUR AIR CLEANER

■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . . . . . . . . 9

■ Adjusting the Fan Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

■ Adjusting the Air Flow Direction Vertically . . . . . . . . . . . . . . . . . . . . . . .11

■ Adjusting the Air Flow Direction Horizontally . . . . . . . . . . . . . . . . . . . . .11

■ Setting the Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

◆◆

ECOMMENDATIONS FOR USE

■ Setting the Sensitivity & Cleaning Cycle . . . . . . . . . . . . . . . . . . . . . . . .13

■ Power Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

■ CleaningYour Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

◆◆

ECHNICAL SPECIFICATIONS

View of the Unit

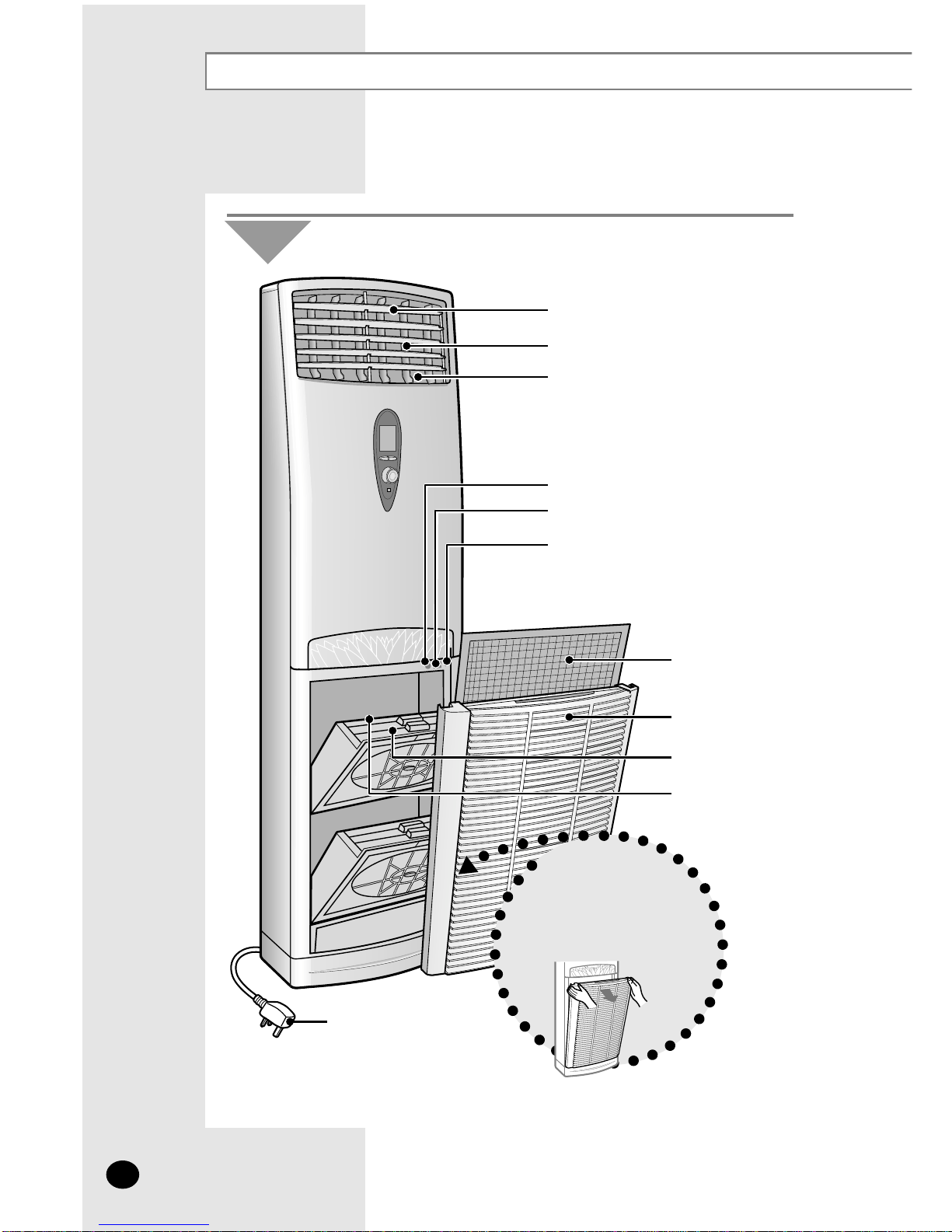

Unit

How to open the front grille

◆Hold the upper part of the

grille, then pull it slightly

forward.(Do not open the

grille during the operation.)

Outer air flow blades

(up/down orientation)

Inner air flow blades

(right/left orientation)

Air outlet

Pollution detection sensor

Filter reset button

Switches for setting sensitivity &

Cleaning cycle

Ionizer filter

Deodorizing filter(Carbon filter)

Air filter

Power plug

Air inlet

Control Panel You can operate the air cleaner with the control panel when you do not wish to

or cannot operate the air cleaner with a remote control.

Deodorizing indicator

Clean level display

Automatic mode indicator

Fan speed

Grille open indicator

Cleaning the Ionizer filter indicator

Fan speed adjustment button

Timer setting dial

On/Off button

Remote control sensor

Timer setting

Cleaning the

deodorizing filter

indicator

Automatic mode

selection button

Remote Control - Buttons

Automatic mode

selection button

Timer setting button

On/Off button

Fan speed adjustment

buttons

Getting Started

You have just purchased an air cleaner and it has been

installed by your installation specialist.

Your Owner’s Instructions contain valuable information on using your

air cleaner. Please take the time to read them as they will help you take full

advantage of the unit’s features.

The booklet is organized as follows.

◆◆The following figures are shown on pages from 4 and 5 :

- View of the unit

- Remote control (buttons)

They will help you find the buttons and understand the symbols displayed.

◆◆In the main part of the document, you will find a series of step-by-step

procedures for each function available.

The illustrations in the step-by-step procedures use 4 different symbols:

PRESS PUSH IMPORTANT NOTE

☛

➢

Inserting the Remote Control Batteries

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

◆+ on the battery with + on the remote control.

◆- on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into place.

◆Use two AAA, LR03 1.5V batteries.

◆Do not use old batteries or different kinds of batteries together.

◆Batteries may be completely discharged after 12 months, even

◆if they have not actually been used.

You must insert or replace the remote control batteries when :

◆You purchase the air cleaner

◆The remote control does not work correctly

➢

Selecting the Automatic Operating Mode

You can start the air cleaner in the Automatic mode from your remote

control. In the Automatic mode, the optimum fan speed is selected

automatically.

Press .

Result:◆The air cleaner runs in the Automatic mode.

◆The unit beeps.

If you adjust the fan speed in the Automatic mode, the mode

will be cancelled.To adjust the fan speed, refer to page 10.

If necessary, press the (On/Off) button.

Result:◆The DEODO.and AUTOMATIC indicators on the unit come on.

◆The air cleaner starts up in the Automatic mode.

◆The unit beeps.

The air cleaner checks the level of air pollution, then displays it

after about 1 minute from starting.

◆Red means that the air is impure.

◆Green means that the air is clean.

☛

➢

To control the direction of the air flow, refer to page 11.

Adjusting the Fan Speed

Result:◆

The fan speed is adjusted depending on your selection.

◆

The unit beeps.

You wish to clean the air quickly

in your room.

In this case... Press...

Then, the control

panel will show you...

There is tobacco smoke or dust

in your room.

When you want to clean the

air lightly at ordinary times.

High

Medium

Low
