INSTRUCTIONS AND WARRANTY

MODEL NO. 18258S

RUSSELL HOBBS 1,7L LEGACY KETTLE

Congratulations on purchasing our Russell Hobbs 1,7L Legacy Kettle. Each unit is

manufactured to ensure safety and reliability. Before using this appliance for the first

time, please read the instruction manual carefully and keep it for future reference.

FEATURES OF THE RUSSELL HOBBS 1,7L LEGACY KETTLE

Special 60th anniversary kettle

Stylish kettle with Russell Hobbs embossed logo

Easy pour and easy carry handle

Rapid boil zone feature

Boil 1 cup in 55 seconds*

Save up to 66% energy**

Denoting 1/2/3cup volumes

Perfect pour spout

Power on indicator

1.7L capacity

360° base with cord storage

Concealed heating element

Removable, washable anti-scale filter

Water level gauge

Auto switch off

2400W

For domestic use only

1 year warranty

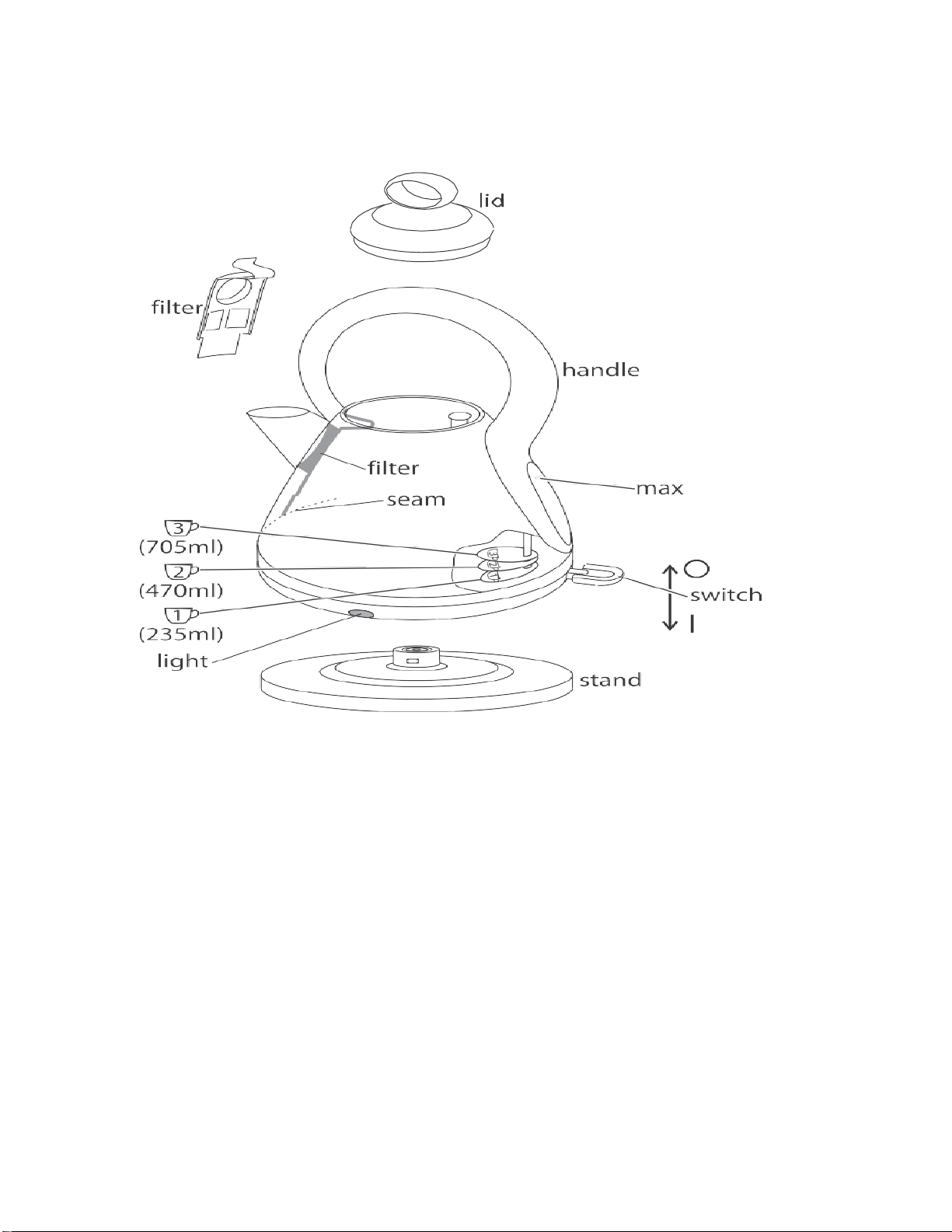

PARTS DIAGRAM

IMPORTANT SAFEGUARDS

When using any electrical appliance, basic safety precautions should always be followed

including the following:

1. Please read the instructions carefully before using any appliance.

2. Always ensure that the voltage on the rating label corresponds to the mains

voltage in your home.

3. Incorrect operation and improper use can damage the appliance and cause injury

to the user.

4. The appliance is intended for household use only. Commercial use invalidates

the warranty and the supplier can not be held responsible for injury or damage

caused when using the appliance for any other purpose than that intended.

5. Avoid any contact with moving parts.

6. This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

7. Children should be supervised to ensure that they do not play with the appliance.

8. Check the power cord and plug regularly for any damage. If the cord or the plug

is damaged, it must be replaced by the manufacturer or a qualified person in

order to avoid an electrical hazard.

9. Do not use the appliance if it has been dropped or damaged in any way. In case

of damage, take the unit in for examination and/or repair by an authorised service

agent.

10. Do not open the lid while the kettle is in use.

11. Only fill the kettle with cold water. Do not fill the kettle above the MAX level (1.7L)

or else boiling water may splash out if overfilled.

12. Unplug from outlet when not in use and before cleaning. Allow it to cool down

completely before cleaning the appliance.

13. Do not insert any objects into holes or slots in this appliance.

14. To reduce the risk of electric shock, do not immerse or expose the motor

assembly, plug or the power cord to water or any other liquid.

15. Never immerse the unit in water or any other liquid for cleaning purposes. Do not

allow liquid to penetrate into the electrical parts of this kettle.

16. Remove the plug from the socket by gripping the plug. Do not pull on the cord to

disconnect the appliance from the mains. Always unplug the unit when not in

use, before cleaning or when adding or removing parts.

17. The use of accessory attachments that are not recommended or supplied by the

manufacturer may result in injuries, fire or electric shock. The kettle is only to be

used with the base provided.

18. A short cord is provided to reduce the hazards resulting from becoming

entangled in or tripping over a longer cord.

19. Do not let the cord hang over the edge of a table or counter. Ensure that the cord

is not in a position where it can be pulled on inadvertently.

20. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas

or electric burner or in a heated oven.

21. Cleaning and user maintenance shall not be made by children unless they are

older than 8 years and supervised. Keep the appliance and its cord away from

reach of children aged less than 8 years old.

22. Keep the device and the cable away from heat, direct sunlight, moisture, sharp

edges and the like.

23. Do not use the appliance on a gas or electric cooking top or over or near an open

flame.

24. Use of an extension cord with this appliance is not recommended. However, if it

is necessary to use an extension lead, ensure that the lead is suited to the power

consumption of the appliance to avoid overheating of the extension cord,

appliance or plug point. Remember to not place the extension cord in a position

where it can be pulled on by children or animals or tripped over.

25. This appliance is not suitable for outdoor use. Do not use this appliance for

anything other than its intended use.

26. DO NOT carry the appliance by the power cord.

27. Do not leave this appliance unattended during use. Always unplug the unit when

not in use or before cleaning.

28. Always operate the appliance on a smooth, even, stable surface. Do not place

the unit on a hot surface.

29. Ensure that the switch is in the “Off” position after each use.

30. The manufacturer does not accept responsibility for any damage or injury caused

by improper or incorrect use, or for repairs carried out by unauthorised

personnel.

31. In case of technical problems, switch off the machine and do not attempt to repair

it yourself. Return the appliance to an authorised service facility for examination,

adjustment or repair. Always insist on the use of original spare parts. Failure to

comply with the above mentioned pre-cautions and instructions, could affect the

safe operation of this machine.

32. Take care when pouring –pour slowly, and don’t over-tilt the kettle.

33. Wind excess cable beneath the base.

34. Check that the lid is fully closed before switching the kettle on - otherwise it may

not switch off.

35. Check the kettle is properly located on the base before switching on.

36. Do not switch on unless the kettle contains at least 2 cups of water.

37. Do not fill past the MAX level, or it may eject boiling water.

38. Remove the kettle from its base before filling or pouring.

39. This appliance must not be operated by an external timer or remote control

system.

40. Do not put the kettle or its base on a wet place/surface or in water –do not

operate it with wet hands.

OPERATING INSTRUCTIONS

PREPARATION FOR USE

Carefully remove your kettle from the box. You may wish to retain the packaging for

further use.

BEFORE USING THE KETTLE FOR THE FIRST TIME

Before first use, fill the kettle with cold water to the MAX water level mark, bring

to boil and discard the boiling water –do this twice. This will ensure that any

residues left over from the manufacturing process are completely removed.

POSITIONING THE KETTLE

Position the power base on a dry flat surface away from any potential heat

source.

The underside of the power base is fitted with a cable storage feature. Unwind

the length of the mains cable required to reach the mains socket.

Ensure the mains cable does not hang over the work surface edge.

FILLING THE KETTLE

Remove the kettle from the power base.

Open the lid by pressing the lid release button.

Fill the kettle between the MIN and MAX markings on the water level indicator

with cold water.

Close the lid and place the kettle back on the power base. Make sure the lid is

securely closed before boiling.

Always remove the kettle from the power base before filling. Do not fill the kettle

above the MAX mark or below the MIN mark on the water gauge.

SWITCHING ON

Position the kettle on the power base.

Plug the kettle into a mains supply socket.

To start boiling the kettle, press the on/off switch down to “1” (on) position.

The power indicator light will illuminate and the kettle will start to boil.

Never open the lid during boiling.

Do not operate this kettle without the filter fitted.

Please beware of escaping steam from the lid of the kettle when in use.

USAGE STEPS

Put the power base on a flat table.

Push the button lightly to open the lid and fill in a proper amount of water. Close

the lid and put the kettle on the power base.

Connect the power cord into a suitable power outlet.

Move the switch to the “ON” position. The indicating light will go on indicating that

the heating and boiling process has begun.

Once the water has boiled, the switch will move to the “OFF” position. Disconnect

the kettle from the power supply and the indicating light will go off.

During boiling, you can move the switch to the “OFF” mark with your hand to cut

the power supply.

Pour out the water only after you have lifted the kettle from the base.

The kettle can be put on the power base but with power supply disconnected

after using.

BOIL DRY HEATING PROTECTION

If you have forgotten to add water or the water inside is below the minimum

accepted level, the metal sheet for dry heating protection of the temperature

controller will disconnect automatically when the kettle is switched on in order to

protect the kettle from being damaged by dry heating.

If the above situation happens, please turn off the power supply, unplug the kettle

and wait 10 minutes for it to cool down. Once this is done, the temperature

controller connects and the kettle will operate normally again.

Note: Do not add cold water in the kettle in an attempt to cool it down quicker –this will

decrease the life span of the kettle’s heating plate.

SWITCHING OFF

When the water has boiled, the kettle will switch off automatically. You can stop

the boiling process at any time by lifting the on/off switch to the “0” (off) position

or lifting the kettle off the base.

GENERAL

Always remove the kettle from the base before pouring.

To avoid the risk of splashing, pour slowly and do not over-tilt the kettle.

Do not tilt the kettle backwards - water might get on to the control area. If this

happens, let the kettle dry thoroughly before use –place it somewhere warm for

12 hours.

When you lift the kettle, you may see moisture on the base. Do not worry –it’s

the steam used to switch the kettle off automatically, which then condenses and

escapes via vents under the kettle.

You may see some discolouration on the floor of the kettle. Again, do not worry –

it is due to the bonding of the element to the kettle floor.

CLEANING AND MAINTENANCE

This appliance is for household use only and is not user-serviceable.

Do not open or change any parts by yourself. Please refer to a qualified electrical

service department or return to the supplier if servicing is necessary.

Always remember to unplug the unit from the electrical outlet when not in use

and before cleaning.

Do not immerse the appliance in water or any other liquid, or hold it under a

running tap to clean.

To remove stubborn spots/marks, wipe the surfaces with a cloth slightly

dampened in soapy water or mild non-abrasive cleaner. Rinse and dry with a

clean, dry, soft cloth.

Unplug the base from the wall socket, and let the kettle cool down before

cleaning.

Wipe the kettle, inside and out, with a damp cloth. You may use a little household

detergent, but if you do, rinse well to avoid tainting the water.

Wipe the base with a damp cloth.

Keep all connectors and sockets dry.

Do not immerse the kettle or kettle base in liquid.

Do not use harsh or abrasive cleaning agents or solvents.

We recommend that you descale your kettle regularly, even in soft water areas. Lime

scale may be white, coloured, or even rusty-looking, but it is normally visible. Phosphate

scale is not generally visible, but there is always a build-up, even in soft water areas.

Any build-up of scale causes overheating, which reduces the life of the element, and

may trigger the boil-dry cut-out to engage. So, even in a soft water area, descale at least

monthly, to help keep your kettle in working order.

To descale your kettle:

Use a descaler suitable for plastic products (all kettles have plastic parts). Follow

the instructions on the descaler, then rinse several times, fill, boil and discard the

water, to remove all chemical residues.

Products returned under guarantee with faults related to scale will be subject to a

repair charge.

If you notice your kettle getting noisier –descale it.

Do not rely on visible scale, as phosphate scale is not visible. Rather descale the

kettle for preventative purposes.

Do not try to move or remove the diffuser –you will break it.

Water filter:

Scale particles suspended in the water may give it a cloudy or greasy

appearance.

The filter will prevent these particles going into your drink. If you see deposits on

the filter, clean it, otherwise the performance of your kettle will drop, your drinks

may contain scale, and the water inside the kettle may look cloudy.

Cleaning the filter:

The filter is located inside the kettle behind the spout.

With the lid open, gently pull the filter out of its retaining slot.

Lift the filter out of the kettle.

Rinse the filter in warm water and gently remove any scale with a soft brush.

To replace the filter, slide it down into its slot until it clicks into place.

Removing mineral deposits

Decalcification refers to removing the calcium deposits which may form on the

interior metal parts of the kettle.

To get the best performance from your kettle, descale your kettle from time to

time. Frequency depends on the hardness of your tap water and how often you

use the kettle.

We suggest use of a kettle descaler in order to dissolve chalky deposits or scale.

Follow the directions on the descaler package. If a commercial descaler is not

available, fill the kettle with enough white vinegar to cover the bottom by about

1.5cm. Bring the vinegar to a boil. You may need to repeat this several times with

cooled vinegar to remove the calcium build-up completely. When the descaling

process is complete, empty the kettle and rinse out several times with clean

water.

STORING THE APPLIANCE

Unplug the unit from the electrical outlet and clean all the parts as instructed

above. Ensure that all parts are dry before storing.

Store the appliance in its box or in a clean, dry place.

Never store the appliance while it is still wet or dirty.

Never wrap the power cord around the appliance.

SERVICING THE APPLIANCE

There are no user serviceable parts in this appliance. If the unit is not operating

correctly, please check the following:

You have followed the instructions correctly

That the unit has been wired correctly and that the wall socket is switched on.

Table of contents

Languages:

Other Russell Hobbs Kettle manuals

Russell Hobbs

Russell Hobbs 23331 User manual

Russell Hobbs

Russell Hobbs STUDIO RHK132 Series User manual

Russell Hobbs

Russell Hobbs Brita 20760-70 User manual

Russell Hobbs

Russell Hobbs 20194-70 User manual

Russell Hobbs

Russell Hobbs 14684 User manual

Russell Hobbs

Russell Hobbs 21040-56 User manual

Russell Hobbs

Russell Hobbs RHK2 Manual

Russell Hobbs

Russell Hobbs 23760 User manual

Russell Hobbs

Russell Hobbs 13949-10 Product information sheet

Russell Hobbs

Russell Hobbs 25240-70 User manual

Russell Hobbs

Russell Hobbs 18554-70 User manual

Russell Hobbs

Russell Hobbs RHSILK-8B Installation guide

Russell Hobbs

Russell Hobbs 13994 Product information sheet

Russell Hobbs

Russell Hobbs Inspire 24361-70 User manual

Russell Hobbs

Russell Hobbs 13355 User manual

Russell Hobbs

Russell Hobbs Colours Plus+ Flame Red 20412-70 User manual

Russell Hobbs

Russell Hobbs 24990-70 User manual

Russell Hobbs

Russell Hobbs 18941 Series Installation guide

Russell Hobbs

Russell Hobbs 20195-70 User manual

Russell Hobbs

Russell Hobbs 18256-56 User manual

Russell Hobbs

Russell Hobbs 3434020 User manual

Russell Hobbs

Russell Hobbs 21281-70 User manual

Russell Hobbs

Russell Hobbs MONTANA 10586 Installation guide

Russell Hobbs

Russell Hobbs 26960-70 User manual

Popular Kettle manuals by other brands

IKEA

IKEA UPPHETTA manual

Krups

Krups BW500B55 manual

Clas Ohlson

Clas Ohlson KE7086-BH instruction manual

Brock

Brock WK 0902 GR manual

inventum

inventum CBW010 instruction manual

Westfalia

Westfalia Retro 81 48 86 instruction manual

Ovente

Ovente KS88 Series Faqs

HUSLOG

HUSLOG AK-0832 user manual

Saturn

Saturn ST-EK840 manual

Wilfa

Wilfa TK-1200B operating instructions

HOME ELEMENT

HOME ELEMENT HE-KT150 user manual

Breville

Breville Crystal Clear BKE290 Instruction booklet

ECG

ECG RK 1745 instruction manual

cecotec

cecotec THERMOSENSE 600 TOUCH BLACK instruction manual

Kalorik

Kalorik JK 39825 operating instructions

tomado

tomado TM-1971 instruction manual

Cosori

Cosori CS108-NK user manual

Electrolux

Electrolux E7K1-6BP user manual
