Ruijie RG-S8600 Series User manual

RG-S8600 Series Switches

Quick Installation Guide V16.0

Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification,

transmission, translation or commercial use of this document or any portion of this document, in any form or by any means,

without the prior written consent of Ruijie Networks is prohibited.

, , , , ,

, ,, ,

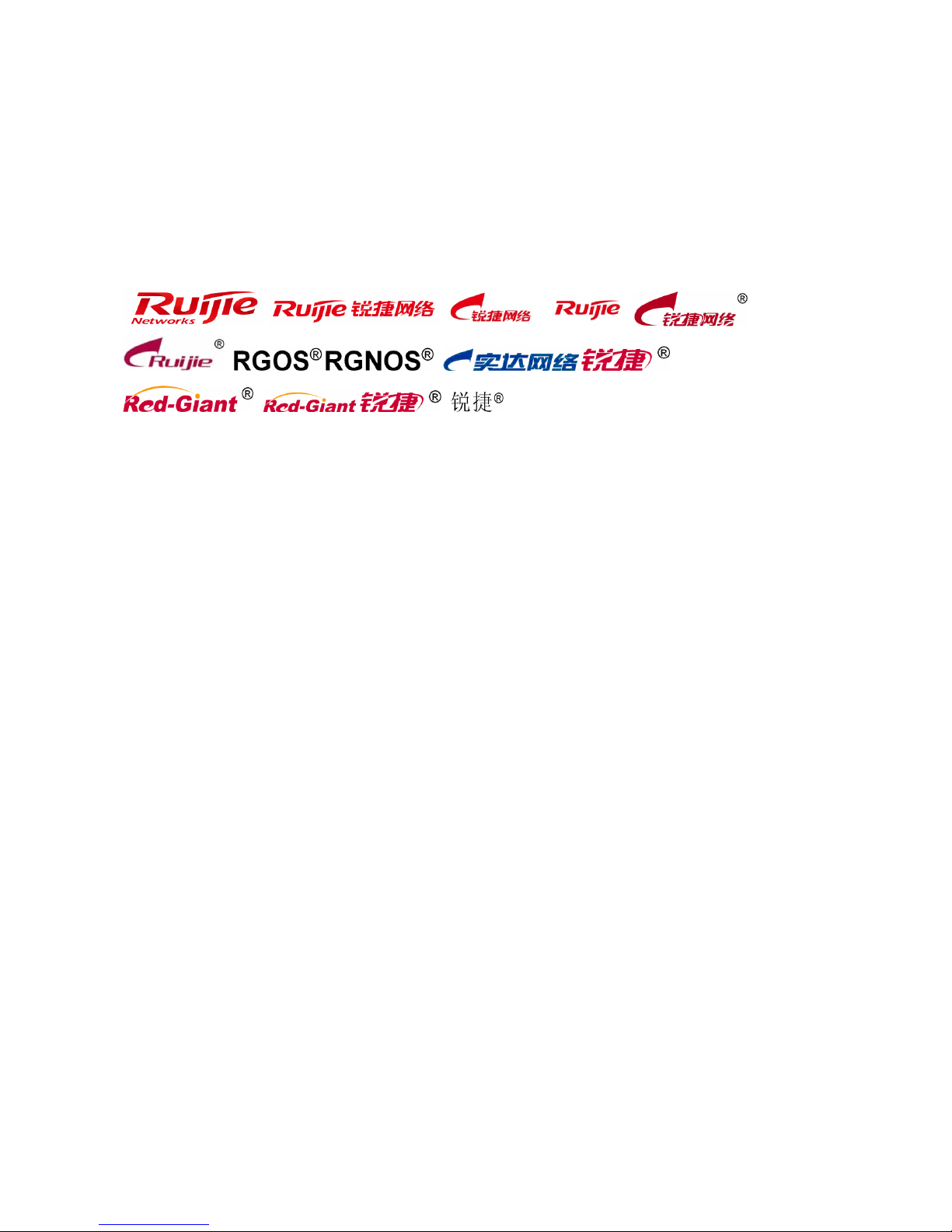

, , are registered trademarks of Ruijie Networks.

Counterfeit is strictly prohibited.

Exemption statement

This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain

the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will

not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Thank you for using our products. This manual will guide you through the installation of the switch.

Scope

It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed

that the users are already familiar with the related terms and concepts.

Obtaining Technical Assistance

Ruijie Networks website: http://www.ruijienetworks.com

Online customer services: http://webchat.ruijie.com.cn

Customer service center: http://www.ruijie.com.cn/service.aspx

Customer services hotline: +86-4008-111-000

BBS:

http://support.ruijie.com.cn

Customer services email: [email protected]

Related Documents

Documents Description

Configuration Guide Describes network protocols and related mechanisms that supported by the

product, with configuration examples.

Command Reference Describes the related configuration commands, including command modes,

parameter descriptions, usage guides, and related examples.

Hardware Installation and Reference Guide

Describes the functional and physical features and provides the device installation

steps, hardware troubleshooting, module technical specifications, and

specifications and usage guidelines for cables and connectors.

Documentation Conventions

The symbols used in this document are defined as follows:

This symbol brings your attention to some helpful suggestions and references.

This symbol means that you must be extremely careful not to do some things that may damage the switch or cause data

loss.

Contents

Safety Warning.............................................................................................................................................................................5

Product Overview.........................................................................................................................................................................7

Safety Precautions for Movement ................................................................................................................................................7

Preparation Before Installation.....................................................................................................................................................8

Installing the Switch...................................................................................................................................................................10

Checking Before Installation......................................................................................................................................................12

Fan..............................................................................................................................................................................................13

Power Supply .............................................................................................................................................................................13

Specification:.....................................................................................................................................................................13

Precaution:........................................................................................................................................................................14

System Grounding......................................................................................................................................................................14

Grounding Requirements................................................................................................................................................14

Grounding description.....................................................................................................................................................15

Chassis grounding pole ....................................................................................................................................................15

RG-S8606/S8606 B/S8610/S8614 Grounding Method...................................................................................................15

RG-S8606/S8606 B/S8610/S8614 Grounding Steps.......................................................................................................16

Static Electricity Prevention.......................................................................................................................................................16

Common Troubleshooting Procedures .......................................................................................................................................16

Safety Warning

Power Supply Safety Warning

High leakage current, earth connection essential

before connecting power supply.

There is more than one power input. Be sure that all

power cables are pulled out before you power down

the system.

Static Electricity Protection Warning

Electrostatic sensitive device inside. Please wear the

anti-ESD ring before handling.

Laser Safety Warning

CLASS 1 LASER PRODUCT

Directly looking at the optical interfaces or fibers may

damage your eyes.

Serial Interface Safety Warning

Hot-plugging in a serial interface may damage your

terminal. Please power off the terminal before

inserting a cable in the serial interface or pulling it

out from the serial interface.

Fan Safety Warning

Hazardous moving parts, keep fingers and body

parts away.

Transportation Safety Warning

Weight may exceed 80KG.

Don’t use this handle to lift the chassis.

Heavy moving parts. Guard against slide when

plugging in or out.

Maintenance Warning

Users are not allowed to repair the parts within the

device. Please contact qualified technical

personnel if necessary.

Product Overview

RG-S8606/S8606 B/S8610/S8614 high density multi-service IPv6 10G core routing switch provides

users with high-speed non-blocking data switching. With powerful switching and routing functions

and secure intelligent technologies, it can be used together with various series of Ruijie Networks

switches to provide users with complete end-to-end solutions. It is ideal for large-scale network core

backbone and heavy traffic node switches. By expanding with high-performance multi-service cards,

RG-S8606/S8606 B/S8610/S8614 supports MPLS and IPV6, and satisfies customers’ flexible and

complex application requirements.

Applications:

Core layers of enterprise networks of educational, financial and governmental organizations

Running environment that needs powerful routing function and carrier-class security & reliability

High-layer switching of enterprise networks with high bandwidth and 10G needs

Enterprise environment that needs to provide high QoS assurance for various applications

Core switches used in large and medium-sized LANs and small and medium-sized enterprise

networks.

Safety Precautions for Movement

RG-S8606/S8606 B/S8610/S8614 is large and heavy. When you handle them, please pay attention

to the following requirements:

Turn off all power supplies and unplug all power cables before you move the switch. Note that

there is more than one power cable.

Plug out power, fan (especially for RG-S8614, with heavy fan. Guard against slide when

removing) and service modules to reduce the chassis weight before moving the switch for a

long distance.

At least two people are needed to move the switch. Do not attempt to move the switch by one

person only.

Keep balance when moving the switch, and avoid injuring your leg and feet or spraining your

waist.

Grasp the handles on both sides of the chassis, not the power system handle, fan handle and

the back panel handle. Those handles are used to install and remove corresponding parts, not

to bear the whole chassis weight.

The whole switch weight may be higher than 80kg during the movement.

To correctly move the RG-S8610/S8606/S8614/S8606 B, refer to the following Figure 2-1, 2-2,

2-3 and 2-4.

Figure 2-1 Correctly moving the S8610 switch Figure 2-2 Correctly moving the S8606 switch

Figure 2-3 Correctly moving the S8614 switch

Figure 2-4 Correctly moving the S8606 B switch

Preparation Before Installation

Temperature and Humidity Requirements for the RG-S8606/S8610/S8614

Operating temperature 0ºC–40ºC

Storage temperature -40ºC–70ºC

Relative humidity 10%–90%

Temperature and Humidity Requirements for the RG-S8606 B

Operating temperature 0ºC–50ºC

Storage temperature -40ºC–70ºC

Relative humidity 10%–90%

Static Discharge Damage Prevention

To prevent damage from static electricity, you must pay attention to the following:

Proper grounding of the switch and floor.

Dust prevention measures are taken in the room.

An appropriate humidity is maintained.

Do not wear loose clothes or any other things that may be caught by the chassis during

installation and maintenance, for instance, necklace and ring.

Do not let any clothes touch a circuit board. An antistatic wrist strap can only prevent static

electricity from human damaging the circuit board, but cannot prevent any static electricity

on clothes.

Try to hold a circuit board by its edges. Do not touch any components or the PCB.

Always wear an anti-static wrist strap when you touch any circuit board. For details, refer to

Static Discharge Damage Prevention.

System Grounding Requirements

A good grounding system is the basis for the stable and reliable operation of switches. It is the

chief condition to prevent lightning stroke and resist interference. Please carefully check the

grounding conditions on the installation site according to the grounding requirements, and

perform grounding properly as needed. For details, refer to System Grounding Requirements.

Power Requirements

AC input voltage: 90 VAC–264 VAC, 47 Hz–63 Hz

AC input power: no less than 2000 W

DC input voltage: –36 VDC to –72 VDC

DC input power: no less than 2000 W

Requirements of Installation Tools

Type Tools Remarks

Claw hammer, pliers Unpack wooden case and

transportation case.

Phillips screwdriver, flat-head

screwdriver, spanner

Disassemble chassis, power supply,

fan and modules.

Power supply cables, network

cables, optical fibers and

distribution cables

Connect the interfaces.

Ruler, long tapeline, marker pen Measure the installation position.

Common tools

Bolts, diagonal pliers, straps Mount and fasten the chassis.

Special-purpose Anti-static wrist strap Prevent static electricity.

tools Wire stripper, crimping pliers Make network cables and grounding

cables.

Multimeter Test power supply and DC resistance.

Meter 500V megohmmeter Test the insulation resistance and

grounding resistance.

Note: Users need to prepare some of the tools by themselves.

Installing the Switch

Place the switch on the reserved place.

If you plan to mount RG-S8606/S8606 B/S8610/S8614 in a cabinet, you must verify that the

cabinet meets the following conditions:

Install the switch in an open cabinet. If you install the switch inside a closed cabinet, please

make sure that the cabinet has a good ventilation system.

Make sure that the cabinet is firm enough to bear the weight of RG-S8606/S8606 B

/S8610/S8614 and its installation accessories.

Make sure that the dimensions of the cabinet spare certain space for the installation of the

front, rear, left and right panels of RG-S8606/S8606 B/S8610/S8614 for the sake of heat

dissipation.

The cabinet should be properly grounded.

Ventilation Requirements

Following figure shows the ventilation requirements of RG-S8606/S8606 B/S8610. You must

ensure that sufficient spacing is reserved at the ventilation openings to ensure the normal

working of ventilation. After various cables have been connected, they should be arranged into

bundles or placed on the cabling rack, to avoid blocking the air inlets.

For RG-S8606/S8606 B/S8610/S8614 ventilation, refer to the following Figure 3-1, 3-2, 3-3 and

3-4.
