Ruijie RG-ES109DS User manual

RG-ES109DS / RG-ES110GDS

交换机快速安装指南

Switch Quick Installation Guide

锐捷以太网交换机快速安装指南

Ruijie Ethernet Switches Installation

Quick Start

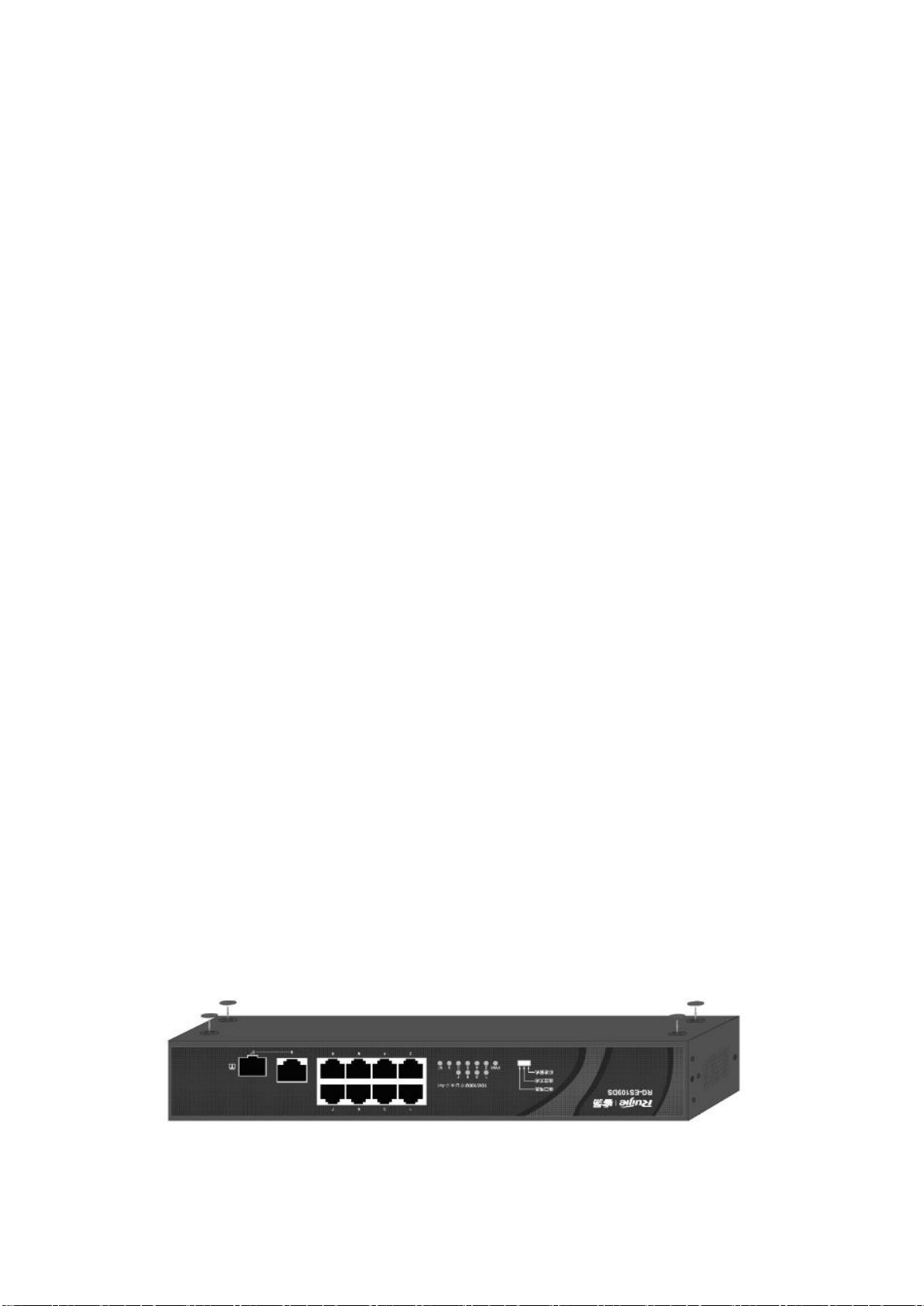

本指南适用于RG-ES109DS和RG-ES110GDS，文中图片以RG-ES109DS为例进行说明。

This quick start applies to RG-ES109DS and RG-ES110GDS. RG-ES109DS is used as

an example to illustrate the installation and connection of the switch.

设备安装

Install the switch

安装前准备

Preparing for installation

安装到桌面：防静电手环或防静电手套

Mounting on the desktop: ESD bracelet or gloves

安装到 19 英寸标准机架：防静电手环或防静电手套、螺丝刀、螺钉

Mounting to a standard 19-inch rack: ESD bracelet or gloves, screwdriver, screws

安装到桌面

Mounting on the desktop

将脚垫粘贴在机壳底面四角对应的凹槽中，然后将交换机正面朝上放置于足够大且干净平稳

的桌面上。

Paste the footpad stickers to the corresponding four recesses on the bottom of the switch.

Then turn the switch upside down, and place it on a big enough, clean, stable and flat

desktop.

安装到 19 英寸标准机架

Mounting to a standard 19-inch rack

1. 检查机架的接地与平稳性。

Ensure that the rack is stable and level, and is properly grounded.

2. 用包装盒内的螺钉将两个 L型支架分别固定到交换机的两侧。

Fix the 2 L-shaped brackets to both sides of the switch with the included screws.

3. 将交换机放置于机架内的适当位置，用螺钉（需自备）将 L型支架固定到机架两侧的

导槽上，确保交换机平稳地安装到机架上。

Mount the switch at a proper height on the rack and fix the L-shaped brackets to the

rack with the screws (not included). Ensure that the switch is stable on the rack.

设备连接

Connect the switch

交换机支持端口自动翻转（Auto MDI/MDIX），用网线连接交换机与对端以太网设备时，

使用直连线或交叉线均可。

RG-ES109DS 交换机的端口 9与端口 9F 复用，且 9F 端口优先。即，当使用交换机的 9F

口时，9口不能使用。RG-ES110GDS 交换机的端口 9F 和10F 端口是独立光端口。

The switch supports auto MDI/MDIX, so both a straight cable and a crossover cable can

be used to connect the switch to Ethernet devices.

Note

警告

此为 A级产品，在生活环境中，该产品可能会造成无

线电干扰，在这种情况下，可能需要用户对干扰采

取切实可行的措施。

For RG-ES109DS, port 9 and port 9F compose a combo port, and port 9F owns a higher

priority. So when port 9F of the switch is used, port 9 cannot be used. For RG-ES110GDS,

ports 9F and 10F are independent SFP ports.

请参考下表检查设备连接是否正确或调节交换机工作模式。

Please check whether the switch is connected properly or adjust the operation mode of

the switch according to the following table.

指示灯/开关

说明

PWR

长亮：交换机通电正常。

熄灭：交换机未通电或通电异常。

1~9,9F，10F

长亮：端口已连接。

闪烁：端口正在传输数据。

熄灭：端口未连接，或连接异常。

工作模式拨码开关。

标准模式：默认模式。此模式下，交换机为普通非网管型交换机，

所有端口之间可以相互通信。

流控关闭：此模式下，交换机关闭所有端口流控，以满足各种复

杂环境的“网络克隆”需求。

端口隔离：此模式下，1~8号端口不能互相通信，但都能与 9、

9F 和10F 端口通信。可以隔离 DHCP 广播，减少广播风暴。

LED indicator/Toggle

Description

PWR

Solid on: The switch is powered on properly.

Off: The switch is not powered on, or not powered on properly.

1 to 9, 9F, 10F

Solid on: The port is connected to a device.

Warning

This is a ClassA product. In a domestic environment, this

product may cause radio interference, in which case the

user may be required to take adequate measures.

Blinking: Data is being transmitted over the port.

Off: The port is not connected or is not connected properly.

Toggle for switching operating modes:

-Standard Mode: It is the default operating mode. In this mode, the

switch functions as a common unmanaged switch, and all ports of the

switch can communicate with each other.

-Flow Control-OFF: In this mode, the switch disables the flow control

function for all ports to meet the demand of computer network clone in

various environments.

-Port Isolation: In this mode, ports 1 to 8 cannot communicate with each

other, but can communicate with ports 9, 9F and 10F respectively,

which helps isolate DHCP broadcast and reduce broadcast storm.

规格参数

Specifications

产品型号

RG-ES109DS

RG-ES110GDS

端口

10/100Mbps RJ45

端口数

10/100/1000Mbps

RJ45 端口数

1000Mbps SFP 端

口数

与9端口复用，且 SFP 端口优先

为独立 SFP 端口

工作模式

支持三种模式切换：标准模式、流控关闭、端口隔离

性能

交换模式

存储转发

MAC 地址表

MAC 地址学习

自动学习、自动老化

外形尺寸（长×宽×高）

294mm×178mm×44mm

电源输入

100~240V AC，50/60Hz，0.4A

防雷

RJ45 端口

共模：4kV

电源

共模：6kV；差模：6kV

工作环境

工作温度：0℃～45℃

工作湿度：（10~90）%RH，无凝结

存储环境

存储温度：-40℃～70℃

存储湿度：（5~90）%RH，无凝结

网络介质

以太网：3类或以上 UTP/STP

快速以太网：5类或以上 UTP/STP

千兆以太网：超 5类或 6类UTP/STP

1000Base-SX：MMF（多模光纤）

1000Base-LX：MMF（多模光纤）或 SMF（单模光纤）

网络标准

IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3ab、IEEE 802.3z

EMC

GB9254-2008

安规

GB4943-2011

Product model

RG-ES109DS

RG-ES110GDS

Port

Number of

10/100 Mbps

RJ45 port

Number of

10/100/1000

Mbps RJ45 port

Number of 1000

Mbps SFP port

This SFP port and port 9 compose a

combo port, and the SFP port owns

a higher priority.

Both are independent SFP

ports.

Operating mode

Three operating modes are supported: Standard Mode, Flow

Control-OFF and Port Isolation.

Performance

Switching mode

Store-and-forward

MAC address

table

2 K

8 K

MAC address

learning

Auto learning, auto aging

Dimensions (L x W x H)

294 mm ×178 mm ×44 mm

AC Input

100 - 240V AC, 50/60Hz, 0.4A

Lightning

protection

RJ45 port

Common mode: 4 kV

Power

Common mode: 6 kV; Differential mode: 6 kV

Operating environment

Temperature: 0°C - 45°C

Humidity: (10% - 90%) RH, non-condensing

Storage environment

Temperature: -40°C - 70°C

Humidity: (5% - 90%) RH, non-condensing

Transmission media

Ethernet: CAT3 UTP/STP or better

Fast Ethernet: CAT5 UTP/STP or better

Gigabit Ethernet: CAT5e or CAT6 UTP/STP

1000Base-SX: MMF (Multi-Mode Fiber)

1000Base-LX: MMF (Multi-Mode Fiber) or SMF (Single Mode Fiber)

Network standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z

Product model

RG-ES109DS

RG-ES110GDS

EMC Standards

GB9254-2008

Security Standards

GB4943-2011

如需了解产品及安装方面的更多信息，请登录锐捷网络网站 www.ruijie.com.cn

For more information about the product and installation procedures, log in to

www.ruijie.com.cn

RUIJIE NETWORKS CO., LTD.

Ruijie Science and Technology Park, Juyuanzhou, No. 618, Jinshan Road, Fuzhou

Technical Support: http://bbs.ruijiery.com Technical Support Hotline:

+86-400-100-0078(China)

Website: http://www.ruijiery.com http://www.ruijie.com.cn

锐捷网络股份有限公司

福州市金山大道 618 号橘园洲工业园区星网锐捷科技园

技术支持：http://bbs.ruijiery.com 远程技术服务中心：+86-400-100-0078

官网：http://www.ruijiery.com http://www.ruijie.com.cn
