Ruijie RG-CS85 Series Switches

Hardware Installation and Reference Guide

Document Version: V1.1

Date: 2023.07.14

All rights are reserved in this document and this statement.

Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document

or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks

is prohibited.

Trademark and are owned by Ruijie Networks.

All other trademarks or registered trademarks mentioned in this document are owned by their respective owners.

Disclaimer

The products, services, or features you purchase are subject to commercial contracts and terms. Some or all of

the products, services or features described in this document may not be within the scope of your purchase or

use. Unless otherwise agreed in the contract, Ruijie Networks does not make any express or implied statement

or guarantee for the content of this document.

Due to product version upgrades or other reasons, the content of this document will be updated from time to

time. Ruijie Networks reserves the right to modify the content of the document without any notice or prompt.

This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy and will not shoulder

any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Intended Audience

This document is intended for:

Network engineers

Technical support and servicing engineers

Network administrators

Technical Support

Ruijie Networks Website: https://www.ruijienetworks.com/

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: s[email protected]

Skype: [email protected]

Conventions

1. Conversions

Convention

Description

Bold font

Commands, command options, and keywords are in bold font.

Italic font

Arguments for which you supply values are in italic font.

[ ]

Elements in square brackets are optional.

{ x | y | z }

Alternative keywords are grouped in braces and separated by

vertical bars.

[ x | y | z ]

Optional alternative keywords are grouped in brackets and

separated by vertical bars.

&<1-n>

The argument before the sign (&) can be input for consecutive 1- n

times.

Double slashes at the beginning of a line of code indicate a

comment line.

2. Signs

The signs used in this document are described as follows:

Warning

An alert that calls attention to important rules and information that if not understood or followed can result in

data loss or equipment damage.

Caution

An alert that calls attention to essential information that if not understood or followed can result in function

failure or performance degradation.

Note

An alert that contains additional or supplementary information that if not understood or followed will not lead to

serious consequences.

Specification

An alert that contains a description of product or version support.

3. Note

The manual offers configuration information (including model, port type and command line interface) for

indicative purpose only. In case of any discrepancy or inconsistency between the manual and the actual version,

the actual version prevails.

Hardware Installation and Reference Guide Product Overview

1 Product Overview

Ruijie RG-CS85 series switches are the next-generation Layer 3 switches. Featured with high performance, reliable

security, and multiple services, RG-CS85 series switches are mainly applicable to the convergence layer of large-scale

networks to provide full line-rate exchanging. Complete QoS features differentiate services according to business needs

to ensure the prompt transmission of key data. The RG-CS85 series switches provide various interfaces to meet the

requirement for interfaces in network constructions.

RG-CS85 Series Switches

Model

10/100/1000

Base-T

Ethernet Port

1000M

SFP

Port

10G

SFP+

Port

MGMT

Port

USB

Port

Console

Port

Fan

RPS

RG-CS85-24GT8XS-D

N/A

3 built-in

fans

Dual

RG-CS85-48GT4XS-D

N/A

3 built-in

fans

Dual

RG-CS85-

24SFP/8GT8XS-D

combo)

3 built-in

fans

Dual

RG-CS85-48SFP4XS-

N/A

3 hot

swappable

fans

Dual

RG-CS85-48GT4XS-

HPD

48 (PoE+

capable)

N/A

2 hot

swappable

fans

Dual

A combo port consists of one 1000Base-X SFP port and one10/100/1000Base-T Ethernet port. That is, only one

port of them is available at a particular time.

SFP+ port supports both 10Gbase-R and 1000base-X.

PoE+ ports are downward compatible with PoE.

RG-CS85 series switches have the following external ports:

MGMT port: This port is a 10/100/1000M management port. It is used to connect with an Ethernet port of a PC to

perform program. Users can do remote management and maintenance for the switch through the port. Use

standard network cables when the port is connected with an Ethernet port.

USB port: The Universal Serial Bus (USB) port is used to connect with USB memory to save logs, host versions,

warnings and other diagnostic messages.

Console port: This port applies RS-232 interface electrical level and standard RJ45 connectors. It is used to

connect the serial ports of the terminal PC to perform tasks including system commissioning, configuration,

maintenance, management, and software loading.

Hardware Installation and Reference Guide Product Overview

In a domestic environment, this product may cause radio interference.

1.1 Package Contents

Item

Quantity

Switch

Mounting Bracket

Rubber Pad

Mounting Bracket Installation Guide

M4x8 Phillips Countersunk Screw, GB819-85

Grounding Cable

Management Software (Pre-installed)

The package content list delivered with the product prevails over that in this manual.

For more information, please access https://www.ireyee.com/support.

1.2 RG-CS85-24GT8XS-D

Technical Specifications

Model

RG-CS85-24GT8XS-D

CPU

Dual-core with the clock speed of 1.2 GHz

BOOTROM

16 MB

Flash Memory

4 GB

SDRAM

1 GB

SFP Module Type

SFP+ interface

SFP module, SFP BIDI module

SFP+ module, SFP+ cable, SFP+ BIDI module

See Appendix B.

The module types may update without prior notification. Please contact Ruijie Networks for

details.

Expansion

Module Slot

1 slot

Supported module: CM85-4XS2CQ

Power Supply

Module Slot

2 slots

Supported AC module: The switch supports RG-PA150I-F and RG-PA150IB-F . (RG-

PA150I-F and RG-PA150IB-F can be used in combination.)

Hardware Installation and Reference Guide Product Overview

AC input:

Rated voltage: 100 V AC to 240 V AC

Maximum voltage: 90 V AC to 264 V AC

Frequency: 50/60 Hz

Rated current per input: 3 A (150 W power supply)

HVDC input:

Rated voltage: 240 V DC

Maximum voltage: 192 V DC to 288 V DC

Rated current per input: 3 A (150 W power supply)

SFP Port

Supported

10GE SFP Port Downward Compatible

SFP+ Port

10GBase-R Capable

1000Base-X Capable

Power

Consumption

< 60 W (without expansion module)

< 85 W (with expansion module)

Temperature

Operating temperature: 0ºC to 45ºC (32°F to 113°F) (altitude from 0 m to 1800 m (1.12 miles))

The highest operating temperature decreases by 1ºC (1.8°F) as the altitude ranging from 1800

m (1.12 miles) to 5000 m (3.11 miles) increases by every 220 m (721.78 ft.) .

Storage temperature: -40ºC to 70ºC (-40°F to 158°F)

Humidity

Operating humidity: 10% to 90% RH (non-condensing)

Storage humidity: 5% to 95% RH (non-condensing)

Operating Altitude

0 to 5000 m (0 to 3.11 miles)

Fan

Speed adjustment and fault alarm

Temperature

Alarming

Supported

EMI Certification

GB/T 9254.1

Safety Regulation

Compliance

GB 4943.1

Dimensions

(W x D x H)

440 mm x 340 mm x 44 mm (17.32 in. x 13.39 in. x 1.73 in.)

Weight

4.4 kg (9.70 lbs.)

In a domestic environment, this product may cause radio interference.

This device is not suitable for use in locations where children are likely to be present.

Product Appearance

The RG-CS85-24GT8XS-D Ethernet switch provides 24 10/100/1000Base-T Ethernet ports, eight 10GE SFP+ ports, one

MGMT port, one USB port, and one Console port on the front panel, two power supply module slots and one expansion

slot on the back panel.

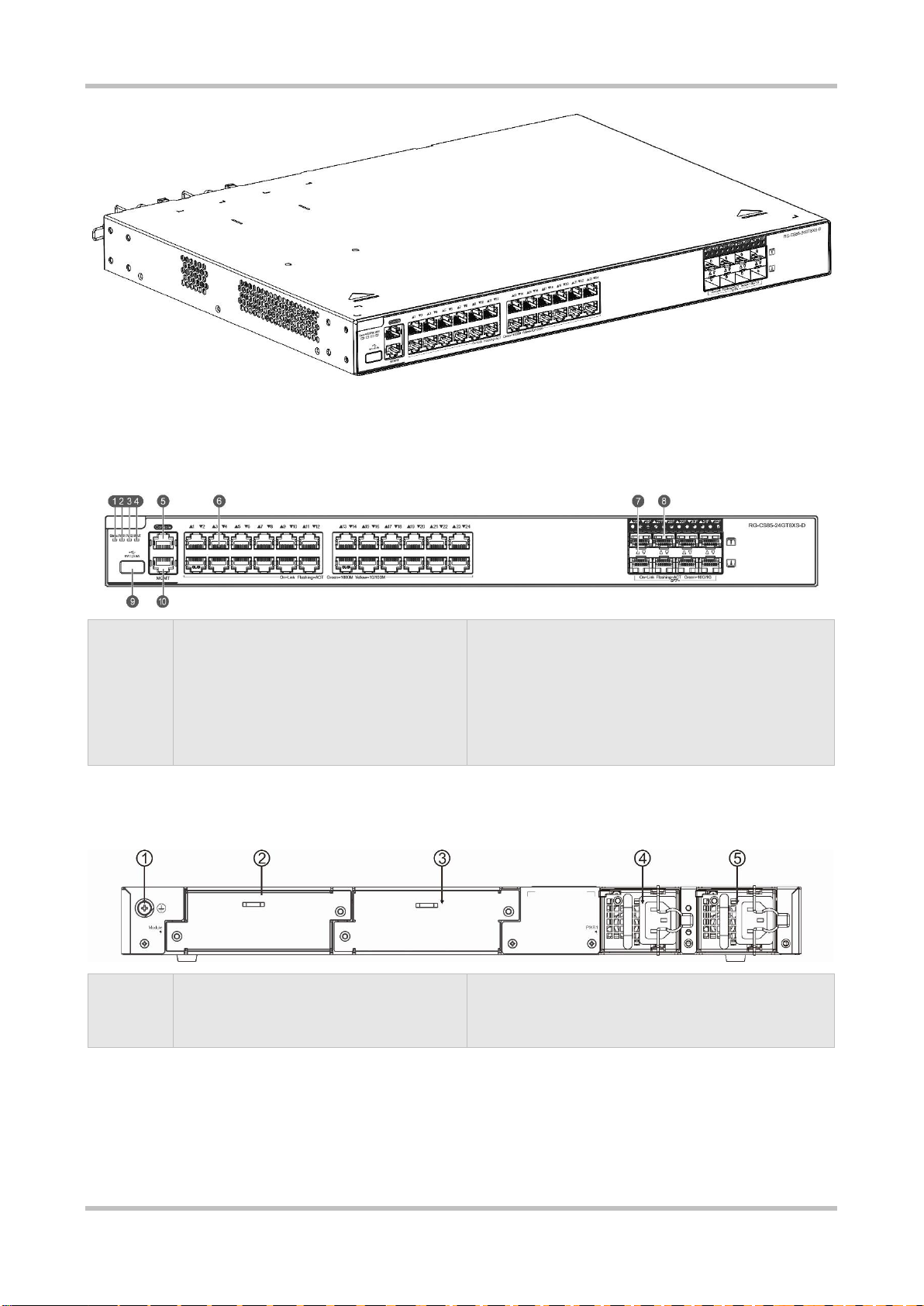

Figure 1-1 Appearance of RG-CS85-24GT8XS-D

Hardware Installation and Reference Guide Product Overview

Front Panel

Figure 1-2 Front Panel of RG-CS85-24GT8XS-D

Note:

1. System LED

2. Power Supply Status LED (PWR1)

3. Power Supply Status LED (PWR2)

4. MGMT Port Status LED

5. Console Port

6. 10/100/1000 Base-T Ethernet Port

7. Port Status LED

8. 10GE SFP+ Port

9. USB Port

10. MGMT Port

Rear Panel

Figure 1-3 Rear Panel of RG-CS85-24GT8XS-D

Note:

1. Grounding Lug

2. Filler Panel (Expansion Module)

3. Filler Panel (Non-expansion Module)

4. Power Module Slot 1

5. Power Module Slot 2

Product Information Label

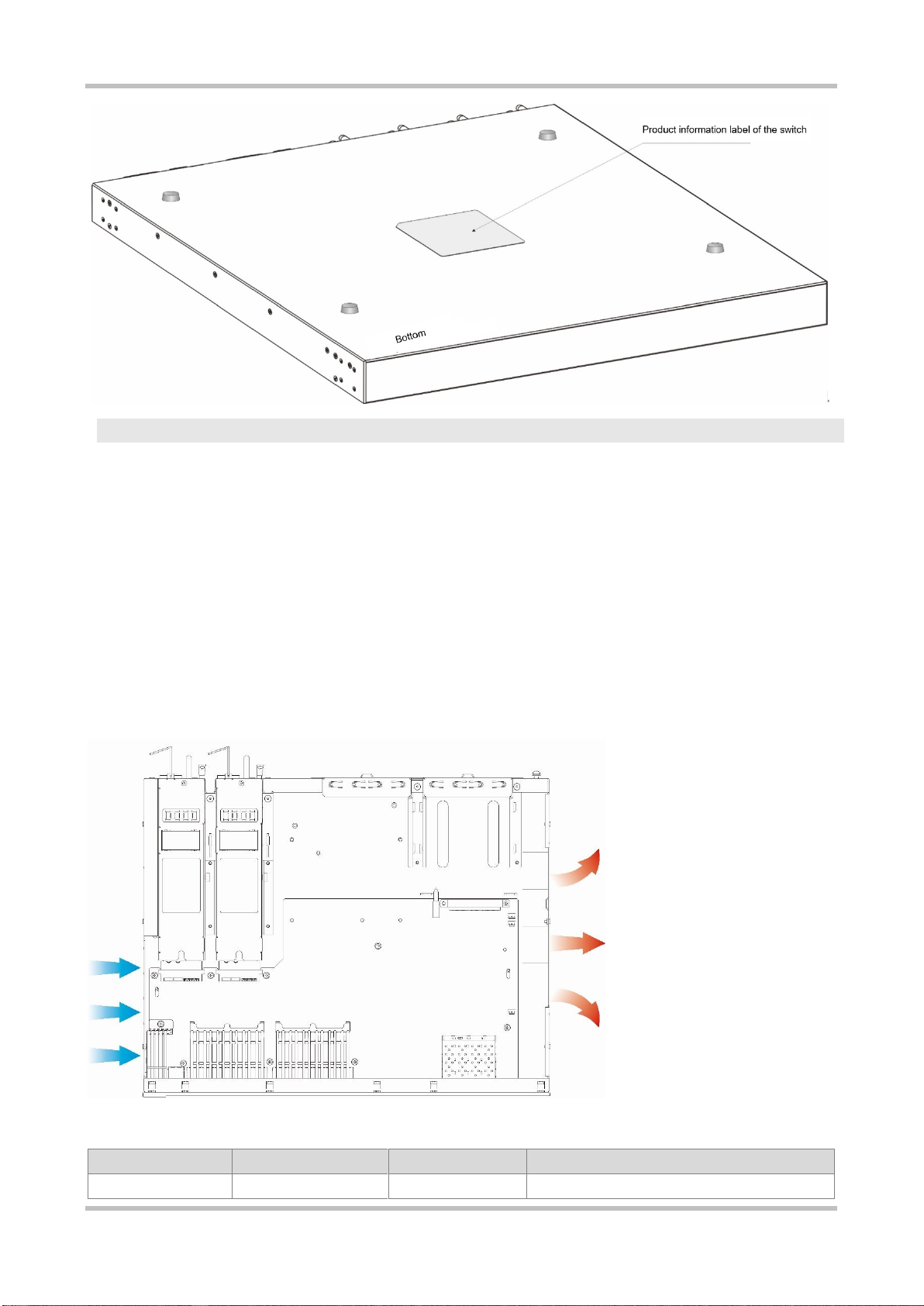

Figure 1-4 Product Information Label of RG-CS85-24GT8XS-D

Hardware Installation and Reference Guide Product Overview

Note:

The product information label is on the bottom of the switch.

Power Supply

RG-CS85-24GT8XS-D supports 2 power supply modules.

Dual-power input: The switch can be powered by one power supply module, or two power supply modules. When both

modules are working, the switch is working in power redundancy mode.

Heat Dissipation System

The switch uses left-to-right airflow for heat dissipation, thereby ensuring the normal function of the device in the

specified environment. Maintain a minimum clearance of 100 mm (3.94 in.) around the chassis for air circulation.

Figure 1-4 Airflow Direction

LED

Panel Identification

Status

Meaning

System status LED

Status

Off

The switch is not powered on.

Hardware Installation and Reference Guide Product Overview

LED

Panel Identification

Status

Meaning

Blinking green

(3 Hz)

Initialization is in progress. Continuous blinking

indicates a fault.

Blinking green (10

Hz)

It is used for on-site positioning of the device,

and allows operation and maintenance

personnel to perform remote power on and off

control.

Solid green

The switch is operational.

Solid yellow

Temperature alarm:

1. The temperature of inlet/outlet vent exceeds

the warning threshold.

2. The power is insufficient for the system.

Check the working environment of the switch

and power supplies immediately.

Solid red

1. The temperature of the inlet/outlet vent

exceeds the warning threshold.

2. The switch is faulty.

Power supply status

LED

PWR1/PWR2

Off

The power supply module is not in place or not

powered on.

Solid green

The power supply module is operating

normally.

Solid yellow

The power model is identified but not

recognized.

Solid red

The redundant power is faulty or the AC power

cord is not connected.

MGMT port status

LED

MGMT

Off

The port is not connected.

Solid green

The port is connected at 1000 Mbps.

Blinking green

The port is receiving or transmitting data at

1000 Mbps.

Solid yellow

The port is connected at 10/100 Mbps.

Blinking yellow

The port is receiving or transmitting data at

10/100 Mbps.

10GE SFP+ port

status LED

25F-32F

Off

The port is not connected.

Solid green

The port is connected at 1/10 Gbps.

Blinking green

The port is receiving or transmitting data at

1/10 Gbps.

10/100/1000Base-T

Ethernet port status

LED

1-24

Off

The port is not connected.

Solid green

The port is connected at 1000 Mbps.

Blinking green

The port is receiving or transmitting data at

1000 Mbps.

Solid yellow

The port is connected at 10/100 Mbps.

Blinking yellow

The port is receiving or transmitting data at

10/100 Mbps.

This manual suits for next models

Table of contents

Other Ruijie Switch manuals

Ruijie

Ruijie RG-ES100 Series Installation and operating manual

Ruijie

Ruijie RG-IS2712G Installation and operating manual

Ruijie

Ruijie Reyee RG-ES126S-LP V2 User manual

Ruijie

Ruijie RG-S3250E Series User manual

Ruijie

Ruijie RG-S2600G-I Series Instruction Manual

Ruijie

Ruijie RG-S2915-L Series Installation and operating manual

Ruijie

Ruijie RG-N18000-X Series Installation and operating manual

Ruijie

Ruijie RG-NBS3100 Series How to use

Ruijie

Ruijie RG-S6220-H Series User manual

Ruijie

Ruijie RG-S6510-32CQ Installation and operating manual

Ruijie

Ruijie XS-S1960-24GT4SFP-UP-H Series Installation and operating manual

Ruijie

Ruijie S5750 Series User manual

Ruijie

Ruijie RG-S2600E Series User manual

Ruijie

Ruijie RG-S5750-S Series Installation and operating manual

Ruijie

Ruijie Reyee RG-NIS Series User manual

Ruijie

Ruijie RG-S6510-32CQ Installation and operating manual

Ruijie

Ruijie RG-MF2920U Series Installation and operating manual

Ruijie

Ruijie XS-S1960-48GT4SFP-H Series Installation and operating manual

Ruijie

Ruijie Reyee RG-ES105D Series Installation and operating manual

Ruijie

Ruijie XS-S1930J Series Installation and operating manual

Ruijie

Ruijie RG-PF2920 Series Installation and operating manual

Ruijie

Ruijie RGOS 11.X User manual

Ruijie

Ruijie RG-S3760E Series User manual

Ruijie

Ruijie RG-S6000C-48GT4XS-E-AC DCN Installation and operating manual

Popular Switch manuals by other brands

URC

URC Total Control MFS-8 installation manual

Azbil

Azbil HPQ-D11 user manual

Sony

Sony DFS-900M operating instructions

SICK

SICK i17S operating instructions

F&F

F&F SZR-277 quick start guide

Shure

Shure UAMS/BK user guide

Dräger

Dräger X-zone Switch Off Instructions for use

Asco

Asco Joucomatic 349 Series manual

BT Mini Hub user guide

D-Link

D-Link DES-1226G manual

Johnson Controls

Johnson Controls FS80-C installation instructions

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Configuration guide

MicroNet

MicroNet SP1200A user manual

Altinex

Altinex DA1914SX user guide

MiLAN

MiLAN MIL-SM2401M user guide

RJM

RJM MASTERMIND PBC/6X user manual

Atlas

Atlas MMK-KVM8 owner's manual

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Getting started guide
