RSA Lighting CDM6NCMH User manual

DESCRIPTION Catalog # Type

Project

Comments Date

Prepared by

SPECIFICATION FEATURES

www.cooperlighting.com

17.50"

6.50"

11.50"

6.50"

7.50"

A...Housing

Housing and plaster frame: 18 gauge CRS.

Housing is powder coated white. Housing

adjusts in plasterframe to acccommodate

1/2” to 1-1/4” ceiling thickness. Housing

includes slots for trim torsion spring

retainers.

B ...System Protection:

Thermal protection provided to guard

against overheating and misuse of

insulation over and around ﬁxture.

C ...Electrical

Integral j-box and electronic metal halide

ballast. 120V or 277V input. Junction box

is U.L. listed for through branch wiring.

Includes ﬁve 1/2 trade size knockouts.

D...Lamp

Quick-connect wire connector attached

to ballast for connection to Versa Metal

Halide trims. Trims have quick-connector

wired to lamp socket. For use with Metal

Halide lamps only.

E ...Mounting

Adjustable Butterﬂy Brackets included

for commercial applications.

F....Labels

UL Listed, cUL Lited Damp Location

Ceiling Cut-Out: 6.75”

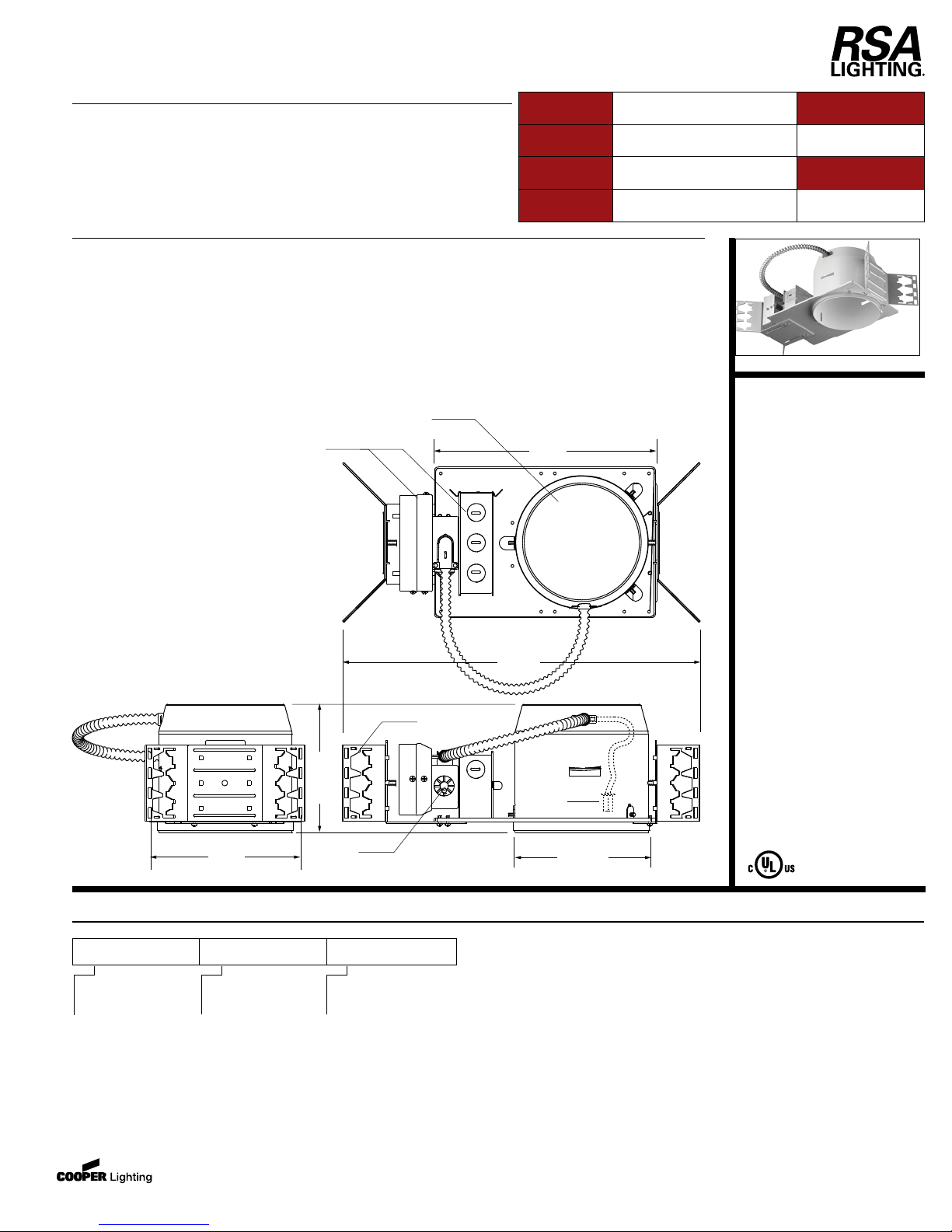

VERSA

6” RECESSED

HOUSING

CDM6NCMH

New Construction

w/ Integral Metal

Halide Ballast

For 20W, 39W or 70W

metal halide trims

ORDERING INFORMATION

Housing

CDM6NCMH =

Versa 6” New Construction

Housing w/ Integral Metal

Halide Ballast

New construction housing for Versa Metal Halide Adjustable and Accent

trims (CDMA-T4, CDMA-P2, CDMC-C1, CDMC-P3).

For new construction applications. Insulation must be kept 3” from all

sides and at least 1” above the housing.

Speciﬁcations and Dimensions subject to change without notice.

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031

Lamp Wattage

20 =20 watt metal halide

39 =39 watt metal halide

70 =70 watt metal halide

CDM6NCMH

rev 072706

Voltage

120 =120 volts primary

277 =277 volts primary
