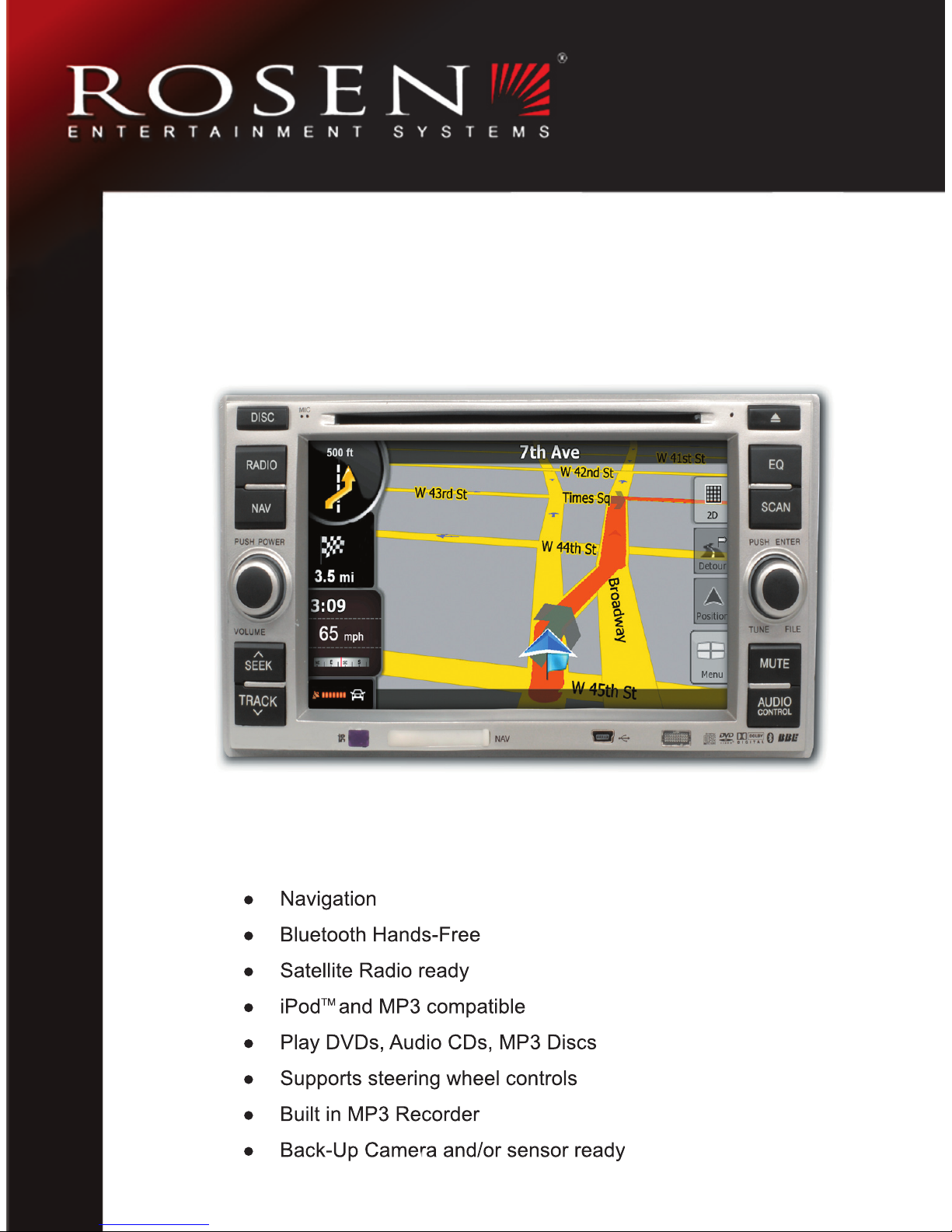

Hyundai Santa Fe Quick Start Guide
Multimedia Navigation System
System Features:
Notices
NOTICE OF INTENDED USE
Some features of Rosen Entertainment Systems are not intended for viewing by the driver when the vehicle is in motion,
such as movie playback. When using navigation, minimize the amount of time spent viewing the screen and use voice
prompts as much as possible. Avoid prolonged use of the touch screen controls. Such use might distract the driver or
interfere with the driver’s safe operation of the vehicle, and thus result in serious injury or death. Such use might also
violate state or local laws.
Rosen Entertainment Systems disclaims any liability for
any bodily injury or property damage that might result
from any improper or unintended use.
About the Registered Marks
This product incorporates copyright protection technology that is protected by method claims
of certain U.S. patents and other intellectual property rights owned by Macrovision Corpora-
tion and other rights owners. Use of this copyright protection technology must be authorized
by Macrovision Corporation, and is intended for limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
iPod® is a registered trademark of Apple Computer, Inc.
NOTE: Features and specifications listed in this manual are subject to change without notice.
1
Copyright © 2009 by Rosen Entertainment Systems. All rights reserved. Except as permitted
under the Copyright Act of 1976, no part of this publication may be reproduced or distributed in
any form or by any means, or stored in a database or retrieval system, without the prior written
permission of Rosen Entertainment Systems.
2
Turning The System On/Off
Vehicle ignition must be On or in ACC Mode to
operate system.
Press the Left Knob on the panel to turn the
system ON/OFF
ON/OFF
Note: “PHONE” is highlighted BLUE when Bluetooth is enabled.
Your system will automatically default to the last screen you were on prior to turning off the unit.
The Information Bar is located at the
top of the screen. Depending on the
source, it will provide information or content
sensitive controls
This will take you to the Settings
Menu for advanced control settings.
The Source Tabs located at the bottom of
the screen will give you direct access to
common sources.
When the vehicle is turned off, the unit will
automatically turn off.
Basic Functions
Screen Organization
3

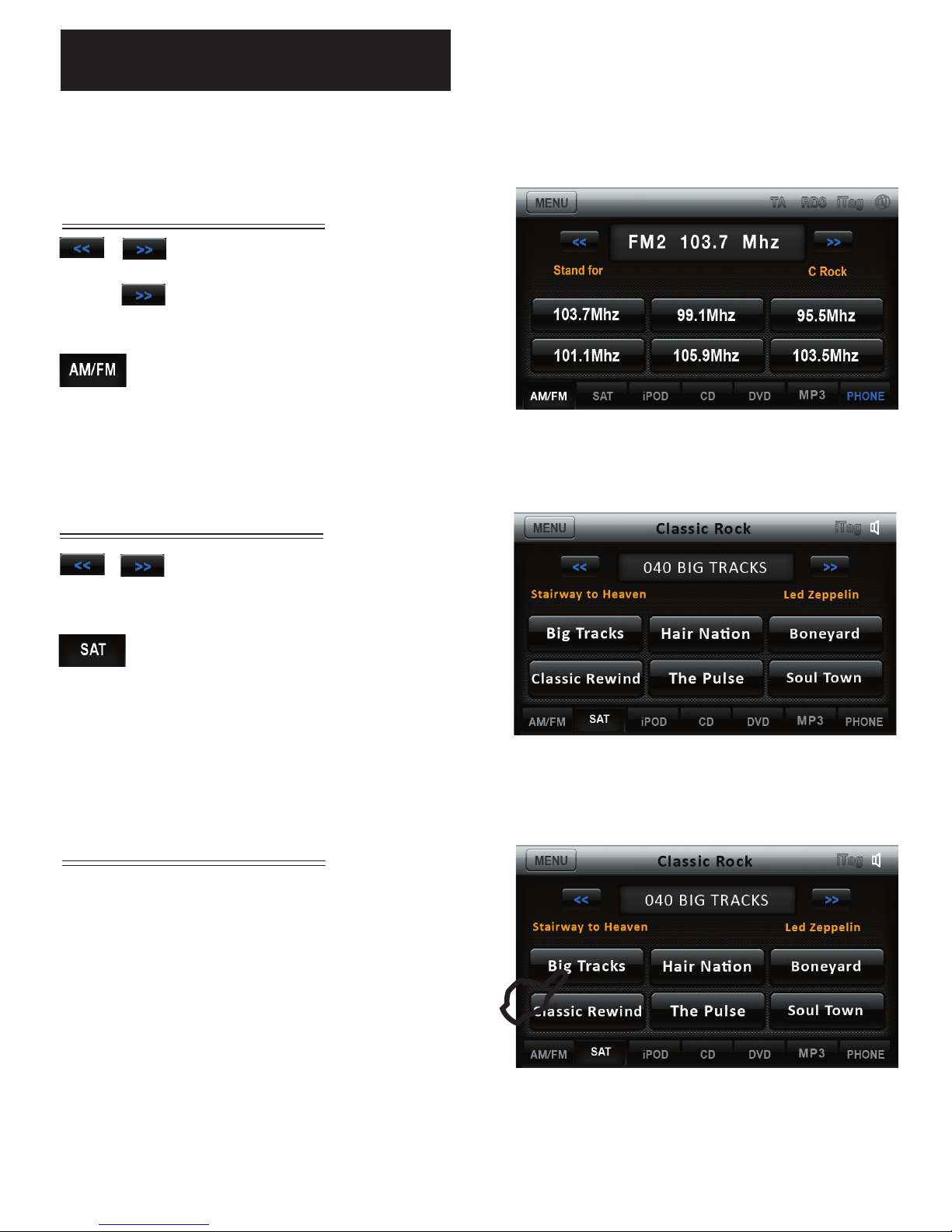

Radio
Short touch to seek previous and
next available stations.
Long touch to scan. Each station
will play for several seconds.
Touch to select AM and FM1,2 & 3 preset
screens.
Preset Channels
Touch Button Descriptions
To set a station as a Preset, press and hold a the
button. The name of the channel for SAT Radio
or station frequency for AM/FM Radio will
appear in the button when saved.
Short touch the desired Preset button to select
that channel.
Satellite Radio (If Equipped)
Touch to select SAT 1,2 & 3 preset
screens
Short touch to seek previous and
next available stations.

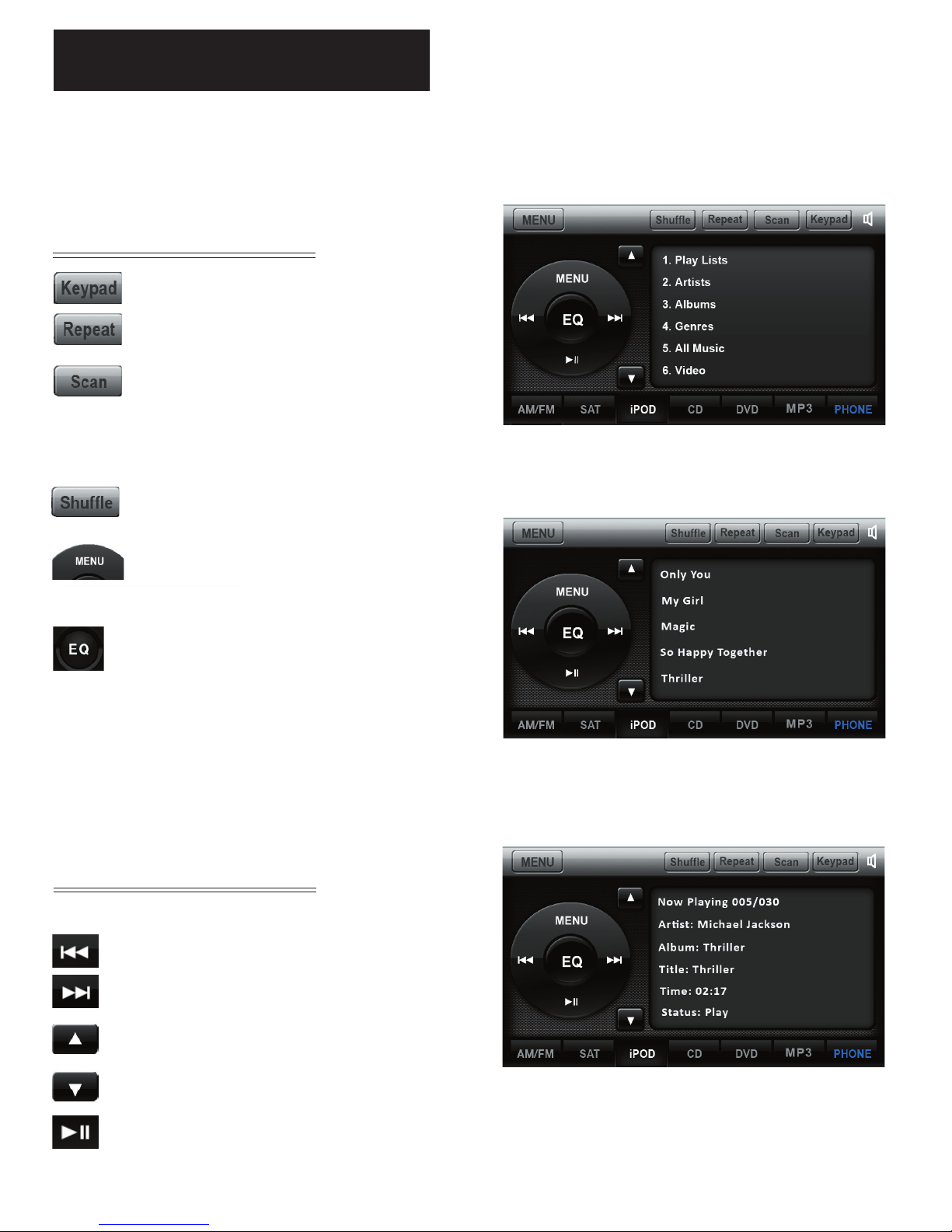

iPod Audio
When the optional iPod interface is connected to a compatible iPod player, the audio files stored
on the iPod can be played through the system.
Touch to enter category list. The
system categorizes into 6 options
Press once to display song
information.
Press twice to display spectrum
graphics.
Touch Button Descriptions
Show/hide the key pad
Repeat the current played song
Scan and play songs in the
current folder. The next song will
be played after the current song
has played for several seconds.
Play songs in the current folder
in random order.
Play A Song
Touch the song shown on playlist to play.
Select previous song
Select next song
Page up
Page down
Play/Pause
4
Note: Sleep mode should be enabled on the iPod to reduce battery drain if the iPod is left
connected with the vehicle off.
5

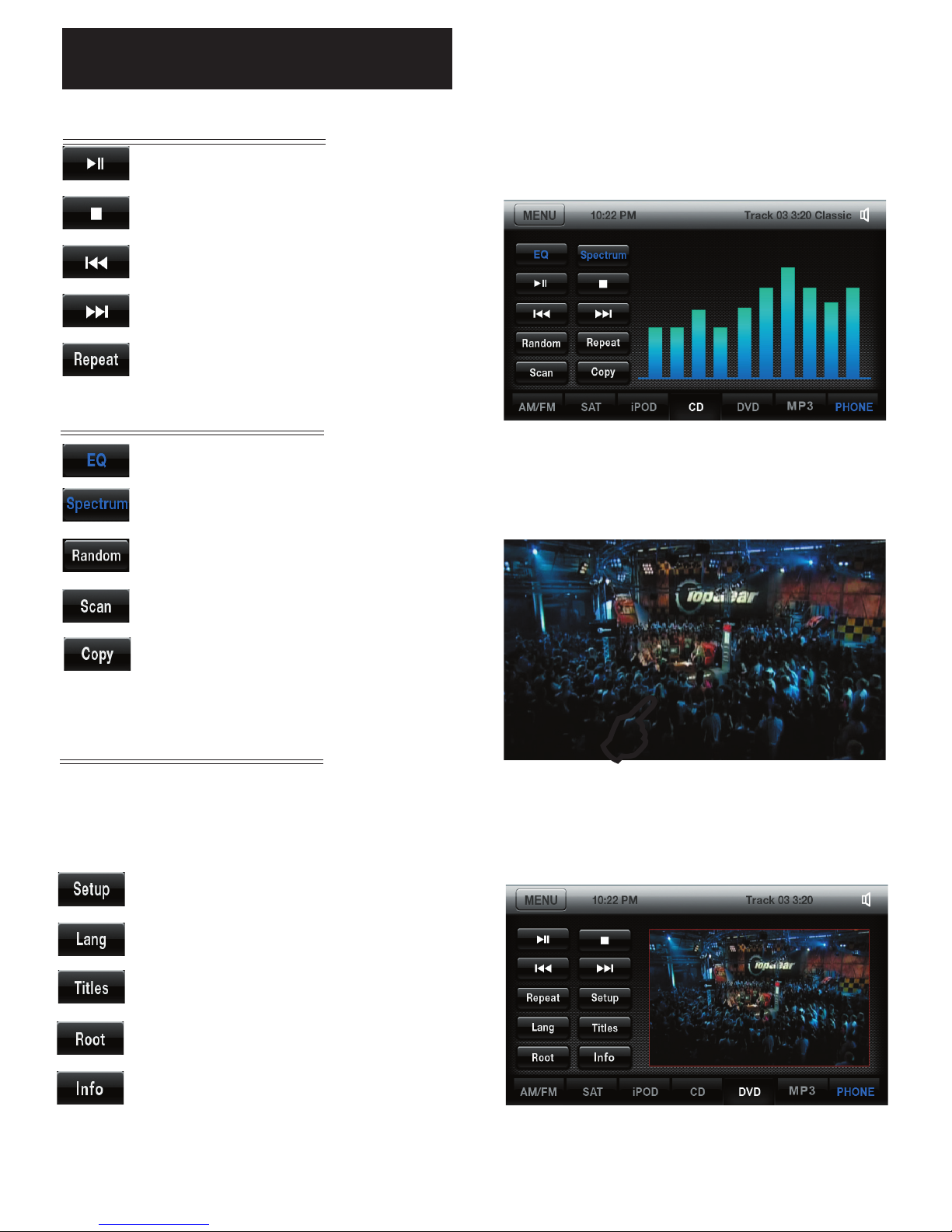

CD/DVD
Play/Pause track
Stop track
Play previous song/chapter
Play next song/chapter
Repeat current song played
CD/DVD
DVD Only
Set up DVD
Change language
Show current title info
Main DVD menu
Shows information such as Chapter,
Time Elapsed, etc
Long Touch in DVD mode to show the DVD
control screen. To return to full screen,
either touch the image or let the screen idle
for 10 seconds
Change audio EQ setting
Change spectrum display
Play songs on disc in random order
Scan songs for several seconds
Copy song to Favorites folder
CD Only
Bluetooth Hands-Free
Note: This system requires a Bluetooth enabled phone. Bluetooth phones and software vary by
brand and date of manufacture. Some phones or phone functions may not be compatible or may
operate differently with this system during use. Phone compatibility problems are not warrantable
issues.

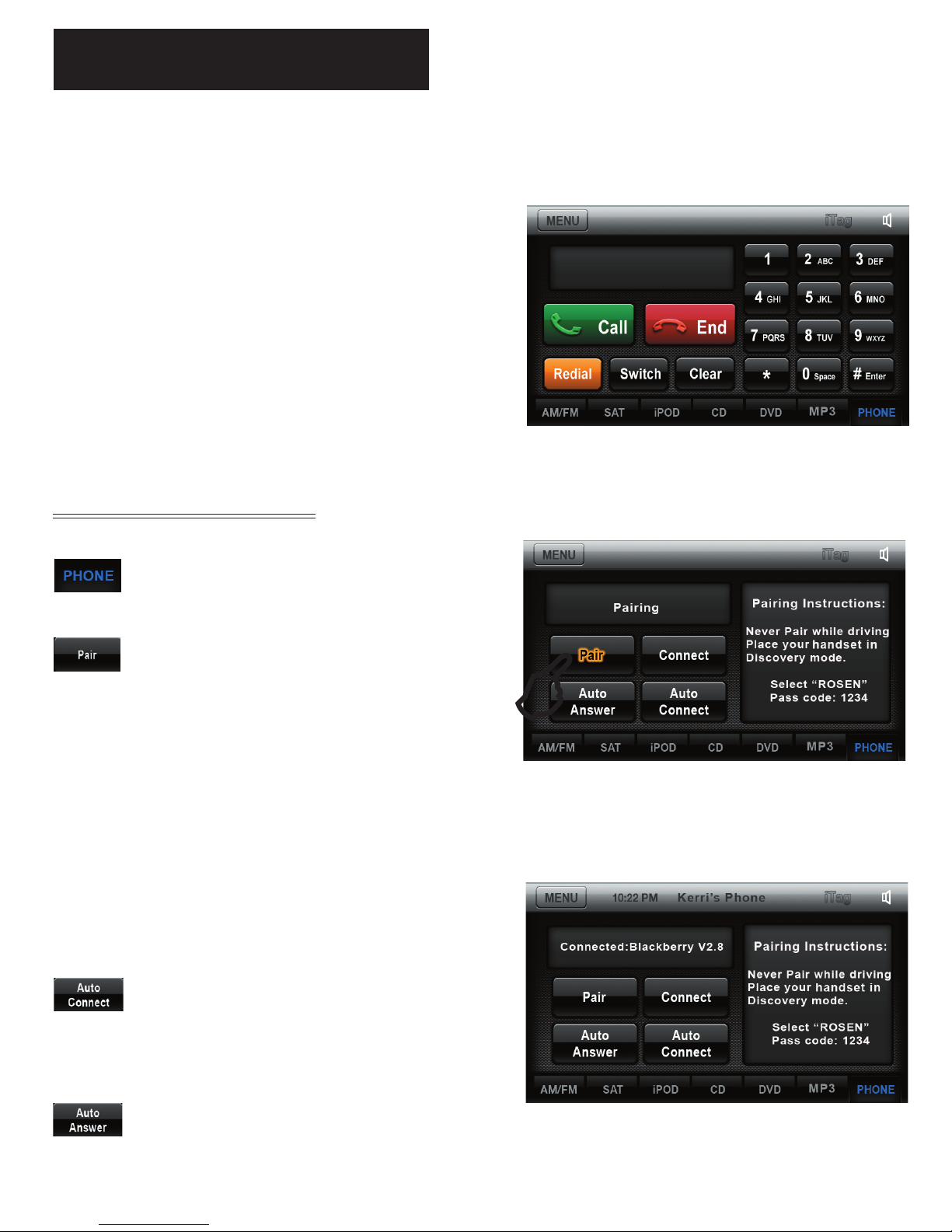

Pairing Your Phone
Place your phone into discovery mode.
Press the PHONE tab to open the
Bluetooth set-up page.
Press “Pair” to pair your cell phone for
the first time. You will only need
to do this once, unless you connect to a
different cell phone or the connection is
deleted.
“Pairing” will be displayed on the screen. After
the connection succeeds on your phone, select
“Rosen” and enter the password (1234). The sys-
tem will indicate “Linking” and then “Connected.”
When your phone is connected its name will be
displayed on the unit.
Select Auto Connect If you desire the
system’s Bluetooth feature to automati
cally detect your cell phone when the
system is turned on.
Select Auto Answer to set the system to
automatically pick up after three rings.
There are several different Bluetooth screens in
the PHONE function. The first screen you will see
is the Call Screen. To switch between screens,
press the PHONE tab repeatedly.
6
You can dial the number from your
phone or use the touch-screen shown at
the right by entering the number, then press
the Call button.
Clear last number
Press to redial the last number dialed with
the touch screen.
Press to transfer call between cell phone
and car speakers.
Press to end the call.
For incoming calls, the system will
automatically switch to the answer screen.
Press to answer.
Press the icon to refuse or end the call
Press to transfer call between cell phone
and car speakers.
The call list can be used to view missed,
received and made calls.
The system will not display your cell phone’s
internal phonebook but will show the last
numbers missed, received or made. Press the
appropriate button on the screen to view the
numbers. To make a call from the list, touch the
number on the screen and it will automatically dial
the number.

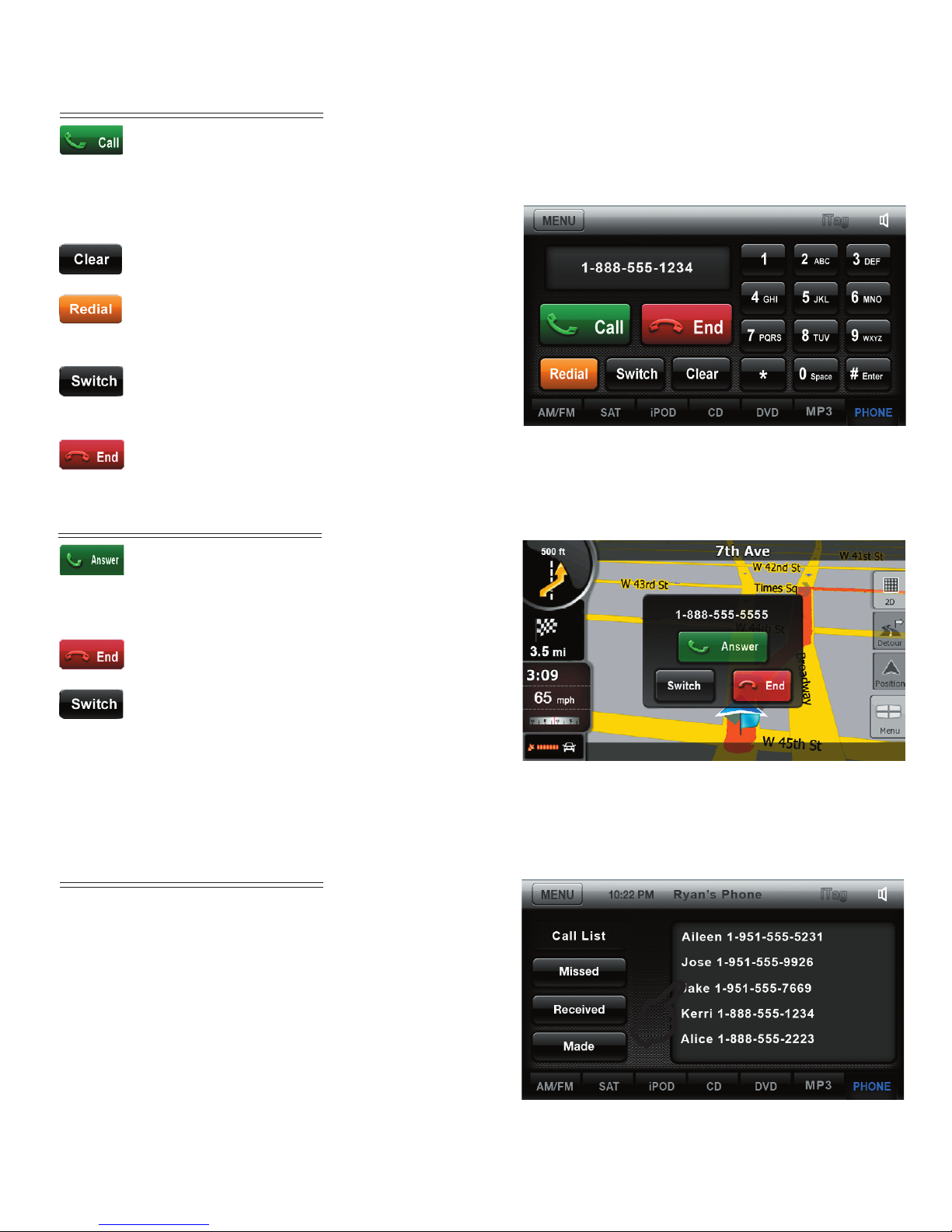

Making/Ending A Call
Answer An Incoming Call
Call List
Note: While in Navigation mode the incoming call box will disappear. Touch the screen to
7
Note: If unit is equipped with the Phonebook option, this will display instead of “Call List”.
show the incoming call box.
Note: If unit is equipped with the Phonebook option, this will display instead of “Call List”.

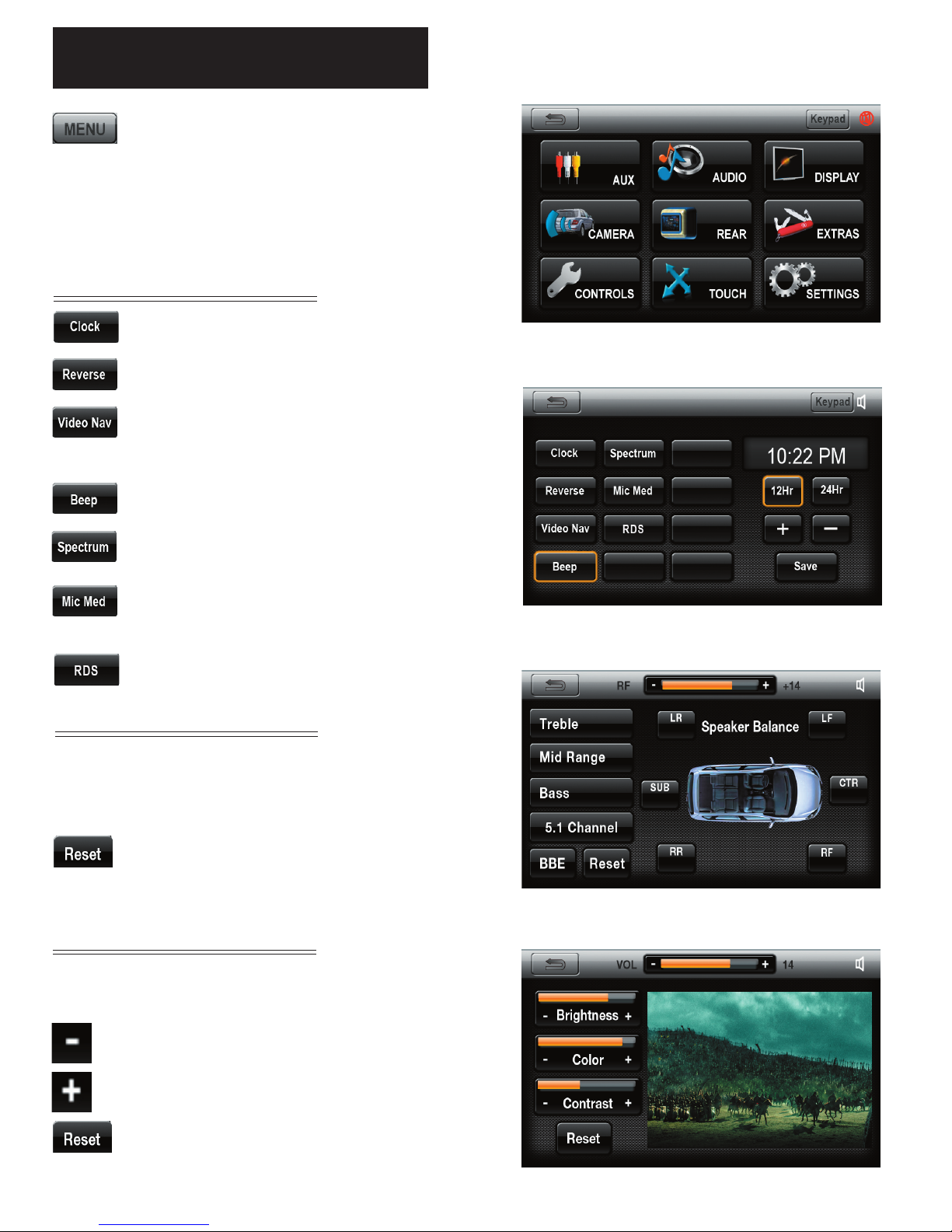

Settings
Press to enter the Settings Menu. To
change system settings, select desired
option.
The time displayed on all screens
Turn the backup camera on/off
Allows the Nav screen to display for a short
time when directions are given
Button beep on/off.
Spectrum on/off
Display the microphone level. Press to
switch between “Low, Med, High”
Radio Data System On/Off
The AUDIO screen will allow you to adjust
audio settings such as Treble, Mid Range,
Bass and 5.1 Channel.
Press to reset back to original audio
settings
Change the brightness, color and contrast of the
display.
Press to increase the value
Press to decrease the value
Press to reset back to original display
settings
Settings Screen
Audio Screen
Display Screen
System Settings
Audio Settings
Display Settings
Settings Menu Screen
8
Navigation
_______________________________________________________
Before operating your Rosen Navigation system, please carefully read and follow the
instructions provided in the “Safety Information and Precautions”
located on the back cover of this Quick Start Guide.
_______________________________________________________
Start Up/Main Menu
When the Rosen Navigation software starts, you will see the reminder warning to use your
Rosen Navigation software safely and lawfully.
You must these conditions to continue.
Please refer to the User’s Manual for additional information and warning on the proper use of
the Rosen Navigation product.
The Attention screen is displayed each time the system is turned ON as a reminder
to make use of the navigational aids in a safe manner.
9
