Rosen DS-VW0710VW User manual

Multi-Media Navigation System Installation Guide

Installation Guide

NOTICE OF INTENDED INSTALLATION AND USE

THE ROSEN MULTI-MEDIA NAVIGATION SYSTEMS CONTAIN AN INTERNAL VIDEO PLAYER, WHICH IS

NOT INTENDED FOR VIEWING BY THE DRIVER. THE VIDEO PLAYER IS DISABLED WHEN THE VEHICLE

IS IN MOTION THROUGH A CONNECTION TO THE PARKING BRAKE.

THE INSTALLER OF THIS PRODUCT MUST INSURE THE VIDEO DISABLE CONNECTION IS

WORKING PROPERLY PRIOR TO DELIVERY OF THE VEHICLE.

IMPROPER INSTALLATION COULD DISTRACT THE DRIVER OR INTERFERE WITH SAFE OPERATION OF

THE VEHICLE, WHICH COULD RESULT IN SERIOUS INJURY OR DEATH, AND COULD ALSO VIOLATE

STATE AND/OR FEDERAL LAW.

ROSEN ENTERTAINMENT SYSTEMS DISCLAIMS ANY LIABILITY FOR ANY BODILY INJURY OR

PROPERTY DAMAGE THAT MAY RESULT FROM ANY IMPROPER OR UNINTENDED INSTALLATION

AND/OR USE.

STOP

Damage to the vehicle may occur

Do not proceed until process has been completed

CAUTION

Process must be carefully observed in order to reduce

the risk of damage to the accessory or vehicle

CRITICAL

Process must be carefully observed in order to ensure a

quality installation

TOOLS and EQUIPMENT

Specific tools and equipment recommended for this

process

SAFETY RISK

Observe safe practices, this process can be dangerous

and there is a risk of personal injury

TESTING and TROUBLESHOOTING

Content specific testing and troubleshooting points

DS-VW0710 VW Series

Installation Guide VW Series

Installation Guide DP-VW0714HD Rev E

Page 2

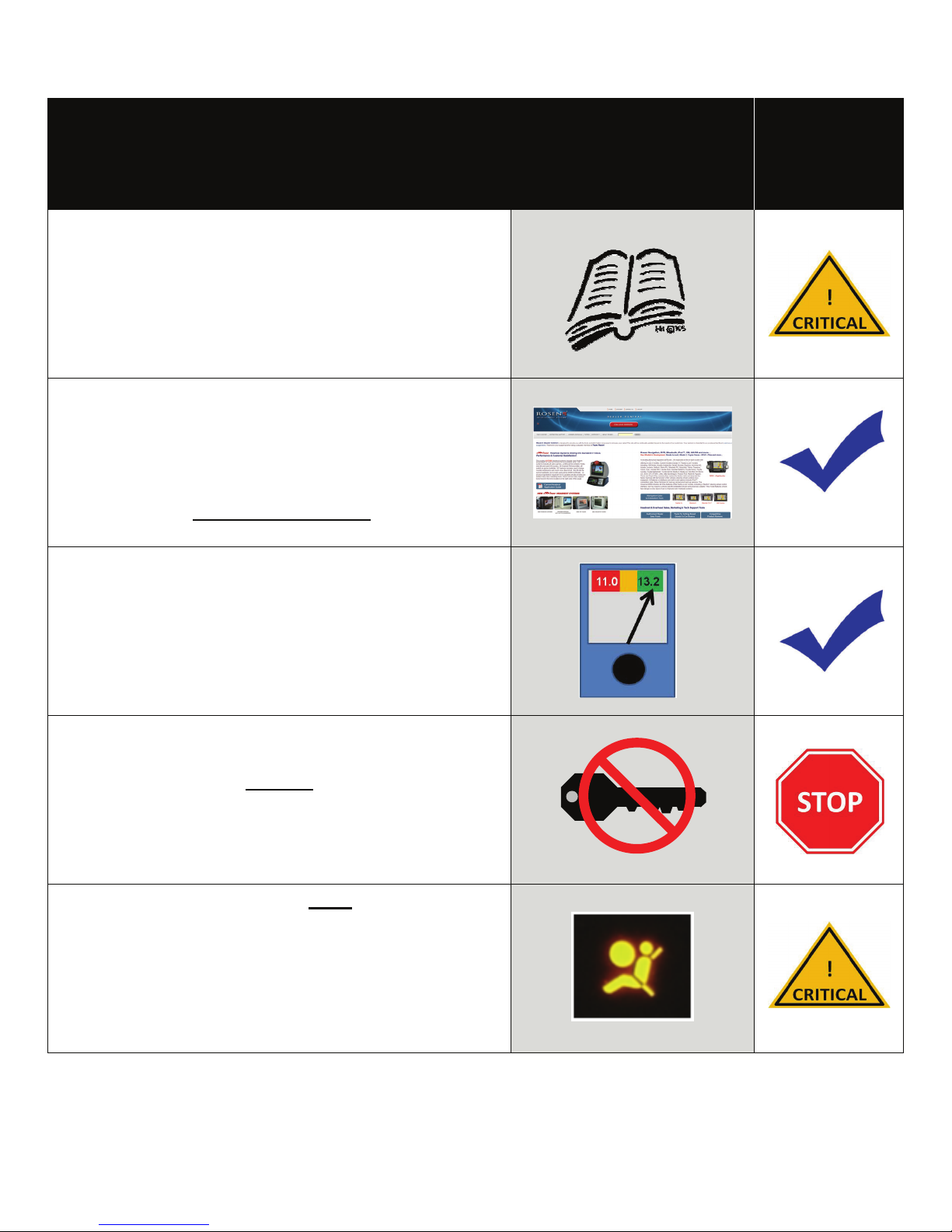

PREPARING FOR THE INSTALLATION

Before you start, please read these critical steps below

STEP

BEFORE YOU START THE INSTALLATION,

READ THIS GUIDE!

VISIT

Rosen Dealer Central

For the latest Updates, Corrections and Technical Tips

about this product and installation

www.RosenDealerCentral.com

CHECK THE BATTERY

Test the battery voltage to make sure it’s fully charged

This only takes seconds and can save hours of

troubleshooting later.

TURN THE VEHICLE

OFF

Keep the Vehicle Off during the installation to avoid setting

various Vehicle Faults

Keep the Vehicle OFF during the

installation

Failure to follow this may cause the AIRBAG FAULT

SENSOR to become enabled. Dealer Service

Departments charge a significant fee to reset the Fault

Sensor.

Installation Guide VW Series

Installation Guide DP-VW0714HD Rev E

Page 3

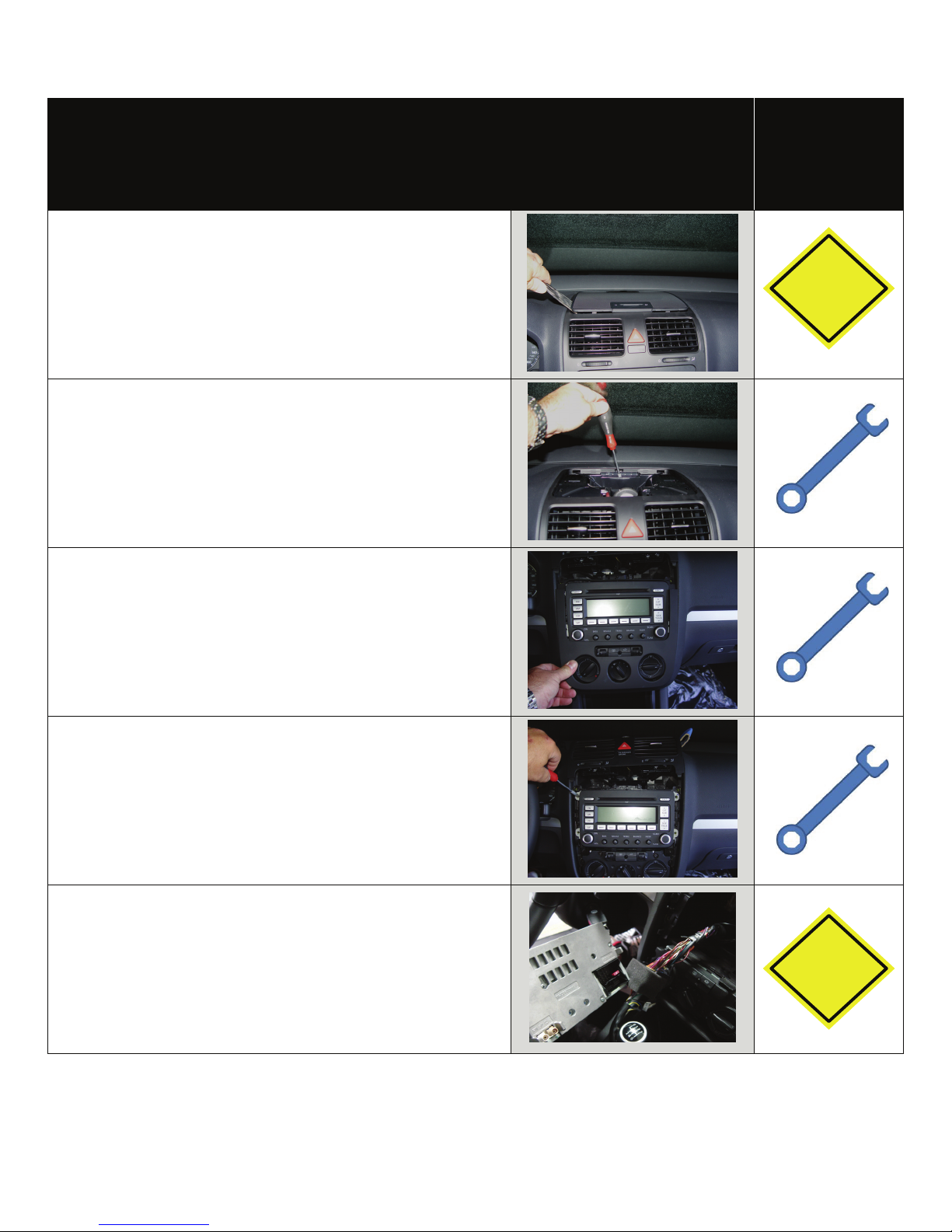

REMOVE THE FACTORY RADIO

You will need to remove multiple interior trim components prior to removing the factory radio.

The following steps will help guide you through this process.

STEP

Remove Upper Dash/Vent Trim

Use a thin pry tool to carefully lift the Upper grill. Use

Caution, the plastic is fragile and excess force can break

or damage trim

CAUTION

Remove the Inner Trim / Vent Components

Remove 3 x T-20 Torx screws to release the inner Trim /

Vent components.

Remove the Radio Surround Trim

Remove 2 x T-20 Torx screws to release Radio Surround

Trim

Remove the Radio Mounting Screws

Remove 4 x T-20 Torx screws to release the radio

Remove OEM Radio from Dash and

Unplug Factory Harness

Carefully slide the radio out, and release the main

connector block and antenna connectors

CAUTION

Installation Guide VW Series

Installation Guide DP-VW0714HD Rev E

Page 4

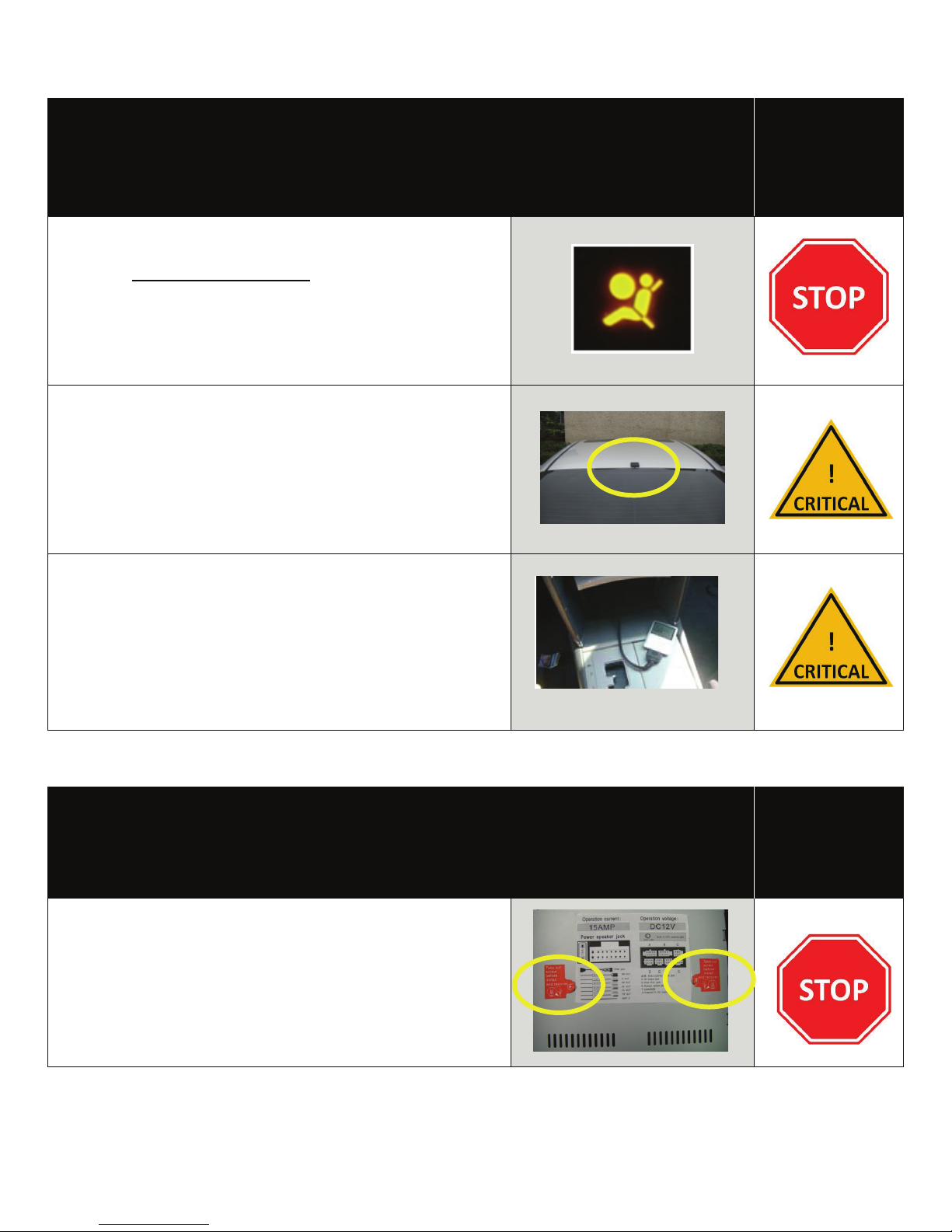

LOCATING REMOTE COMPONENTS

You will need to mount the GPS and Optional Satellite Radio Antennas on the exterior of the

vehicle. And mount the iPod Interface Connector in the vehicle. The following steps will help guide

you through this process.

STEP

Use Caution around SRS Components

It is the installer’s responsibility to ensure that the safety

equipment in the vehicle is NOT adversely affected by

installation of this system. Ensure that the routing of the

harnesses do NOT obstruct airbags, SRS or other safety

devices.

Mount the GPS and Sat Radio antenna in a

location on the exterior of the Vehicle

Route the GPS harness away from other power harnesses in the

vehicle.

This will help to ensure optimum performance of the GPS

system.

Install the iPod interface connector in a

location accessible to the end-user

Locate the iPod interface module in an area which can be

serviced in the future.

The iPod cable is intended to be a serviceable item, which plugs

into the iPod/Sat radio Interface Module.

INSTALL THE ROSEN NAVIGATION SYSTEM

You will need to prepare the Rosen Navigation System for installation in the vehicle.

STEP

Remove the DVD Transport Screws

There are 2 x Phillips Transport Screws which protect the DVD

Mechanism during transportation.

Transport Screws must be removed prior to installation.

Installation Guide VW Series

Installation Guide DP-VW0714HD Rev E

Page 5

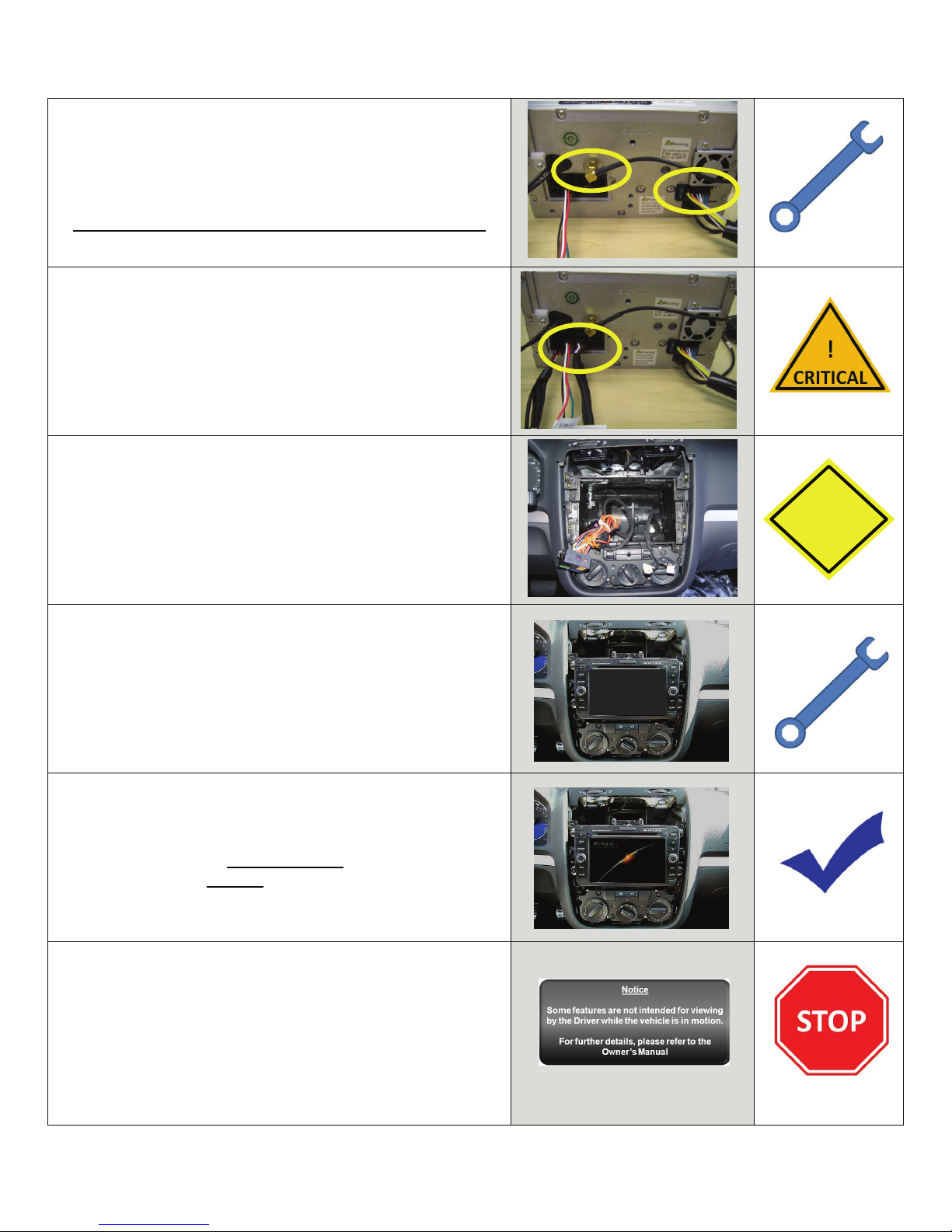

Connect the Power and GPS Harnesses

The GPS Harness must be tightened with a WRENCH to ensure

it is properly seated.

Failure to follow this step may result in poor GPS signal

Connect Optional Harnesses such as iPod,

Satellite Radio, Camera, Reverse Sensors

These harnesses must be fully engaged prior to the system

installation.

See the Harness Diagrams for more information

Prepare the Vehicle side harnesses for

connection to the Rosen Harness

Use care not to pinch or damage cables as this will cause

performance issues/failures

CAUTION

Engage all Connectors to the Factory

Harnesses and attach the Rosen System

using the previously removed Mounting

Screws

Attach the system with 4 x T-20 Torx Screws

Turn the vehicle ON and confirm the unit is

fully operational

With the connectors Fully Engaged, turn the vehicle on

and press the RESET for 5 seconds on the unit.

Insert a DVD to confirm the Video Disable

Circuit is properly Operating.

The Video Disable is provided by the CANBus in most VW

vehicles.

However, in some vehicles the Brake Wire must be

connected to the Park Brake Indicator Wire to complete a

ground when the brake is engaged.

Installation Guide VW Series

Installation Guide DP-VW0714HD Rev E

Page 6

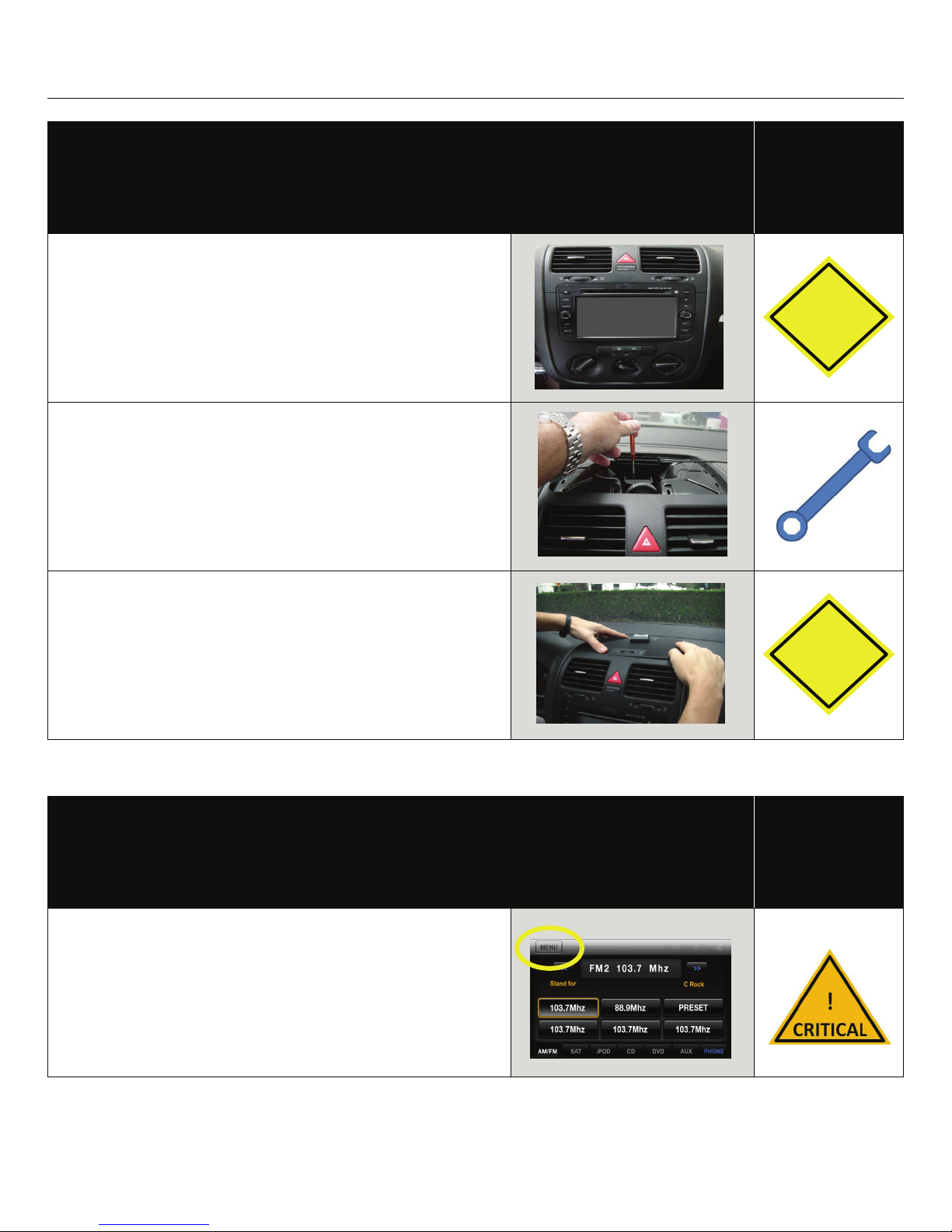

RE-INSTALL THE TRIM COMPONENTS

You will need to reinstall all trim components

STEP

Reinstall all Trim Components in the

reverse order from Step 2

Prior to installing trim components, confirm that all clips are

in good condition.

Replace any broken or damaged trim components or clips

CAUTION

Install the Inner Trim / Vent Components

Install 3 x T-20 Torx screws to attach the inner Trim / Vent

components.

Install the Upper Trim / Vent Component

Use caution when installing the Upper Trim / Vent

Component as it can easily be deformed or damaged.

CAUTION

ENABLE INSTALLER SETTINGS

You will need to select certain Installer Setting based on any Optional Equipment that you may have

installed

STEP

Launch the Installer Setting Screen

From any screen with the Menu Button, follow these steps

to display the Installer Setting Screen, select:

1) From any Screen, select “Menu”

2) From the Menu Screen, select “Settings”

3) Press “Keypad,” Press “7253” and “Enter”

Installation Guide VW Series

Installation Guide DP-VW0714HD Rev E

Page 7

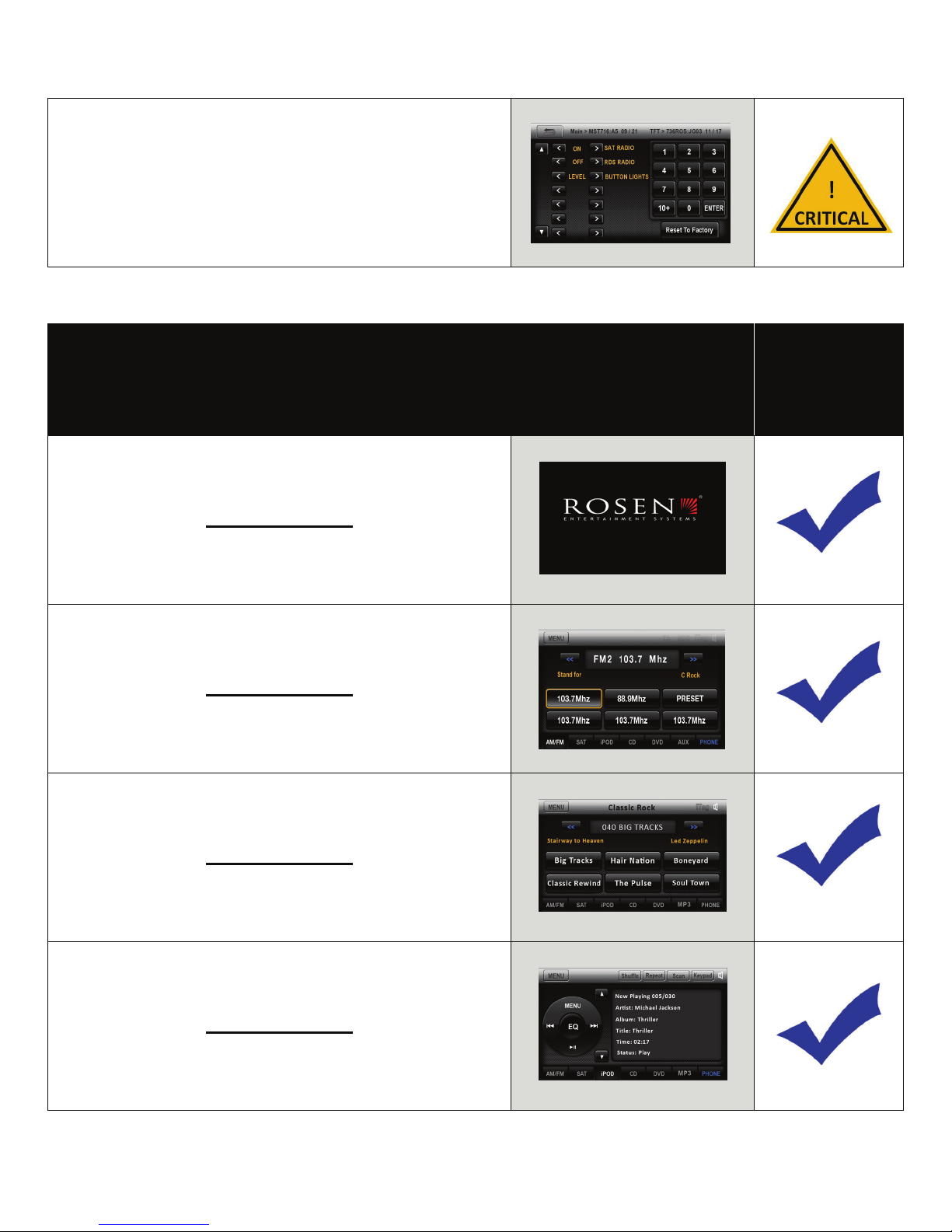

Select the individual Settings as needed

for the installed components

Selectable options vary by product and installation. Select

the options as applicable for the installed optional

components.

Perform Pre-Delivery Tests

You will need to perform several Pre-Delivery Tests to ensure customer satisfaction

STEP

Turn the vehicle ON and System ON

Confirm the unit starts up properly

Troubleshooting

1) Reset the System while the Vehicle is ON

2) Confirm all connectors are properly installed

3) Check the Vehicle and System Fuses

Select RADIO as the Source

Confirm that the AM and FM reception are as expected

Troubleshooting

1) Confirm both Antennas are properly connected.

2) Confirm the Factory Sat Antenna (green) has not been used

3) Reset the System

Select SATELLITE RADIO as the Source

Confirm Channel 001 is present after ~5 minutes

Troubleshooting

1) Confirm the SAT Radio is Turned ON in the Installer Settings

2) Confirm the antenna has unobstructed view of the Sky

3) Confirm the antenna is located on the outside of the vehicle

Select iPOD as the Source (if Equipped)

Confirm iPod is communicating a playback is OK

Troubleshooting

1) Confirm iPod Version Compatibility – not all are compatible

2) Confirm the harnesses are properly engaged

3) Reset the System

Installation Guide VW Series

Installation Guide DP-VW0714HD Rev E

Page 8

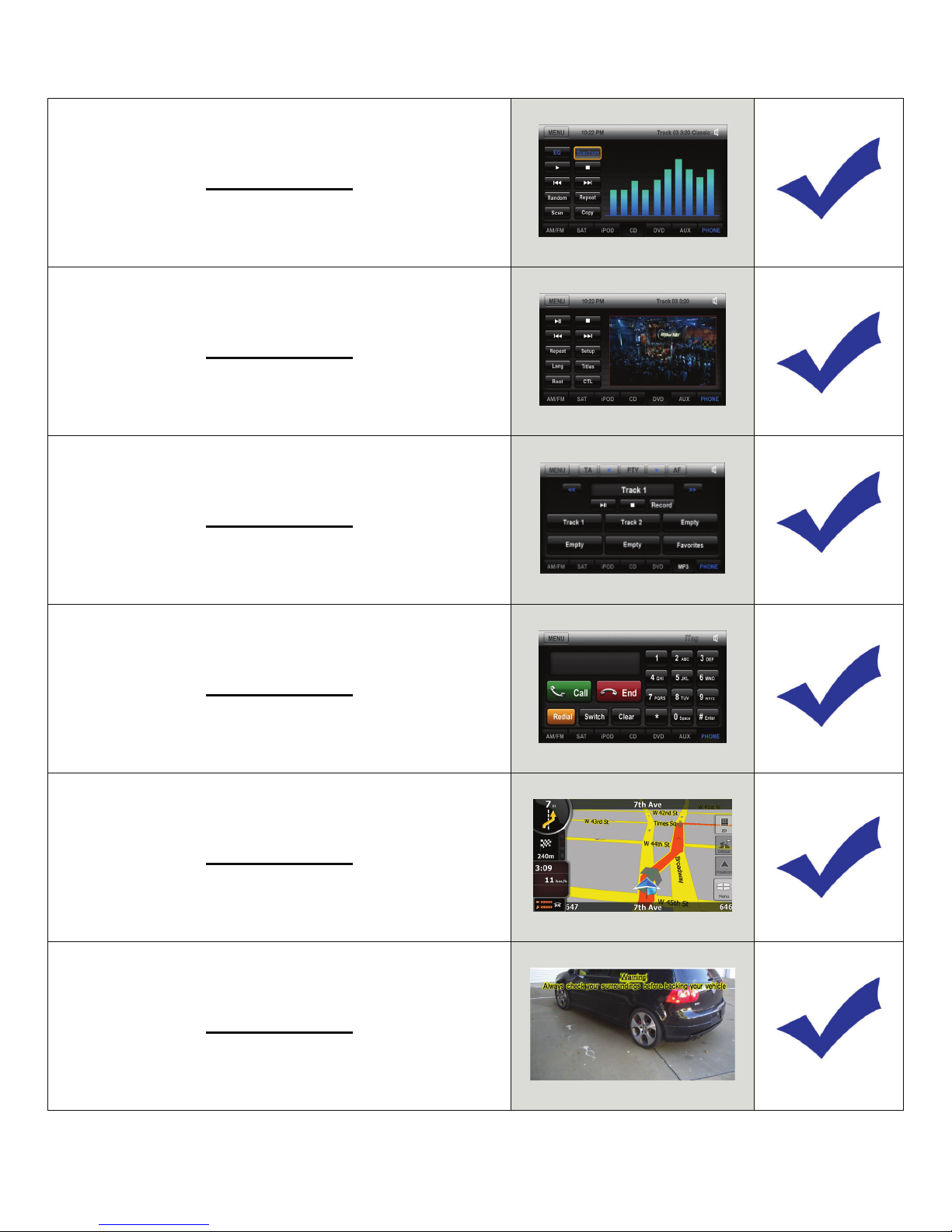

Select CD as the Source

Confirm CD audio playback is OK

Troubleshooting

1) Confirm the Disc is Store Bought and in good condition

2) Reset the system

Select DVD as the Source

Confirm DVD video playback is OK

Troubleshooting

1) Ensure the Park Brake is set to view video

2) Confirm the Disc is Store Bought and in good condition

3) Reset the system

Select MP3 as the Source

Confirm MP3 playback is OK – Select Favorites

Troubleshooting

1) Confirm that a Test Track exists in the Favorites Folder

2) Reset the system

Select Phone as the Source

Confirm Phone Pairing is successful

Troubleshooting

1) Confirm the Phone has BT and is in discoverable mode

2) Confirm the Phone is compatible with the system

3) Reset the system

Select NAV as the Source

Confirm the Navigation loads and signal strength is OK

Troubleshooting

1) Confirm the antenna has an unobstructed view of the sky

2) Confirm the antenna is located on the outside of the vehicle

3) Confirm the antenna connection is properly tightened

Select Reverse Camera (If Equipped)

Confirm the backup camera screen shows in reverse

Troubleshooting

1) Confirm the Camera is set to ON in the Installer Settings

2) Confirm the Reverse Trigger wire is attached properly

3) Confirm the Camera is receiving 12VDC as required

Installation Guide VW Series

Installation Guide DP-VW0714HD Rev E

Page 9

Service and Optional Parts List

Part Number Description Part Number Description

DP-VW0711 Quick Reference Guide DP-VW0712 Harness, Main Interconnect

DP-VW0714 Installation Guide DP-1007 Harness, USB Adaptor

DP-1001 Manual, Owner’s DP-1008 Harness, AUX Out

DP-1003 Manual, Navigation DP-1009 Harness, AUX IN

DP-1004 Remote Control DP-1010 Harness, Sensors/Camera

DP-1023 Pin, Stylus DP-1011 Harness, Dolby 5.1/Amp

DP-1020-H11 Card, SD w/ maps DP-1013 Harness, iPod/Interface Box

DP-1022 Antenna, GPS DP-1015 Harness, iPod Replacement

DP-1042 XM/iPod Multimedia Kit DP-1051 Harness, Sirius Interface

DP-1035 Camera, Cylinder W/Mount DP-1047 GPS Antenna Windshield Mount

DP-1055 Sirius/iPod Multimedia Kit DP-1030 Sensors, Reverse Kit

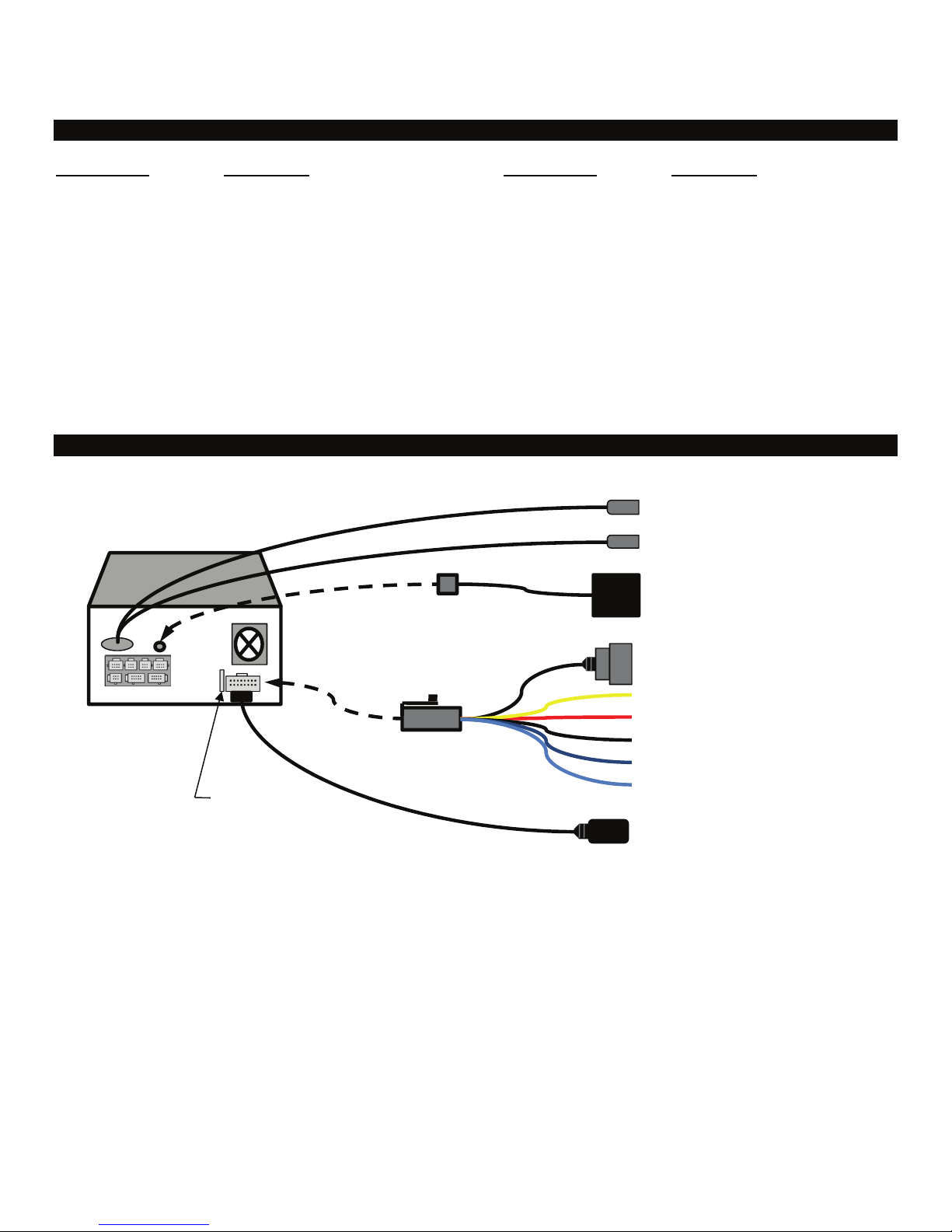

Main Harness Diagram

BUART2

Radio Antennas

GPS Antenna

OEM Vehicle Interface

DP-Variable

Main Connector

Red, ACC SW +12VDC

Yellow, Battery +12VDC

Black, Ground

Blue, Reverse Trigger +12VDC

Blue/Wht, Park Brake Ground

Fuse

Main Unit

Connectors

Installation Guide VW Series

Installation Guide DP-VW0714HD Rev E

Page 10

Option Harness Diagram

This manual suits for next models

Table of contents

Other Rosen Car Navigation System manuals

Rosen

Rosen DP-1001 User manual

Rosen

Rosen DS-UN0810 User manual

Rosen

Rosen DS-UN0910 User manual

Rosen

Rosen DS-TY0840 User manual

Rosen

Rosen DS-TY0820 User manual

Rosen

Rosen DS-MZ0830 User manual

Rosen

Rosen DS-SB1020 Subaru Legacy User manual

Rosen

Rosen GM Series3 User manual

Rosen

Rosen DP-1001 User manual

Rosen

Rosen GM Series5 User manual

Rosen

Rosen DS-TY0710 User manual

Rosen

Rosen DP-1001 User manual

Rosen

Rosen Multimedia Navigation System User manual

Rosen

Rosen DS-MZ0740 Mazda CX-7 User manual

Rosen

Rosen DS-HD0820 User manual

Rosen

Rosen PR-UN1370-US User manual

Popular Car Navigation System manuals by other brands

Clarion

Clarion Navigation In-Car Entertainment user guide

Alpine

Alpine INE-W970HD installation manual

Skoda

Skoda AMUNDSEN+ operating instructions

Blaupunkt

Blaupunkt TravelPilot DX-N installation instructions

Pioneer

Pioneer MZ360500EX owner's manual

Sanyo

Sanyo NVM-4030 - Easy Street - Automotive GPS... instruction manual

Kenwood

Kenwood DNN991HD quick start guide

AvMap

AvMap Geosat 2C user manual

Eonon

Eonon GE01B user manual

Pioneer

Pioneer AVIC-Z920DAB installation manual

Nextar

Nextar M3-MX - Automotive GPS Receiver quick start guide

Furrion

Furrion NV2200 owner's manual

Mio

Mio MOOV 200-Series user manual

Prestigio

Prestigio GeoVision 5150 manual

Hummer

Hummer 2006 H3 manual

Magellan

Magellan Maestro 4210 - Automotive GPS Receiver Manuel d'utilisation

Garmin

Garmin StreetPilot c510 owner's manual

Garmin

Garmin nüvi 2200 owner's manual
