ROOTS RB650 Series User manual
1
RootsScrub RB 650/750
RB650 & RB750
Ride-on-Scrubber Drier
Battery
650
Standard
750
Standard
650
Standard
Stainless
Steel
750
Standard
Stainless
Steel
650
Premium
750
Premium
650
Premium
Stainless
Steel
750
Premium
Stainless
Steel
Operator’s Manual
Read this manual completely and understand the
instructions before operating the machine.
“English Version”
24V/200Ah
2
RootsScrub RB 650/750
3
RootsScrub RB 650/750
P/N: 557540003-00, Rev-B, 10/2019
Prepared by KM, NPM TD Dept.
TABLE OF CONTENTS
IMPORTANT NOTE:
OPERATOR’S MANUAL:
Roots Multiclean Ltd. (RMCL) is not liable for any legal claims that
may arise as a direct or indirect result of the contents of this
manual.
Roots Multiclean Ltd.
R.K.G. Industrial Estate, Ganapathy,
Coimbatore - 641 006, India.
MACHINE DATA
Please fill at the time of installation for future reference:
Model No. - _______________________________
Serial No. - ________________________________
Installation Date - ___________________________
Introducon
Know Your Machine
Troubleshoong
Machine Operaon
Operator Notes
Table Of Contents & Important Note
Technical Specificaons
Safety Instrucons
Working Principle
Controls
Maintenance
Do & Don’ts
5
20
27
63
88
3
8
13
25
40
89
85
ROOTS philosophy is to continually improve all of its products. For this reason
we may modify the design, appearance and engineering of our products
periodically.
Therefore, some changes, modifications and improvements may not be
covered in this manual.
For the latest Operator’s Manual, visit:
www.rootsmulticlean.com/user-manual/
4
RootsScrub RB 650/750 INTRODUCTION
5
RootsScrub RB 650/750
PREFACE
We are pleased with you having chosen the RB650/RB750 Ride-on-Scrubber
Drier for your cleaning requirements. Backed by our industry expertise that
spans across two decades, we assure you that the machine comes with ROOTS
promise of quality, efficiency and performance.
We advise you to carefully read through the instructions prior to the
operation of the machine. This manual contains detailed instructions for the
proper operation of the machine, along with important information regarding
its handling, care, maintenance and service needs.
We are sure that you will find the machine and its performance to your utmost
satisfaction. Once again, we thank you for choosing as a trusted partner for us
your cleaning requirements.
Usage, Handling & Modification
Use of the product beyond the specified scope of functioning is deemed
improper and the manufacturer cannot be held liable for any damage which
may arise due to this.
This machine may be used only by persons who are trained or are familiar with
the machine and are aware of the possible hazards involved. The appropriate
Accident Prevention Regulations as well as applicable general regulations
pertaining to Safety and Health at the work place must be adhered to by the
user.
Modifications made to machine without the manufacturer's consent will
relieve the manufacturer of responsibility and any possible liability for
consequential damage.
Dear Customer,
Acceptance of the Machine
On arrival of the machine at the shipping address, please check for any
damage that may have occurred as a result of transit. In the event of any such
damage, the purchaser is bound by responsibility to send a claim letter to the
concerned dealer with a copy of the invoice. The letter should be authorized
sent within 24 hours of receipt of the machine.
Notes on Warranty
Refer the Warranty manual supplied along with the machine.
NOTE:
ILLUSTRATIONS SHOWN IN THIS MANUAL ARE FOR REPRESENTATIVE
PURPOSE ONLY. ACTUAL PRODUCT MAY VARY.
ROOTS reserves the right to change the product or contents of this manual
without prior information.
For instructions regarding usage, maintenance and service of Engine,
Battery, Motors, Blowers or other OEM components kindly refer to their
manufacturers manual supplied along with the machine.
INTRODUCTION
Prior to first operation, read the manual carefully and strictly comply with
the instructions contained.
The Operator’s Manual is an integral part of the machine and must not be
misplaced.
6
RootsScrub RB 650/750
INTENDED USE
INTRODUCTION - INTENDED USE
This automatic floor scrubber is intended for industrial/commercial use, for
example in hotels, schools, hospitals, factories, shops, offices and rental
businesses. It is designed to scrub hard floor surfaces (smooth concrete, tile,
stone, synthetic, etc.) in an indoor environment. This machine is not
intended for cleaning carpets or sanding wood floors. Do not use the
machine on soil, grass or artificial turf. Use only recommended
pads/brushes and recommended floor cleaning detergents.
This machine is not intended for use on public roadways.
Do not use this machine in any other way other than described in this
Operator’s Manual.
7
RootsScrub RB 650/750 TECHNICAL SPECIFICATION
8
RootsScrub RB 650/750
TECHNICAL SPECIFICATION - RB650 STANDARD/PREMIUM
Working speed - 6.5 km/hr
Travel speed - 7 km/hr
Minimum running time - 4 hrs
Theoretical area coverage
- 4225 m²/hr
1250 mm
Turning circle in aisles -
Weight of the machine with batteries &
water - 450 kg (Std/Premium), 455 kg (Std
SS/Premium SS)
Power supply - 24 V DC
Battery rating - 200 Ah
Brush motor nominal power - 2 X 350 W
Vacuum motor nominal power - 400 W
Drive motor nominal power - 500 W
Vacuum pressure - 1000 mm of H₂O
Water flow rate (max) - 3.3 lpm
No. of brushes per machine - 2
Brush diameter - 333 mm
Brush speed (Min.) - 180 rpm
Scrubbing width - 650 mm
Brush load - 25 Kg
Suction width - 870 mm
Fresh water tank - 100 L
Dirty water tank - 100 L
Gradient (Max) - 11 %
9
RootsScrub RB 650/750
TECHNICAL SPECIFICATION - RB750 STANDARD/PREMIUM
Theoretical area coverage
- 4875 m²/hr
Weight of the machine with batteries &
water - 470 kg (Std/Premium), 475 kg (Std
SS/Premium SS)
Power supply - 24 V DC
Battery rating - 200 Ah
Brush motor nominal power - 2 X 350 W
Vacuum motor nominal power - 550 W
Drive motor nominal power - 500 W Water flow rate (max) - 3.3 lpm
Vacuum pressure - 1500 mm of H₂O Gradient (Max) - 11 %
No. of brushes per machine - 2
Brush diameter - 385 mm
Brush speed (Min.) - 180 rpm
Scrubbing width - 750 mm
Brush load - 30 Kg
Suction width - 970 mm
Fresh water tank - 100 L
Dirty water tank - 100 L
Working speed - 6.5 km/hr
Travel speed - 7 km/hr
Minimum running time - 4 hrs
1250 mm
Turning circle in aisles -
10
RootsScrub RB 650/750

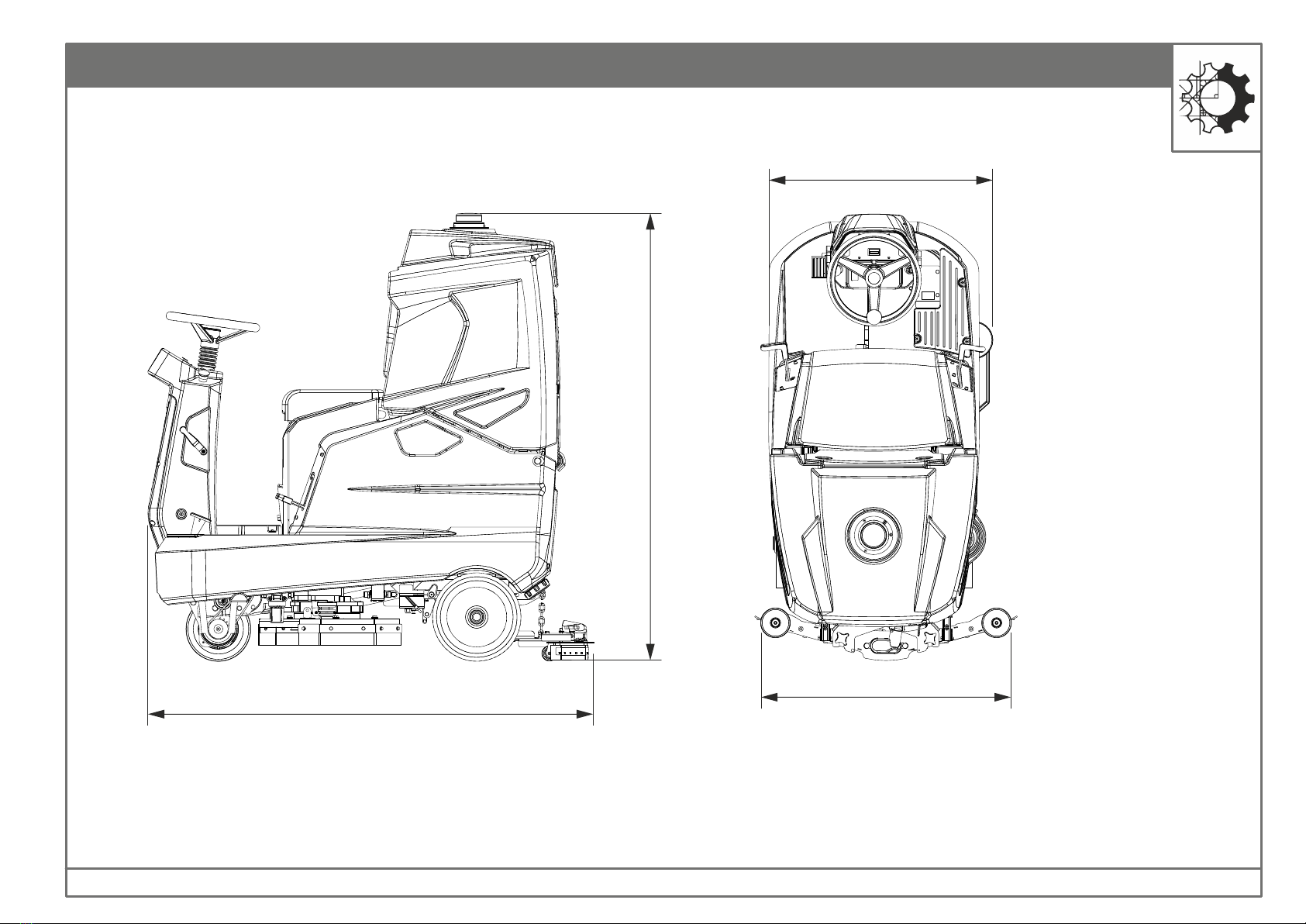

TECHNICAL SPECIFICATION - RB650
Dimensions for RB650:
Length - 1525 mm
Height - 1520 mm
Width with Sqg - 870 mm
Width without Sqg - 750 mm
This manual suits for next models
