OPERATION MANUAL
BATTERY CHARGER
DFC-10P
DFC-30P
DFC-50P
DFC-450P
DFC-650P
This manual provides important safety information and instructions on
how to set up your battery charger. In order to minimize that risk, it’s
important to read this manual carefully.
Keep this manual in a safe place, review it frequently and ensure that
all users have read it to ensure safe operation.
English Français Deutsch Italiano Español
V 3.1
DFC-10P / DFC-30P / DFC-50P /
DFC-450P / DFC-650P
English
Contents Languages
02 - Content
03 - Quick Start Guide
03 - Safety Instructions and Technical Data 06 - Panel
Controls
DFC-10P
DFC-30P
DFC-50P
07 - Panel Controls
DFC-450P
DFC-650P
08 - CE Decleration of Conformity 2
09 -Français
17 -Deutsch
25 -Italiano
33 -Español
©ROHR
DFC-10P / DFC-30P / DFC-50P / DFC-450P / DFC-650P English
Quick Start Guide
First connect the red charging lead to the positive on the battery.
Connect the black charging lead to the negative on the battery.
Select your required output voltage, mode and setup options on the battery
charger: a) For DFC-650P models, turn the operation dial to either jump start or
charge modes, the higher the number, the higher the amperage. The timer dial
must be used with numbers 4, 5 and 6 on the operation dial.
b) For DFC-650P models insert 3 x 50a fuses into the fuse holder. For DFC-450P
models use 2 x 50a fuses.
c) Select your required output voltage or jump start mode (applies to
specific models). Connect the charger to a power outlet and turn it on.
The charger will begin charging, if your battery is / becomes full charged, the charger
will automatically switch to trickle charge / stop charge.
For jump start operation, only apply a jump start for a maximum of 5 seconds
and then allow a 20 second cool down time.
After use, switch off the battery charger and disconnect from the power outlet.
Disconnect the black charging lead from the negative terminal of the battery.
Disconnect the Red charging lead from the positive terminal of the battery.
Screw or press the battery plugs back into position.
Safety Features
This battery charger features a range of safety features. In the event of a blown
fuse, the fuse must be replaced with an identical fuse. The automatic circuit
breaker will stop charging in the event of overheating. This will automatically start
charging again after cooling.
The battery must be disconnected from the vehicle prior to connecting the battery to
the charger. Failure to do so may extensively damage the vehicle and or chargers
electric systems.
©ROHR 3
DFC-10P / DFC-30P / DFC-50P /
DFC-450P / DFC-650P
Functions and
Controls
Voltage Selection
For models with a switch - change
the switch to alter the voltage.
English
For models with terminals - the negative wire is hard wired, swap the positive wire to
the desired voltage position.
Amperage Selection
For models with a dial - turn the dial to increase the Amp output. Higher numbers
produce a higher Amperage. For models with a switch - change the switch to alter
the amperage. MIN - trickle charge / MAX - fast charge
Pulse Repair Technology
Older batteries can lose their ability to hold charge due to becoming sulphated. This
charger features highly advanced pulse rectifier boost battery repair technology
that actively repairs this damage. This battery restoration feature can get almost
any battery back to full health.
Mode Icons
For models with both charge and jump start functions - there are two symbols to
indicate the function type:
+ -
+ -
Charging mode Jump Start Mode
4
©ROHR
DFC-10P / DFC-30P / DFC-50P / DFC-450P / DFC-650P English
Safety Instructions
Please read and understand this manual and the manual for the product /
battery you are intending to charge before operating this device. Keep this
manual for future reference.
1. Only use this device indoors and for its intended use.
2. No warranty is offered for damages resulting from improper use or incorrect
operation of this device. 3. This device is not intended to be used by persons
(including children) with limited physical, sensory or mental aptitude or lack of
experience and/or knowledge.
4. In the event of a fault or failure, any repairs to this battery charger must be
done by a qualified person authorised by the manufacturer.
5. Keep the power cable away from sources of heat and check the condition of it
regularly. If it’s damaged, have the cable replaced by a qualified person.
6. Do not use the charger if damaged or defective and do not charge disposable,
frozen or damaged batteries.
7. Protect the charger against the elements, especially rainfall. Use the device in well
ventilated areas only.
8. Do not leave the charger connected to a power supply when not in use.
9. When charging, batteries emit gasses that may be explosive. Keep away from
any heat sources. 10.Make sure the battery charger is disconnected from a power
source when connecting to a battery. 11.Never place a battery right under or on top
of the battery charger. Place the battery charger as far
away from the battery as possible. Never place the battery charger under the
bonnet. 12.Always make sure the car and battery manufacturers permit the use of a
battery charger jump start prior to using this function (applicable models only).
13.Warning, danger to life - when cleaning, never immerse the device in water or
other liquids and never open the product housing.
Technical Data
MODE
L
INPUT
VOLTA
GE
(V)
OUTPU
T
VOLTA
GE
(V)
CHA
RGI
NG
CUR
REN
T
(A)
MAX
CHA
RGIN
G
CUR
REN
T
(A)
FUNCT
ION
STARTI
NG
CURRE
NT
(A)
CHA
RGIN
G
INPU
T
POWE
R (W)
STARTI
NG
INPUT
POWE
R (W)
BATTE
RY
CAPAC
ITY
DFC-1
0P
230
6/12
5/8
10
Charge
N/A
250
N/A
20-150
ah
DFC-3
0P
230
12/24
15/20
27
Charge
N/A
700
N/A
20-240
ah
DFC-5
0P
230
12/24
20/30
45
Charge
/
Start
130
950
6400
50-350
ah
DFC-4
50P
230
12/24
40/50
70
Charge
/
Start
300
1200
8500
100-
700ah
DFC-6
50P
230
12/24
60/70
100
Charge
/
Start
480
2200
12000
120-
1000ah
©ROHR 5
DFC-10P / DFC-30P / DFC-50P /
DFC-450P / DFC-650P
English

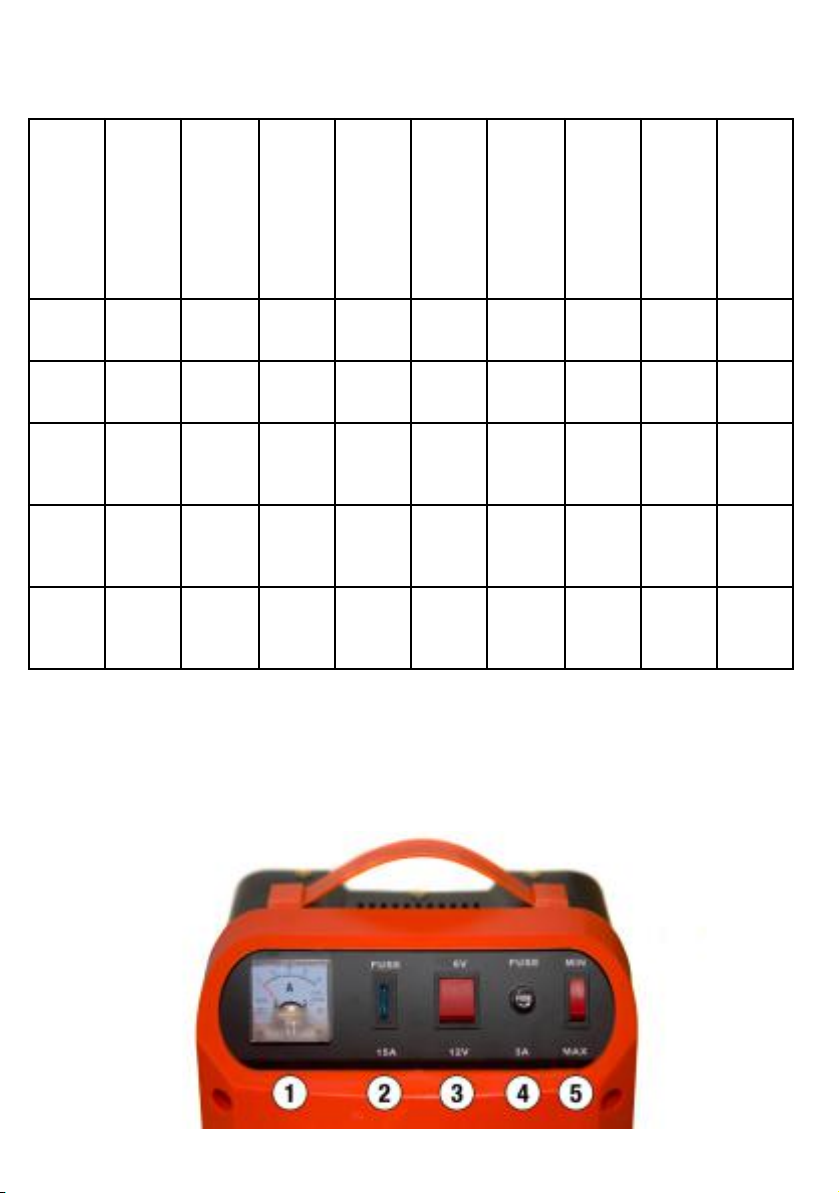

Fig.1 - Panel Controls for the DFC-10P / DFC-30P
1. Ammeter - displays current / load
2. 15A (DFC-10P) / 30A (DFC-30P) fuse
3. 6/12V (DFC-10P) / 12/24V (DFC-30P) switch
4. 3A (DFC-10P) / 5A (DFC-30P) fuse
5. Amp output switch, MIN - Trickle charge / MAX - Fast Charge

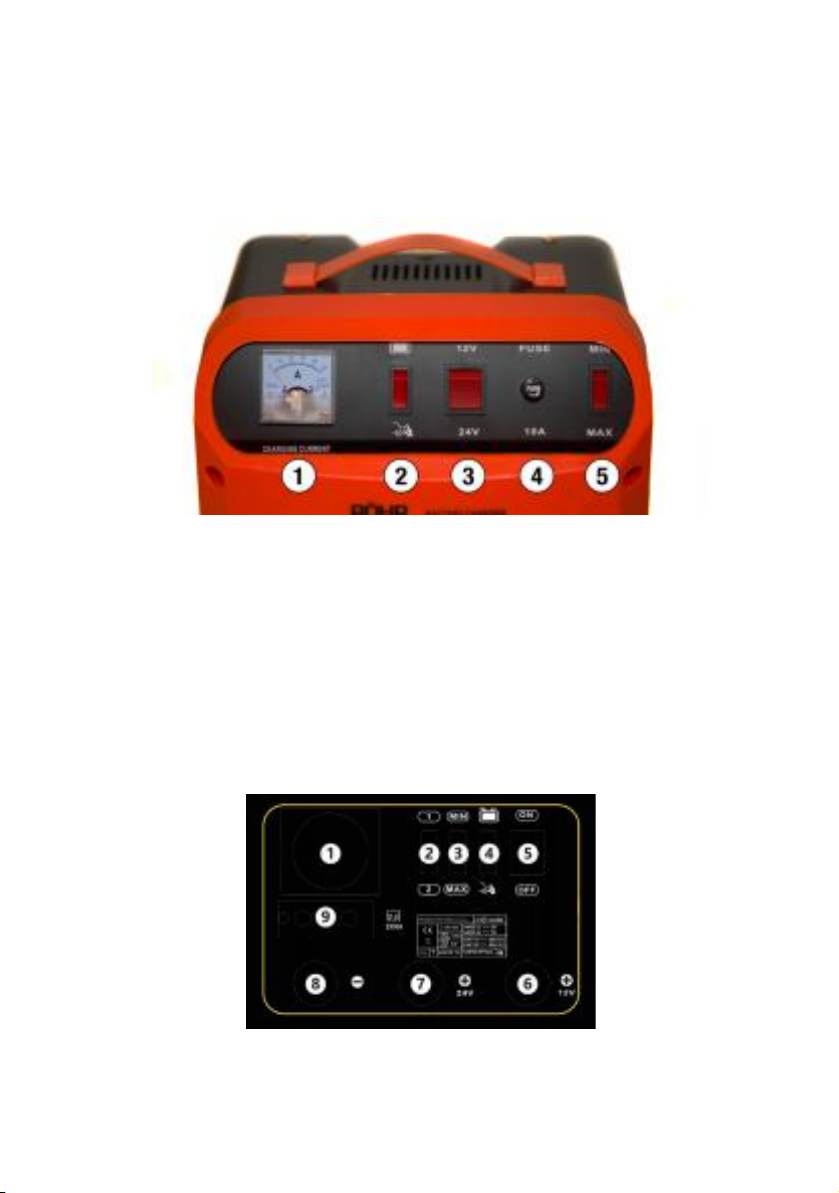

Fig.2 - Panel Controls for the DFC-50P
1. Ammeter - displays current / load
2. Mode switch - charging / jump start
3. 12 / 24 Volt switch
4. 10 Amp fuse
5. Amp output switch, MIN - Trickle charge / MAX - Fast Charge
6
©ROHR
DFC-10P / DFC-30P / DFC-50P / DFC-450P / DFC-650P English
Fig.3 - Panel Controls for the DFC-450P
1. Ammeter - displays current / load
2. ‘1-2’ Function - Adjusts ampere output
3. Amp output switch, MIN - Trickle charge / MAX - Fast Charge
4. Mode switch - charging / jump start
5. On / off switch
6. 12 Volt positive terminal
7. 24 Volt positive terminal
8. Negative terminal
9. Fuse housing

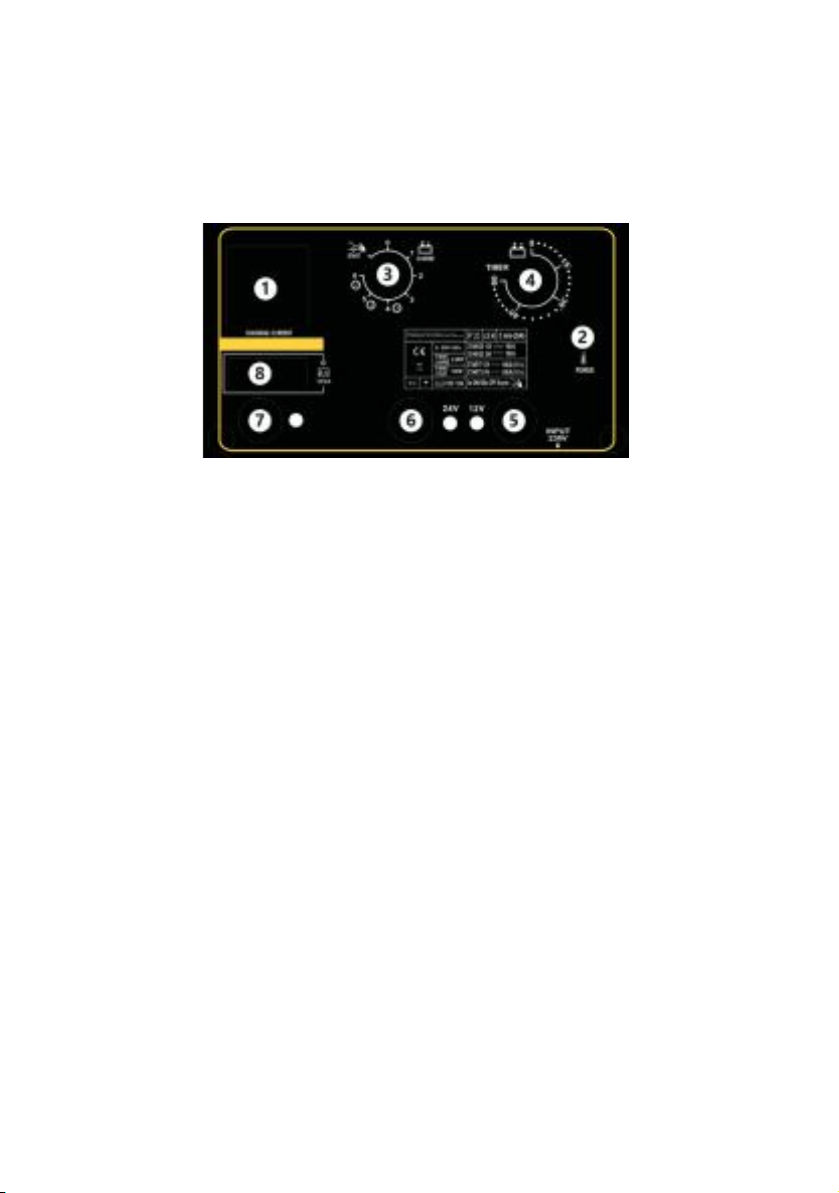

Fig.4 - Panel Controls for the DFC-650P
1. LCD Ammeter - displays current / load
2. Power indicator light
3. Operation dial - turn left for jump start function and turn right for charging
currents 4. Timer - used to control charging duration, must be used when
operation dial is at 4, 5 or 6. 5. 12 Volt positive terminal
6. 24 Volt positive terminal
7. Negative terminal
8. Fuse housing
©ROHR 7
DFC-10P / DFC-30P / DFC-50P /
DFC-450P / DFC-650P CE
DECLARATION
OF
CONFORMITY
English
We hereby declare that the machine described below complies with the relevant basic
safety and health requirements of the EU Directives, both in its basic design and
construction as well as in the version put into circulation by us. This declaration shall
cease to be valid if the machine is modified without our prior approval.
The undersigned: Michael S McQuaide
as authorised by: Union Mart Ltd
Declares that
Description: Battery Charger
Identification code: DFC-10P, DFC-30P, DFC-50P, DFC-450P, DFC-650P
Conforms to the following directives and standards:
• Low Voltage Directive 2014/35/EU
• Electromagnetic Compatibility 2014/30/EU
• RoHS Directive 2011/65/EU and its ammendment Directive (EU) 2015/863
--
And Complies with the provisions of the following standards:
EN 55014-1:2017, EN 55014-2:2015, EN 61000-3-1:2014, EN
61000-3-3:2013 EN 60335-1:2012+A1 1:2014+A13:2017, EN
60335-2-29:2004+A11:2018, EN 62233:2008 --
Notified body: I S E T SRL
The technical documentation is kept by: Union Mart Ltd
Date: 14/03/2018
Signed:
Michael S McQuaide
Managing Director
Name and address of the manufacturer:
Union Mart Ltd, Company No. 8384155. Registered address: Unit 4, Nursling
Industrial Estate, Mauretania Road, Nursling, Southampton, SO16 0YS,
United Kingdom.
