RODE Microphones Reporter User manual
www.rodemic.com
Reporter
Instruction Manual
139-950-1-2_Reporter_manual.indd 1139-950-1-2_Reporter_manual.indd 1 15/10/2012 10:00:02 AM15/10/2012 10:00:02 AM
- 2 -
Thank you for investing in the Reporter.
The RØDE Reporter is the result of over 30 years of dedicated
research and experience in microphone design and
manufacture across many fields, from music, to broadcast and
location sound.
The RØDE Reporter has been specifically designed to deliver
a full and rich sound quality when used in the reporting and
news gathering field. With its high wind noise rejection and
tailored frequency response, the Reporter delivers clear,
broadcast quality sound.
Please take the time to visit www.rodemic.com and register
your microphone for a full ten year warranty.
While there, you can download supporting documents,
view studio tips and techniques, as well as browse a
comprehensive range of accessories for the Reporter
and other microphones.
Peter Freedman
RØDE Microphones
Sydney, Australia
Introduction
139-950-1-2_Reporter_manual.indd 2139-950-1-2_Reporter_manual.indd 2 15/10/2012 10:00:18 AM15/10/2012 10:00:18 AM
- 3 -
Acoustic Principle: Dynamic
Polar Pattern Omni-directional
Frequency Range: 70Hz ~ 15 000Hz
Output Impedance: 150± 30% at 1kHz
Sensitivity: -56 dB re 1V/Pa
(1.0mV @ 94 dB SPL)
± 3 dB @ 1 kHz
Output Connection: XLR
Weight: 256g (without mic flag)
286g (with mic flag)
Packed Weight: 1100g
Dimensions 41.5mm x 272.5mm x 41.5mm
(1.6” x 10.7” x 1.6”)
Specifications
139-950-1-2_Reporter_manual.indd 3139-950-1-2_Reporter_manual.indd 3 15/10/2012 10:00:19 AM15/10/2012 10:00:19 AM
- 4 -
Specifications
FREQUENCY RESPONSE
POLAR RESPONSE
139-950-1-2_Reporter_manual.indd 4139-950-1-2_Reporter_manual.indd 4 15/10/2012 10:00:19 AM15/10/2012 10:00:19 AM
- 5 -
LOW HANDLING NOISE
• Internal shock mounted capsule reduces unwanted
handling noise
• High wind noise rejection
• Custom internal plosives screen to reject vocal plosives
and unwanted wind noise
OMNIDIRECTIONAL DYNAMIC
MICROPHONE CAPSULE
• Frequency response optimised for speech intelligibility
• Enables the use of field recorders without the ability to
supply phantom power
• Omnidirectional pickup pattern ensures smooth, even
pickup from any direction
EXTRA LONG HANDLE
• Well balanced, for comfortable handling over
long periods
• Allows for mounting of traditional microphone flags
• Ensures that you get closer to the source
DIE CAST ALUMINIUM BODY
• Durable body will withstand the tough conditions
encountered in the field and during transport
• Light weight for easy handling
• Robust connector, to keep a firm hold on XLR cables and
withstand frequent connections
MICROPHONE FLAG
• Highly durable Polycarbonate / ABS plastic
• Blank, two-sided for easy screen printing
MATTE FINISH
• Ideal for video or TV production, when the microphone
must be discreet
Features
139-950-1-2_Reporter_manual.indd 5139-950-1-2_Reporter_manual.indd 5 15/10/2012 10:00:19 AM15/10/2012 10:00:19 AM
- 6 -
• RØDE Reporter microphone
• ZP2 zip pouch (located underneath cardboard insert)
• Microphone flag
What’s in the Box
Reporter Structure
1. Mesh head with internal
plosive screen
2. Extra long handle
3. XLR connector
4. Microphone flag
2
3
4
1
139-950-1-2_Reporter_manual.indd 6139-950-1-2_Reporter_manual.indd 6 15/10/2012 10:00:19 AM15/10/2012 10:00:19 AM
- 7 -
Using the Reporter
• The Reporter is a handheld dynamic microphone,
designed for use in the field of news gathering and
reporting.
• The Reporter features an omnidirectional capsule. For this
reason it is not always necessary to move the microphone
back and forth between the interviewer and the person
being interviewed.
• In a typical interview scenario the microphone should
be held at around chest height between the interviewer
and the person being interviewed, to ensure that
the microphone picks up the speakers in the immediate
vicinity clearly, while reducing the level of any
background noise.
139-950-1-2_Reporter_manual.indd 7139-950-1-2_Reporter_manual.indd 7 15/10/2012 10:00:20 AM15/10/2012 10:00:20 AM
- 8 -
Microphone Flag
• A custom microphone flag is supplied with the Reporter.
The microphone flag has been designed so that it can
be easily screen printed with your organisation’s logo, or
a weatherproof adhesive label can be applied using the
specifications listed below.
139-950-1-2_Reporter_manual.indd 8139-950-1-2_Reporter_manual.indd 8 15/10/2012 10:00:21 AM15/10/2012 10:00:21 AM
- 9 -
Using the Microphone Flag
• To install your microphone flag, place the mesh head of
the Reporter through the ring on the flag, with the RØDE
logo centred. Push the flag down until it ‘clicks’ in place
into the groove on the microphone head. Ensure it is
properly secured by giving the flag a few light agitations
with your hand.
• To remove your flag, gently press the edges of the
protruding ‘tabs’ on the flag to give the ring some leeway.
Pull flag upwards to remove from the Reporter.
139-950-1-2_Reporter_manual.indd 9139-950-1-2_Reporter_manual.indd 9 15/10/2012 10:00:21 AM15/10/2012 10:00:21 AM
- 10 -
Optional Accessories

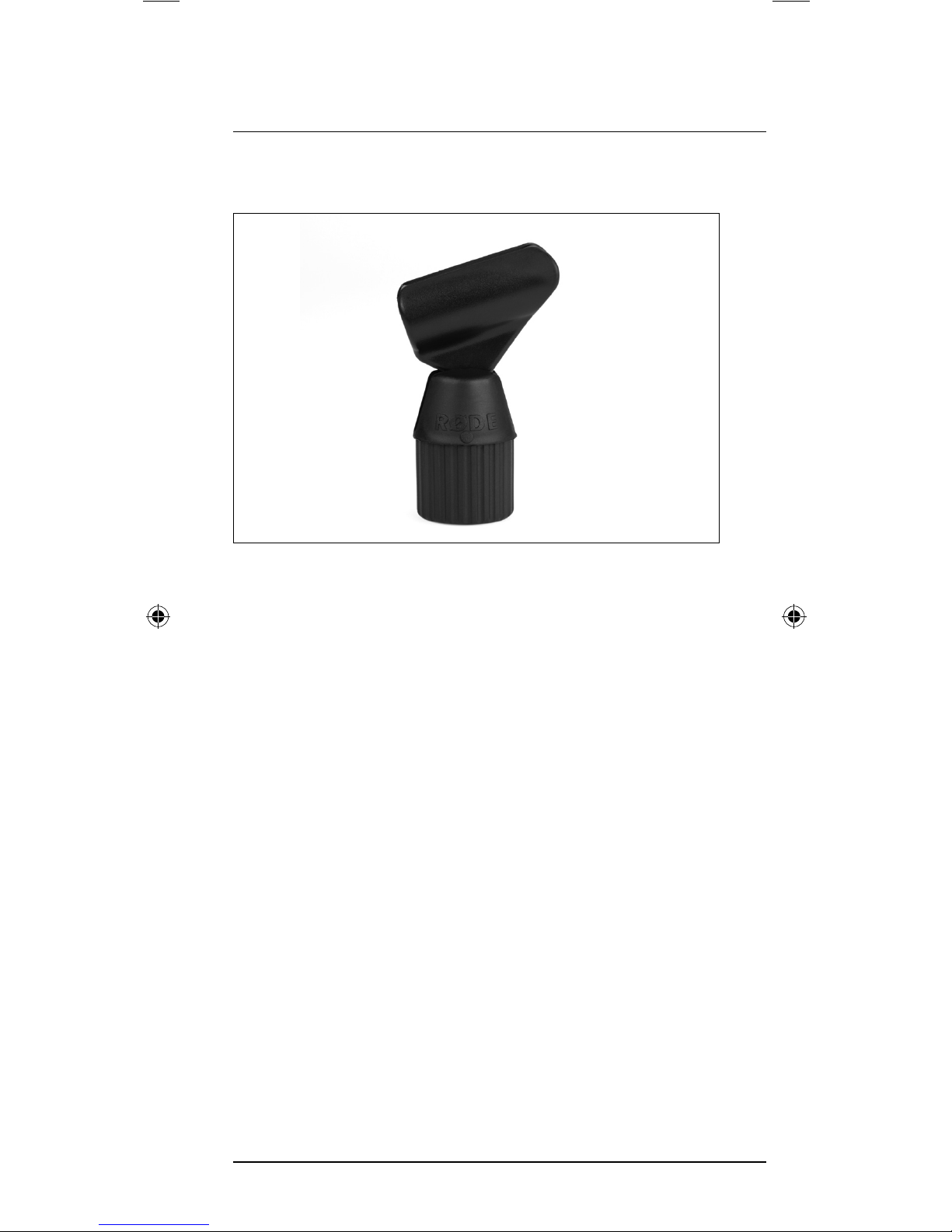

RM5 MICROPHONE CLIP
• The RM5 stand mount is available to securely mount the
Reporter on a microphone stand or boompole, allowing
you to place the microphone in the optimal position for
hands free recording, or giving the user the additional
reach required to get closer to the sound source.
