RODE Microphones M5 User manual

www.rodemic.com/m5

ENGLISHINSTRUCTION MANUAL

Compact 1/2”

Cardioid Condenser

Microphones

M5_multilingual_manual.indb 1M5_multilingual_manual.indb 1 2/09/2013 6:59:47 PM2/09/2013 6:59:47 PM

The M5 is a studio quality half-inch condenser microphone,

designed for highly detailed sound reproduction. It features a

cardioid polar pattern and end address design, meaning that it will

pick up sound directed into the end of the microphone, and reject

sound from the rear of the mic.

This pickup pattern allows for recording of the desired sound

source while reducing the level of other surrounding instruments,

noises or sound sources.

The M5 is not only ideal for recording music, but is a fantastic

microphone for environmental recordings and indoor dialogue on

ﬁlm sets.

The enclosed pair has been hand-picked by RØDE’s audio

engineering team to be acoustically matched to ensure perfect

compatibility when used in stereo conﬁgurations.

Introduction

M5_multilingual_manual.indb 2M5_multilingual_manual.indb 2 2/09/2013 7:00:05 PM2/09/2013 7:00:05 PM

Features

• ½” capsule with gold-plated membrane

• Cardioid polar pattern

• All metal body

• Ultra-low noise transformerless circuitry

• State-of-the-art surface mount electronics

• Heavy-duty matte black ﬁnish

• Gold plated output connectors

• Designed & manufactured in Australia

• Free 10 year extended warranty when you register online at

www.rodemic.com/warranty

M5_multilingual_manual.indb 3M5_multilingual_manual.indb 3 2/09/2013 7:00:05 PM2/09/2013 7:00:05 PM

The M5 is covered by a limited warranty for one (1) year from the

date of purchase. This can be extended free of charge to a full

ten (10) year warranty by registering your microphone online at

visiting our website as below.

Warranty

validate your free 10 year warranty.

Scan the QR code with a smartphone,

or visit www.rodemic.com/warranty

M5_multilingual_manual.indb 4M5_multilingual_manual.indb 4 2/09/2013 7:00:05 PM2/09/2013 7:00:05 PM

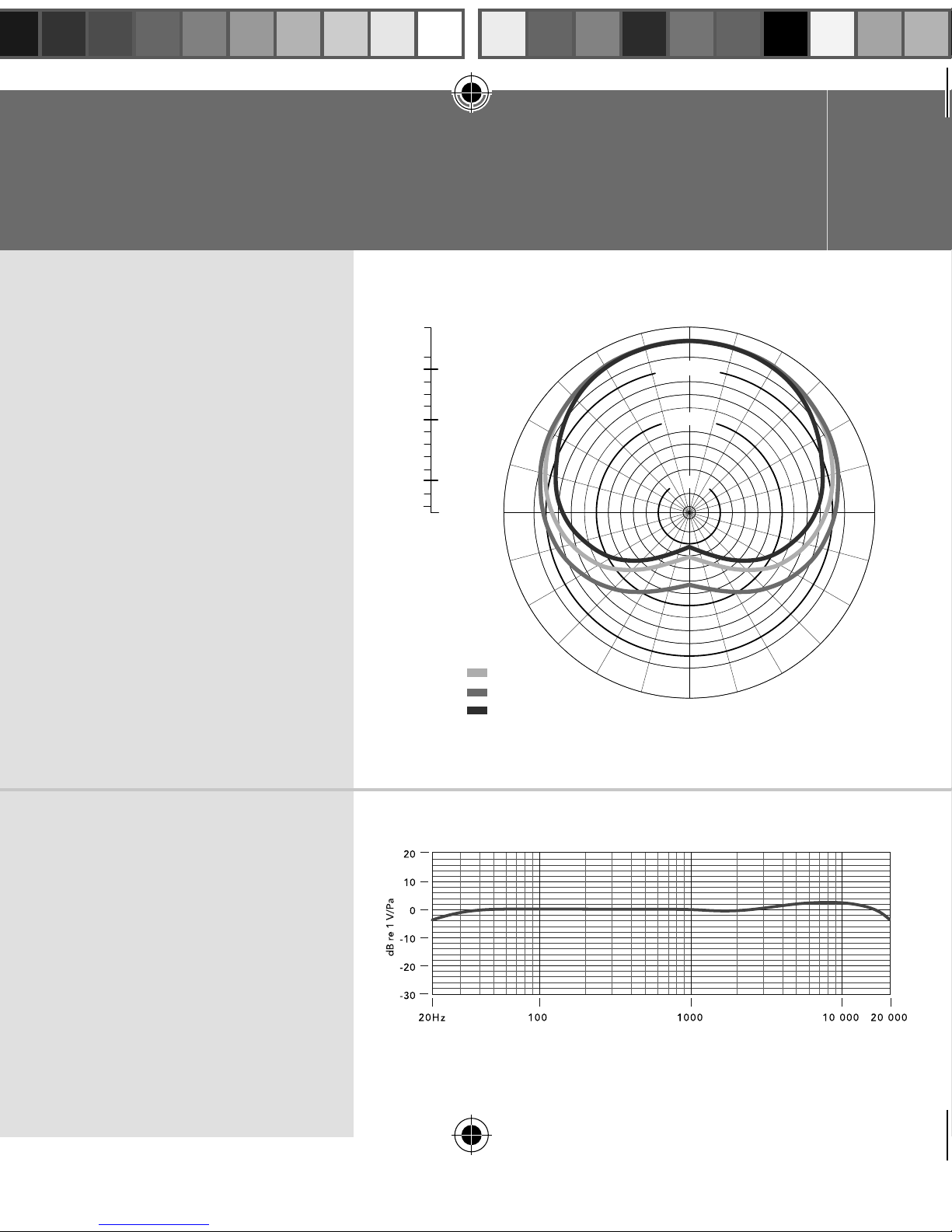

Speciﬁcations

Polar Response

Frequency

Response

0˚

90˚ 270˚

180˚

-2.0

-20.0

-10.0

0.0

-2.0

-4.0

-6.0

-8.0

-10.0

-12.0

-14.0

-16.0

-18.0

-20.0

-22.0

-24.0 -25.0

dB rel. 1V/Pa

+5.0

Frequency:

500 Hz:

1000 Hz:

4000 Hz:

M5_multilingual_manual.indb 5M5_multilingual_manual.indb 5 2/09/2013 7:00:05 PM2/09/2013 7:00:05 PM

Acoustic Principle Pressure Gradient

Active Electronics JFET impedance converter with bipolar

output buffer

Directional Pattern Cardioid

Frequency Range 20Hz ~ 20kHz

Output Impedence 200Ω

Equivalent Noise 19 dBA SPL (as per IEC651)

Maximum Output +13.5 dBu (1KHz, 1% THD into 1K Ω load)

Sensitivity -34 dB re 1V/Pa

(10.46mV @ 94dB SPL)

± 2dB @ 1kHz

Dynamic Range 121 dB SPL

Speciﬁcations

M5_multilingual_manual.indb 6M5_multilingual_manual.indb 6 2/09/2013 7:00:05 PM2/09/2013 7:00:05 PM

Maximum SPL 140 dB SPL

Signal / Noise 75 dBA SPL (as per IEC651)

Power Requirements 24V phantom power

48V phantom power

Output Connection 3 Pin XLR

Balanced output between pin 2 (+),

pin 3 (-) and pin 1 (ground)

Net Weight 80g

Accessories RM5 mic clip (x2)

WS5 windshield (x2)

M5_multilingual_manual.indb 7M5_multilingual_manual.indb 7 2/09/2013 7:00:06 PM2/09/2013 7:00:06 PM

8Powering the M5

Connect all cables before supplying phantom power to the

microphone(s) and never remove the microphone cable while the

power is connected.

The M5 requires 48V DC (P48) or 24V DC (P24) phantom power.

If the mixer or preamp does not contain this phantom power

requirement, then an external phantom power supply is needed.

Some phantom power supplies do not supply the voltage at

which they are rated. If the required voltage is not supplied, the

dynamic range and general performance of the microphone will

be reduced.

We strongly suggest the use of a reputable high quality power

supply. Damage caused by a faulty power supply is not covered

under warranty.

M5_multilingual_manual.indb 8M5_multilingual_manual.indb 8 2/09/2013 7:00:06 PM2/09/2013 7:00:06 PM

What is Phantom Power?

All condenser microphones require a power source to operate the

internal circuitry of the microphone.

Phantom power is a DC voltage, supplied to the microphone

through the XLR cable, providing the microphone circuit with the

power it requires to operate, without the need for an external

microphone power supply.

Most mixing desks, audio interfaces, and preamp units have a

phantom power switch inbuilt. If your equipment doesn’t have a

phantom power supply, an external one can be purchased and

used in-line between the preamp and the M5. Be sure to check

that your phantom power supply is either P48 (48V DC) or P24 (24V

DC) to operate the correctly.

M5_multilingual_manual.indb 9M5_multilingual_manual.indb 9 2/09/2013 7:00:06 PM2/09/2013 7:00:06 PM

10 Mounting the M5

The M5 matched pair is supplied with a pair of RM5 stand mounts.

These feature a standard 5/8” thread in the base and a 3/8” thread

adaptor is supplied to provide even greater versatility in mounting.

To mount the M5 in the RM5 place the base of the microphone

at the back of the mount and ﬁrmly push down towards the front

until the microphone clicks into the mount.

The tension of the RM5 can be adjusted using the lever on the side

of the mount.

M5_multilingual_manual.indb 10M5_multilingual_manual.indb 10 2/09/2013 7:00:06 PM2/09/2013 7:00:06 PM
