5
PLACEMENT
The device must be instalated in well ventilated room what is necessary for regulation of the function of the
device (technician must go by valid standard (EN....). If the device is situated close to the wall or if it is in
contact with the furniture walls, these walls must resist the temperatures ranging to 90°C. Instalation, setting,
putting into operation must be done by qualifi ed person who is competent for this and according to the valid
standards.
Wrap up the device and check whether it was not damaged during transport. Settle the device on horizontal

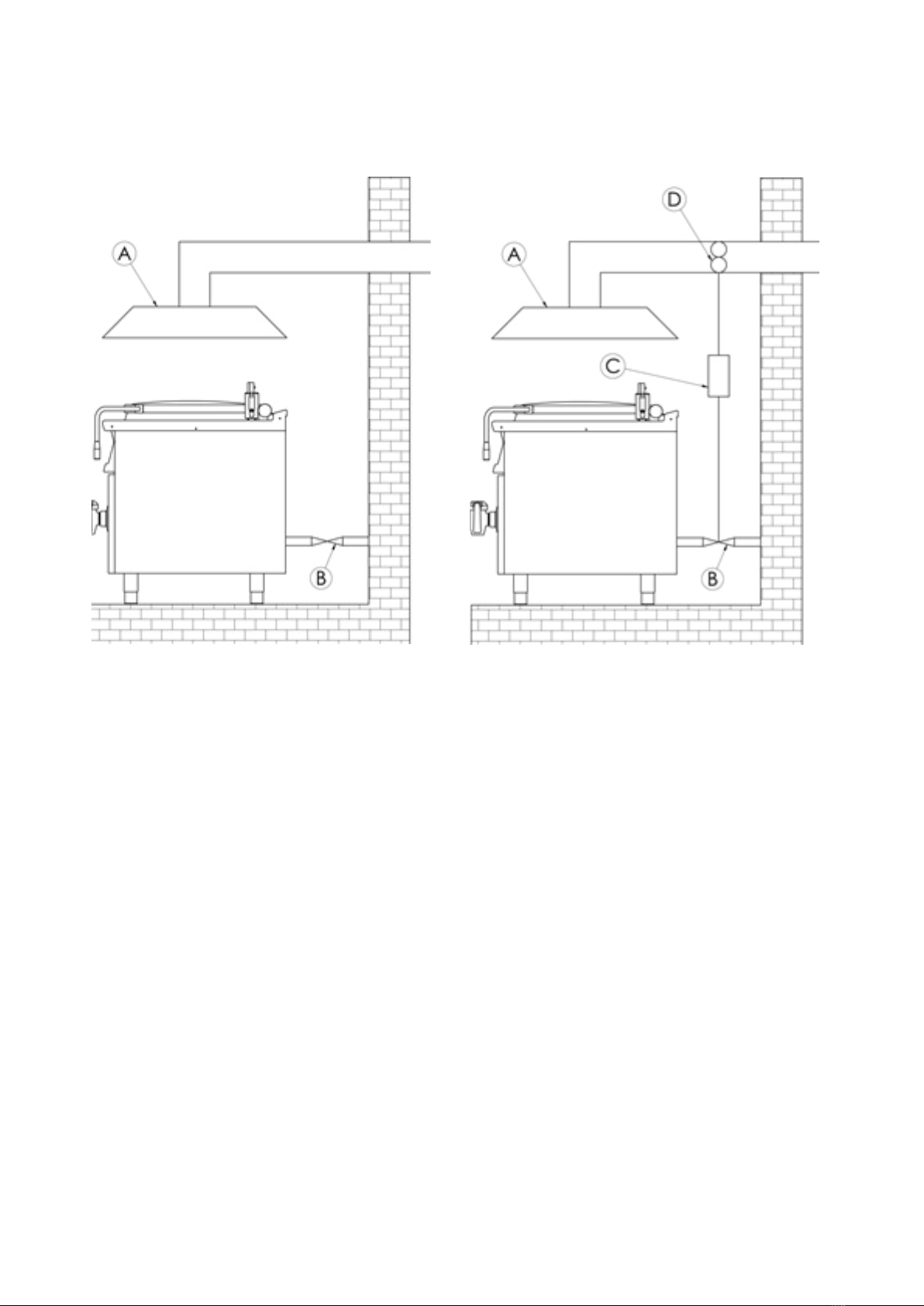

surface (max imbalance 2°).Settle the device under the fumehood to eliminate water steam and bad smell.
The device can be instalated separately or in a set with devices of our production. Min. distance 10 cm
from other subjects must be kept.It is also necessary to prevent our product from contact with combustible
materials. In this case you must make corresponding changes to secure heat izolation of combustible parts.
Safety measures from the standpoint of the fi re protection according to EN 061008čl. 21:
PACKING AND DEVICE CHECK
The device leaves our stocks properly packed with appropriate symbols and labels. There are also appropriate
instructions for use. In case the packing shows bad handling or damage, it must be reclaimed at transporter
immediately by writing and signing of a damage protocol.
Important notice:
• only for proff esional use
• this instructing guide must be read properly and carefully because it contains important information about
safety elements, installation, use
• these recommendations refer to this product
• this product corresponds with valid standards
• this guide must be properly deposited for future use
• keep the children away from manipulation with the product
• when selling or moving the product to another place it is necessary top make yourself sure that the staff
or the professional service has got acquainted with control and installation instructions from enclosed guide
• only authorised person can operate the product
• it can not be switched on without supervision
• we recommend to have the product checked by professional service min. once a year
• only original spare parts can be used for repairs
• the product can not be cleaned by the water jet or pressure shower
• by damage or break down disconnect all the feeders (water, gas, electricity) and call professional service
• producer refuses any responsibility in case of damages caused by wrong installation, by disobserving of
above mentioned recommendations or by other use etc.
Data Type of gas
Burner 8,5 kW G30
28-30 mbar
G30
37 mbar
G30
50 mbar
G20
20 mbar
G25
25 mbar
G25
20 mbar
G20
25 mbar
Main burner diameter
1/100mm 145 140 130 215 225 245 205
Air kontrol _settings (mm) open open open 3,5 3,5 3,5 3,5
Gas Consumption 0,670 kg/h 0,670 kg/h 0,670 kg/h 0,899 m3/h 1,046 m3/h 1,046 m3/h 0,899 m3/h
Burner 4 kW
Main burner diameter
1/100mm 95 90 85 150 155 165 140
Air kontrol _settings (mm) open open open closed closed closed closed
Gas Consumption 0,355 kg/h 0,355 kg/h 0,355 kg/h 0,476 m3/h 0,554 m3/h 0,554 m3/h 0,476 m3/h
Burner 6 KW OVEN
Main burner diameter
1/100mm 125 115 110 180 195 205 175
Air kontrol _settings (mm) 13 13 13 13 13 13 13
Gas Consumption 0,473 kg/h 0,473 kg/h 0,473 kg/h 0,635 m3/h 0,738 m3/h 0,738 m3/h 0,635 m3/h
Pilot burner
diameter 1/100mm 24 24 24 adjusting adjusting adjusting adjusting
Pilot burner OVEN
diameter 1/100mm 13 13 13 36 36 36 36
Data Type of gas
Burner 8,5 kW G25.1
25 mbar
G2.350
13 mbar
G27
20 mbar
G31
30-37 mbar
G31
37 mbar
G31
50 mbar
Main burner diameter
1/100mm 240 315 250 145 140 130
Air kontrol _settings (mm) 3,5 open 3,5 open open open
Gas Consumption 1,044 m3/h 1,249 m3/h 1,097 m3/h 0,660 kg/h 0,660 kg/h 0,660 kg/h
Burner 4 kW
Main burner diameter
1/100mm 160 205 170 95 90 85
Air kontrol _settings (mm) closed closed closed open open open
Gas Consumption 0,553 m3/h 0,661 m3/h 0,581 m3/h 0,350 kg/h 0,350 kg/h 0,350 kg/h
Burner 6 KW OVEN
Main burner diameter
1/100mm 195 260 205 125 115 110
Air kontrol _settings (mm) 13 13 13 13 13 13
Gas Consumption 0,737 m3/h 0,882 m3/h 0,774 m3/h 0,466 kg/h 0,466 kg/h 0,466 kg/h
Pilot burner
diameter 1/100mm adjusting adjusting adjusting 24 24 24
Pilot burner
diameter 1/100mm 36 36 36 13 13 13
