Riello 40 G5 LC Quick start guide

20013748 (3) - 01/2011

Installation, use and maintenance instructions

安装 , 使用以及维护说明书

Light oil burner

轻油燃烧器

CODE - 编码 MODEL - 型号 TYPE - 类型

20013628 G5 LC 445T1

20035139 G5 LC 445T1

One stage operation

一段火运行

20013748

INFORMATION ABOUT THE INSTRUCTION MANUAL

INTRODUCTION

The instruction manual supplied with the burner:

- is an integral and essential part of the product and must not be sepa-

rated from it; it must therefore be kept carefully for any necessary

consultation and must accompany the burner even if it is transferred

to another owner or user, or to another system. If the manual is lost

or damaged, another copy must be requested from the Technical

Assistance Service of the area;

- is designed for use by qualified personnel;

- offers important indications and instructions relating to the installation

safety, start-up, use and maintenance of the burner.

DELIVERY OF THE SYSTEM AND THE INSTRUCTION MAN-

UAL

When the system is delivered, it is important that:

- The instruction manual is supplied to the user by the system manu-

facturer, with the recommendation to keep it in the room where the

heat generator is to be installed.

- The instruction manual shows:

- the serial number of the burner;

- the address and telephone number of the nearest Assistance

Centre;

- The system supplier carefully informs the user about:

- the use of the system,

- any further tests that may be necessary before the system is

started up,

- maintenance and the need to have the system checked at least

once a year by the manufacturer or another specialised techni-

cian.

To ensure a periodic check, recommends the drawing up

of a Maintenance Contract.

..................................................................................

1 20013748

TECHNICAL DATA

Burner with CE marking in conformity with EEC Directives: EMC 89/336/EEC - 2004/108/EC, Low

Voltage 73/23/EEC - 2006/95/EC, Machines 98/37/EEC and Efficiency 92/42/EEC.

The burner meets protection level of IP 40, EN 60529.

TYPE 445T1

Thermal power – output 28 – 60 kW – 2.3 – 5 kg/h

Fuel Light oil, viscosity 4 –6 mm2/s at 20°C

Electrical supply Single phase, 230V ±10% ~50Hz

Motor Run current 0.75A – 2850 rpm – 298 rad/s

Capacitor 4 F

Ignition transformer Secondary 8 kV – 16 mA

Pump Pressure 7 – 15 bar

Absorbed electrical power 0.130 kW

1– Return line

2– Suction line

3– Gauge connection

4– Pump pressure regulator

5– Vacuum gauge connection

6– Screws fixing air-damper

7–Airdamper

8 – Combustion head adjustment screw

9– Lock-out lamp and reset button

10 – Flange with insulating gasket

BURNER EQUIPMENT

Quantity Description

Flexible oil pipes with nipples

Flange with insulating gasket

Screws and nuts for flange

to be fixed to boiler

Hinge

Screw and nuts for flange

Grommet

D5400

Fig. 1

123

20013748 2

FIRING RATE

OVERALL DIMENSIONS

BOILER FIXING

0.8

0.4

Pressure in the combustion

chamber – mbar

2 3 4 5 Fuel output - kg/h

25 30 60 Thermal power - kW

D5226 35 40 45 50 55

0.2

0.6

2.3

272 107 236

130

45°

ø89

233

180

D5554

180

75 72

150

45°

Flange Burner

It is necessary that the insulating gasket

(9, fig. 1) is placed between the boiler door

and the burner flange.

This insulating gasket has six holes,

which, if necessary, can be modified as

shown on the drawing on the right. D5242

Fig. 2

Verify that the installed

burner is lightly leaned

towards the button.

(See figure 2).

The burner is designed to

allow entry of the flexible

oil-lines on either side of

the burner.

D5572

BURNER FIXING AND

HINGE ASSEMBLY

S7384

3 20013748

HYDRAULIC SYSTEMS

Warning: before starting the burner make sure that the return pipe-line is not clogged: any obstruction

would cause the pump seals to break.

The pump vacuum should not exceed

a maximum of 0.4 bar (30 cm Hg).

Beyond this limit gas is released from

the oil.

Oil lines must be completely airtight.

The return line should terminate in

the oil tank at the same level as the

suction line; in this case a non-return

valve is not required.

When the return line arrives over the

fuel level, a non-return valve must be

used.

This solution however is less safe than

previous one, due to the possibility of

leakage of the valve.

PRIMING THE PUMP

Start the burner and wait for the priming.

Should lock-out occur prior to the arrival

of the fuel, await at least 20 seconds

before repeating the operation.

A filter must be installed on the suction fuel line.

meters

Lmeters

I. D.

8 mm I.D.

10 mm

0.5

1.5

100

WARNING

The pump is supplied for use with a two pipe system.

For use on a one pipe system, it is necessary to remove the by-pass

screw (A), (see figure).

meters

Lmeters

I. D.

8 mm I.D.

10 mm

0.5

1.5

3.5

100

H max. 4 m

max. 4 m

min. 0.1 m

D5219

D5220

D5199

H=Difference of level.

L=Max.length of the

suction line.

I.D.=Internal diameter of the

oil pipes.

PRIMING THE PUMP

Loosen the plug of the vacuum gauge (5, fig. 1,

page 1) and wait until the fuel flows out.

20013748 4

ELECTRICAL WIRING

Brown

White (50V)

Blue

Motor

Capacitor

Regulating thermostat

Neutral

Switch with fuse

6A max.

S7026

Black

NOTES

– Wires of 1 mm2section.

– The electrical wiring carried out by the installer

must be in compliance with the rules in force in

the Country.

– To remove the control-box from the burner,

loosen screw (A) (see figure) and pull towards

the arrow.

– The photoresistance is fitted directly into the con-

trol-box (underneath the ignition-transformer) on

a plug-in support.

TESTING

Check the shut-down of the burner by opening the

thermostats.

ATTENTION

Do not connect burner’s grounding, to failure

indicator terminal . This may result the destroy

of the control box.

WARNING

Do not exchange the neutral with the phase.

230V ~50Hz

Limit thermostat

with manual resetting

Remote lock-out lamp

(230V - 0.5A max.), if required

123456789

Blue

Brown

Terminal block of

control-box 530SE*

Valve

RUN OF THE ELECTRICAL CABLE

1- Grommet N- Neutral

2- Cable-clamp L- Phase

3- Terminal block - Burner-earth

A321

D5228

Black

CARRIED-OUT BY THE INSTALLER

CARRIED-OUT IN THE FACTORY

5 20013748

COMBUSTION ADJUSTMENT

In conformity with Efficiency Directive 92/42/EEC the application of the burner on the boiler, adjustment

and testing must be carried out observing the instruction manual of the boiler, including verification of

the CO and CO2concentration in the flue gases, their temperatures and the average temperature of the

water in the boiler.

To suit the required appliance output, fit the nozzle then adjust the pump pressure, the setting of the

combustion head and the air damper opening in accordance with the following schedule.

The values shown in the table are measured on a CEN boiler (as per EN 267).

They refer to 12.5% CO2at sea level and with light oil and room temperature of 20 °C.

RECOMMENDED NOZZLES: Monarch type R - NS; Delavan type W - A - E

Steinen type H - Q ; Danfoss type H

Angle:60°:in most cases.

80° : in case of flame detachment, during ignitions at low temper-

atures.

PUMP PRESSURE 12 bar : the pump leaves the factory set at this value

14 bar : improves flame retention; it is therefore suitable for ignitions

at low temperatures.

COMBUSTION HEAD SETTING:This is done when fitting the nozzle, with the blast tube

removed. It depends on the output of the burner and is

carried out by rotating the regulating rod, till the terminal

plane of the blast tube is level with the set-point, as indi-

cated in the schedule.

Nozzle Pump pressure Burner output Comb. head

adjustment Air damper

adjustment

GPH Angle bar kg/h ± 4% Set-point Set-point

0.60 60°/80° 11 2.3 1.5 2

0.65 60°/80° 12 2.6 2 2.2

0.75 60° 12 3.0 2.5 2.5

0.85 60° 12 3.4 3 3

1.00 60° 12 4.0 4 4.5

1.10 60° 12 4.4 5 6

1.25 60° 12 5.0 6 7

In the sketch on the left, the combustion

head is set for an output of 0.85 GPH at

12 bar, while the shutter is level with set-

point 3, as required by the above sche-

dule.

Blast tube

Regulating rod

Shutter

Terminal plane of the blast tube

D5232

135

20013748 6

Combustion head settings indicated in the schedule are valid for most cases.

The setting of the fan output according to the installation should normally be done only through the air

damper. Should one subsequently want to retouch also the setting of the combustion head, with the

burner running, operate on the rod (1) with a 6 mm spanner (2) as follows:

Turn to the right: (sign +), in order to increase the vol-

ume of air entering the combustion chamber and thus

diminishing its pressure.

There is a reduction of CO2and the adhesion of the

flame to the air diffuser disc improves.

(Setting advisable for ignitions at low temperatures).

Turn to the left: (sign –), in order to reduce the volume

of air entering the combustion chamber and thus increas-

ing its pressure. The CO2improves and the adhesion of

the flame to the diffuser tends to reduce. (This setting is

not advisable for ignitions at low temperatures).

In any case do not bring the combustion head setting

more than one point away from that indicated in the

schedule. One set-point corresponds to 3 turns of the rod;

a hole (3) at its end facilitates counting the number of

turns.

AIR DAMPER ADJUSTMENT

The regulation of the air-rate is made by adjusting the

air damper (1), after loosing the screws (2).

When the optimal regulation is reached, screw tight

the screws (2).

The settings indicated in the schedule are purely indic-

ative.

Each installation however, has its own unpredictable

working conditions: actual nozzle output; positive or

negative pressure in the combustion-chamber, the

need of excess air, etc. All these conditions may

require a different air-damper setting.

It is important to take account of the fact that the air

output of the fan differs according to whether the

burner has its metal cover fitted or not.

Therefore we recommended to proceed as follows:

– adjust the air damper as indicated in the schedule (page 5);

– mount the cover, simply by means of the upper screw;

– check smoke number;

– should it become necessary to modify the air output, remove the cover by loosening the screw,

adjust the air damper, remount the cover and finally recheck the smoke number.

D5551

D5231

7 20013748

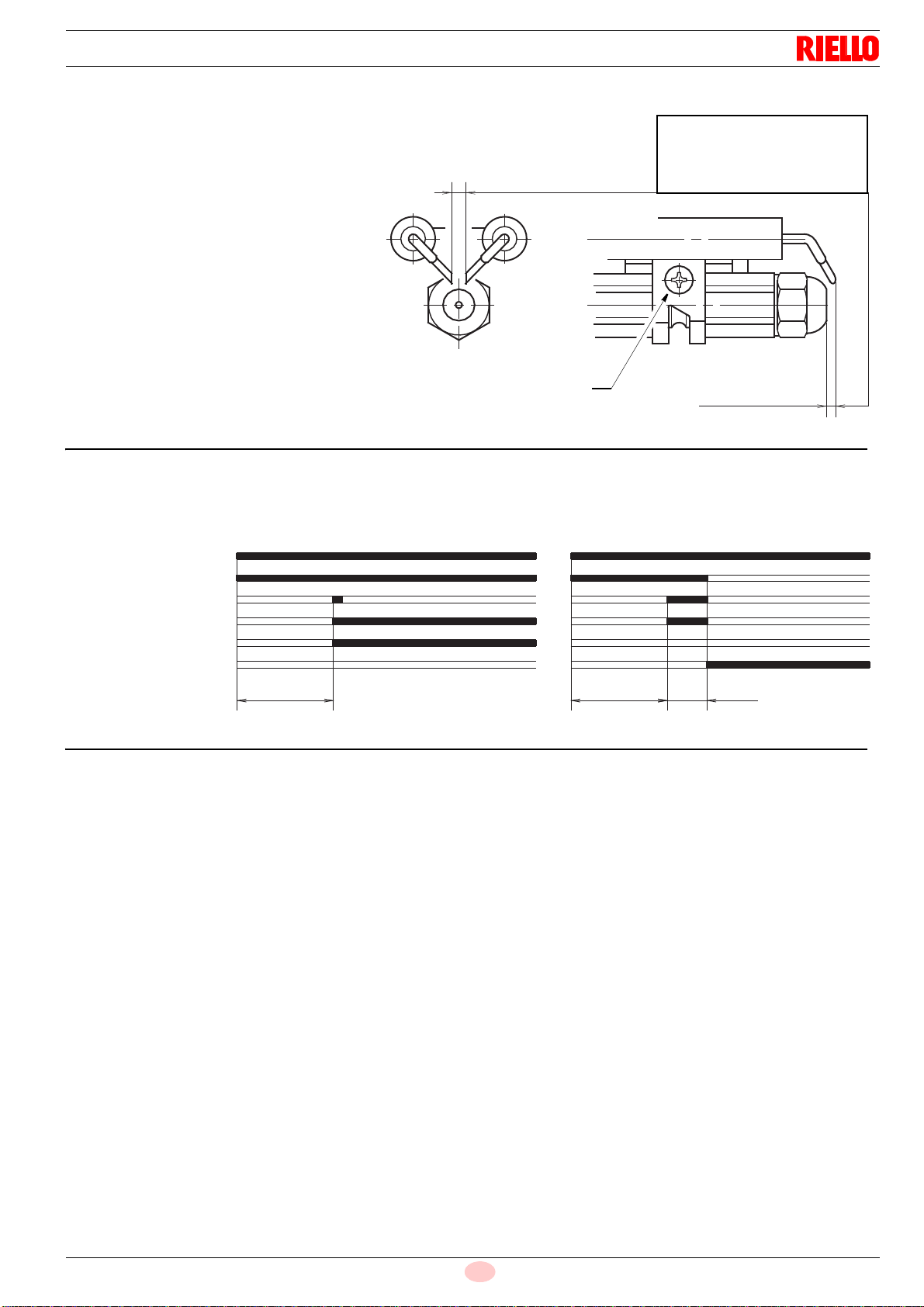

ELECTRODE SETTING (See fig. 3)

BURNER START-UP CYCLE

ADJUSTMENTS, TO AVOID FLAME - DETACHMENT, AT BURNER - IGNITION

This inconvenience can occur, when the temperature of the light-oil decreases below +8 °C.

1) CORRECT POSITIONING OF THE ELECTRODES

See fig. 3.

2) PUMP - SETTING

The pump is factory set, at a pressure of 12 bar.

When the temperature of the light oil decreases below +8 °C, increase the pressure to 14 bar.

3) COMBUSTION-HEAD SETTING

Regulate the combustion-head one set-point further ahead than indicated in the instructions.

Example: the instructions require to set the combustion-head on set-point 3.

Instead, the setting is made on set-point 4.

4) FAN - AIR DAMPER ADJUSTMENT

Adjust the air damper of the fan, such as to obtain a smoke-number not inferior to 1.

(i.e. a combustion with the lowest possible excess-air).

2 – 2.5 mm

4± 0.3 mm

IMPORTANT:

THESE DIMENSIONS

MUST BE OBSERVED

D5230 A

Attention:

Before removing or assembling the

nozzle, loosen the screw (A) and

move the electrodes ahead.

Fig. 3

Normal Lock-out, due to light-failure

Thermostat

Motor

Ignition transformer

Valve

Flame

Lock-out lamp ~12s D5229

~12s ~5s

20013748

说明书的相关信息

引言

说明书随燃烧器一起提供：

- 它是产品不可或缺的组成部分，不得将其与产品分离；因此必须小心

保存以便查阅，如果将燃烧器转给另一个用户或转移至另一个系统，

则说明书必须跟随燃烧器一起转移。如果说明书损坏或丢失，则必须

从您就近的 Technical Assistance Centre （技术支持中心）索取说

明书的复本；

- 说明书只能由有资格的人员使用；

- 说明书提供了有关燃烧器安装、启动、使用和维护的重要指示和安全

警告。

系统和说明书的交付

一旦交付系统：

- 系统制造商也必须将说明书交付给用户，并建议其将说明书保存在热

发生器的安装区域附近。

- 说明书上显示：

- 燃烧器的序列号；

- 最近 Assistance Centre （支持中心）的地址和电话号码；

- 系统制造商必须告知用户有关以下内容的准确信息：

- 系统的使用；

- 启动系统前需要进行的测试；

- 必需的维护和检查（每年必须由制造商代表或别的专业技术人员至少

检查系统一次）。

要保证定期检查，建议遵照 Maintenance Contract （维护合同）

的规定。

..............................................

This manual suits for next models

Table of contents

Other Riello Burner manuals

Riello

Riello 40 F20 Quick start guide

Riello

Riello 569T30 Quick start guide

Riello

Riello RS 64/M MZ Quick start guide

Riello

Riello RDB2.2 15-21 Quick start guide

Riello

Riello PRESS 450 T/N Quick start guide

Riello

Riello 652 T80 Quick start guide

Riello

Riello Gulliver Quick start guide

Riello

Riello RS BLU Series Quick start guide

Riello

Riello RS 70 Quick start guide

Riello

Riello RL Series Quick start guide

Riello

Riello P 140 P/G Quick start guide

Riello

Riello 3748950 Quick start guide

Riello

Riello RLS 160/EVi MX FS1 Quick start guide

Riello

Riello RDB1 Firebird Oven 12 kW Quick start guide

Riello

Riello GAS 3 Quick start guide

Riello

Riello G20 Quick start guide

Riello

Riello G30 MRBLU CF Quick start guide

Riello

Riello GI/EMME 400 Quick start guide

Riello

Riello PRESS 4G Quick start guide

Riello

Riello RS 25/M C05 Quick start guide

Riello

Riello RS 28/E Quick start guide

Riello

Riello RS 64/M MZ Quick start guide

Riello

Riello RG2 Quick start guide

Riello

Riello DB 4 LSM C13 Quick start guide

Popular Burner manuals by other brands

True Induction

True Induction TI4B user guide

Weishaupt

Weishaupt WG20 Series manual

Carolina Cooker

Carolina Cooker M116672 owner's guide

Unigas

Unigas HTP2000 installation manual

baltur

baltur BT 250 DSG 4T manual

muenkel design

muenkel design round burner Operating and installation instructions

Ecoflam

Ecoflam Multicalor 170.1 manual

baltur

baltur BT 14 DSGW Instruction

artisan

artisan Art-SB1 Care & use manual

AESYS

AESYS TurboFire II Installation, operation and maintenance manual

IKEA

IKEA GRILLSKÄR manual

RUSTA

RUSTA SAREK manual

PROPOINT

PROPOINT 8933657 manual

baltur

baltur TBL 1000 ME Instruction manual for installation, use and maintenance

Riello Burners

Riello Burners P 200 P/G Installation, use and maintenance instructions

WLD-TEC

WLD-TEC powerjet instruction manual

MSR

MSR DRAGONFLY instruction manual

baltur

baltur COMIST 23SP Instruction
