Ricoh Aficio SG 3110DN User manual
DO NOT INSTALL THE RICOH (OEM) INKS THAT WERE PROVIDED WITH THE PRINTER.
DO NOT POWER ON THE PRINTER BEFORE INSTALLING SAWGRASS SUBLIJET-R INK CARTRIDGES.
DURING DOWNTIME, IT IS HIGHLY RECOMMENDED TO LEAVE THE PRINTER POWERED ON TO ALLOW
THE RICOH AUTOMATIC MAINTENANCE UTILITIES TO KEEP THE PRINT HEAD NOZZLES CLEAR.
CAUTION
Ricoh SG 3110DN
INSTALLATION GUIDE
MacProle
MAC OS X
v20120614
SECTIONS:
Macintosh Operating System Verication (1 page)
Ricoh (OEM) Driver Download & Installation (7 pages)
MacProle Installation & Registration (8 pages)
Note: If you experience any communication errors, a powered USB Hub may be required.
During downtime, it is HIGHLY RECOMMENDED to leave the printer powered ON to allow the Ricoh Automatic
Maintenance Utilities to keep the print head nozzles clear. The Ricoh GELJET has been engineered to perform
automatic maintenance at various times in an effort to keep the print head nozzles in top condition. If this mainte-
nance cannot be automatically performed, it is possible that the nozzles may suffer permanent effects. As a result,
head cleanings may be unable to restore the print head to optimal operation.
CAUTION
Ricoh SG 3110DN – Installation Guide
Macintosh OS Verication
PAGE 1 of 1 >>
Before you begin, you will need to verify your version of Mac OS. This is important when deciding
which driver to download.You should only download drivers which are compatible with your version
of Mac OS.
1.) To check the version of your Mac OS, rst click the Apple icon in the top left corner of your desktop.
Then scroll down and click About This Mac. The following window containing the version number should
appear (see FIGURE 1). The below example is running Version 10.6.4. Please note your version
number and remember to only download those utilities which correspond with your version of Mac OS.
FIGURE 1
1
3
2
Ricoh SG 3110DN – Installation Guide
Ricoh (OEM) Driver Download & Installation
PAGE 1 of 7 >>
The following instructions will demonstrate how to install the Ricoh (OEM) printer driver on computers
running Mac OS X.
1.) Before installing the MacProle, you will need to install the Ricoh (OEM) printer driver. First, access the
Ricoh website by entering www.ricoh.com in the address eld of your web browser. Once there, click the
Downloads tab (see FIGURE 1).
2.) Select your local website (see FIGURE 2).
2
1
FIGURE 1
FIGURE 2
SubliJet-R: Ricoh SG 3110DN – Installation Guide
Ricoh (OEM) Driver Download & Installation
PAGE 2 of 7 >>
3.) Enter the model number of your printer in the search eld and click Search. Then, click the link for your
printer model under Driver in the results eld (see FIGURE 3).
FIGURE 3
2
1
3
4.) To proceed, read the Ricoh Software License Agreement. If you agree with the terms of the agreement,
click I Agree (see FIGURE 4).
FIGURE 4
SG 3110DN
SG 3110DN
Acio SG 3110DN
Acio SG 3110DN
Acio SG 3110DN
SubliJet-R: Ricoh SG 3110DN – Installation Guide
Ricoh (OEM) Driver Download & Installation
PAGE 3 of 7 >>
FIGURE 6

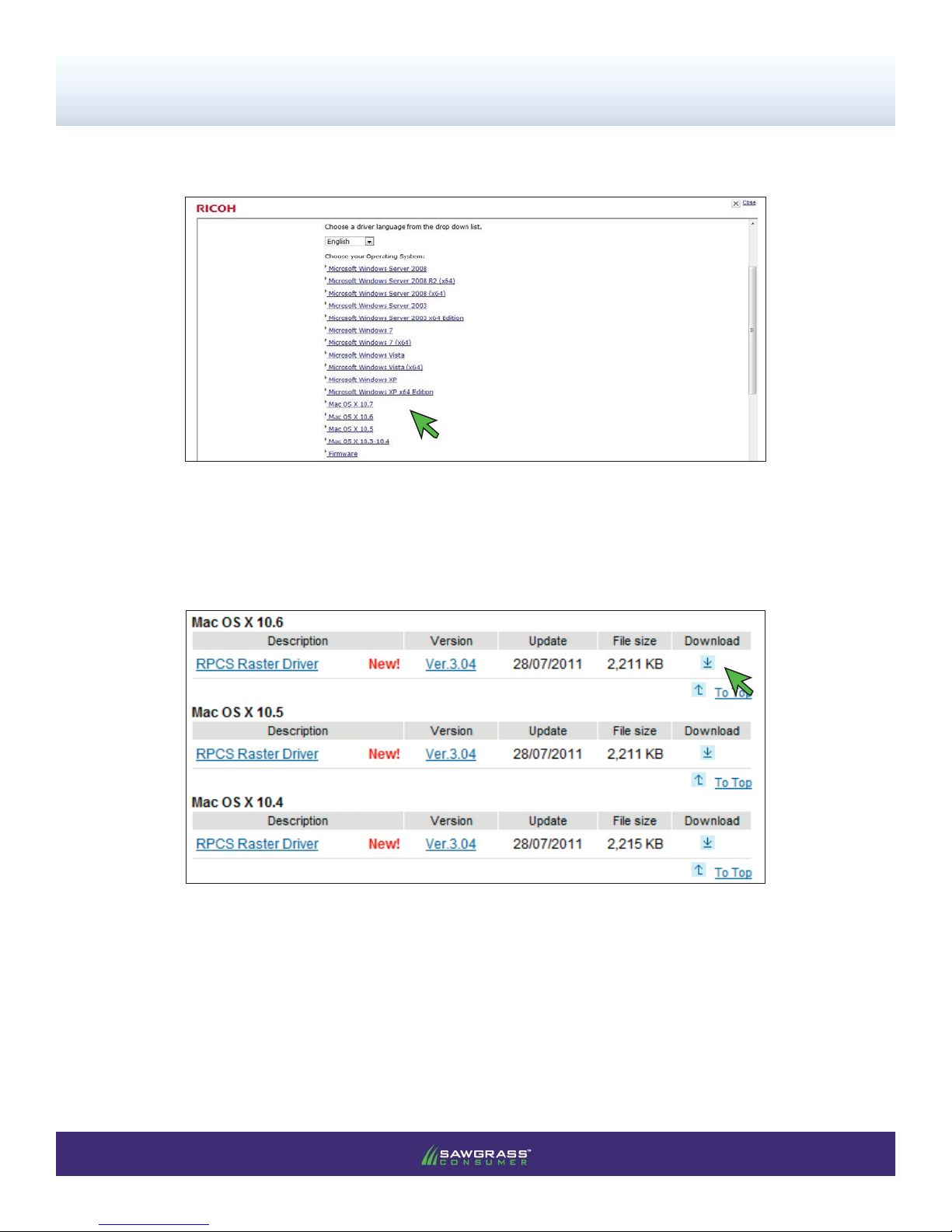

6.) Finally, locate the RPCS Raster Driver for your operating system and click the Download Icon (see
FIGURE 6). The Ricoh (OEM) printer driver should now begin downloading to your computer.
FIGURE 5
5.) Clicking I Agree will open the following web page. Locate and click the link that corresponds with your
Operating System (see FIGURE 5).
SubliJet-R: Ricoh SG 3110DN – Installation Guide
Ricoh (OEM) Driver Download & Installation
PAGE 4 of 7 >>

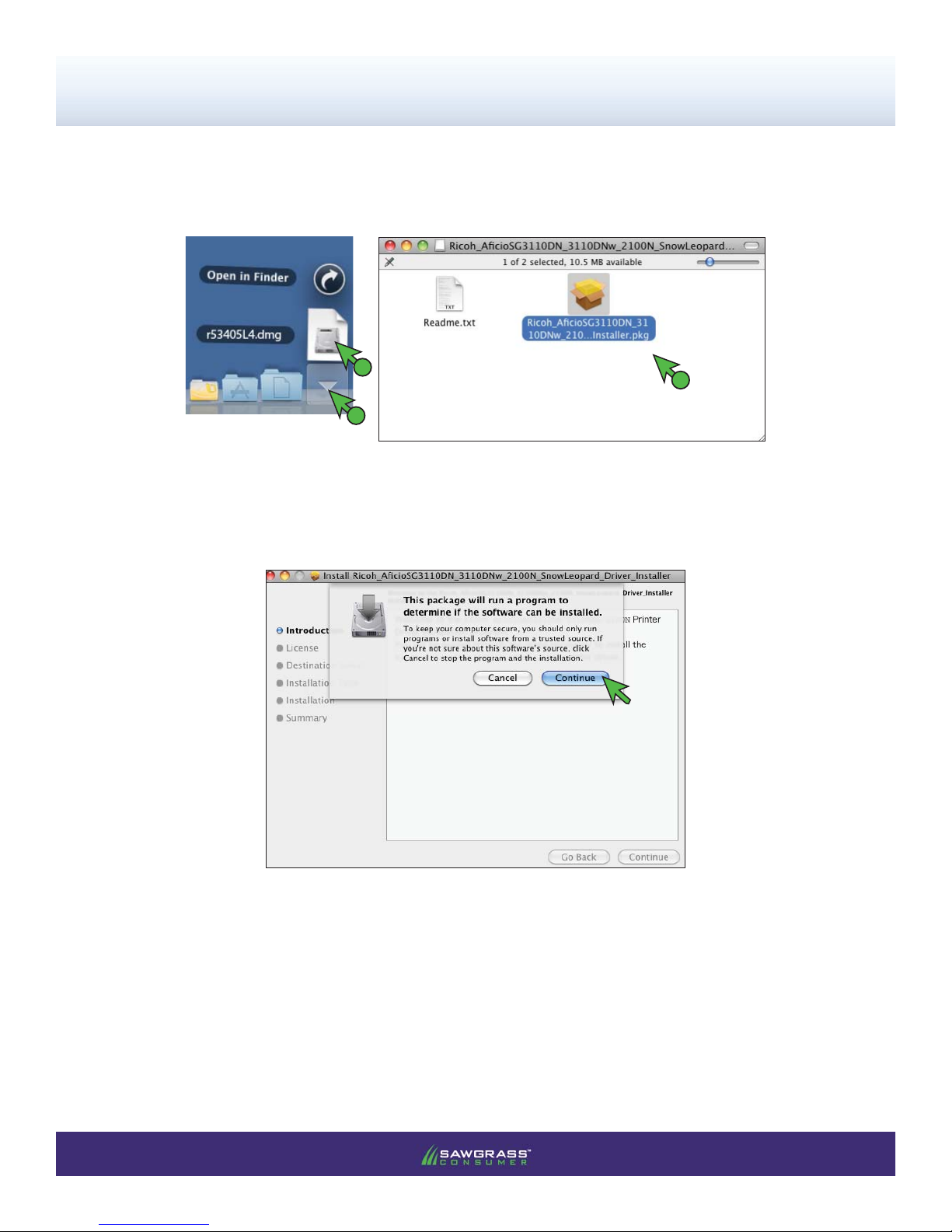

7.) Once the driver download has completed, click the download icon in the bottom right corner of your
desktop (see FIGURE 7 > 1). Next, double-click the r53405L4.dmg le (see FIGURE 7 > 2). The
Ricoh_AcioSG3110DN window should now appear (see FIGURE 8). Finally, double-click the Ricoh_
AcioSG3110DN icon to begin the Ricoh (OEM) printer driver installation process (see FIGURE 8 > 3).
FIGURE 8
FIGURE 7
1
3
2
FIGURE 9
8.) Click Continue to allow the program to determine if the software can be installed (see FIGURE 9).
SubliJet-R: Ricoh SG 3110DN – Installation Guide
Ricoh (OEM) Driver Download & Installation
PAGE 5 of 7 >>
FIGURE 10

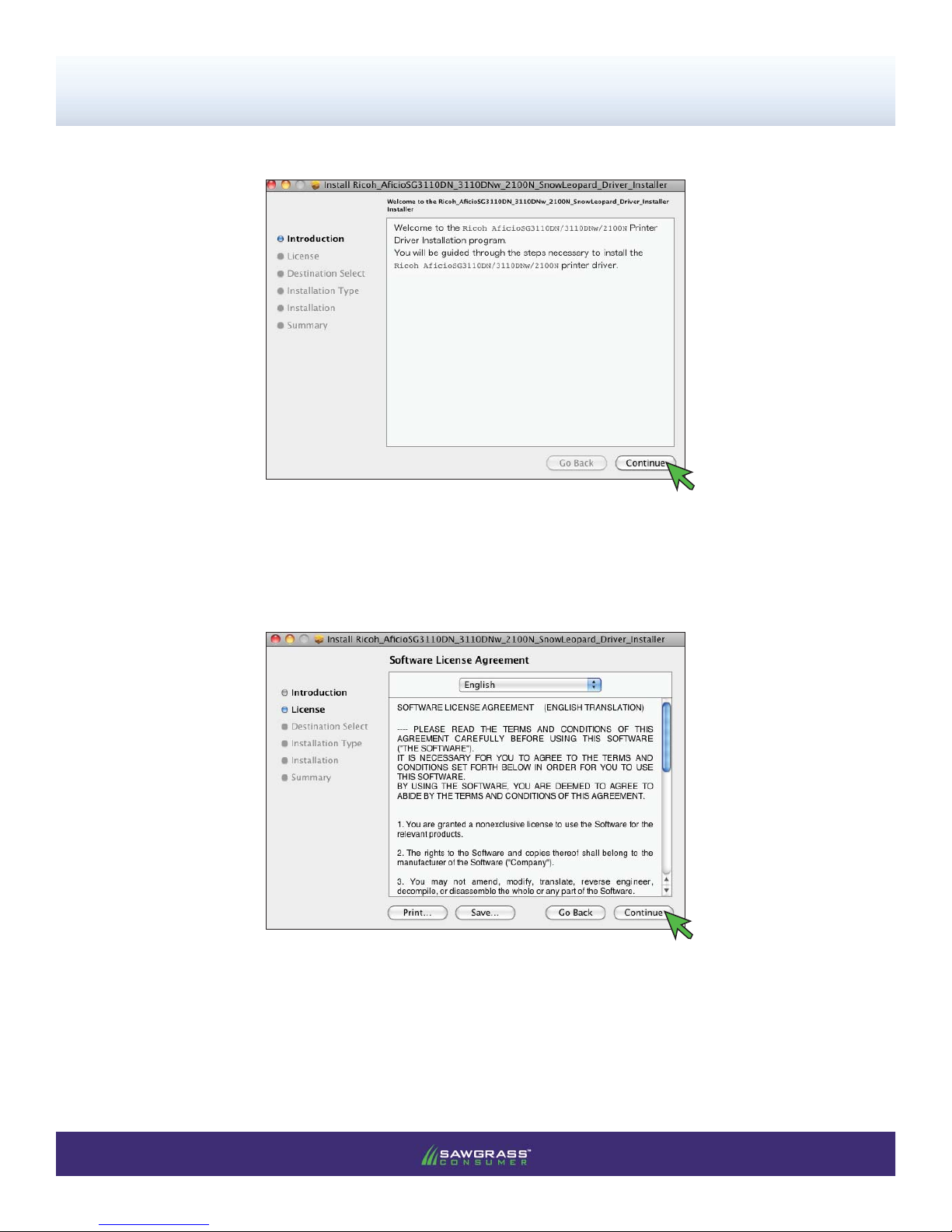

9.) In the Introduction window, click Continue (see FIGURE 10).
FIGURE 11
10.) In the License window, read the terms of the Software License Agreement and click Continue when
nished (see FIGURE 11).
SubliJet-R: Ricoh SG 3110DN – Installation Guide
Ricoh (OEM) Driver Download & Installation
PAGE 6 of 7 >>
FIGURE 12
FIGURE 13
11.) If you agree with the terms of the Software License Agreement, click Agree (see FIGURE 12).
12.) Select the disk where you want to install the driver and click Continue (see FIGURE 13).
2
1
SubliJet-R: Ricoh SG 3110DN – Installation Guide
Ricoh (OEM) Driver Download & Installation
PAGE 7 of 7 >>
FIGURE 14

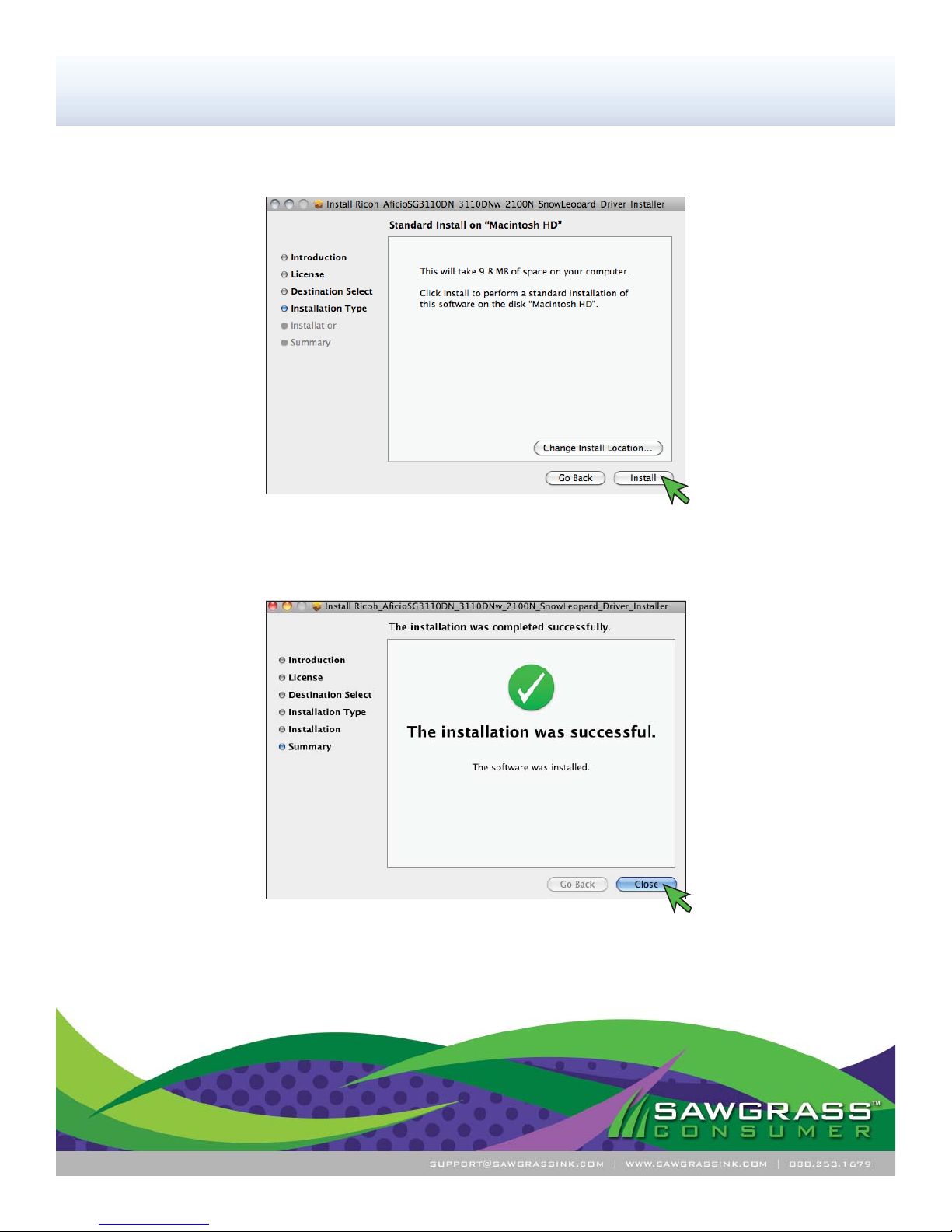

13.) Click Install to place the driver in the standard folder location (see FIGURE 14). To install the driver in a
different folder, click Change Install Location and browse to the desired folder.
FIGURE 15
Congratulations! The Ricoh (OEM) printer driver has successfully been installed. Please proceed to the
SubliJet-R Ricoh SG 3110DN MacProle Installation section.
14.) Once installation has completed successfully, click Close to nish installing the software (see
FIGURE 15).
