Rice Lake Load Range User manual

Load Ranger Wheel Weigh Pads

Quick Start Guide

ThisdocumentprovidestheproceduresnecessarytoquicklysetuptheLoadRangerWheelWeighPadsandpairthemwiththe

Ai-1 Indicator to take weight readings.

Wheel Weigh Pad Configuration

Figure 1. Wheel Weigh Pad Display

1. Press to turn on the wheel pad.

2. Press during start-up.  flashes and then  displays.

3. Press three times.  displays.

4. Press to enter the serial menu.  displays.

5. Press to enter the ID settings.

6. Press or to increase or decrease the selected digit and press to move between the digits to enter the

pad ID number.

The first Pad ID number must be 01 and the remaining pad ID numbers must increment in ascending numeric order.

Example: 01, 02, 03, etc.

7. Press to confirm.  displays.

8. Press to enter the Bluetooth initialization menu.  displays.

9. Press to confirm.  displays momentarily and then  displays briefly. displays.

10. Press twice.  displays.

11. Press to confirm.  briefly displays and all the changed parameters are saved.

12. Repeat steps for all wheel weigh pads in the system.

MODE

SET

DIAG

NUM

SET

NUM

DATA

Note

PN 189611

April 20, 2018

Load Ranger Wheel Weigh Pads

2 Visit our website www.RiceLake.com

Pairing Ai-1 Indicator with Wheel Weigh Pads

1. Press to turn on the Ai-1 indicator.

2. Press the upper right corner of the display, when the logo screen displays, during start-up to enter the technical setup.

Figure 2. Touch Upper Right Corner of the Display

3. Press .

4. Press .

5. Press .

Figure 3. Select Scales

6. Select the number of wheel weigh pads to be used.

7. Press .

8. Press .

9. Press .

10. Press to start pairing process. A prompt displays. Do not press anything at this time.

11. Turn off all of the wheel weigh pads.

12. Turn on the first weigh pad only (pad assigned ID 01).

Load Ranger Wheel Weigh Pads

Figure 4. Start Pairing

13. Press to start the pairing process. Connecting... displays alongside the ID number.

14. Once the serial number of the first wheel weigh pad displays, turn on the second wheel weigh pad (assigned ID 02).

Figure 5. Pairing

15. Repeat this process until the serial numbers for all the wheel weigh pads in the system are displayed.

16. Once the last wheel weigh pad is paired, a prompt displays.

Figure 6. Pairing Successful

17. Press to confirm the completion of pairing. The Gravity Value Setting keyboard displays.

Figure 7. Set Gravity Value

18. Enter the gravity value for the area the wheel weigh pads are to be used in.

230 W. Coleman St. • Rice Lake, WI 54868 • USA

U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319

Rice Lake Weighing Systems is an ISO 9001 registered company.

www.ricelake.com

PN 189611

April 20, 2018

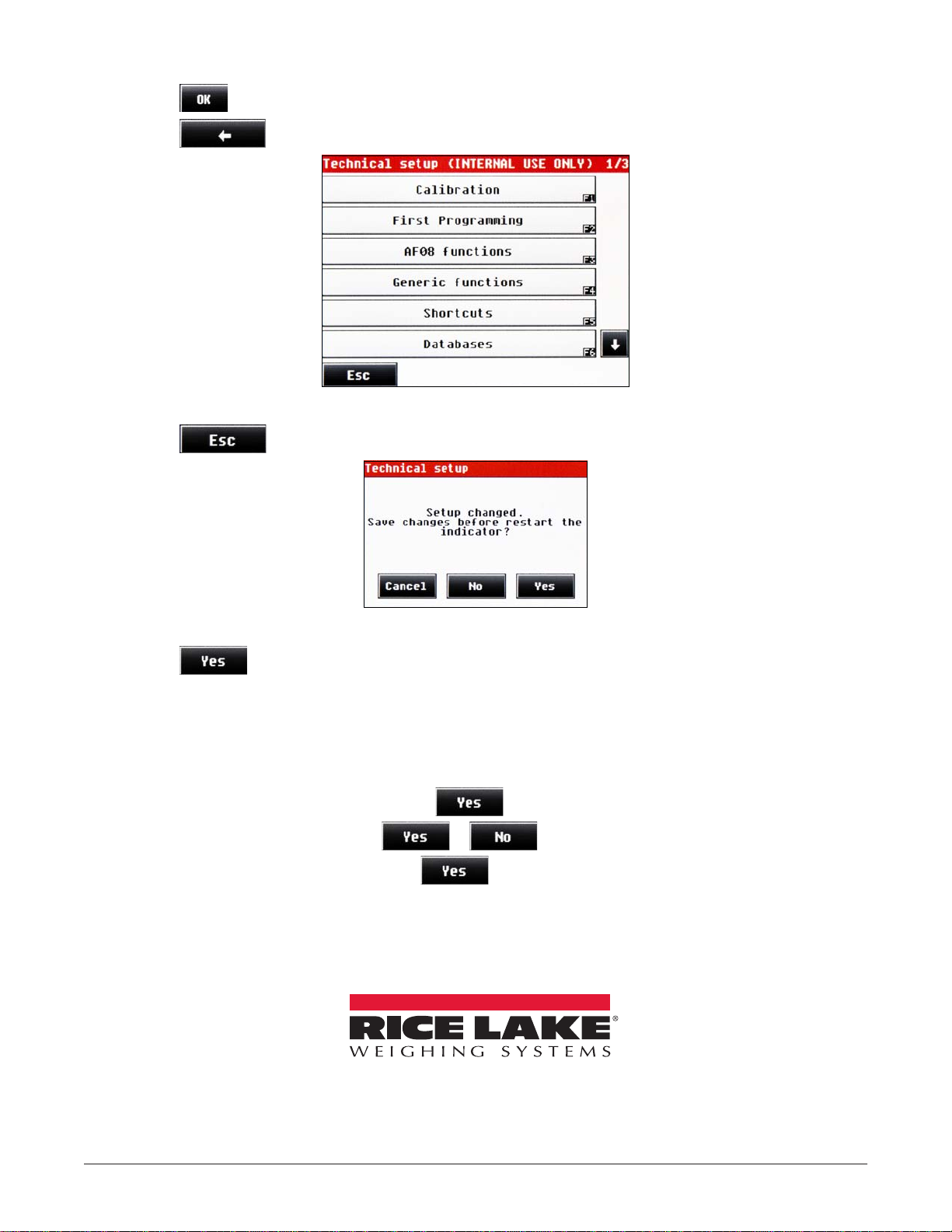

19. Press .

20. Press three times to get back to the technical setup menu.

Figure 8. Technical Setup Menu

21. Press . Setup changed box displays.

Figure 9. Setup Changed

22. Press to save settings and complete setup.

23. Indicator reboots to weigh mode.

Initial Setup Parameters

The following parameter windows display during initial setup before the indicator reboots to weigh mode.

• The Backup of the configuration window — Press to backup all settings

• The Password window displays — Press or , depending if a password is needed

• The Technical Setup window displays — Press to convert the indicator units to match the weigh pad units
