RGBlink MSP 312 User manual
● HDR signal pass through
● 12 Bit processing
● HDMI 2.0 compatible
● HDCP 2.2 compliance
● Input and output resolution up to 3840x2160@60
● Color Space 24bit RGB/YCbCr 4:4:4 8bit
● Two-to-One, rack mount, wing mount in application
MSP 312
4K Mini Convertor (HDMI 2.0-DP 1.2)
Quick Start
© Xiamen RGBlink Science & Technology Co., Ltd.
1 / 8
CONTENTS
Product Introduction...................................................................................................................................................2
Packing Configuration................................................................................................................................................. 3
Hardware Orientation................................................................................................................................................. 4
Use Your Product.........................................................................................................................................................5
General........................................................................................................................................................................ 5
Two To One Application...............................................................................................................................................5
MSP Garage Installation.............................................................................................................................................. 6
CONTACT INFORMATION.............................................................................................................................................7
© Xiamen RGBlink Science & Technology Co., Ltd.
2 / 8
Product Introduction
The MSP 312 is an HDMI 2.0 to DP 1.2 video signal format converter, supporting 1 HDMI signal input to 1 DP 1.2
signal output. Support for input/output resolution up to 4K2K@ 50/60hz (YUV 4:4:4). Support 10bits HDR (High
Dynamic Range) channel and HD resolution pass-through digital audio format and support HDCP 2.2. Optional
hanging ear or two MSP 312 in two-in-one combination can be installed on the wall or on MSP rack, simple
installation, plug and play.
System Connection Diagram
MSP 312 System Connection Diagram
© Xiamen RGBlink Science & Technology Co., Ltd.
3 / 8
Packing Configuration
Note:
Power Adapter supplied as standard according to destination market.
1×Power Adapter
Power Cord
(USB-DC)
© Xiamen RGBlink Science & Technology Co., Ltd.
4 / 8

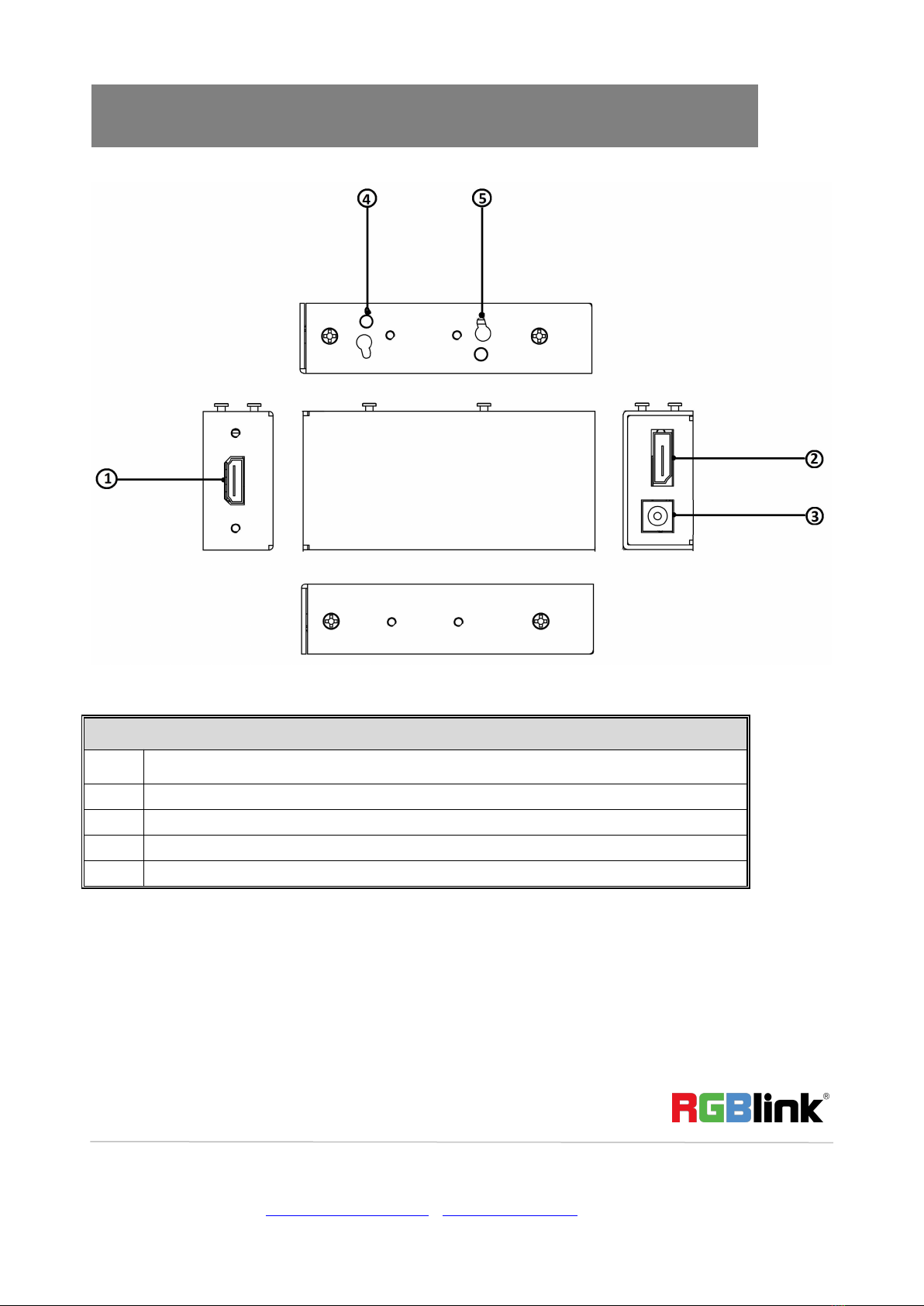

Hardware Orientation
ILLUMINATION
1
HDMI 2.0 IN, HDMI Type A connector, connect to HDMI port on PC or Blu-Ray player.
2
DP 1.2 Out, DisplayPort connector, connect to DP port on UHDTV or projector
3
DC power interface, power the device via DC 5V adapter
4
2 nails, used to attach to holes on other MSP converters
5
2 holes, used to attach to nails on other MSP converters
© Xiamen RGBlink Science & Technology Co., Ltd.
5 / 8
Use Your Product
General
1. Use HDMI 2.0 compliant cable to connect HMDI IN on MSP 312 to HDMI port on PC or Blu-Ray player or
other video processor that support for HDMI 2.0 output.
2. Use DP 1.2 compliant cable to connect DP OUT on MSP 312 to DisplayPort on UHDTV or other HD display or
other video processort that support for 4K input.
3. Use DC 5V adapter to connect to AC wall outlet to supply power for MSP 312
Two To One Application
Flip a MSP 312 upside down and attach to nails on the top of the other MSP 312 as the picture below:
© Xiamen RGBlink Science & Technology Co., Ltd.
6 / 8
MSP Garage Installation
1. Unscrew the fixed screws with a screwdriver, and remove the block, as shown in figure:
2. Install the small converters to the slots, as shown in figure:
3. Fix the block to the MSP rack with fixed screws, as shown in figure:
4. Connect one end of the DC power cord to the DC power interface of the MSP rack and the other end to the
power interface of the small converter, as shown in figure:
According to above method, connect the small converters one by one with the DC power cords, user can install
up to 10 different types of small converters in one frame.
5. Connect the small converters to the devices with the specific cables.
6. Plug in the power cord (AC 85~264V IEC-3 port), and push the power switch to the ON position, the device
will enter normal working.
© Xiamen RGBlink Science & Technology Co., Ltd.
7 / 8
CONTACT INFORMATION
Warranty:
All video products are designed and tested to the highest quality standard and backed by full 3 years parts and
labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink
warranties are only valid to the original purchase/owner. Warranty related repairs include parts and labor, but
do not include faults resulting from user negligence, special modification, lighting strikes, abuse(drop/crush),
and/or other unusual damages.
The customer shall pay shipping charges when unit is returned for repair.
Headquarter: S601~609 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province,
P.R.C
● Tel: +86-592-5771197
● Fax: +86-592-5788216
● Customer Hotline: 4008-592-315
● Web:
~ http://www.rgblink.com
~ http://www.rgblink.cn
● E-mail: support@rgblink.com
